2017-2025 Powerstroke 2.5" SST Lift Kit w/ 1-Piece Driveshaft (69-2740)

Description

Fits

Year	Make	Model
2017-2025	Ford	F250/350 Super Duty (SRW)

Note: For use on SRW trucks with 1-piece drive shaft

Give your 2017-2025 Ford F250/F350 SRW a clean, aggressive stance with the ReadyLIFT 2.5" SST Lift Kit. This kit lifts 2.5" front and 2.0" rear while keeping your factory ride, quiet sound, and towing rake intact. Easy to install with no cutting or drilling, it’s a lifetime-guaranteed upgrade that rides great and looks even better.

Part Number: 69-2740

Features

• Maintains your factory ride
• Allows for the installation of up to 37" tires
• 2.5" front lift & 2" rear lift

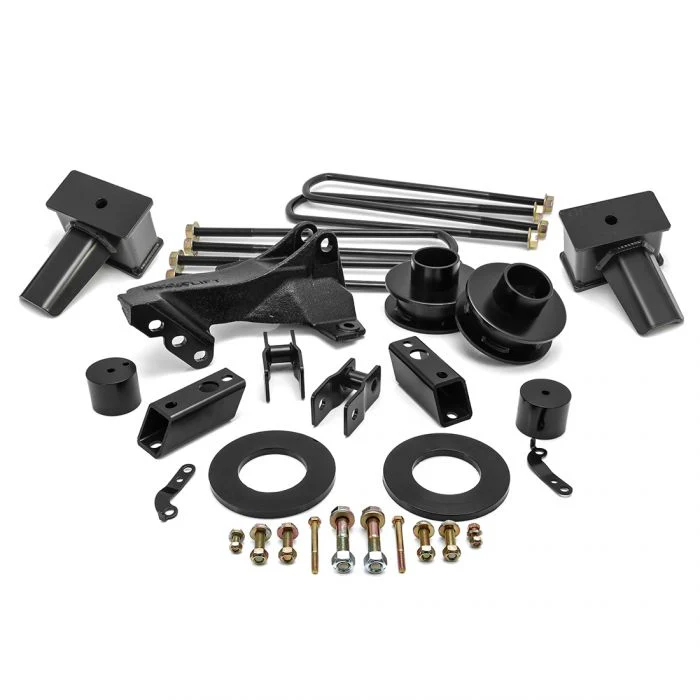

Includes:

• 2.5" coil spring spacers with sound isolators
• Fabricated steel rear lift blocks with longer u-bolts
• CNC-machined billet carrier bearing spacer
• OEM-style front track bar relocation bracket
• Longer sway bar end links, brake line bracket, bump stop extensions
• Front shock extensions

Additional Info

Tire Fitment:

• 35" Maximum tire diameter
• 35x12.50 for no rub on a 9" wide wheel with +25 offset
• 17" - 35X12.5R17
• 18" - 315/70R18
• 20" - 295/65R20 / 325/60R20
• 22" - 35X12.5R22

Additional Information

• For use on 4WD Single Rear Wheel (SRW) trucks with a 1-piece driveshaft only.
• This kit will not work on Tremor edition trucks.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
• 2020+ Super Duty may sit slightly taller in the rear than prior model years due to block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click Here to view installation instructions
