Universal 4Banger LED Fog Lights (BAF005.2)

Description

Fits: Universal

IMPORTANT - These are pods only, you need to select the correct brackets for your application

These DO NOT come with any wiring or connectors, select BAF135H in the 'add-ons' tab

Some of the best SAE-compliant street lights you can get, are fully adjustable for precision aiming & featuring an air-cooled design that prevents heat-soaking. These 4-Banger series fit nicely, and with a plug-and-play design, they make installation a breeze.

Part Number: BAF005.2/ BAF011.2/ BAF012.2/ BAF001.2/ BAF002.2

Features

• NCS & HXB Options: Choose SAE-compliant NCS or HXB Wide Beam for exceptional lighting
• Easy Install: Plug-and-play setup, no modifications needed
• Full Adjustability: Precise beam control with +/- 6° vertical adjustability
• Air-Cooled: Ducts for active cooling, ensuring long-lasting brightness

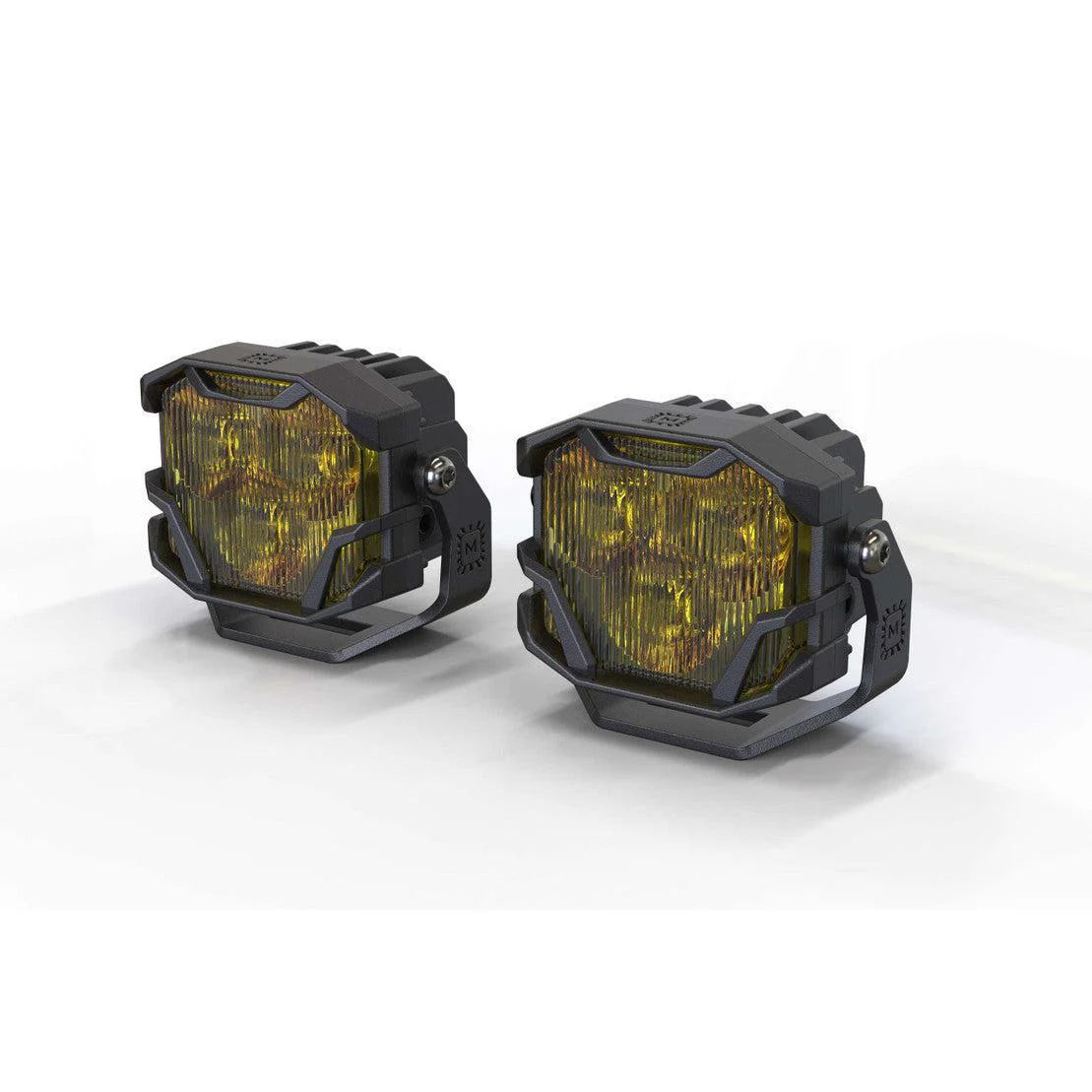

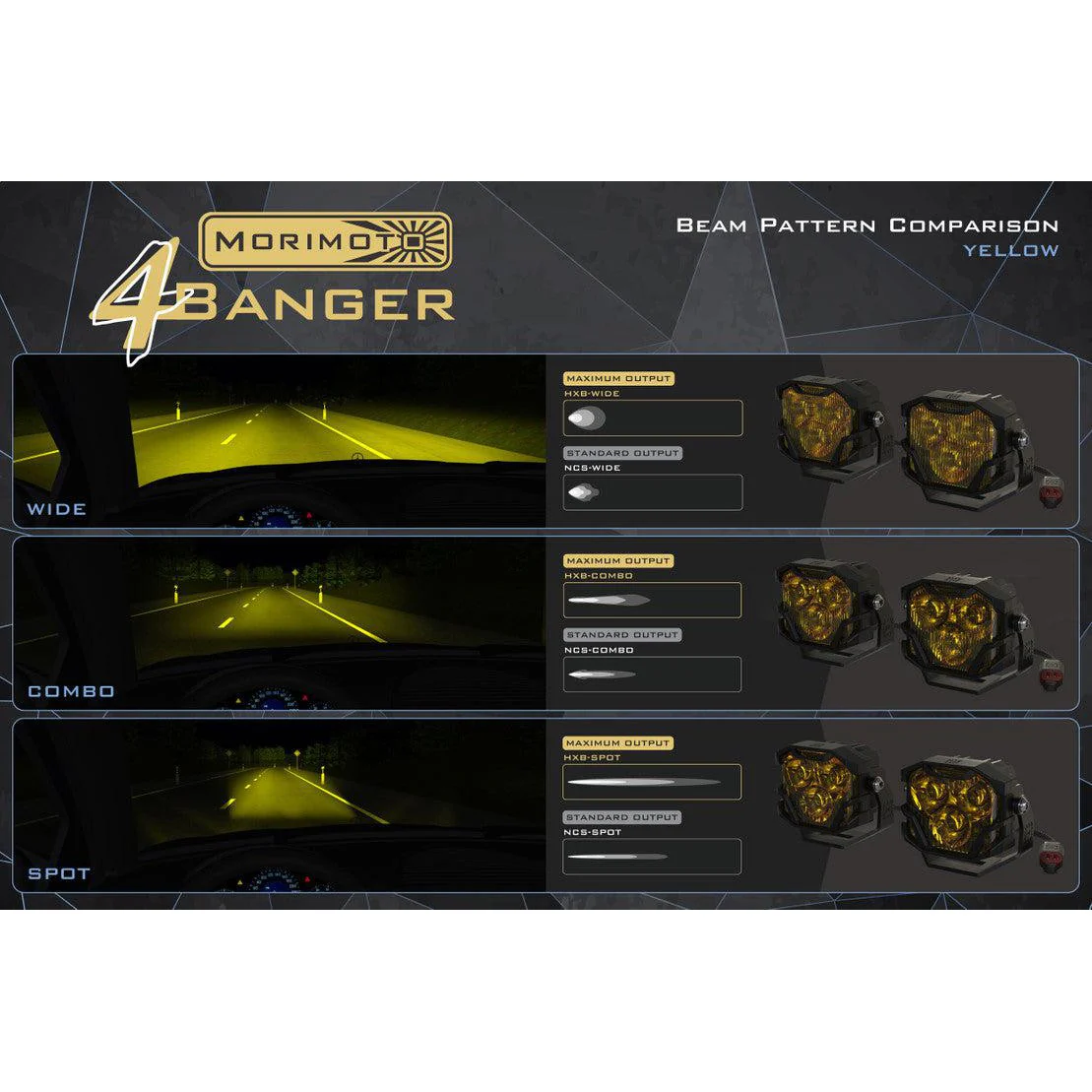

• All-Weather: Opt for white or yellow-output for versatile performance

Included:

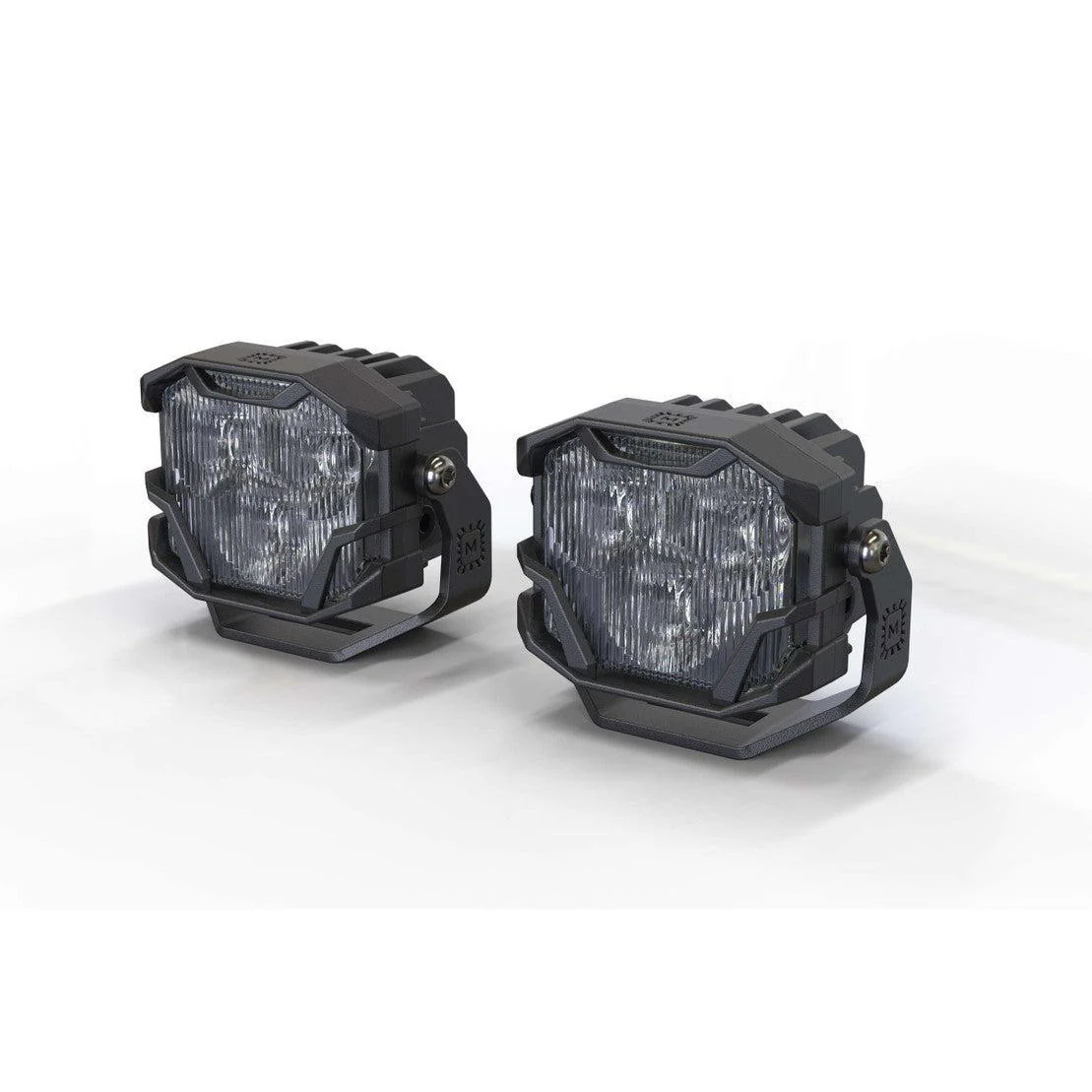

• LED Pods: 2x (One Pair) Morimoto 4Banger

• Necessary Hardware

Additional Info

• NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
• NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
• HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
• Input Voltage: 9-18V DC
• Power (stabilized): 15.6w (NCS) 42w (HXB)
• Current: 1.5A (NCS) or 3.2A (HXB)
• Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
• Dimensions: 82mm W, 67mm H, 60mm D
• Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Notes

• You will need to select the appropriate brackets for your vehicle
