2017-2022 F-Series Pintop 2-3" Lift Kit (CS-FLVL-PT25-17-GAS)

Description

Fits

Year	Make	Model
2017 - 2022	Ford	F-250 Super Duty GAS
2017 - 2022	Ford	F-350 Super Duty GAS

Note: NOT compatible with diesel applications

Review 'Additional Info' for required and optional components

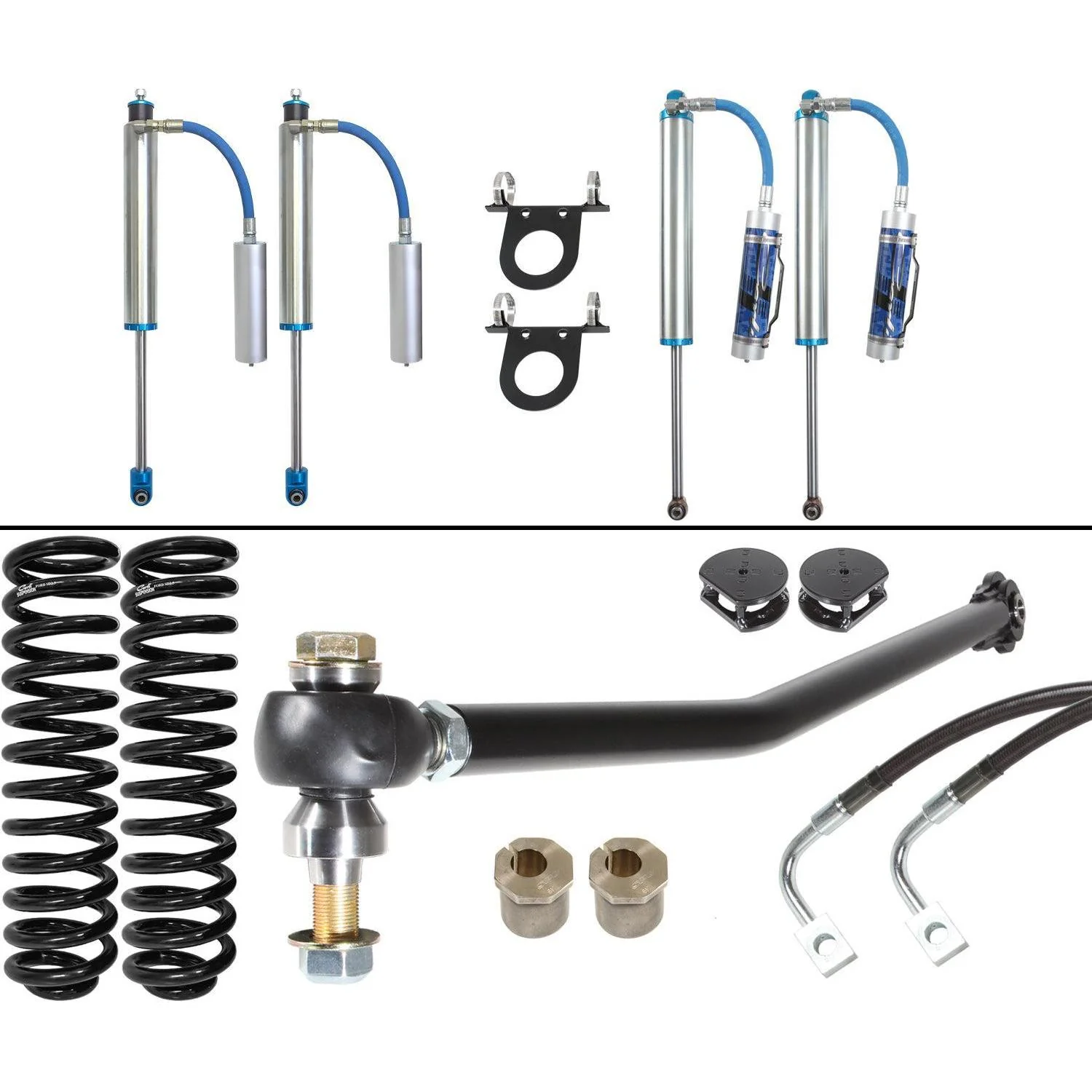

One of the best off-road suspension systems Carli offers, the Pintop 2.5" leveling lift kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These Pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, resulting in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-FLVL-PT25-17-GAS

Features

• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

• Fully rebuildable, serviceable, and tuneable for whatever your preference is
• Provides improved heat dissipation, consistent damping, and a smoother, more comfortable ride

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 2.5"/3.5" LIFT CS-FEL-LVL-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17

  • Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD or 17-26 FORD F250/350 4X4 XHD +2000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XHD or 17-26 FORD F250/350 4X4 XXHD +3500LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XXHD

  • Leaf Spring Shackle: CS-FSHACKLE-11
  • Adjustable Radius Arms: CS-FARA-LVL-05
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-05
  • Trophy Hitch: CS-FHITCH-1723

Notes

• A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar & Leaf Spring option to form a complete system.
