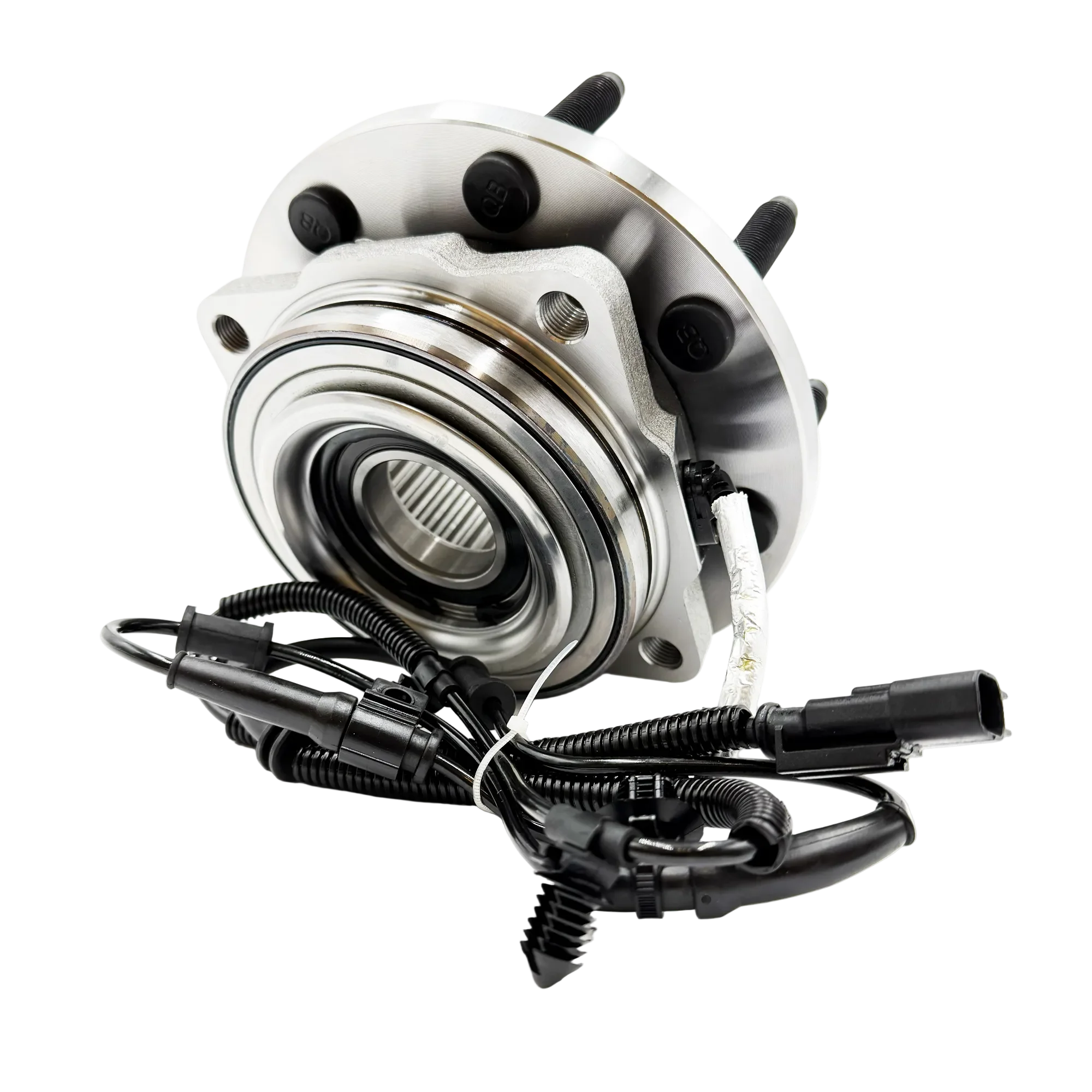

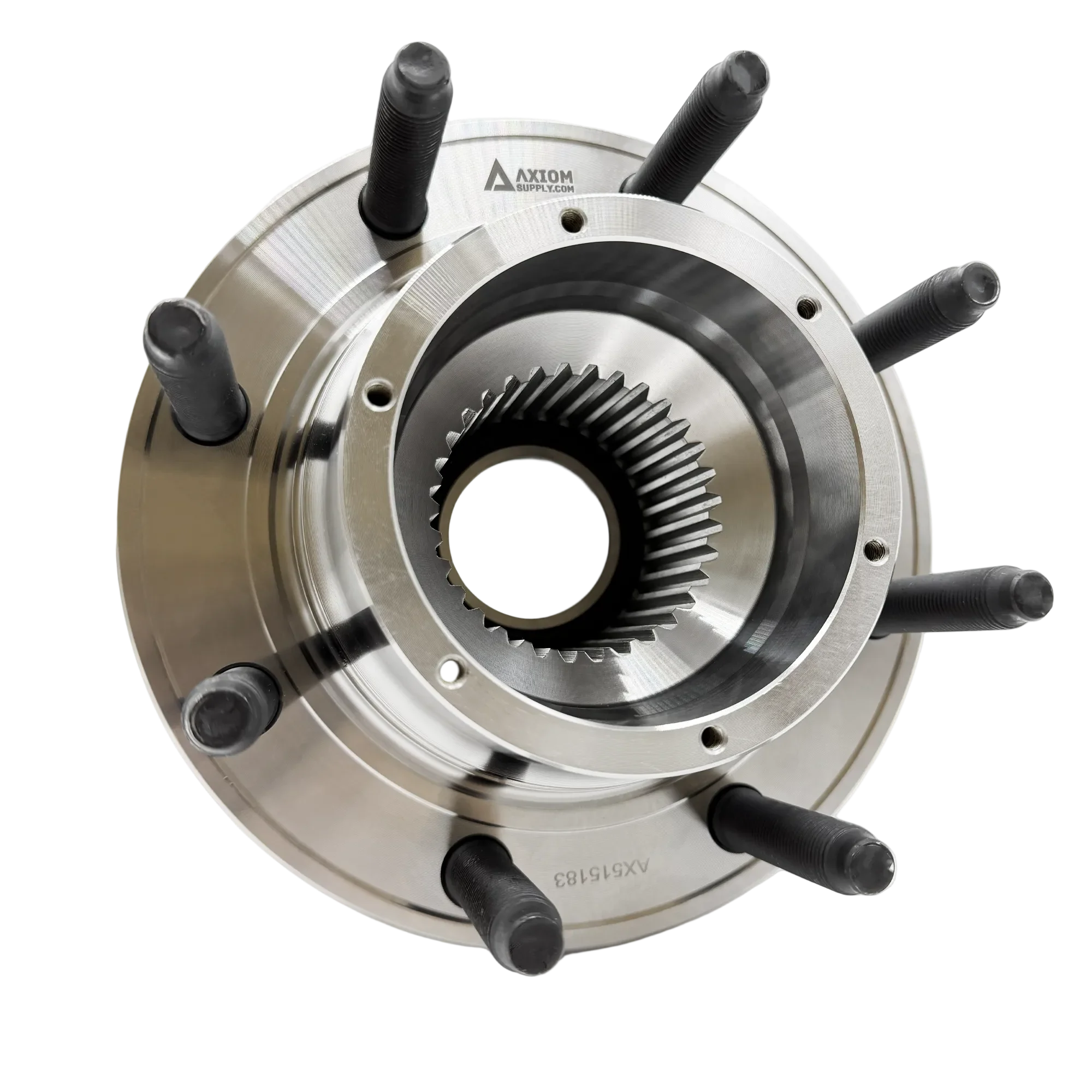

2017-2022 Powerstroke Wheel Bearing Assembly (AX515183)

Description

Fits

Note: Fits 4WD Single Rear Wheel (SRW) Models ONLY!

Built for trucks that work hard and refuse to quit, the Axiom Supply Wheel Bearing and Hub Assembly delivers confidence where it matters most. A reinforced hub and proprietary bearing design minimize deflection under heavy loads, translating to sharper steering feel and stronger braking control. Whether you are towing, running oversized tires, or putting your Super Duty through demanding daily use, this assembly is engineered to keep everything tight and predictable. Axiom units utilize precision tapered roller bearings packed with high-performance grease. Every assembly is outfitted with Grade 10.9 zinc-plated studs and a durable ABS sensor designed to survive heat, mud, and moisture.

Part Number: AX515183

Features

• Precision tapered roller bearings for smooth, maintenance-free operation
• Reinforced hub design minimizes deflection under heavy towing loads
• Premium Grade 10.9 cold-formed, zinc-plated wheel studs
• Durable ABS sensor for reliable signal transmission in harsh conditions
• 8 x M14-1.50 fine thread lug configuration

Specifications

• Hub Nut Torque: Multi-step sequence required
• Spindle Bolt Torque: 133 lb-ft
• Caliper Bolt Torque: 166 lb-ft

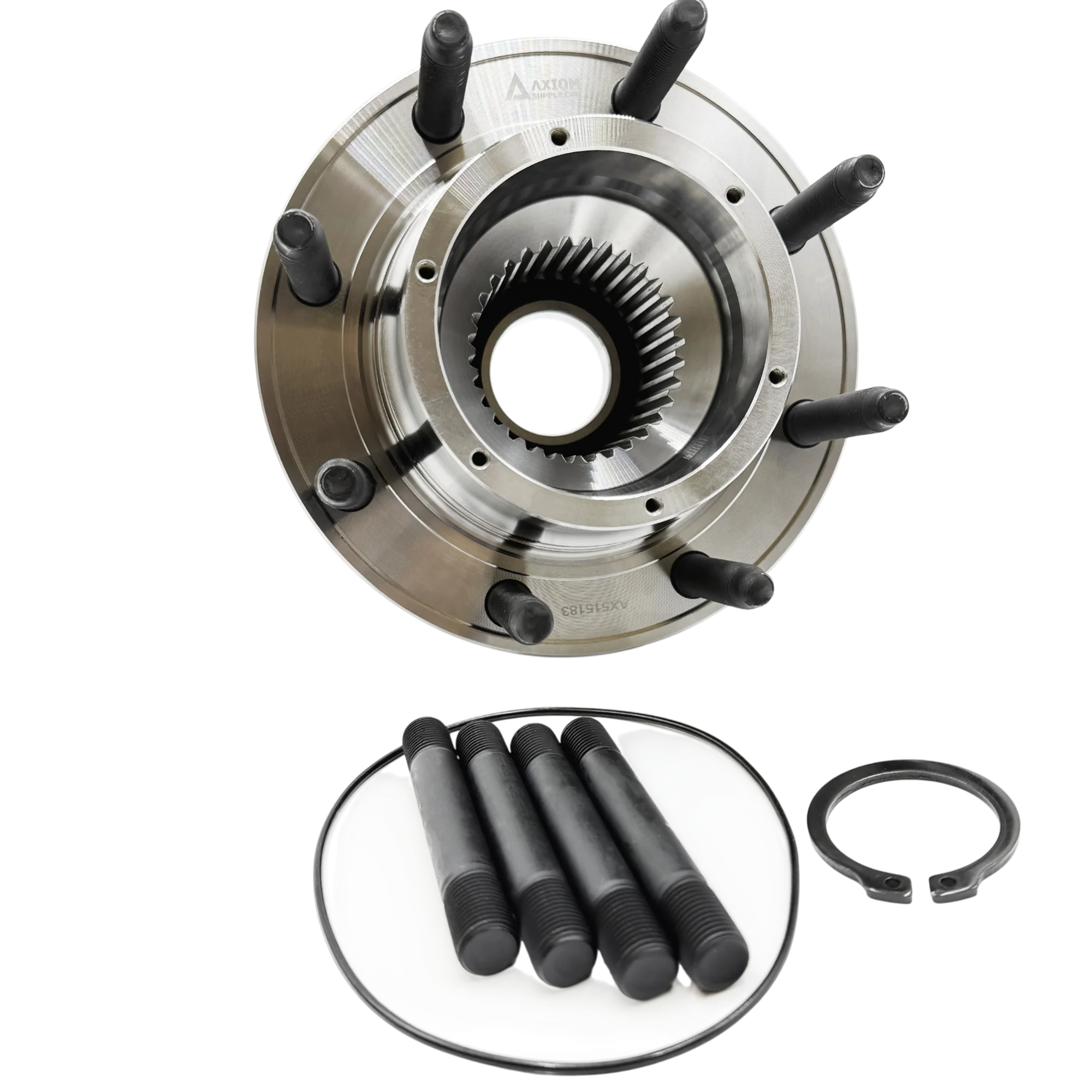

Includes

• 1 x Wheel Bearing & Hub Assembly with integrated ABS wire
• 4 x Mounting Bolts
• 1 x O-Ring
• 1 x Retainer Ring

Notes

• Fits 4WD models only.
• Fits Single Rear Wheel (SRW) models only; NOT for Dual Rear Wheel (DRW).

Installation

• Secure the hub nut by tightening it to 21 ft-lbs (28 Nm) while rotating the wheel clockwise. Then, loosen it by 180 degrees. Next, with the brake disc turning, tighten the nut to 17 ft-lbs (2 Nm).
