2017-2026 Powerstroke 1-2" Performance Spring Leveling Kit (BDS1910H)

Description

Fits

Year	Make	Model	Front Lift
2017-2019	Ford F-Series	6.7L Powerstroke	1"
2020-2026	Ford F-Series	6.7L Powerstroke	2"

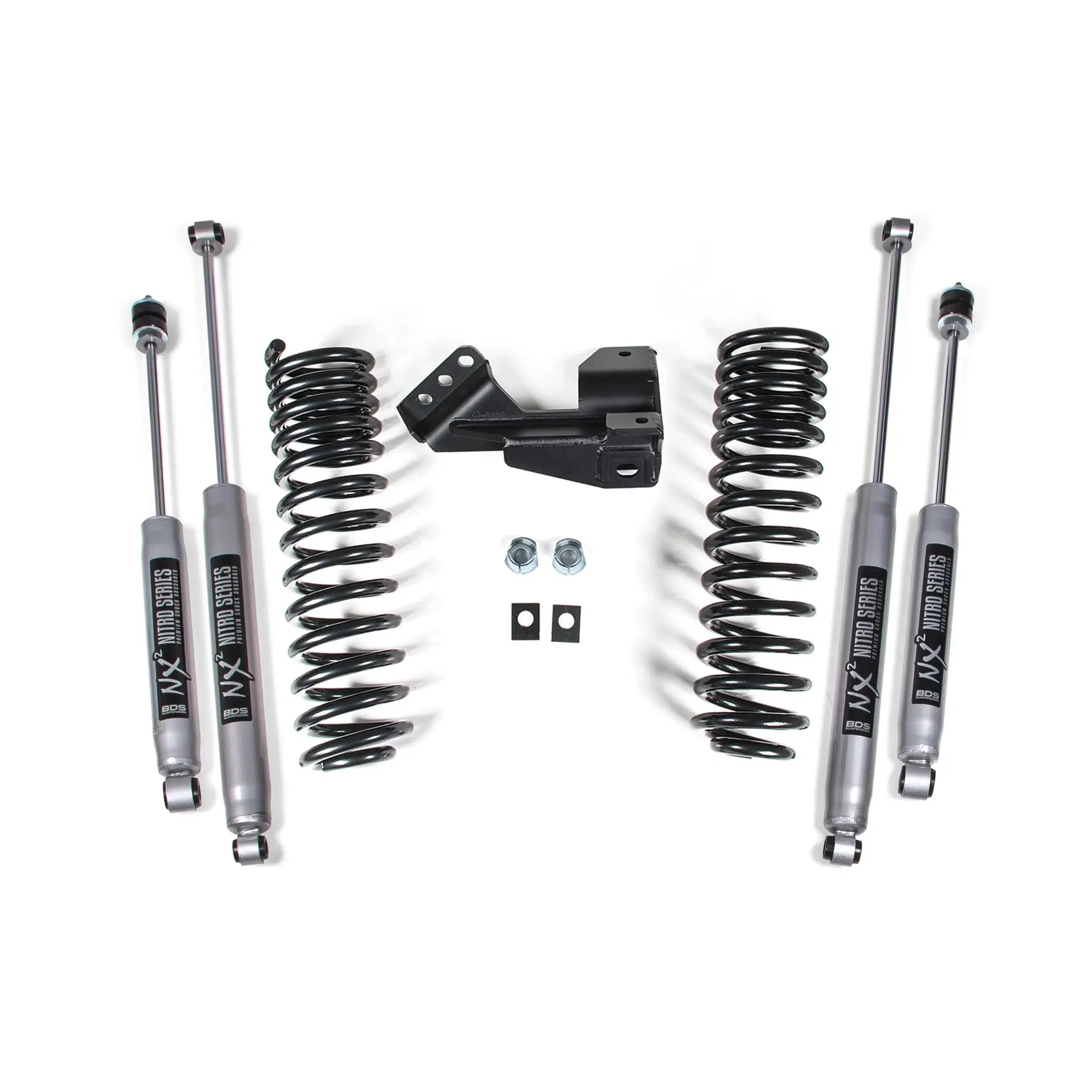

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Featuring dual-rate Pro-Ride coil springs, a track bar relocation bracket for steering correction, and alignment cams. This kit is rounded out with your choice of NX2 or FOX 2.0 Performance Series shocks to further dial in the comfort and control of your Powerstroke.

Part Number: BDS1910H

Features

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty track bar relocation bracket designed to recenter the front axle
• NX2 Nitro or Fox 2.0 shocks with vehicle-specific valving for better control
• Rear Lift Height : 0"

• Diesel or Gasoline applications

Tire Fitment:

• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Notes

• 2017-2019 models net 1" of lift height; requires an additional 1" coil spring spacer to sit level.
• 2020-2023 models net 2".

• Kit designed for diesel models; Gas models will achieve approx. 1/2" more ride height.
• 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road.  For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock.  Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications.  If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information.
