2017-2024 Powerstroke Front 1-3" Lift Track Bar Bracket Kit (BDS123301)

Description

Fits

Year	Make	Model	Lift	Location
2017-2024	Ford	F250/F350 Super Duty	1-3"	Front



Track Bar Relocation Brackets are to center the axle and return the geometry to near-stock. The Ford Super Duty Replacement Track Bar Bracket for 1-3" of lift. Can be used to help center the front axle on a Super Duty with a 1-3" leveling kit already installed.

Part Number: BDS123301

Features

• 1-3" of Front Lift
• OE track bar bracket & hardware
• Uses original track bar bracket mounting holes

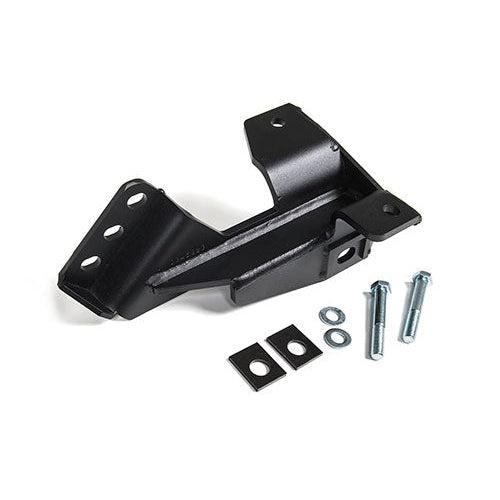

Includes:

• One Track Bar Bracket
• Two Track Bar Cams

Warranty

• Supplemental Drivetrain Limited Protection provided by 560Plus.com - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
• Free, no cost protection for BDS customers
• Could save thousands of dollars on possible repairs
• An easy online registration process
• Available for most late-model vehicles

Notes

• If installing on a vehicle with 3” of lift, offset the holes in the cams closer to the passenger’s side.
• If installing on 2017- 2019 Super Duty with 1-2” of lift, offset the holes in the cams closer to the passenger’s side (Fig 4).
• If installing on 2005-2016 or 2020+ Super Duty with 1-2” of lift, offset the holes in the cams closer to the driver’s side

Installation

• Click Here For Installation Instructions
