2018-2023 Wrangler EnduroSport 2" Suspension Lift System (JL20-1X5310-L4)

Description

Fits

Year	Make	Model	Engine
2018-2023	Jeep	Wrangler, JL 4 Door	3.6-liter V6

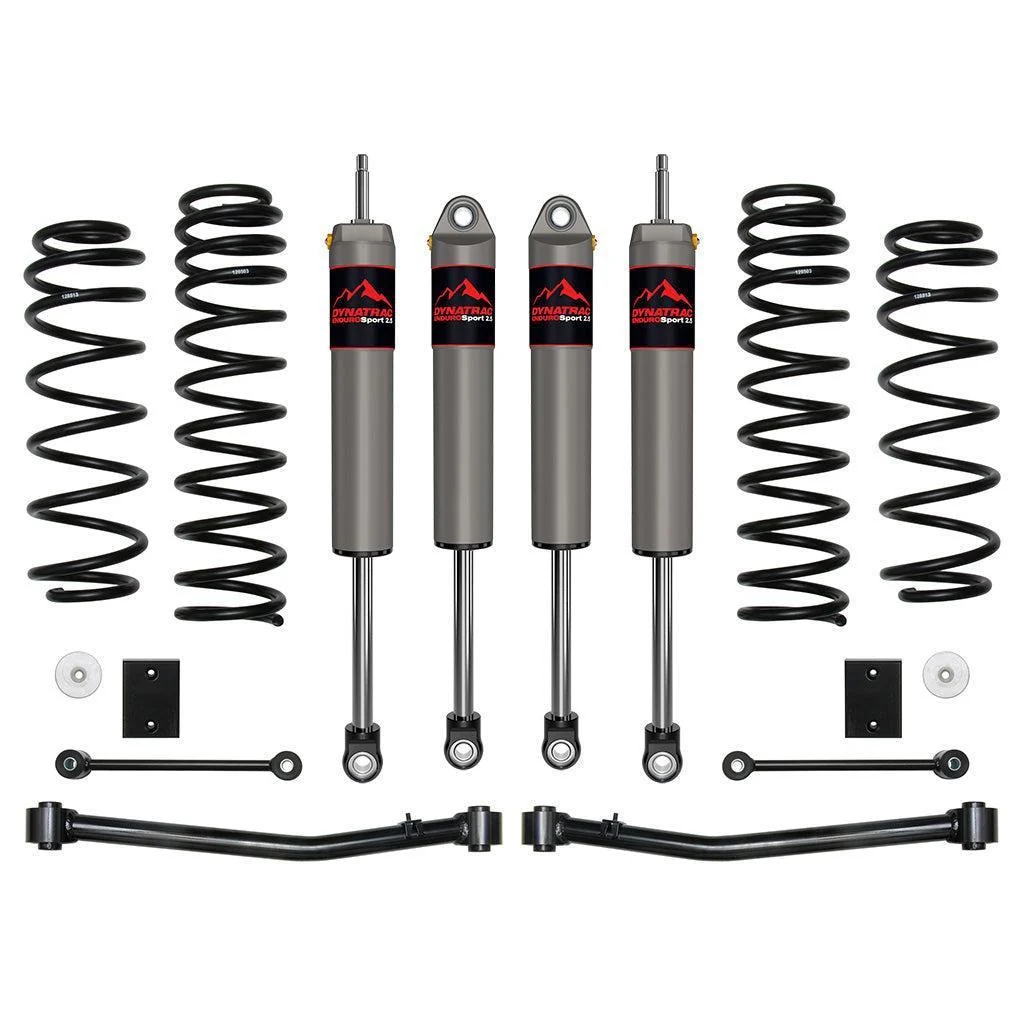

The 2018-2023 Wrangler EnduroSport 2" Suspension Lift gives your Jeep just enough lift to fit bigger tires—35-inch for Sport/Sahara, 37-inch for Rubicon—without cutting or rubbing. It keeps your ride smooth with Dynatrac’s coil springs and the 2.5 EnduroSport shocks built for heat dissipation and durability. Thick steel wall front links boost handling and reduce noise, plus you get brake line brackets, sway bar links, and bump stop extensions.

Part Number: JL20-1X5310-L4

Features

• Produces 2 inches of lift
• 2.5 EnduroSport shocks with Jeep JL-specific valving offer improved shock damping and performance
• Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 2
• Maximum Lift Front: 2
• Maximum Lift Rear: 2
• Mounting Hardware Included: Yes
• Rear Spring Rate Type: Linear
• Reservoir Style: Internal
• Shock Body Diameter: 2.5
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Notes

• This Dynatrac EnduroSport suspension lift kit has not been tested on, and is not recommended for use on 2-door Jeep Wranglers, or any models with powertrain other than the 3.6-liter V6 gasoline engines. This package does not fit Jeep Wrangler Rubicon 392 or 4xe models.

Tire Fitment

• OEM Wheels & Tires Fitment: Yes
• Easily fits 35-inch tires on Sport or Sahara models
• Fits 37-inch tires on Rubicon models or any high fender flare rig
• Recommended Aftermarket Wheels: 8.5 Wide, 4.50" Backspace, -6mm Offset
• Recommended Aftermarket Tires (Non-Rubicon): 35" x 12.50" (37 x 12.50 with fender trimming or high clearance fenders)
• Recommended Aftermarket Tires (Rubicon): 37" x 12.50"
