2018-2023 Wrangler EnduroSport 3" Suspension Lift System (JL30-1X5310-L6)

Description

Fits

Year	Make	Model
2018-2023	Jeep	Wrangler, JL

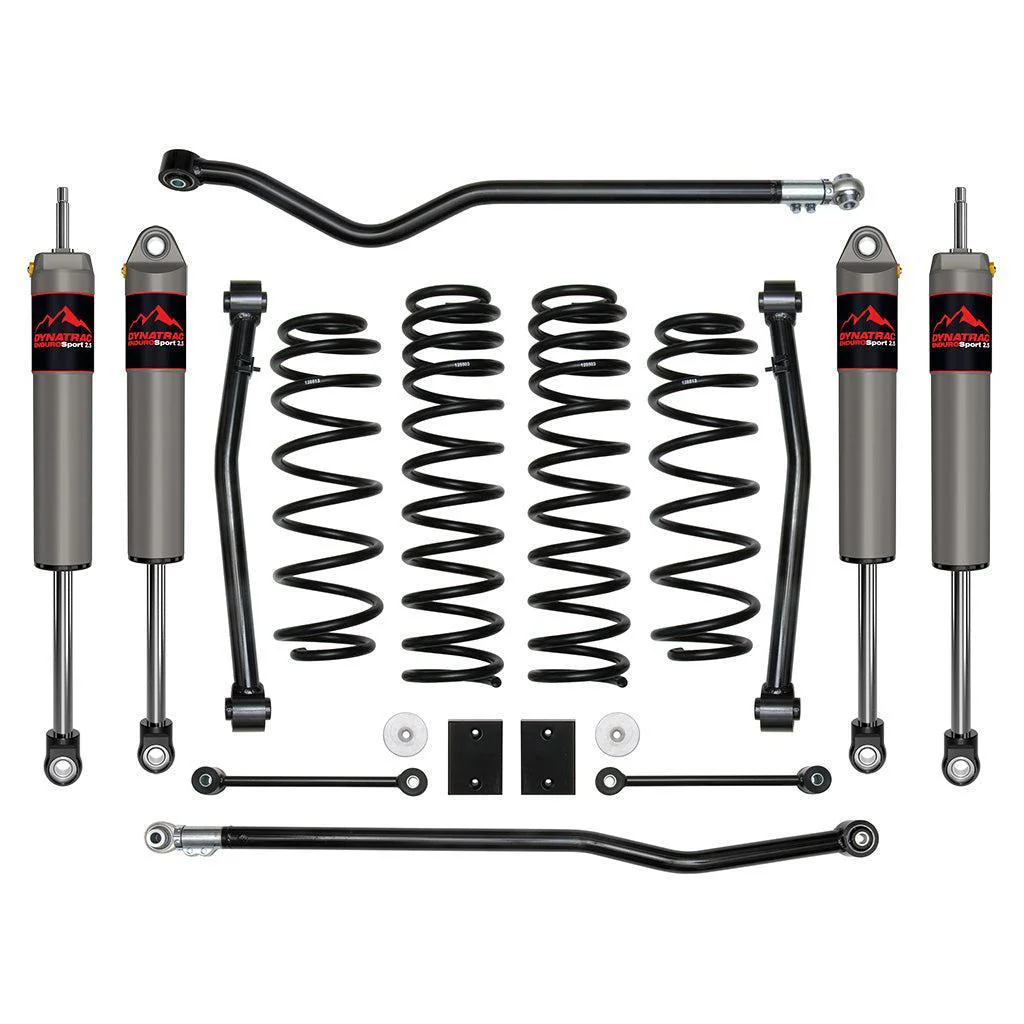

The 2018-2023 Wrangler EnduroSport 3" Suspension Lift System takes your Jeep JL from stock to beast. Featuring upgraded 2.5 EnduroSport shocks for better damping and heat control, plus 3" dual-rate coil springs, this kit boosts wheel travel by 3" up front and 2" in the rear. With tubular steel front lower links, adjustable track bars, bump stop spacers, sway bar links, and all the hardware you need, it’s a no-nonsense upgrade that seriously improves ride quality and off-road performance.

Part Number: JL30-1X5310-L6

Features

• 3" lift height over stock
• Fits 35" tires (37" with optional extended bump stop spacer kit)
• 3" front, 2" rear increase in wheel travel
• Improves on and off-road ride quality over stock
• Dual rate coil springs with lifetime guarantee against sagging/breakage
• 2.5 EnduroSport shocks with Jeep JL-specific valving offer greater shock damping and performance
• Tubular steel link arms with dual durometer bushings for noise-free performance, maximum articulation, and minimal bind
• Adjustable track bars offer on-Jeep adjustability, improve steering response, and reduce suspension bind under articulation
• 100% bolt-on
• Easy install
• Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Bushings Included: No
• Coil Spring End 1 Type: Closed
• Coil Spring End 2 Type: Closed
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Progressive Dual Rate
• Grade Type: Performance
• Maximum Lift: 3
• Maximum Lift Front: 3
• Maximum Lift Rear: 3
• Mounting Hardware Included: Yes
• Rear Spring Rate Type: Progressive Dual Rate
• Reservoir Style: Internal
• Shock Body Diameter: 2.5
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

Notes

• Springs are NOT rated for use with models equipped with EcoDiesel engines.
• Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.

Tire Fitment

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
• Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)
