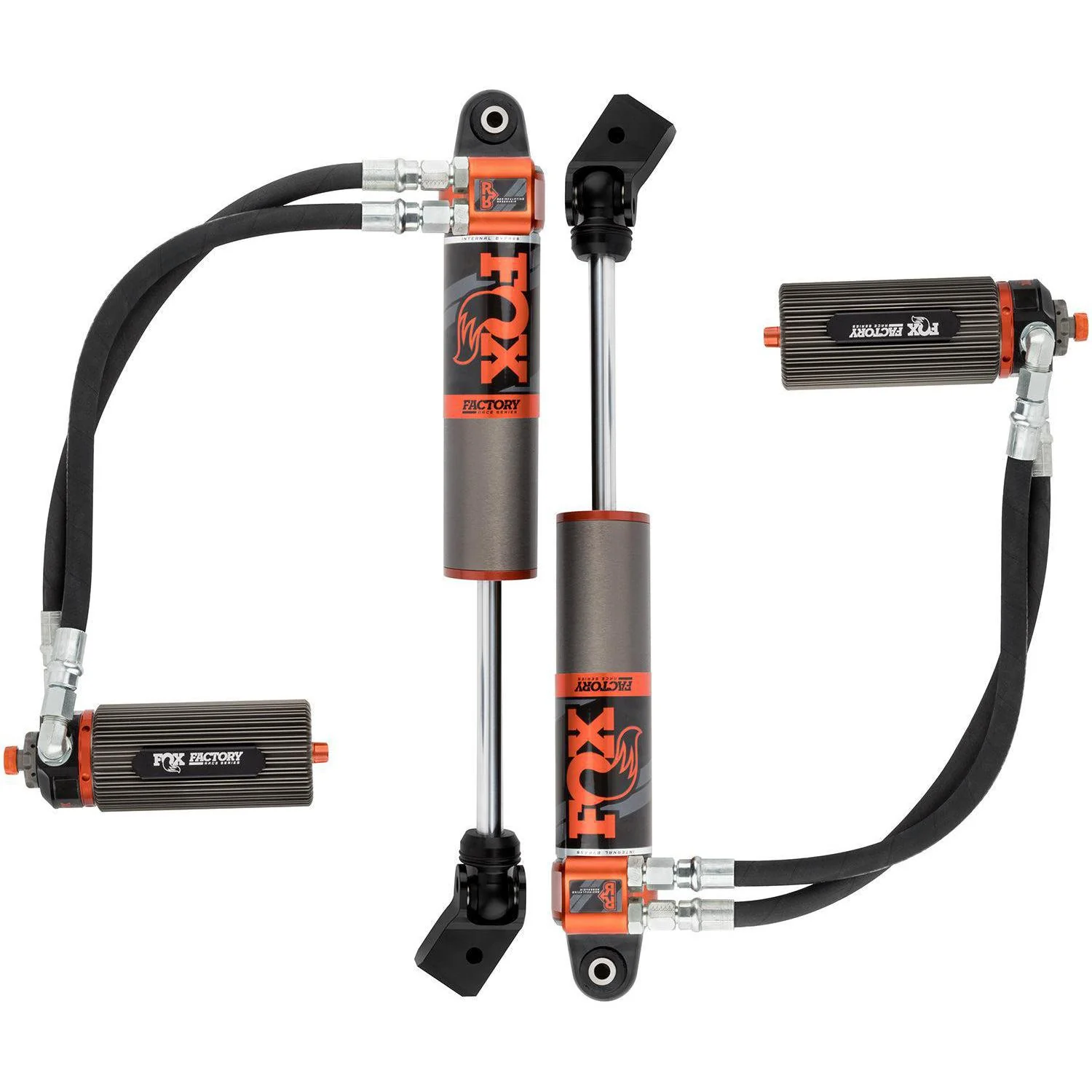

2018-2024 Wrangler 3.0 Race Series 3.5-4.5" Lift Internal Bypass Front R/R Shock (883-26-077)

Description

Fits

Year	Make	Model
2018 - 2024	Jeep	Wrangler JL



The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the Piston as it moves through the initial Travel, and then forces fluid through the Piston at extreme ranges of compression and rebound.

This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.

Part Number: 883-26-077

Features

• Universal Finned Reservoir Clamp
• Designed to bolt onto your 3.5-4.5" aftermarket suspension lift kit
• Utilizes OEM shock pivots
• New remote Recirculating Reservoir Bridge and hard-anodized
• Aluminum Body Dissipates Heat Faster Than Steel
• Multiple Internal Damping Zones
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components


Specs:

• Travel: 10.72"
• Front Lift Height: 3.5-4.5"
• Extended Length: 27.7"
• Compressed Length: 16.98"
• Top Mount: EB2
• Bottom Mount: EB2


Notes

• Requires Front DriveShaft
