2019-2020 Raptor 3.0 Race Series 0-1" Lift Internal Bypass Rear Coilovers (883-09-153)

Description

Fits

Year	Make	Model
2019 - 2020	Ford	F-150 Raptor



By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.

Part Number: 883-09-153

Features

• External Cooling System (ECS2)
•  Mounting Hardware Included

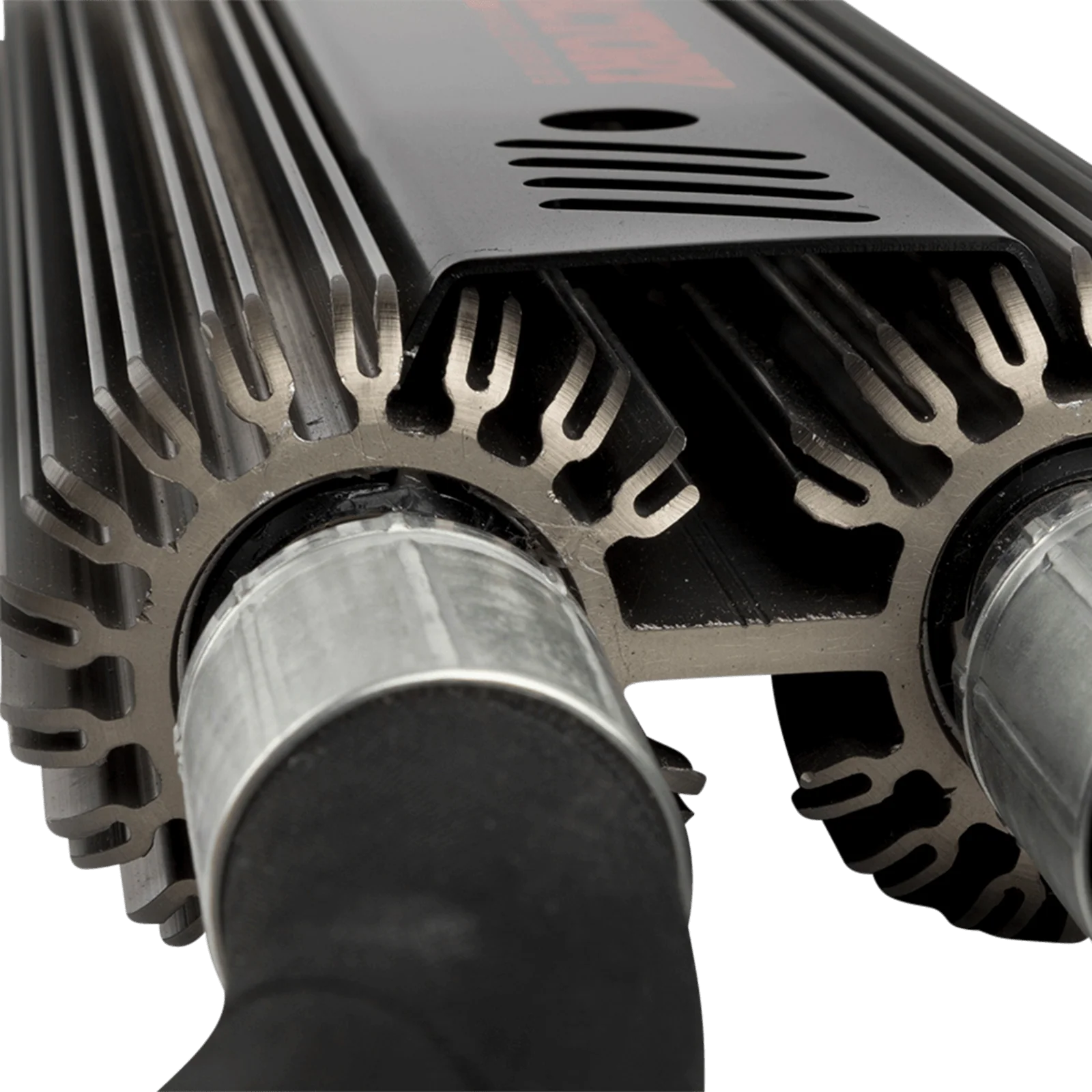

• Finned External Reservoir System Dissipates Heat Fast
• Quick Switch Compression And Rebound Adjusters
• Live Valve Terrain Adaptive Technology,

• Body Plating Hard-anodized for a durable finish
• Anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated 17-4 H900 stainless steel
• Hard anodized 6061-T6 billet aluminum high-flow race Piston
• Application-specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
• PTFE-lined, heat-treated, alloy steel spherical keeps the shock movement quiet and smooth

Specs:

• Extended Length: 31.18"
• Compressed Length: 18.99"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Travel: 12.19"
• Rear Lift Height: 0-1"
