2019-2024 Cummins 3500 4WD 6" 4-Link Lift Kit (BDS1690H)

Description

Click here to customize this Kit

Fits

Year	Make	Model	Type
2019-2024	Dodge / Ram	3500 w/ 6.7L Cummins & 4x4	w/o Air-Ride



BDS Suspension expands its listings for the late model 2019+ Cummins 3500 4WD diesel trucks with new 6" 4-link conversion systems. Designed to improve the looks and performance of your new RAM, these new kits join existing radius arm variants to offer improved strength and handling on/off-road. This kit includes everything necessary to correctly lift them for improved offroad capability with room for larger tires while improving overall vehicle handling.

Part Number: BDS1690H

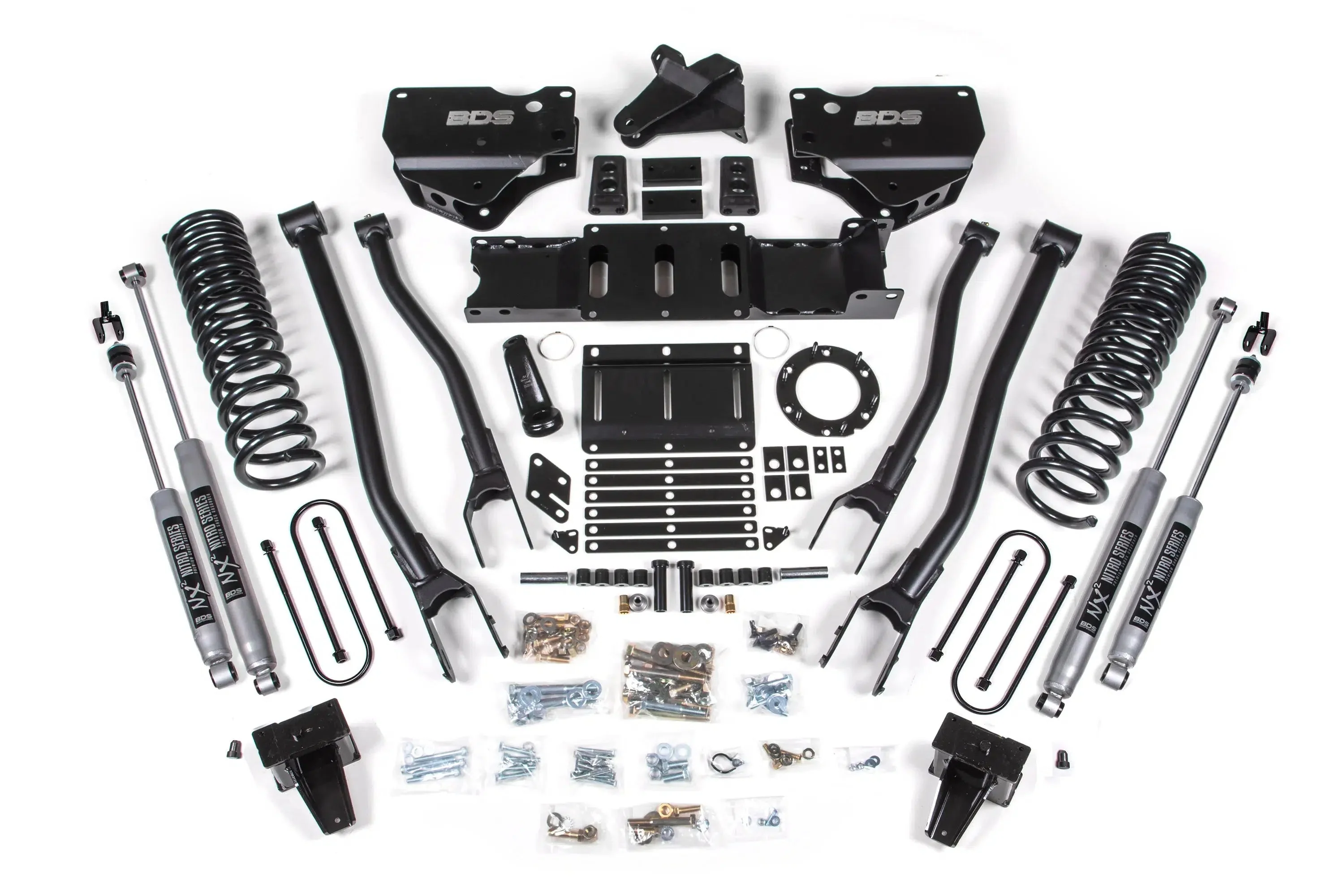

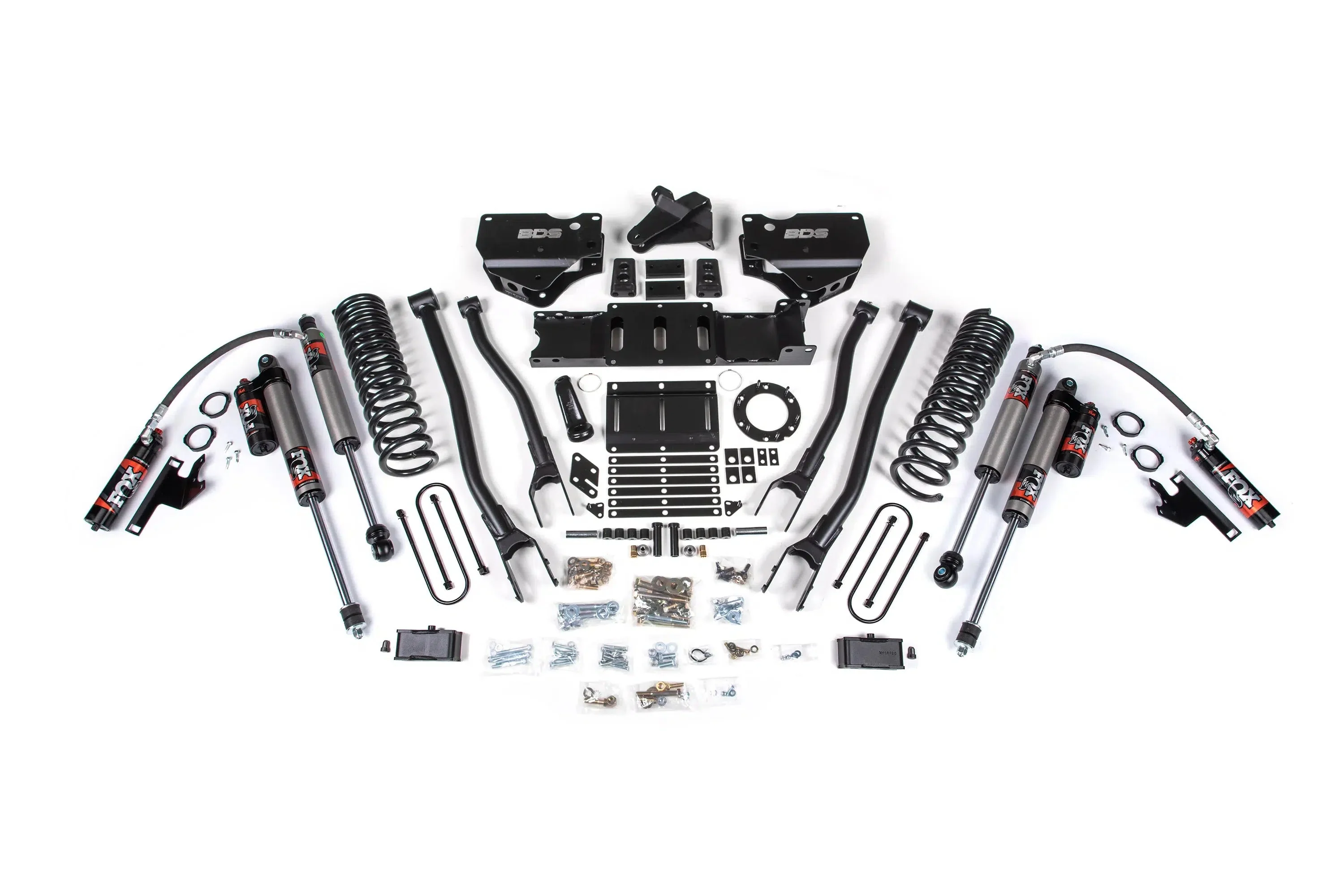

Features

• Forged drop pitman arm to correct steering angles
• HD bar drop bracket to re-center the front axle
• Sway Bar drop brackets to reposition the OE sway bar for optimal performance
• NX2 or Fox shocks
• HD replacement transmission cross-member
• Transfer case indexing ring to maintain use of the 4wd
• Allows for clearance of up to 37" tires
• 5" Rear blocks
•  4-link 1/4" steel brackets, high strength upper & lower control arms

Tire & Wheel Combinations:

• 37x12.50 w/ 20x9 and 4.5-5.625"
• 37x12.50 w/ 20x9 and 5.625"

Notes

• T-case indexing ring available for 6-bolt and 8-bolt equipped models, check the vehicle before ordering
• Will not fit Cab and Chassis models
• Will NOT fit rear air-ride equipped models
• Diesel models only
• Will NOT Fit Mega Cab Aisin Transmissions (8-bolt)
• Does not fit Dually Models with 8-bolt Transmissions (Aisin)
• Does not work with manual shift transfer cases


Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)
