2019-2023 Ram 1500 6" Lift Kit w/o Factory Air Suspension (44-19601)

Description

Fits

Year	Make	Model
2019-2023	Dodge Ram	1500 w/ 22" Wheels ONLY

Note: Not for use with factory air ride equipped Ram trucks, or Classic Body Style

Specially engineered for the Rams without factory air ride and those massive 22" wheels. ReadyLift has dedicated copious amounts of time and testing to ensure you get a kit that looks great, lasts long, and exceeds performance expectations on any terrain. Featuring dual-rate rear coil springs and rear control arm brackets that minimize small bump sensitivity and increase mid-stroke support. HD steel front cross-members and differential drop brackets retain factory geometry, ride quality, and handling while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI.

Part Number: 44-19601

Features

• Rear control arm brackets combined to better capture small bump sensitivity and mid-stroke support
• HD steel front cross-members and differential drops retain factory geometry
• Provides proper differential rotation to ensure there is no driveline vibration
• Maintains factory ride quality and handling

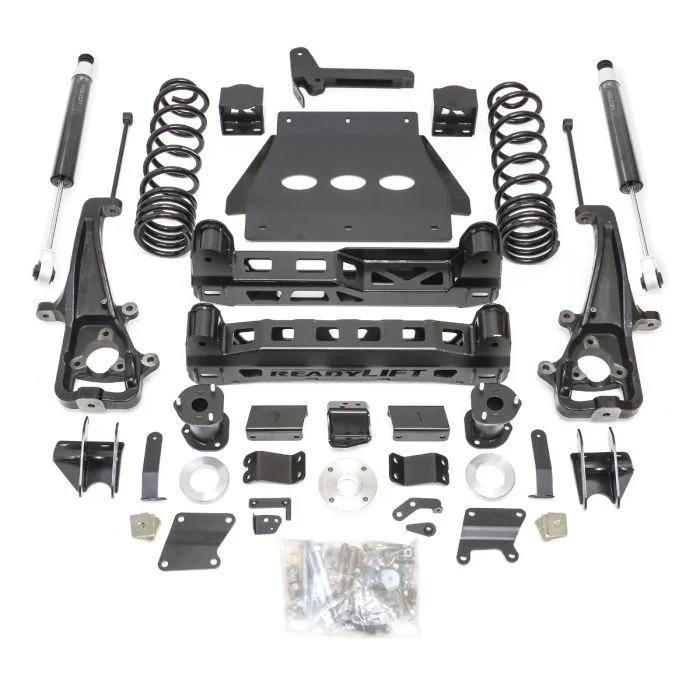

Includes:

• (2) Crossmembers
• (2) Cast iron knuckles
• (4) Top mount air strut extensions
• (2 Falcon 1.1 shocks
• (1) Rear panhard bar bracket
• (2) Sway bar end links
• (1) Skid plate
• All necessary hardware and brackets

Additional Info

Tire Fitment:

• Recommended max tire with no trimming: 20x9 0 offset - 37x12.50 tire
• Max with trimming: 20x10 -18 offset - 37x12.50
• Not for use on Ram 1500 with factory 22" wheels
• Not for use with 18" wheels
• Trimming requirements for larger than recommended wheel/tire include front valance, front felt liner edge, rear felt liner edge, and front rear well edge mud flap

Notes

• Not for use with factory air ride-equipped Ram trucks, Ram 1500 trucks that came factory with 22" wheels, or EcoDiesel Motors
• Cannot use 18" wheels with this application
• Only works on the new body 2019+, Does not work on the classic body style
• Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here for installation instructions
