2019-2024 Cummins 6" 4-Link Lift Kit w/ Rear Air Ride (BDS1733H)
Description
Fits
| Year | Make | Model |
| 2019-2024 | Dodge Ram HD | 6.7L Cummins 3500 |
Click here to Customize this Kit

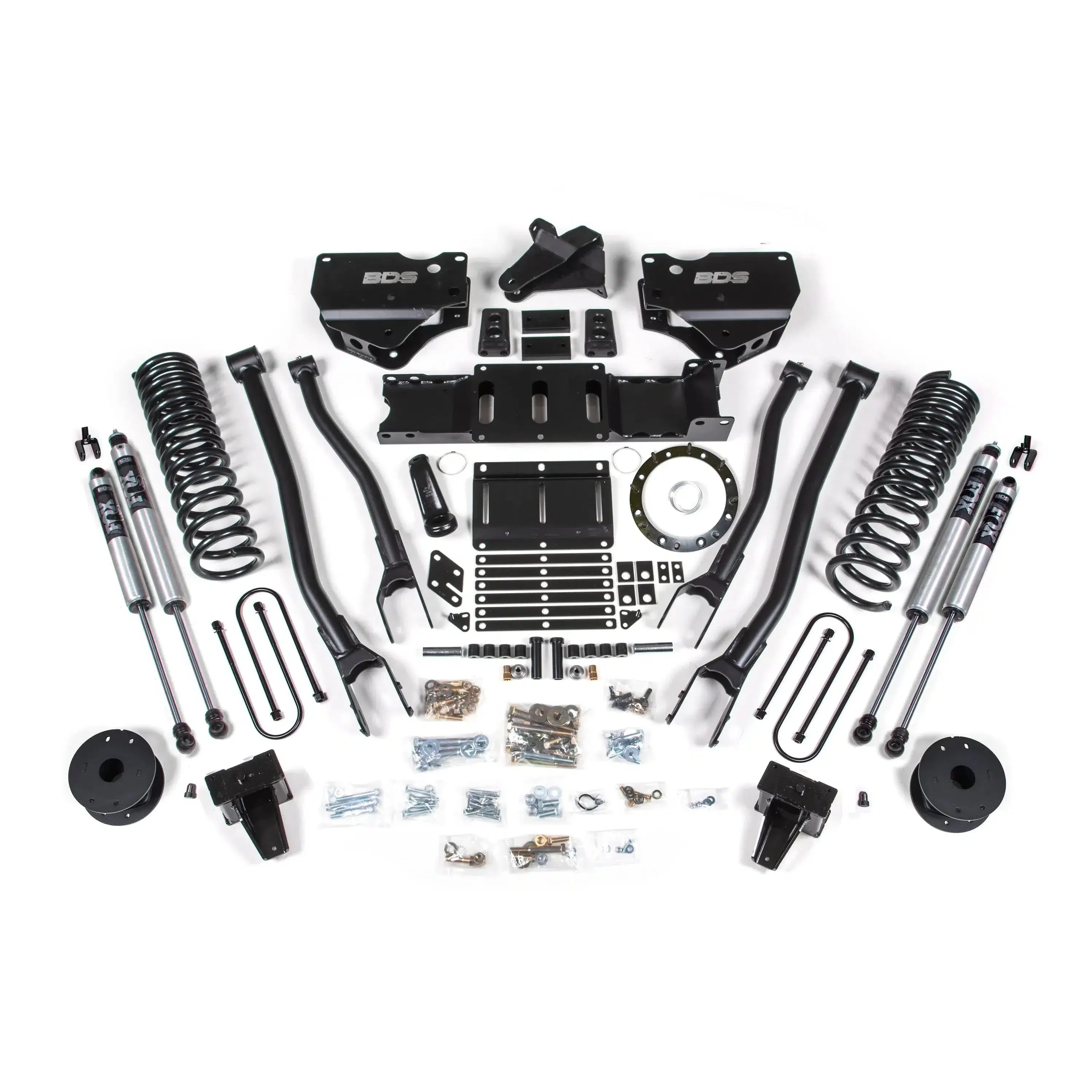

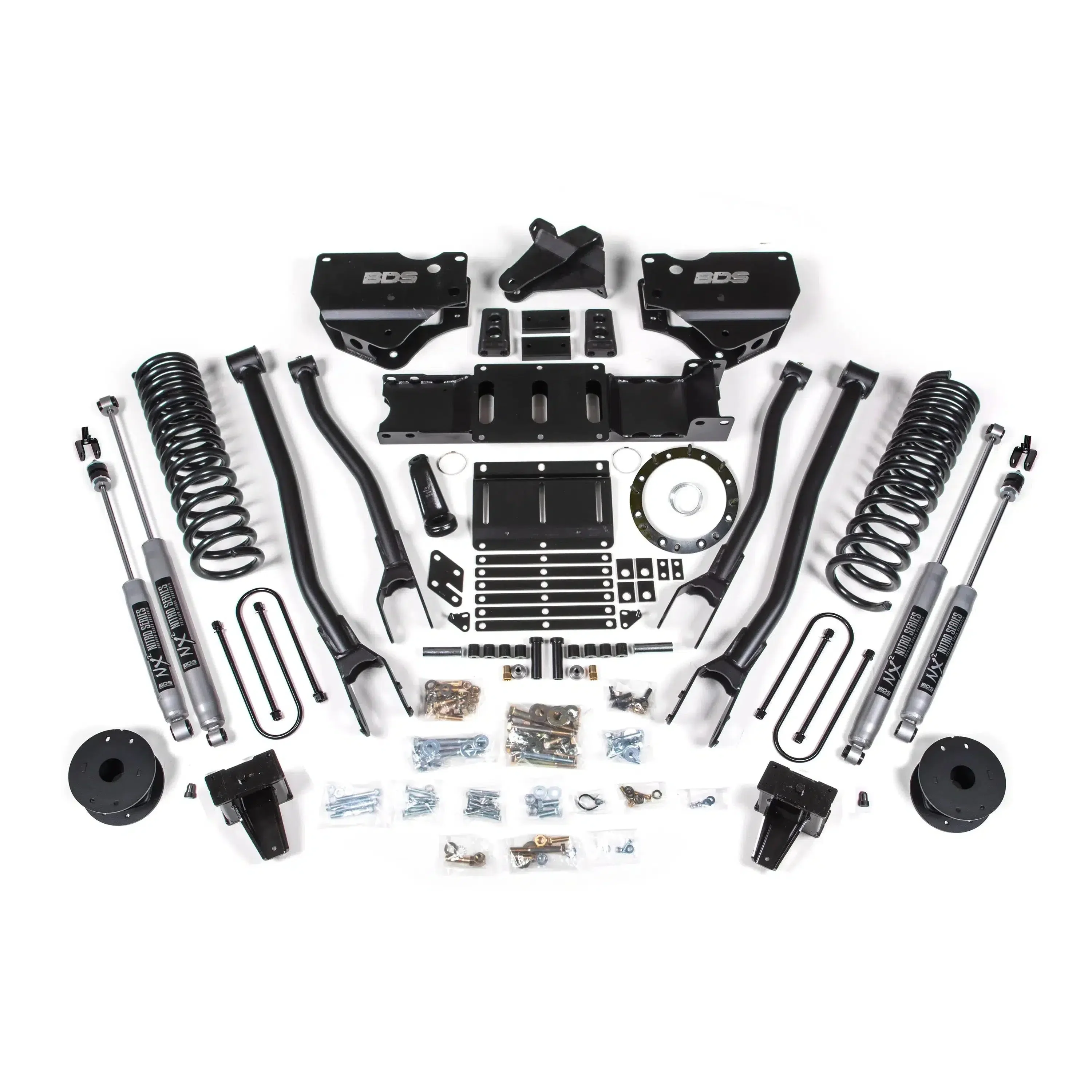

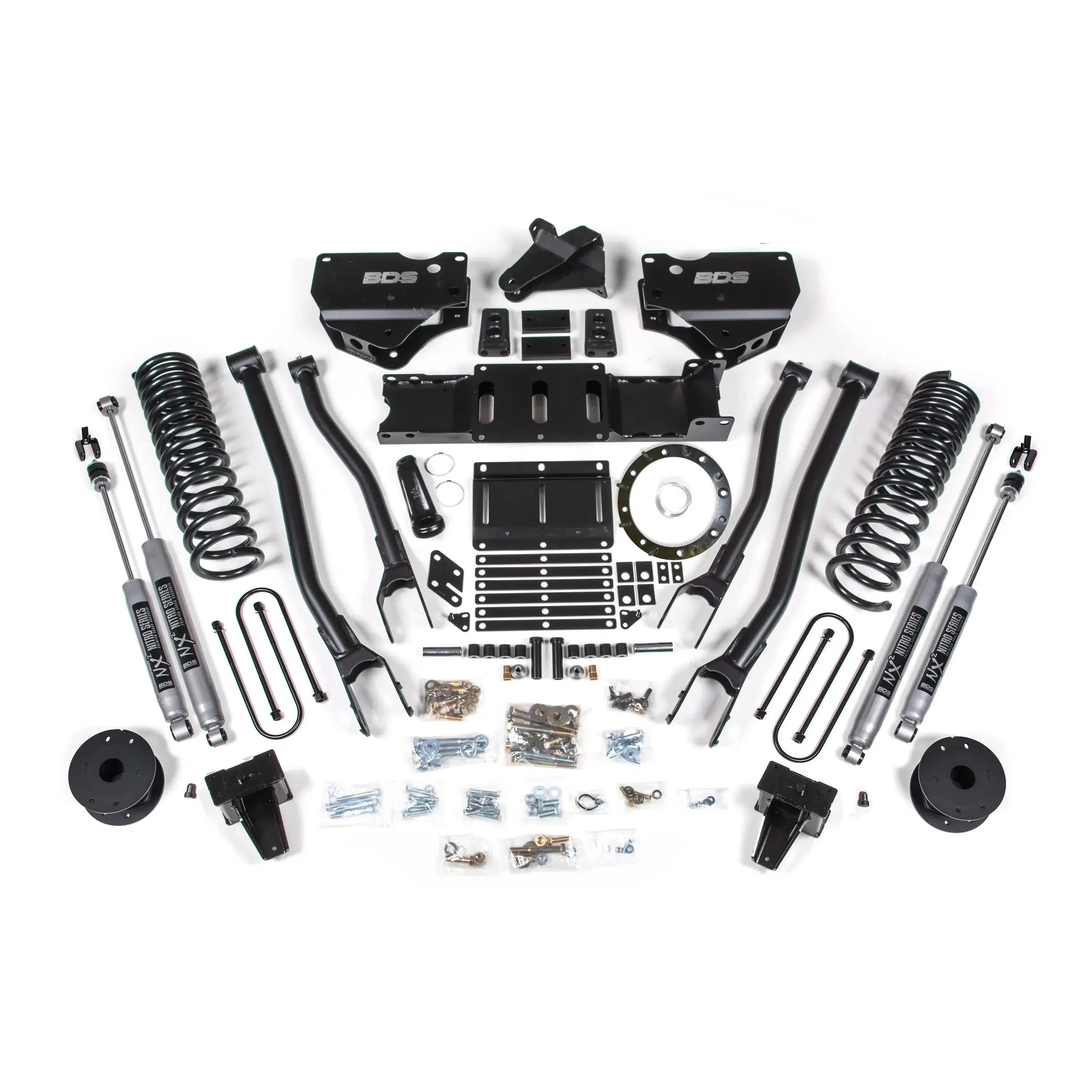

Improve the stance, performance, and capability of your Cummins, with this BDS 4-link lift kit; you get everything necessary to set your truck up right with clearance for up to 37" tires. Featuring diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen-charged shocks.
Part Number: BDS1733H
Features
- HD 4-link improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Tire Fitment:
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 37 x 13.5 with 18 x 9 and 5.625 in. Backspace
- 37 x 13.5 with 20 x 9 and 5.625 in. Backspace
Additional Info
Indexing Ring Option
6 Bolt Indexing Ring
- Kits come standard with 6-Bolt indexing ring kit
8 Bolt Indexing Ring
- Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
- The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
Notes
- Fits OE equipped air ride systems only
- Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Mega Cab’s with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
- Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
- Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
