2019-2024 Cummins Stealth STR Turbocharger (CPS200183)

Description

Fits

Year	Make	Model	Engine
2019-2024	Ram	2500/3500	6.7L Cummins

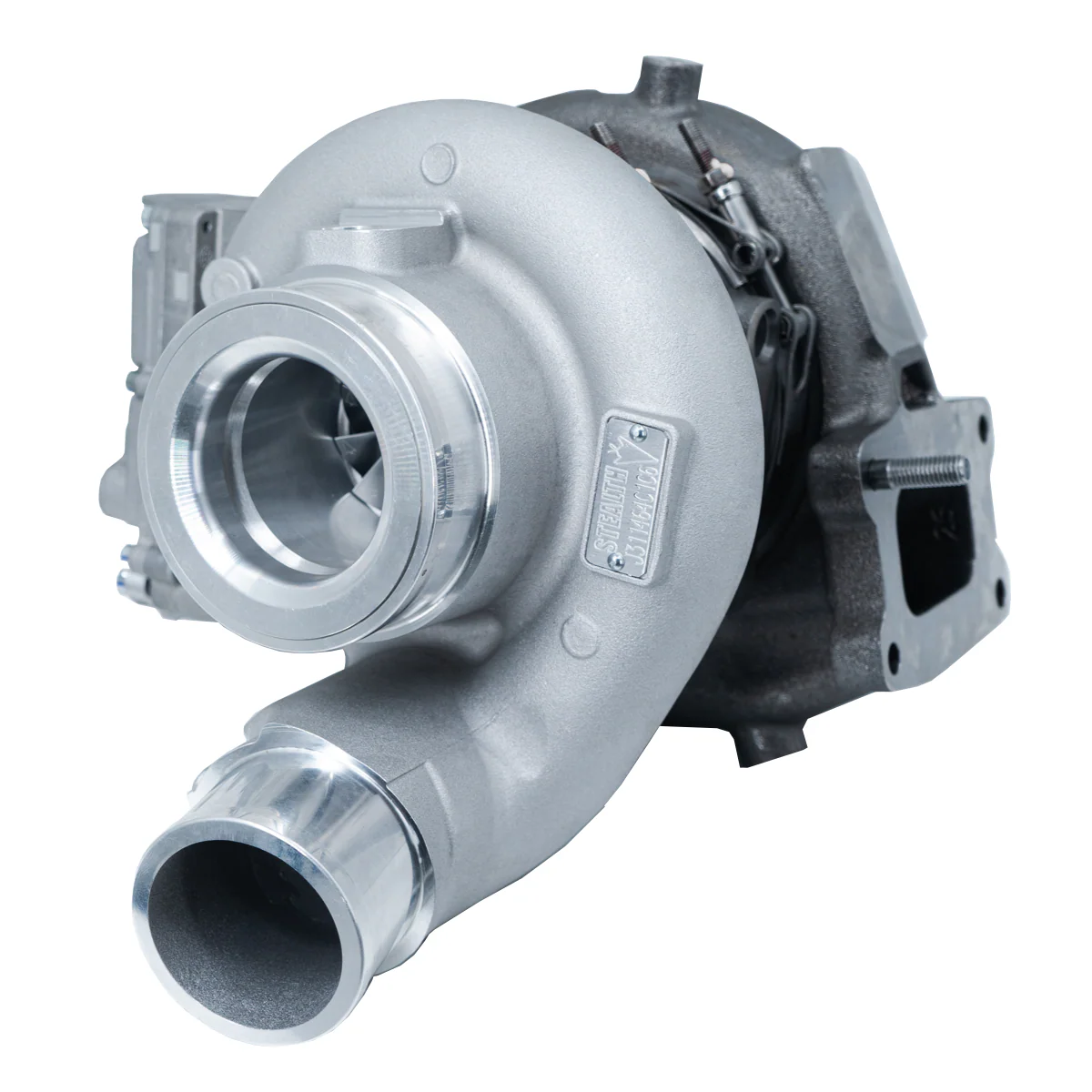

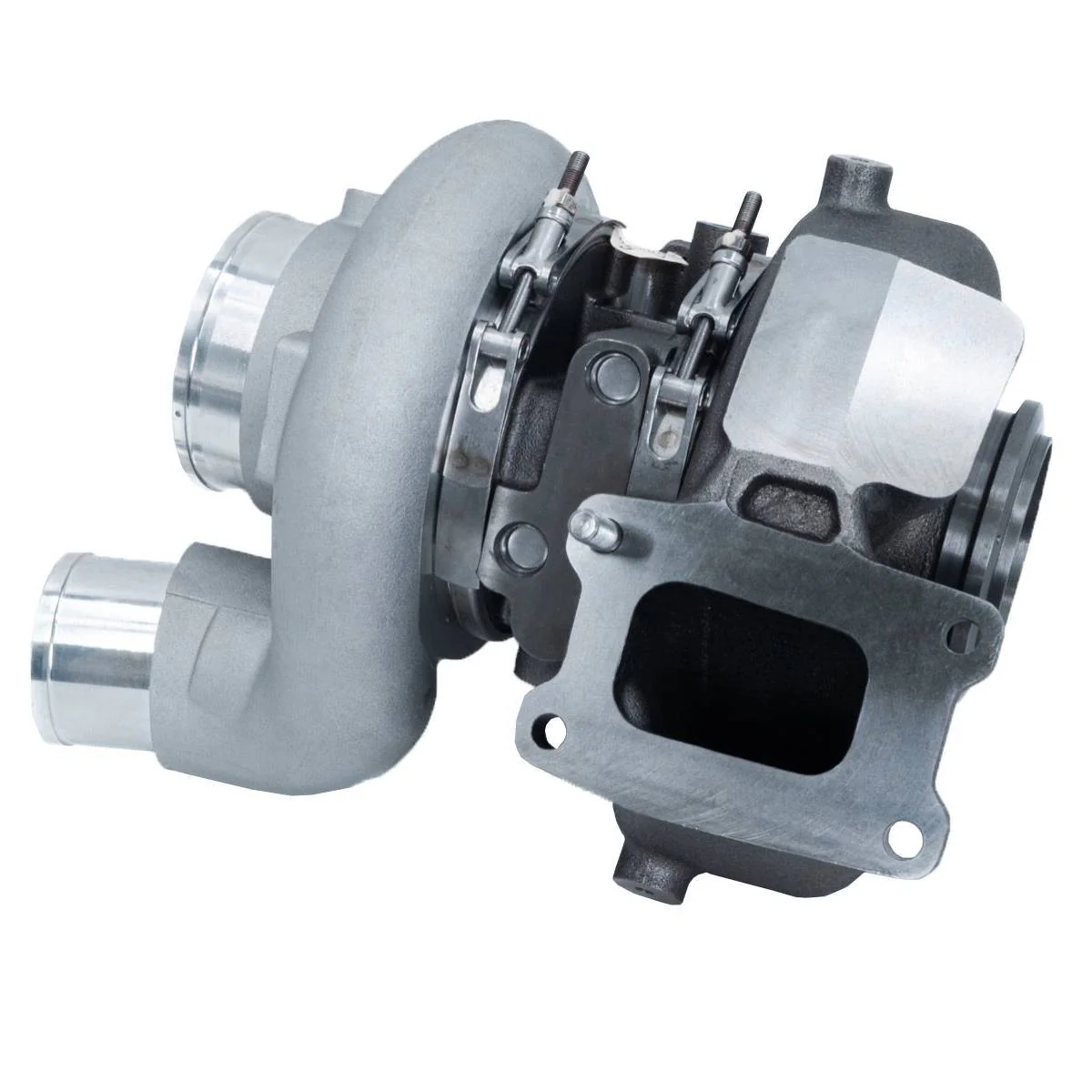

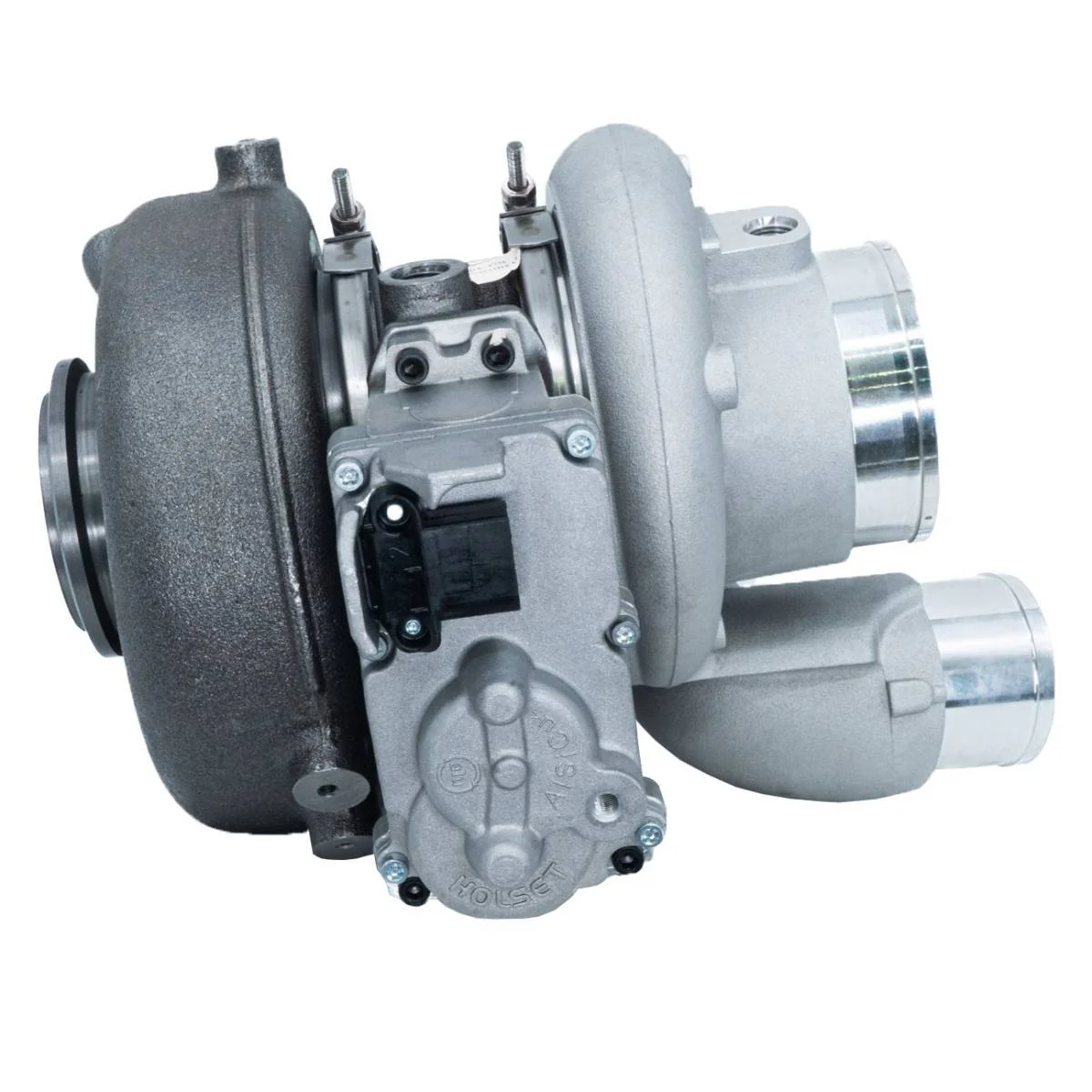

The HE300VG Stealth STR Turbo is an upgraded direct replacement turbocharger for 2019-2024 Ram 2500/3500 trucks with the 6.7L Cummins diesel engine. Designed for improved performance, durability, and lower EGTs, this turbo is a strong replacement option for anyone looking for more than a stock charger without requiring custom tuning to get up and running.

Built with a billet extended tip compressor wheel, custom turbine wheel, HFV High Flow Vane technology, and a ported exhaust housing, the Stealth STR provides increased airflow, better drive pressure control, and quick throttle response. It works well on stock trucks and pairs well with box tuners or custom tuning for maximum performance gains.

Part Number: CPS200183

Supersedes: DM1LO2080103000

Features

• Airflow to support over 600HP
• Tested to make 615HP with stock emissions equipment and tuning
• Provides 64 lbs/min mass airflow compared to 48 lbs/min stock
• 30% more airflow available compared to stock
• 40+ psi boost capable at sea level
• Tows without risk of surge, even while lugging
• Wider range of torque and power
• Better top-end efficiency and higher peak boost than stock
• Lower drive pressure under high load
• Better EGT control and lower EGTs
• Distinct Stealth exhaust sound

Notes

• No core charge
• No custom tuning required to install and operate
• Maximum performance gains require tuning
• Pre-calibrated actuator included

Additional Info

Custom Billet Compressor Wheel

• 60mm 7+7-blade extended tip compressor wheel
• Made from lightweight, high-strength aerospace-grade billet aluminum
• Machined to create more surface area than the stock wheel
• Provides 64 lbs/min mass airflow compared to 48 lbs/min stock
• Designed for a wider torque and power range
• Expertly balanced to support long-term durability

Custom Turbine Wheel

• Custom high-efficiency blade design
• Lowers drive pressure at high load
• Improves EGT control under load
• Produces a distinct Stealth exhaust sound

HFV High Flow Vane Technology

• Custom billet vanes and nozzle ring assembly
• Made from high-heat-resistant billet 310 stainless steel
• Exclusive in-house design built specifically for this application
• Taller and wider vanes provide superior high-load efficiency
• Retains factory exhaust brake function and quick throttle response

Ported Exhaust Housing

• Reduces post-turbine back pressure compared to the factory design
• Helps improve exhaust flow under high-load conditions
• Supports better EGT control and turbo efficiency

Warranty

• One Year Limited

OE Replacement Part Numbers

• 68444771AA
• 68444771AB
• HE300VG
