2019-2024 Cummins TorqueMaster 68RFE Transmissions & Converter W/ Billet Input Shaft Package (2WD) (1064292BM)
Description
Fits
| Year | Make | Model | Engine |
| 2019-2024 | Dodge Ram |
2500/3500 2WD | 6.7L Cummins & 68RFE |

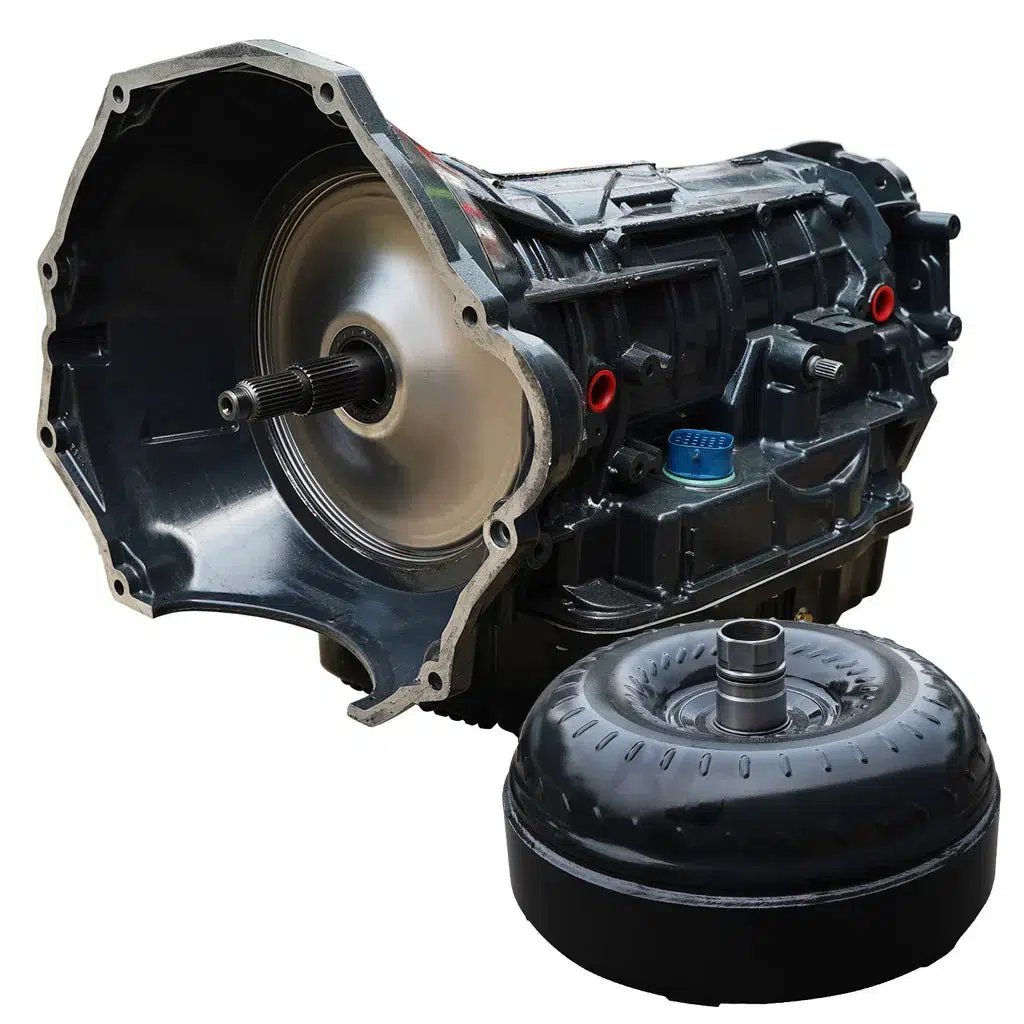

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance and reliability. Every transmission comes with BD's own Heavy-Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Part Number: 1064292BM
Features
Transmission:
- Hard-anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy-duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase

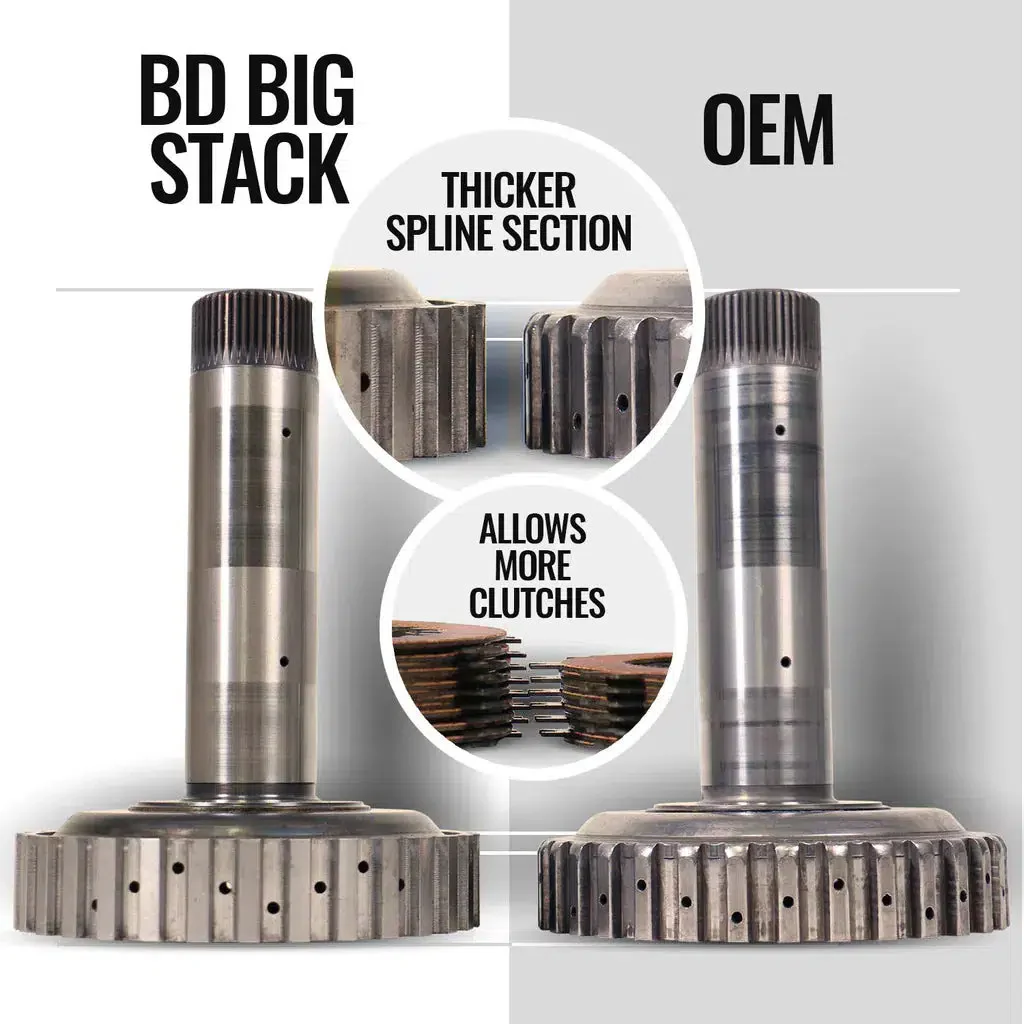

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Torque Converter:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximize torque
- New sprag components ensure long-term durability
- Furnaced-brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Notes
- Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet
- Special tuning required for 2019-up applications for increased line pressure
Installation
- 9 Hours
-
Install - Click Here
Warranty
Parts Only - No Race abuse covered.
- 36-Months
- 150,000 Miles
- Warranty Form
