2019-2024 Cummins TowMaster 68RFE Transmissions & Converter (2WD) (1064292SS)
Description
Fits
| Year | Make | Model | Engine |
| 2019-2024 | Dodge Ram |
2500/3500 2WD | 6.7L Cummins & 68RFE |
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy-Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
Part Number: 1064292SS
Features
Transmission:
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase

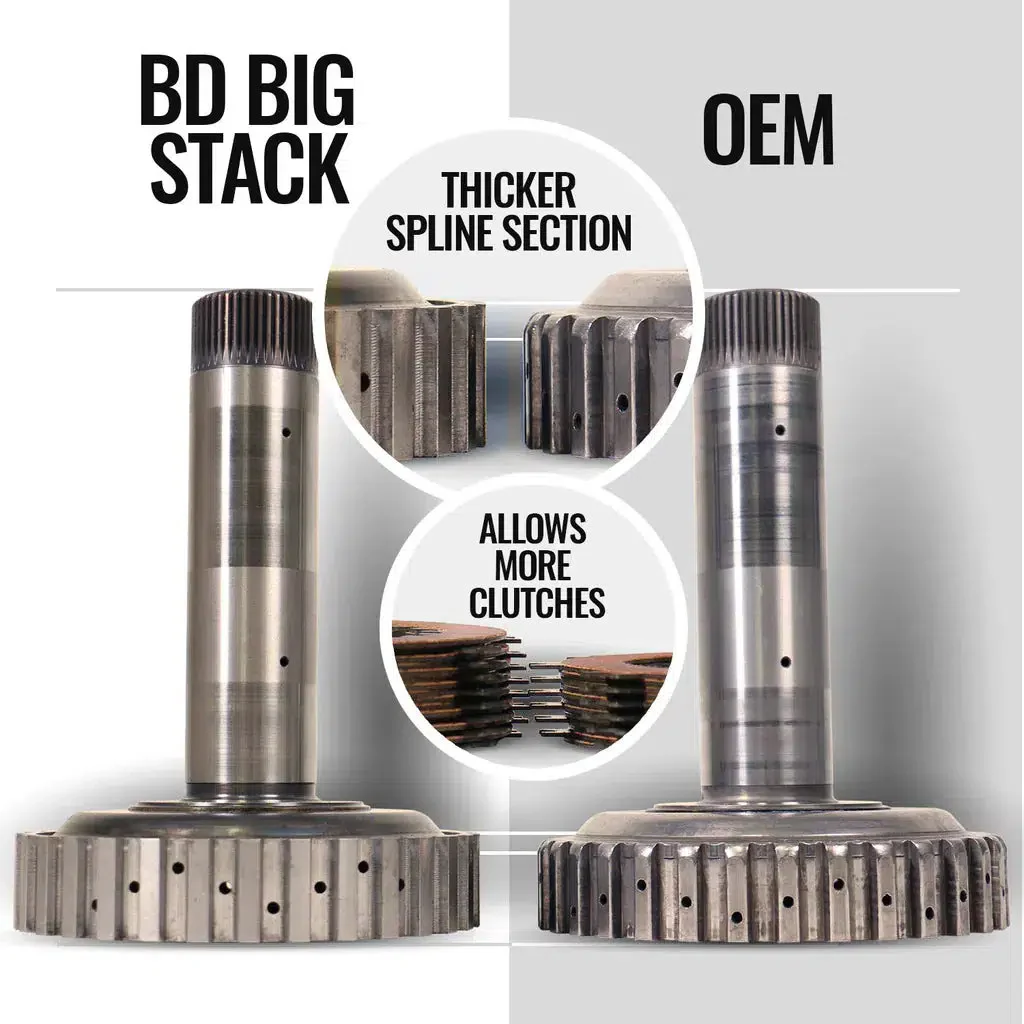

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
Proforce Converter:
- Good for 550 flywheel HP
- Ideal replacement for stock torque converter
- High performance Enhanced stall stator
- Great for street and towing applications
- Lower rpm response than the stock converter
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Damper springs replaced
- 11.625 inch dual-clutch
- Billet forged front cover with thicker walls and stronger mounting pads
Notes
- Remote filter required for inspection with a cooler flow rate in GPM at Oil/Air transmission cooler outlet
- Special tuning required for 2019-up applications for increased line pressure
Installation
- 9 Hours
-
Install - Click Here
Warranty
Parts Only - No Race abuse covered.
- 36-Months
- 150,000 Miles
- Warranty Form
