2019-2025 GM 1500 6" Elite Lift Kit W/ King 2.5 Remote Reservoir Shocks (510-P0955)

Description

Fits

Year	Make	Model
2019-2025	GMC/Chevrolet	Silverado/Sierra 1500 2WD/4WD

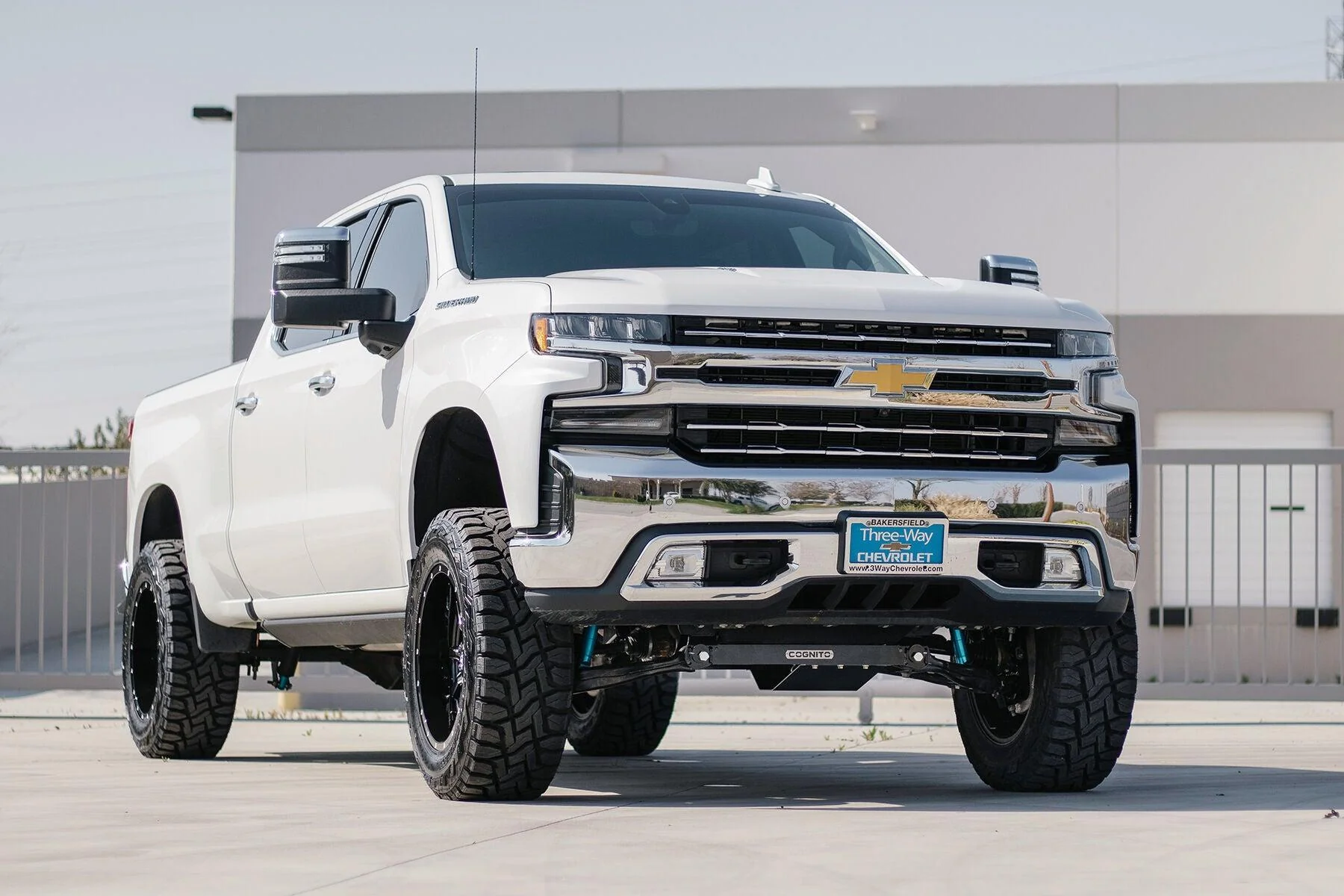

Elevate your GM 1500 with this premium, all-inclusive 6" Elite Lift Kit W/ King 2.5 Remote Reservoir Shocks!

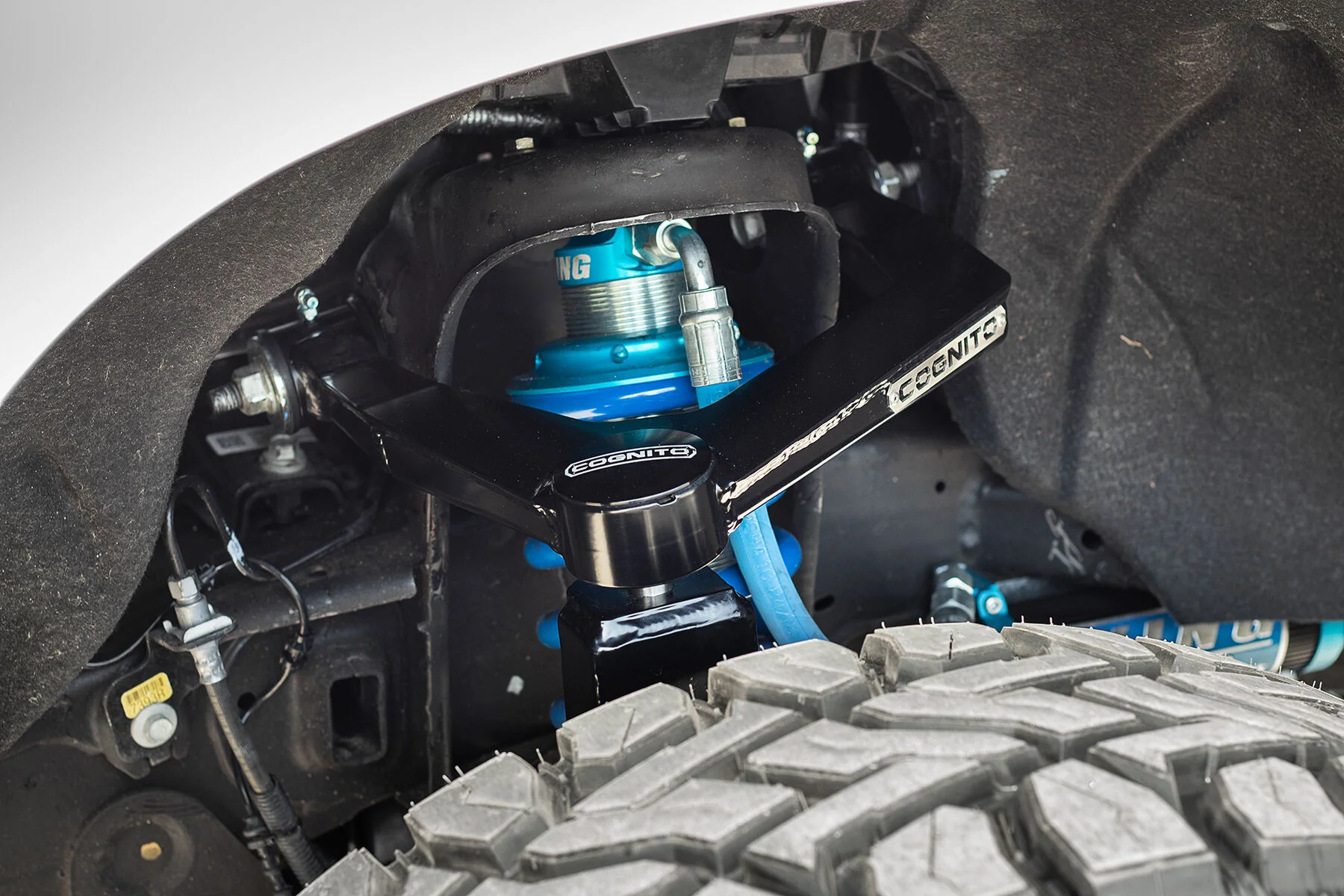

The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Ball joints are included as well as new crush sleeves and polyurethane bushings.

King’s OEM Performance Race Series Shocks bolt right on to boost your GM 1500’s ride and off-road game. Tested tough, it delivers smoother handling and better height without the harsh bounce.

The Deaver Mini Leaf Pack adds 1-3" of rear lift while keeping your ride comfy—no more stiff bottom springs. Easy to install and built tough, this kit gives you that quality ride every day, whether you’re cruising or conquering trails.

Part Number: 510-P0955

Features

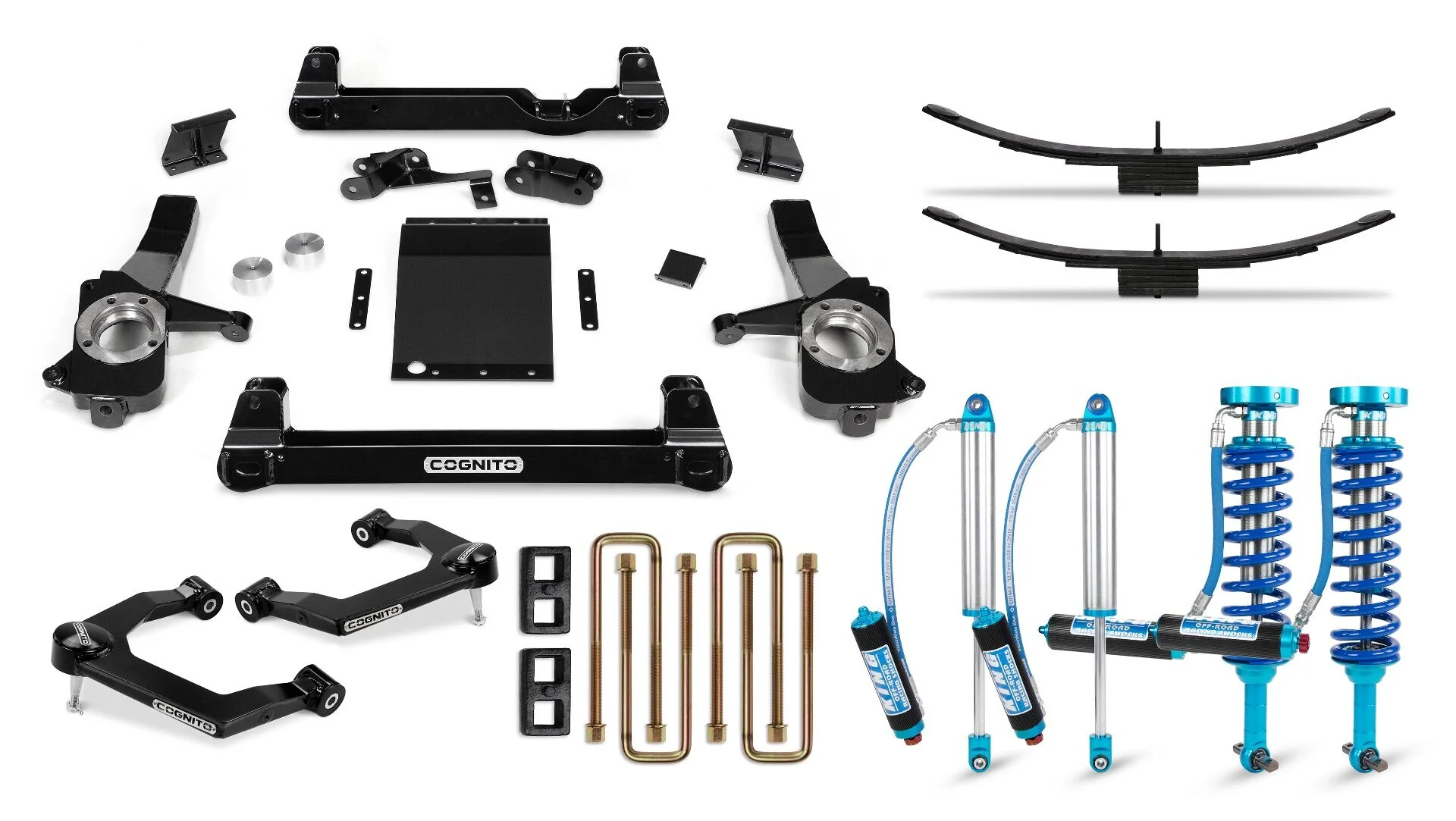

• Yields 6" of front lift & 4" of rear lift
• 6" Front Lift Components
• SM Series Ball Joint Upper Control Arms
• King 2.5 Performance Race Series Adjustable Remote Reservoir Shocks
• 2" lift Deaver mini pack
• 2" block and U-bolt kit
• Improved ball joint angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• Levels vehicle front to rear

• Made in the USA

Installation

• 14-hour DIY install time
• Click Here 7415
• Click Here 7024
• Click Here 7281
• Click Here 8139
• Click Here 8148

Notes

• This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).
• Not compatible with trucks equipped with composite mono-leaf rear spring.
• CV Front Driveline is required on 4WD models if operating in 4WD above 20mph

Tire Fitment

• Allows for up to a 35 x 12.5" Tire on a 10" Wide Wheel with 4.5" Backspacing

Additional Fitment

Year	Make	Model	Sub-Model
2019-2025	GMC	Sierra 1500	SLT
2019-2025	GMC	Sierra 1500	SLE
2022-2025	GMC	Sierra 1500	Pro
2019-2025	GMC	Sierra 1500	Elevation
2022-2025	GMC	Sierra 1500	Denali Ultimate
2019-2025	GMC	Sierra 1500	Denali
2019-2025	GMC	Sierra 1500	Base
2022-2025	GMC	Sierra 1500	AT4X
2019-2025	GMC	Sierra 1500	AT4
2022-2025	Chevrolet	Silverado 1500	ZR2
2019-2025	Chevrolet	Silverado 1500	WT
2019-2025	Chevrolet	Silverado 1500	RST
2019-2025	Chevrolet	Silverado 1500	LTZ
2019-2025	Chevrolet	Silverado 1500	LT Trail Boss
2019-2025	Chevrolet	Silverado 1500	LT
2019-2025	Chevrolet	Silverado 1500	High Country
2019-2025	Chevrolet	Silverado 1500	Custom Trail Boss
2019-2025	Chevrolet	Silverado 1500	Custom
2019-2025	Chevrolet	Silverado 1500	Base



Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
