2019-2024 Ram 2500 Dominator 2" Lift Kit (CS-DD30-19-PW)

Description

Fits

Year	Make	Model
2019 - 2024	Ram	2500 Power Wagon

Note: Not compatible with factory rear air ride trucks or diesel applications

Review 'Additional Info' for required and optional components

There are differentiating factors between R1 & R2 Coil Springs. Be sure to select the appropriate coil springs best suited to your application - See 'Notes' tab

Looking for unrivaled off-road performance without compromising on-road ride quality? Let us introduce the Carli-Spec Custom Tuned King 3.0 Remote Reservoir Shocks. Loaded with features to maximise capability over any terrain, perfectly balanced, the front and rear bottoms with the same intensity, and the chassis remains controlled and level following the bottoming event, never throwing the vehicle out of control.

Part Number: CS-DD30-19-PW

Features

• Carli-tuned King 3.0 shocks that provide a fantastic on-road ride and superior off-road performance

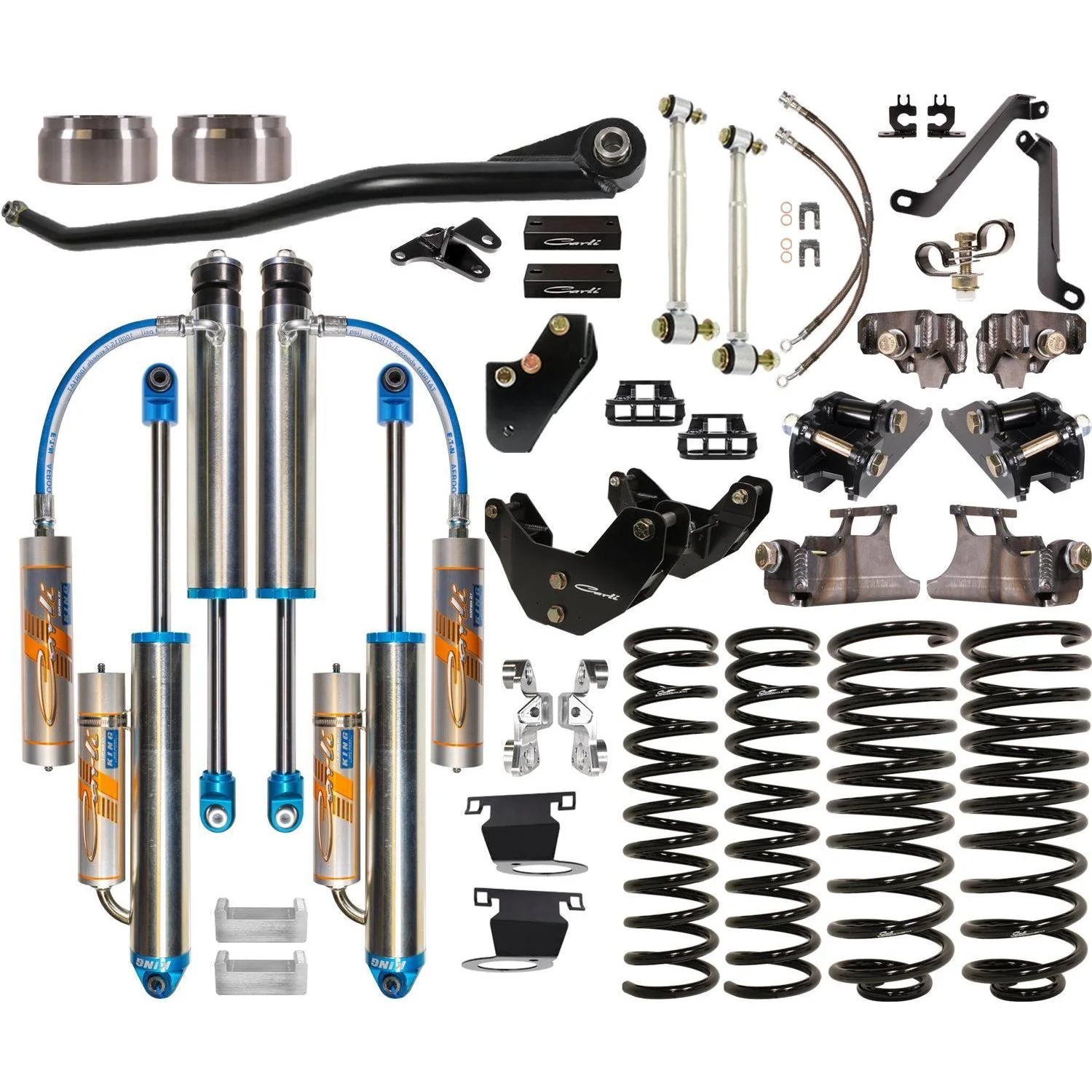

• Multi-rate front and rear coils, front and rear shock package, shock mounts, brake lines, coil isolator supports, bed supports, radius arm drop brackets, adjustable track bar, front and rear bump stop drops
• This system requires weld-in installation of coil isolators, front lower, and rear upper shock mounts.
• Allows for 8.5" of front suspension travel and 11" rear suspension travel

Additional Info

• Required and Optional Parts to support this system:
  • Rear Track Bar (REQUIRED): 14-25 RAM POWER WAGON EXTENDED REAR TRACK BAR KIT CS-DATB-14-R-PWKIT or 14-25 RAM 2500 4X4 REAR TRACK BAR DROP BRACKET CS-DPRBDROP-14-R
  • Sway Bar Selection: 14-25 RAM 2500/3500 4X4 TORSION SWAY BAR - 3" LIFT CS-DTSB3-1419
  • Fabricated Radius Arms: 14-25 RAM 2500/3500 4X4 FABRICATED RADIUS ARM SYSTEM - 3.25" LIFT CS-DFRA-14
  • Low Mount Steering Stabilizer: 14-25 RAM 2500/3500 4X4 LOW MOUNT STEERING STABILIZER - STAINLESS CS-DLMSS-14
  • High Mount Steering Stabilizer: 2019+ RAM 2500/3500 4X4 HIGH MOUNT STEERING STABILIZER KIT - LIFTED CS-DHMSS-19
  • Front Differential Guard: 14-25 RAM 2500/3500 4X4 FRONT DIFFERENTIAL GUARD CS-DFDG-14
  • Lifetime Ball Joints: 13-25 RAM 2500/3500 4X4 EXTREME DUTY BALL JOINTS, UPPER & LOWER CS-DBJP-14

Notes

• Not compatible with factory rear air ride trucks

IMPORTANT - R1 & R2 Coil Springs:

Be sure to select the lift kit package with the appropriate coil springs best suited to your application

• R1: The perfect complement to an unloaded truck with custom-tuned Carli shocks. Ideal for customers desiring a level appearance and the BEST ride with capability up to 1,500lbs of bed-load.
• R2: Suited to the customer wanting to maintain the payload capacity and factory rake (unloaded), willing to accept a slightly firmer ride vs. the R1 (it is still softer than OEM rear springs). OR – The customer looking for the best ride and level appearance when loaded with a constant 800lbs (i.e., Overlanders).
