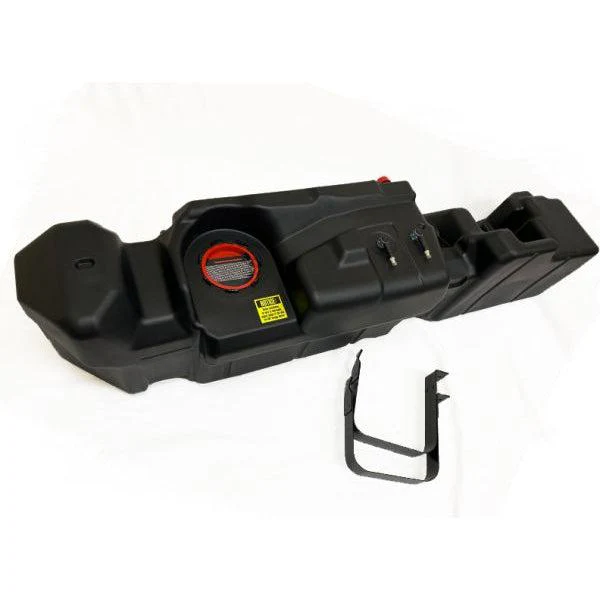

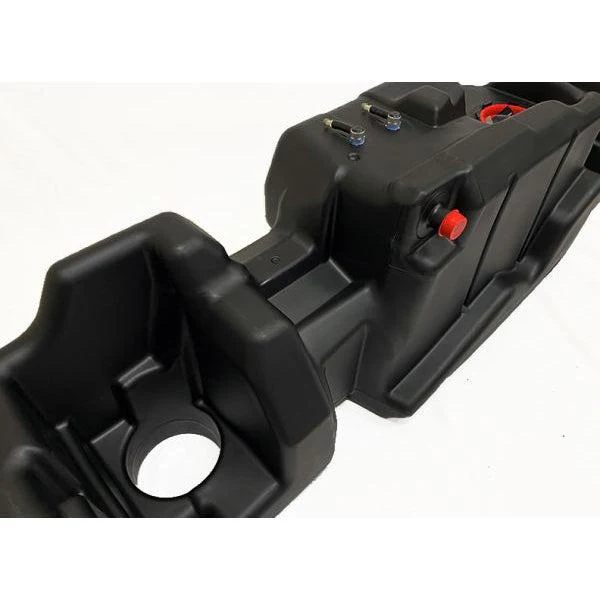

2020-2026 Duramax Crew Cab Long Box Fuel Tank (7010320)

Description

Fits

Year	Make	Model	Engine
2020-2026	GMC/Chevrolet	2500/3500 Crew Cab, Long Box 4x4 Only	6.6L Duramax

The Titan 60-gallon extra capacity Extra HD midship replacement fuel tank for your Duramax; Built to last with military-grade polymer, easy installation & can hold 24 more gallons of diesel than your OEM tank.

Part Number: 7010320

Features

• Military grade, cross-linked polymer (tougher than steel and more durable than aluminum)
• At least ¼” thick
• Use the trucks stock/original equipment fuel sending unit (DIRECT FIT)
• With use of the stock sending unit, the trucks analog fuel gauge will read correct and accurate with the TITAN tank
• Black, baked epoxy-coated, galvanized steel mounting straps
• Low fuel trap design so most every gallon can be used
•  2” deeper than the stock OEM tank

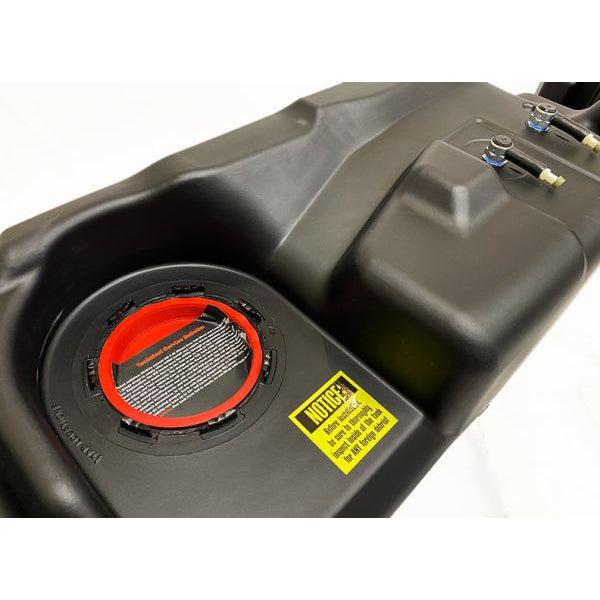

• TITAN Torque Ring™ OEM style sending unit mounting system for easy, positive installation.

Notes

• Does NOT fit the 2-wheel drive trucks
• Hellwig aftermarket rear sway bar #7782 is not compatible with this tank (7010320)
• Compatible with Fleece, AirDog, FASS, etc.
• The TITAN tank is 24 gallons larger at 60 gallons. The stock tank is only 36 gallons.
• Fitment of the mid-ship, direct replacement fuel tanks do not interfere nor are there any modifications needed when using them with;


• Airbag suspension systems
• AMP or other powered steps
• Aftermarket or upgraded sending unit is not needed or required in any way.

Installation

Click Here for Instructions
