2020-2022 F-Series E-Venture 1.5-3.5" Lift Kit (CS-FLVL-EV25-20-GAS)

Description

Fits

Year	Make	Model
2020 - 2022	Ford	F-250 Super Duty GAS
2020 - 2022	Ford	F-350 Super Duty GAS

Note: NOT compatible with diesel applications

Review 'Additional Info' for required and optional components

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-FLVL-EV25-20-GAS

Features

• Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button
• Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don’t worry, if your curiosity gets ahead of you or you failed to track your changes, we’ve implemented a “Restore Default” setting
• Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support

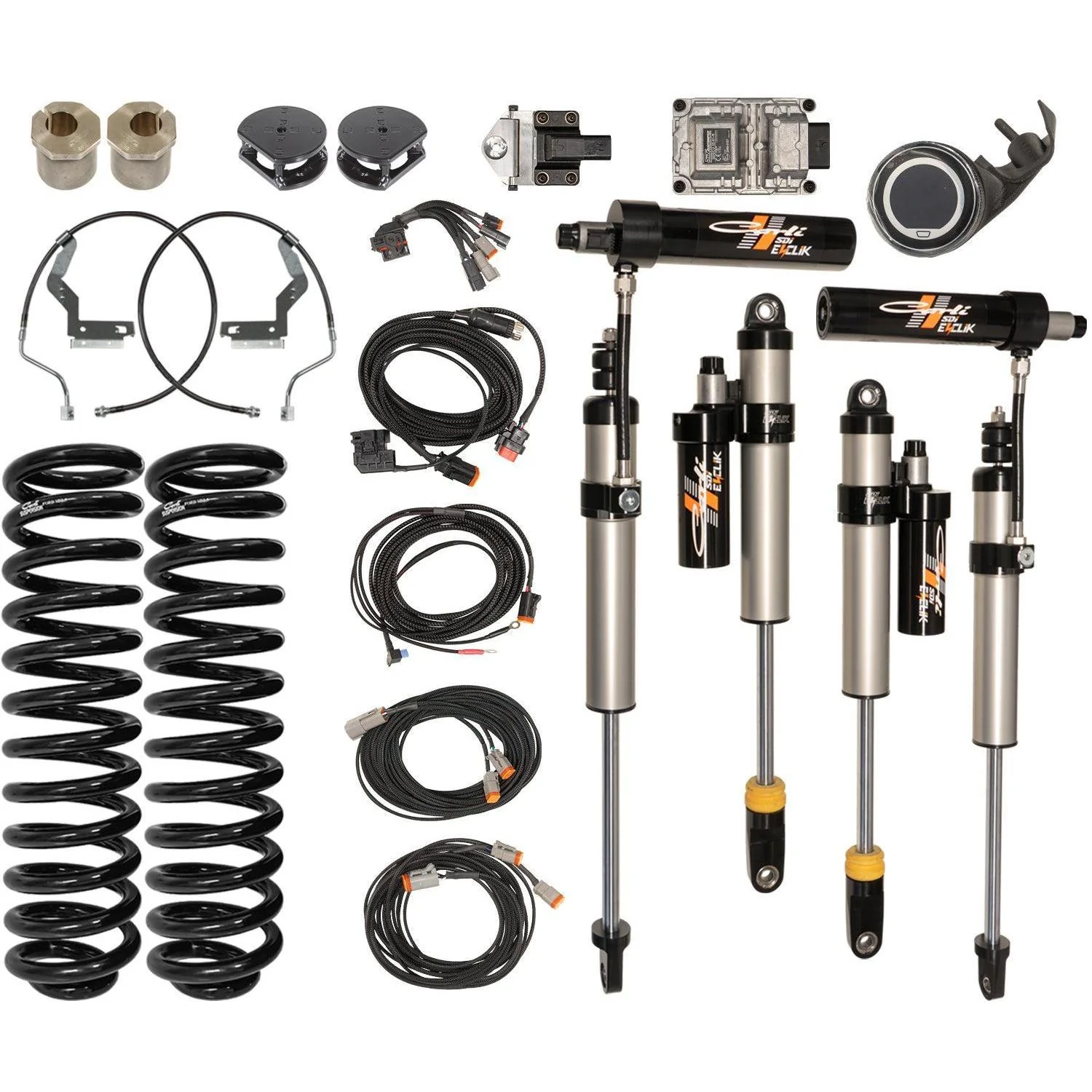

• Front and rear shock package, linear rate coil springs, brake line kit, bump stop drops, caster correction shims, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 2.5"/3.5" LIFT CS-FEL-LVL-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17

  • Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD or 17-26 FORD F250/350 4X4 XHD +2000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XHD or 17-26 FORD F250/350 4X4 XXHD +3500LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XXHD

  • Long Bed Extension Harness (REQUIRED): CS-FEVSPKG-LBEH (Only required for Crew Cab Long Bed Trucks: 176" Wheelbase & Super Crew Long bed: 164" Wheelbase)
  • Leaf Spring Shackle: CS-FSHACKLE-11
  • 2 deg Pinion Shim: CS-FPSKIT-3X2
  • Adjustable Radius Arms: CS-FARA-LVL-05
  • Steering Stabilizer - High mount: CS-FHMSS-17
  • Steering Stabilizer - Low mount: CS-FLMSS-05

  • Trophy Hitch: CS-FHITCH-1723
