2020-2025 Duramax 3" Front Elite Leveling Kit W/ Fox 2.5 Elite Performance Series Shocks (210-P0930)

Description

Fits

Year	Make	Model	Engine
2020-2025	GMC/Chevrolet	Silverado/Sierra 2500/3500 2WD/4WD	L5P 6.6L Duramax

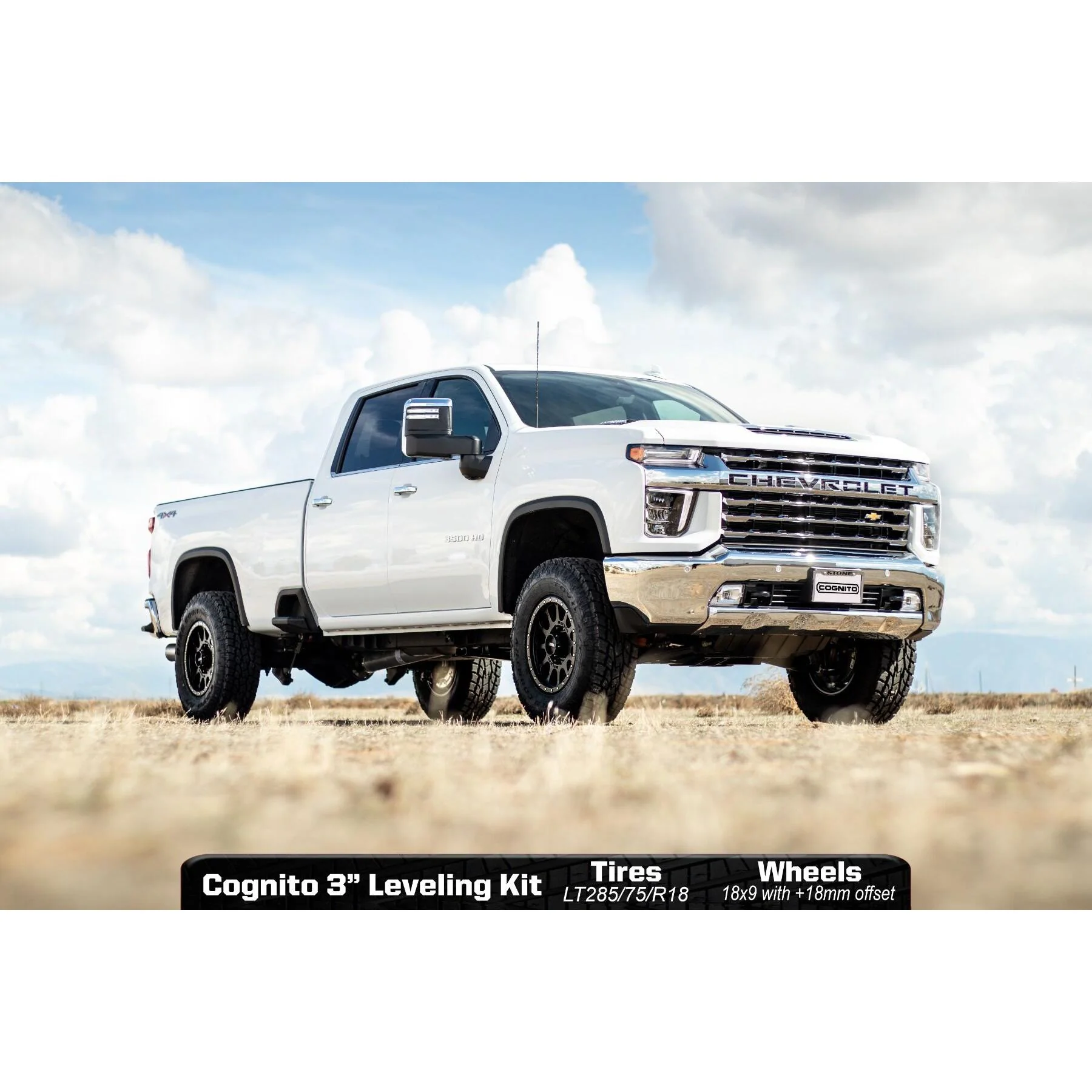

Level out your 2020-2025 Duramax with this all-inclusive 3" Front Elite Leveling Kit W/ Fox 2.5 Elite Performance Series Shocks .

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications. New crush sleeves and polyurethane bushings are included.

These Torsion Bar Keys bring perfect balance to your truck by raising the front to match the rear. Crafted with forged construction, they nearly indestructable and are bolt-in allowing for simple installation.

The Pitman and Idler Arm Support Kit, designed to replace problem components and add support to the pitman and idler arms in Chevy and GMC trucks and SUVs, eliminates the forward and rearward movement of the center-link.

Fox 2.0 Performance Elite Series Reservoir shocks deliver next-level technology providing performance and control both on and off road. Adjust your shocks on the fly with external compression adjusters. Dial in the perfect setting with the turn of a knob for any terrain.

Part Number: 210-P0930

Features

• Yields 3" of front lift
• Improved ball joint angle
• Maintains adequate droop travel to optimize ride quality
• PISK improves drivability, fuel economy, and tire wear

• Made in the USA

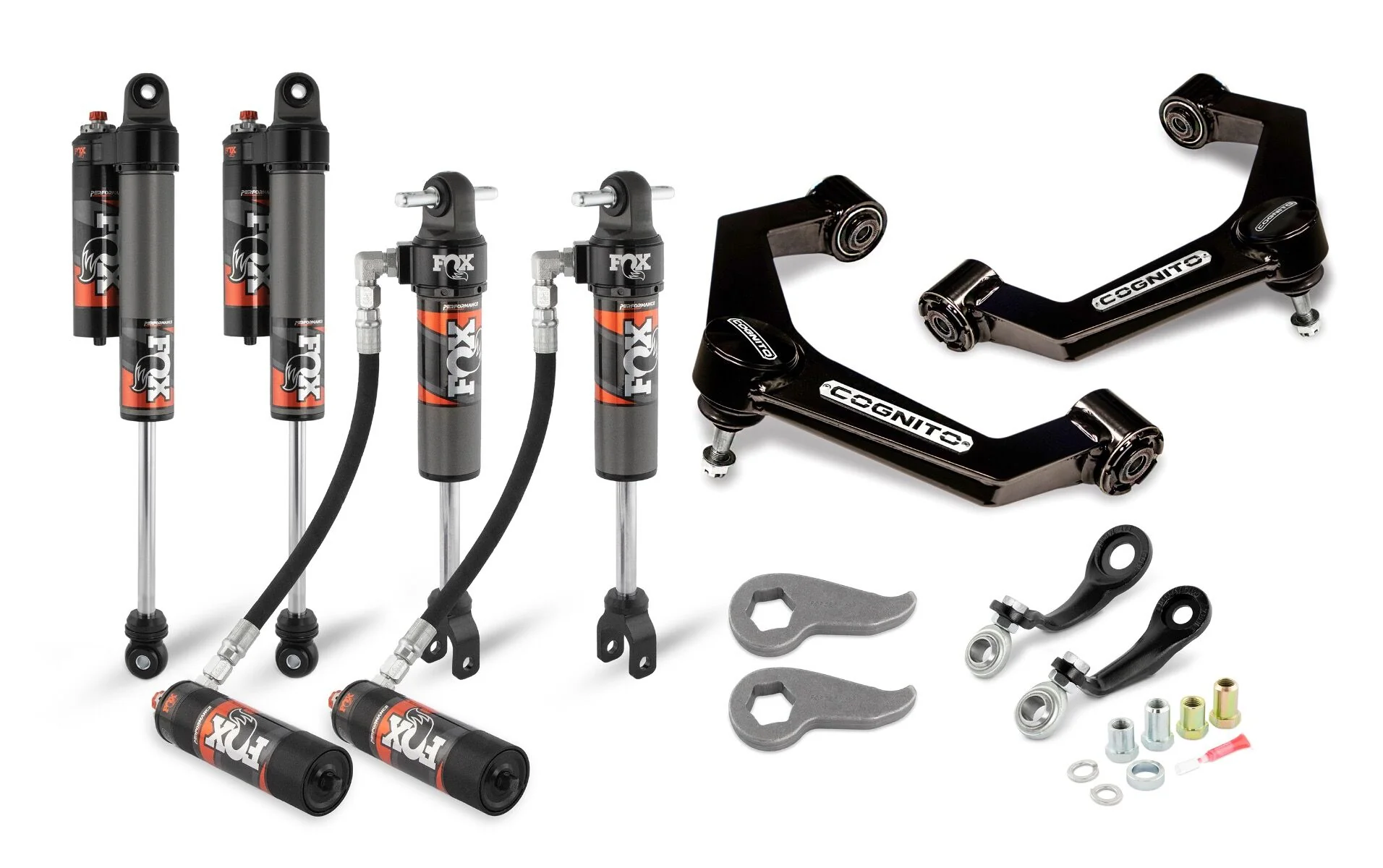

Includes:

• Ball Joint SM Series Upper Control Arm Kit
• Torsion Bar Adjuster Keys
• Pitman and Idler Arm Support Kit
• Front & rear Fox Elite Series Reservoir shocks.

Installation

• 5-hour DIY install time
• Click Here 7037
• Click Here 7267
• Click Here 7271
• Click Here 8162

Notes

• Replacement part HD Series Upper Press In Ball Joint 199-91253

Tire Fitment

• Allows for up to a 35 x 12.5" tire on a 9" wide wheel with 5" backspace


Additional Fitment

Year	Make	Model	Sub-Model
2020-2025	GMC	Sierra 3500 HD	SLT
2020-2025	GMC	Sierra 3500 HD	SLE
2023-2025	GMC	Sierra 3500 HD	Pro
2024-2025	GMC	Sierra 3500 HD	Denali Ultimate
2020-2025	GMC	Sierra 3500 HD	Denali
2020-2025	GMC	Sierra 3500 HD	AT4
2020-2025	GMC	Sierra 2500 HD	SLT
2020-2025	GMC	Sierra 2500 HD	SLE
2023-2025	GMC	Sierra 2500 HD	Pro
2024-2025	GMC	Sierra 2500 HD	Denali Ultimate
2020-2025	GMC	Sierra 2500 HD	Denali
2020-2025	GMC	Sierra 2500 HD	AT4
2020-2025	Chevrolet	Silverado 3500 HD	WT
2020-2025	Chevrolet	Silverado 3500 HD	LTZ
2020-2025	Chevrolet	Silverado 3500 HD	LT
2020-2025	Chevrolet	Silverado 3500 HD	High Country
2020-2025	Chevrolet	Silverado 3500 HD	Base
2020-2025	Chevrolet	Silverado 2500 HD	WT
2020-2025	Chevrolet	Silverado 2500 HD	LTZ
2020-2025	Chevrolet	Silverado 2500 HD	LT
2020-2025	Chevrolet	Silverado 2500 HD	High Country
2020-2025	Chevrolet	Silverado 2500 HD	Custom
2020-2022	GMC	Sierra 3500 HD	Base
2020-2022	GMC	Sierra 2500 HD	Base
2020	GMC	Sierra 3500 HD
2020	GMC	Sierra 2500 HD



Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
