2020-2025 Duramax 4" Elite Lift Kit W/ Elka 2.5 Reservoir Shocks (210-P1151)

Description

Fits

Year	Make	Model	Engine
2020-2025	GMC/Chevrolet	Silverado/Sierra 2500/3500 2WD/4WD	L5P, 6.6L Duramax

Elevate your Duramax with this premium, all-inclusive 4" Elite Lift Kit W/ Elka 2.5 Reservoir Shocks!

The Ball Joint SM Series Upper Control Arms provide style, function and performance by correcting ball joint angles in lifted and leveled trucks. They are powder-coated, semi-gloss black, welded, boxed sheet metal arms. Pre-installed maintenance-free ball joints and pivot bushings are included.

Pitman and Idler Arm Support Kit replaces weak factory components in Chevy/GMC trucks and SUVs. Solves a decades-old steering problem that affects both stock and aftermarket systems.

The Elka 2.5 shocks feature Dual Speed Compression adjustment, providing a smoother ride, less noise (no more squeaks or rattles), better handling on and off-road, and improved towing capabilities.

The 2" Block and U Bolt kit includes 2" tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-Bolts.

Part Number: 210-P1151

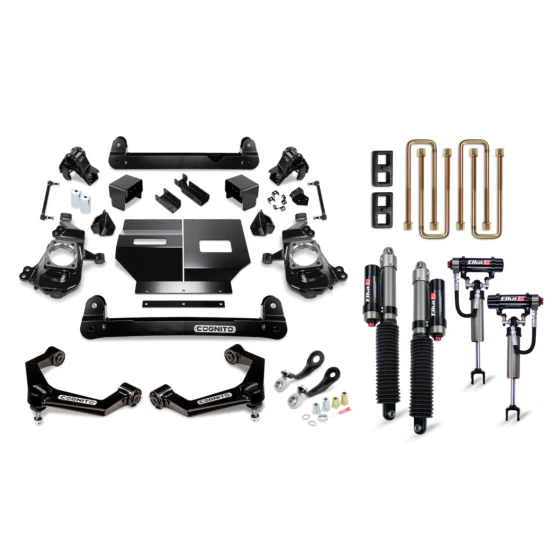

Features

• Yields 4" of front lift & 2" of rear lift
• Block and U-Bolt Kit
• SM Series Ball Joint Upper Control Arms
• Patented Pitman and Idler Arm Support Kit
• Elka 2.5 Performance Series Remote Reservoir Shocks
• Maintains Adequate Droop Travel for Superior Ride Quality


Installation

• 14-hour DIY install time

• Click Here 7024
• Click Here 7244
• Click Here 7267
• Click Here 7271
• Click Here 7381

Tire Fitment

• 37x12.50 tire on stock 20” wheel
  Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.
• 35 on 10” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 35 on 10” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50, 9” wide wheel +18mm offset
  Use tie back kit plus light trimming.
• 37x12.50, 9” wide wheel, 0mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, +18mm offset
  Use tie back kit plus medium trimming.
• 37x12.50 on 10” wide wheel, 0mm offset
  Use tie back kit plus heavy trimming.

Additional  Fitment

Year	Make	Model	Sub-Model
2020-2025	GMC	Sierra 3500 HD	SLT
2020-2025	GMC	Sierra 3500 HD	SLE
2023-2025	GMC	Sierra 3500 HD	Pro
2024-2025	GMC	Sierra 3500 HD	Denali Ultimate
2020-2025	GMC	Sierra 3500 HD	Denali
2020-2025	GMC	Sierra 3500 HD	AT4
2020-2025	GMC	Sierra 2500 HD	SLT
2020-2025	GMC	Sierra 2500 HD	SLE
2023-2025	GMC	Sierra 2500 HD	Pro
2024-2025	GMC	Sierra 2500 HD	Denali Ultimate
2020-2025	GMC	Sierra 2500 HD	Denali
2020-2025	GMC	Sierra 2500 HD	AT4
2020-2025	Chevrolet	Silverado 3500 HD	WT
2020-2025	Chevrolet	Silverado 3500 HD	LTZ
2020-2025	Chevrolet	Silverado 3500 HD	LT
2020-2025	Chevrolet	Silverado 3500 HD	High Country
2020-2025	Chevrolet	Silverado 3500 HD	Base
2020-2025	Chevrolet	Silverado 2500 HD	WT
2020-2025	Chevrolet	Silverado 2500 HD	LTZ
2020-2025	Chevrolet	Silverado 2500 HD	LT
2020-2025	Chevrolet	Silverado 2500 HD	High Country
2020-2025	Chevrolet	Silverado 2500 HD	Custom
2020-2022	GMC	Sierra 3500 HD	Base
2020-2022	GMC	Sierra 2500 HD	Base
2020	GMC	Sierra 3500 HD
2020	GMC	Sierra 2500 HD



Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
