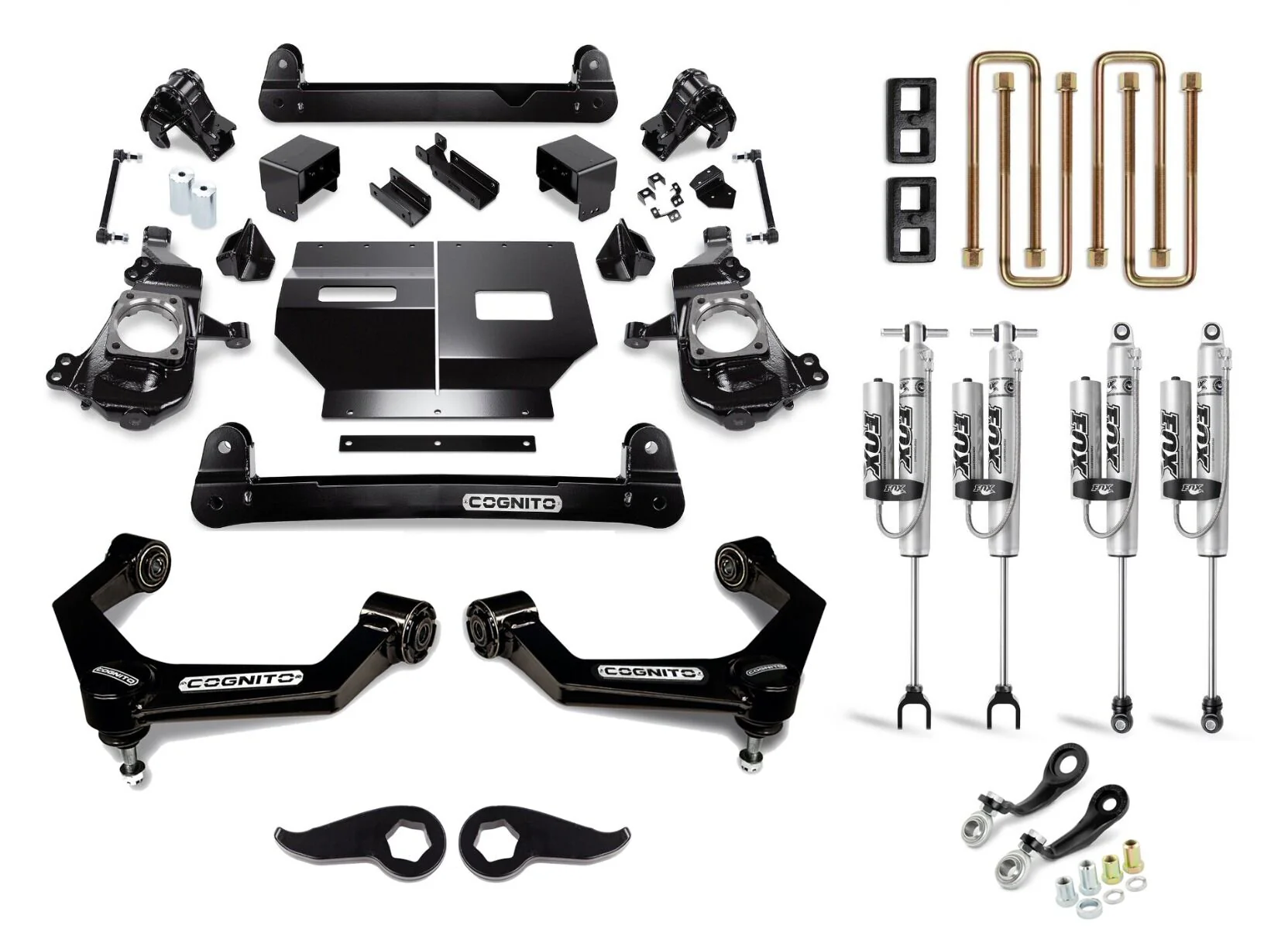

2020-2025 Duramax 5" Performance Lift Kit W/ Fox 2.0 Shocks (110-P1270)

Description

Fits

Year	Make	Model	Engine
2020-2025	GMC/Chevrolet	Silverado/Sierra 2500/3500 HD 2WD/4WD	L5P 6.6L Duramax

Elevate your Duramax with this all-inclusive 5" Performance Lift Kit W/ Fox 2.0 Shocks!

The Non-Torsion Bar Drop Front Lift kit keeps torsion bars tucked up in the frame for maximum ground clearance while maintaining superior ride quality and proper CV axle angles.

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications. Pre-installed maintenance-free ball joints and pivot bushings are included.

The Pitman and Idler Arm Support Kit, designed to replace problem components and add support to the pitman and idler arms in Chevy and GMC trucks and SUVs, eliminates the forward and rearward movement of the center-link.

Fox 2.0 Performance Series Remote Reservoir shocks deliver next-level technology in the 2" diameter shock lineup. The extruded aluminum body is rust-resistant, while the aluminum body increases cooling capacity.

Part Number: 220-P1270

Features

• Yields 5" of front lift, 3" Rear Lift
• SM Series Ball Joint Upper Control Arms
• Patented Pitman and Idler Arm Support Kit
• Fox 2.0 Performance Series Remote Reservoir Shocks
• Maintains Adequate Droop Travel for Superior Ride Quality


Installation

• 13-hour DIY install time
• Click Here 7024
• Click Here 7057
• Click Here 7244
• Click Here 7267
• Click Here 7271
• Click Here 7550

Tire Fitment

37x12.50 tire on stock 20” wheel
Will require a wheel spacer at least 1/4” thick. A 1.5” wheel spacer looks really good. Use tie back kit plus medium trimming.

35 on 10” wide wheel +18mm offset
Use tie-back kit plus light trimming.

35 on 10” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.

37x12.50, 9” wide wheel +18mm offset
Use tie-back kit plus light trimming.

37x12.50, 9” wide wheel, 0mm offset
Use tie-back kit plus medium trimming.

37x12.50 on 10” wide wheel, +18mm offset
Use tie-back kit plus medium trimming.

37x12.50 on 10” wide wheel, 0mm offset
Use tie-back kit plus heavy trimming.

Additional Fitment

Year	Make	Model	Sub-Model
2020-2025	GMC	Sierra 3500 HD	SLT
2020-2025	GMC	Sierra 3500 HD	SLE
2023-2025	GMC	Sierra 3500 HD	Pro
2024-2025	GMC	Sierra 3500 HD	Denali Ultimate
2020-2025	GMC	Sierra 3500 HD	Denali
2020-2025	GMC	Sierra 3500 HD	AT4
2020-2025	GMC	Sierra 2500 HD	SLT
2020-2025	GMC	Sierra 2500 HD	SLE
2023-2025	GMC	Sierra 2500 HD	Pro
2024-2025	GMC	Sierra 2500 HD	Denali Ultimate
2020-2025	GMC	Sierra 2500 HD	Denali
2020-2025	GMC	Sierra 2500 HD	AT4
2020-2025	Chevrolet	Silverado 3500 HD	WT
2020-2025	Chevrolet	Silverado 3500 HD	LTZ
2020-2025	Chevrolet	Silverado 3500 HD	LT
2020-2025	Chevrolet	Silverado 3500 HD	High Country
2020-2025	Chevrolet	Silverado 3500 HD	Base
2020-2025	Chevrolet	Silverado 2500 HD	WT
2020-2025	Chevrolet	Silverado 2500 HD	LTZ
2020-2025	Chevrolet	Silverado 2500 HD	LT
2020-2025	Chevrolet	Silverado 2500 HD	High Country
2020-2025	Chevrolet	Silverado 2500 HD	Custom
2020-2022	GMC	Sierra 3500 HD	Base
2020-2022	GMC	Sierra 2500 HD	Base
2020	GMC	Sierra 3500 HD
2020	GMC	Sierra 2500 HD

Warranty

Parts Only

• Limited Lifetime Warranty - Cognito branded products
