2007-2019 GM 1500 Alpha HD Pro S Air Spring Kit (HP10216-J-S)

Description

Fits

Year	Make	Model
2007-2018	Chevrolet/GMC	1500HD 2WD/4WD
2019	Chevrolet/GMC	1500 Silverado LD & Sierra Limited

Note: WILL fit Short (69.3'') & Medium (78.7'') Truck Bed Applications. / Will NOT fit 97.6" Truck Beds. / Will NOT fit if vehicle is equipped with MagneRide

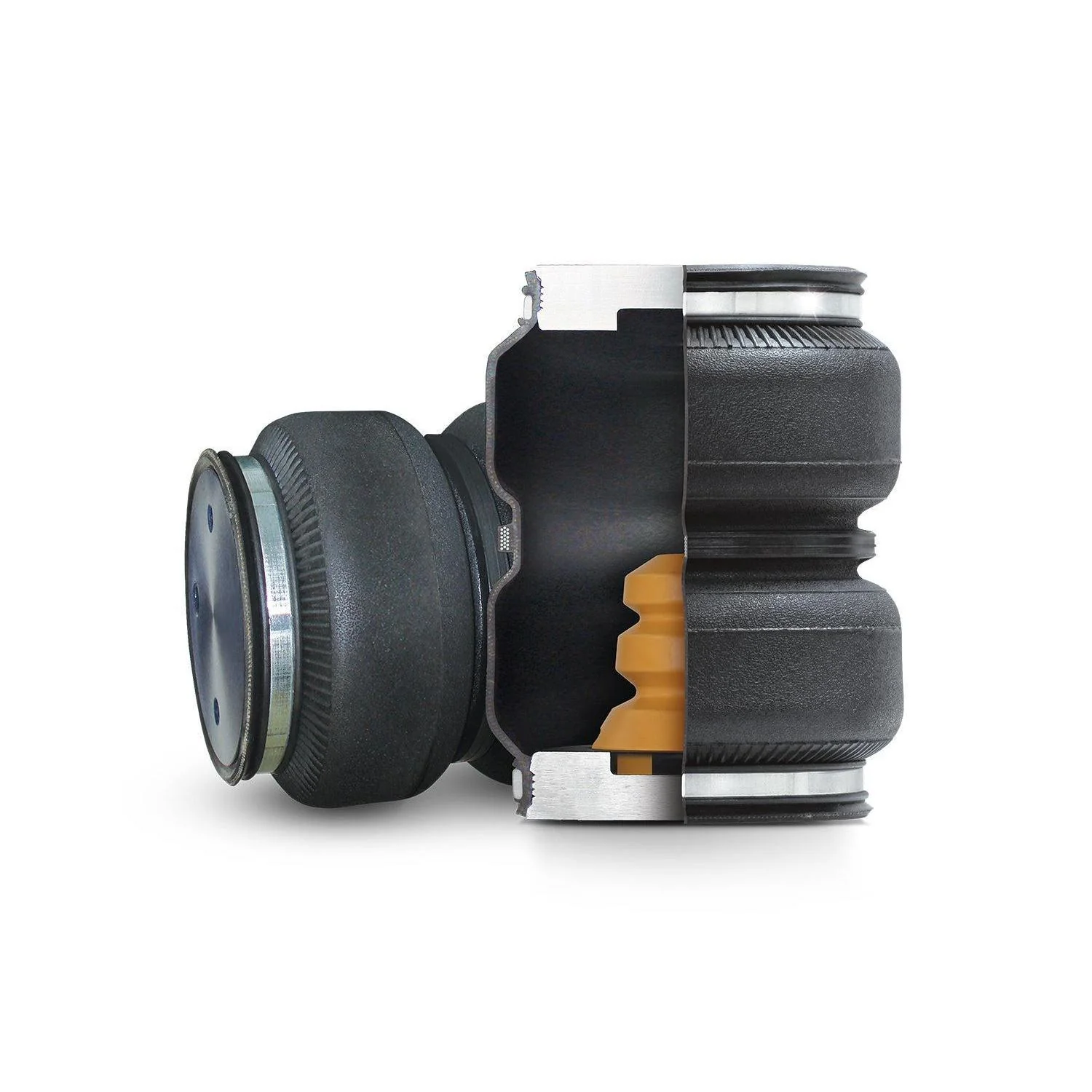

The ALPHA HD PRO S Air Spring Kit reduces truck sag, sway, and bottoming out. It includes durable stainless steel hardware, corrosion-resistant end caps, and 20 support wires for strength. The polyurethane internal bumper prevents damage and allows a comfortable ride even without air when not towing. Available with or without the in-bag bump stop for added flexibility.

Part Number: HP10216-J-S

Features

• 5,000 lbs of load leveling capacity
• 2.5-hour install time
• Lifetime warranty
• Can be run at 0 psi

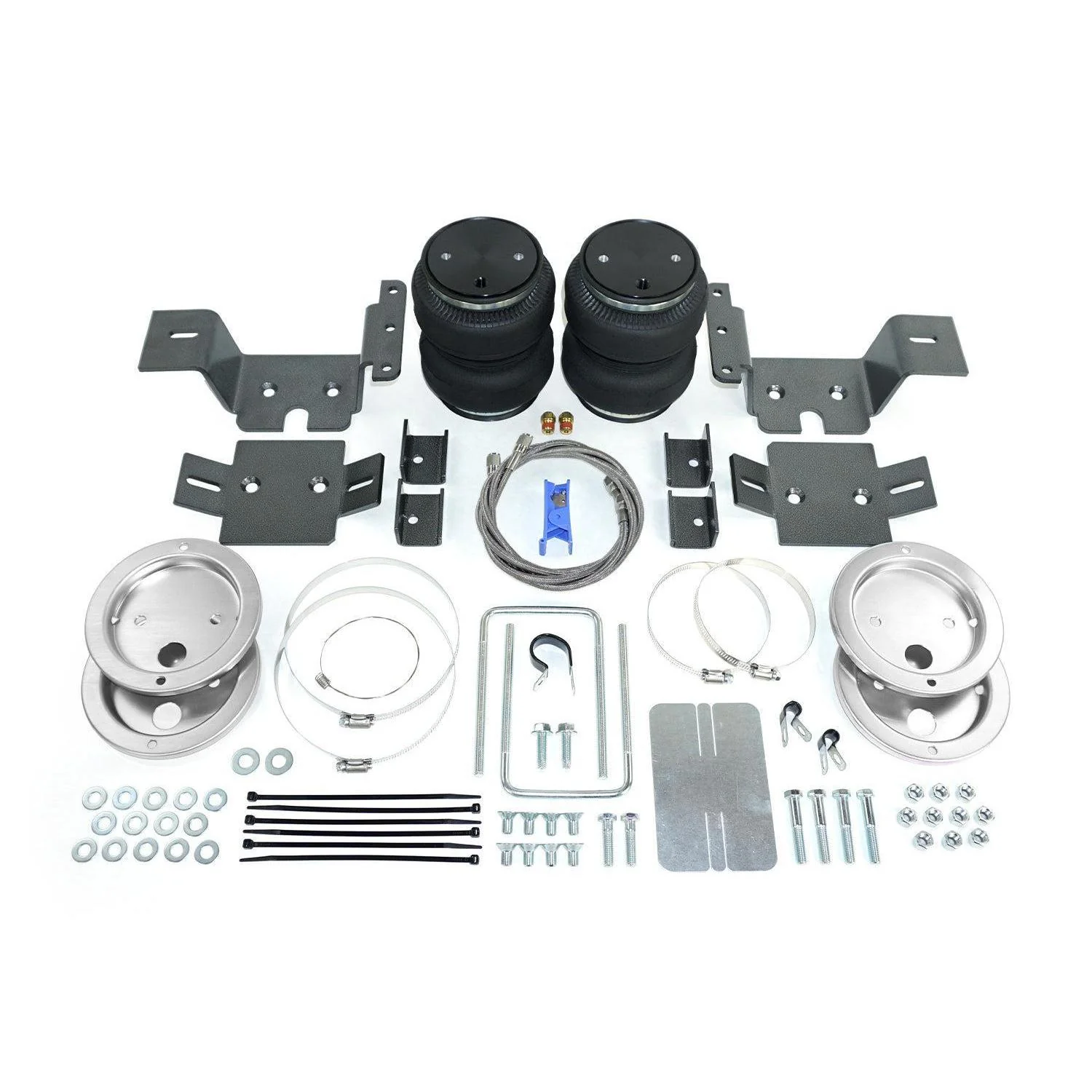

Includes:

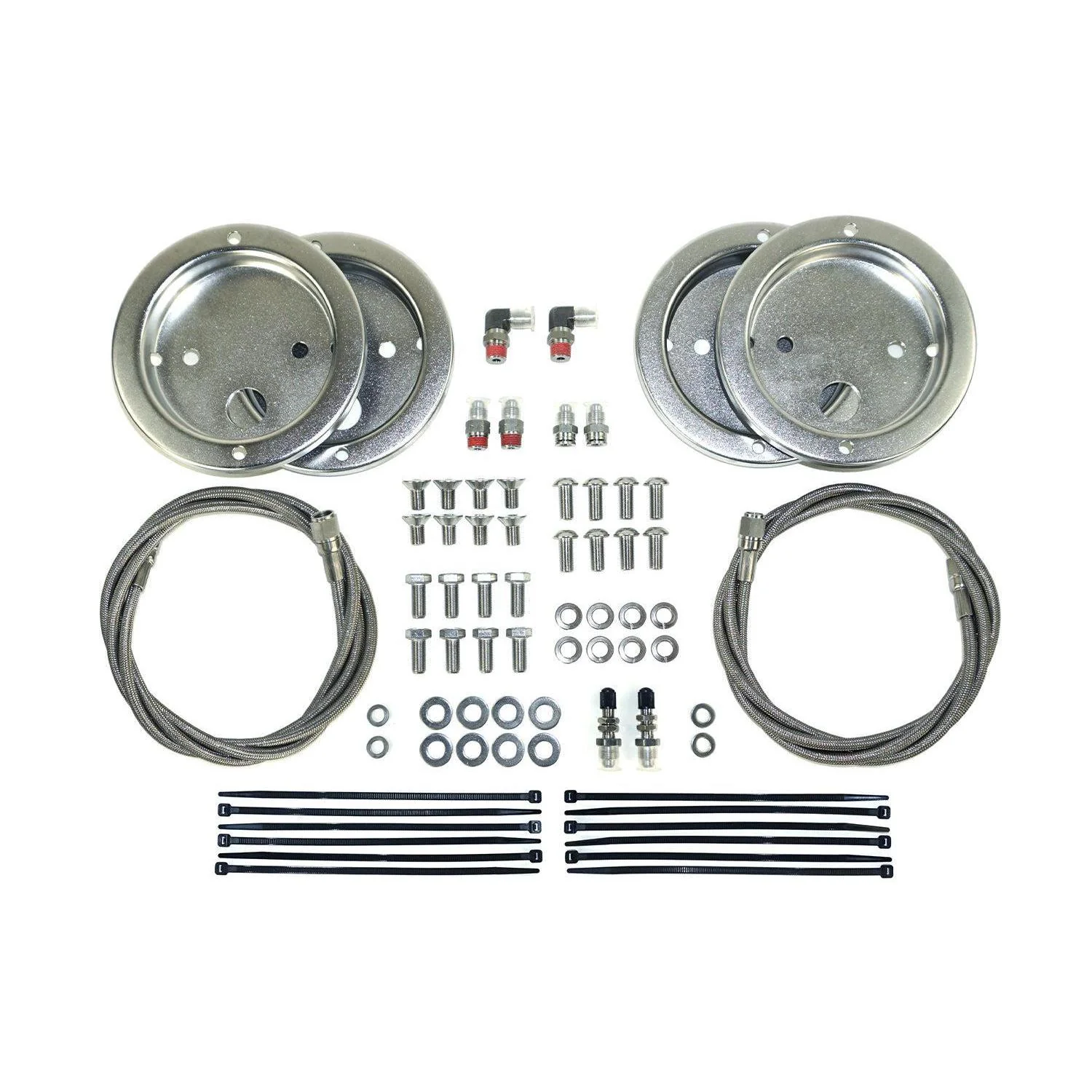

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates

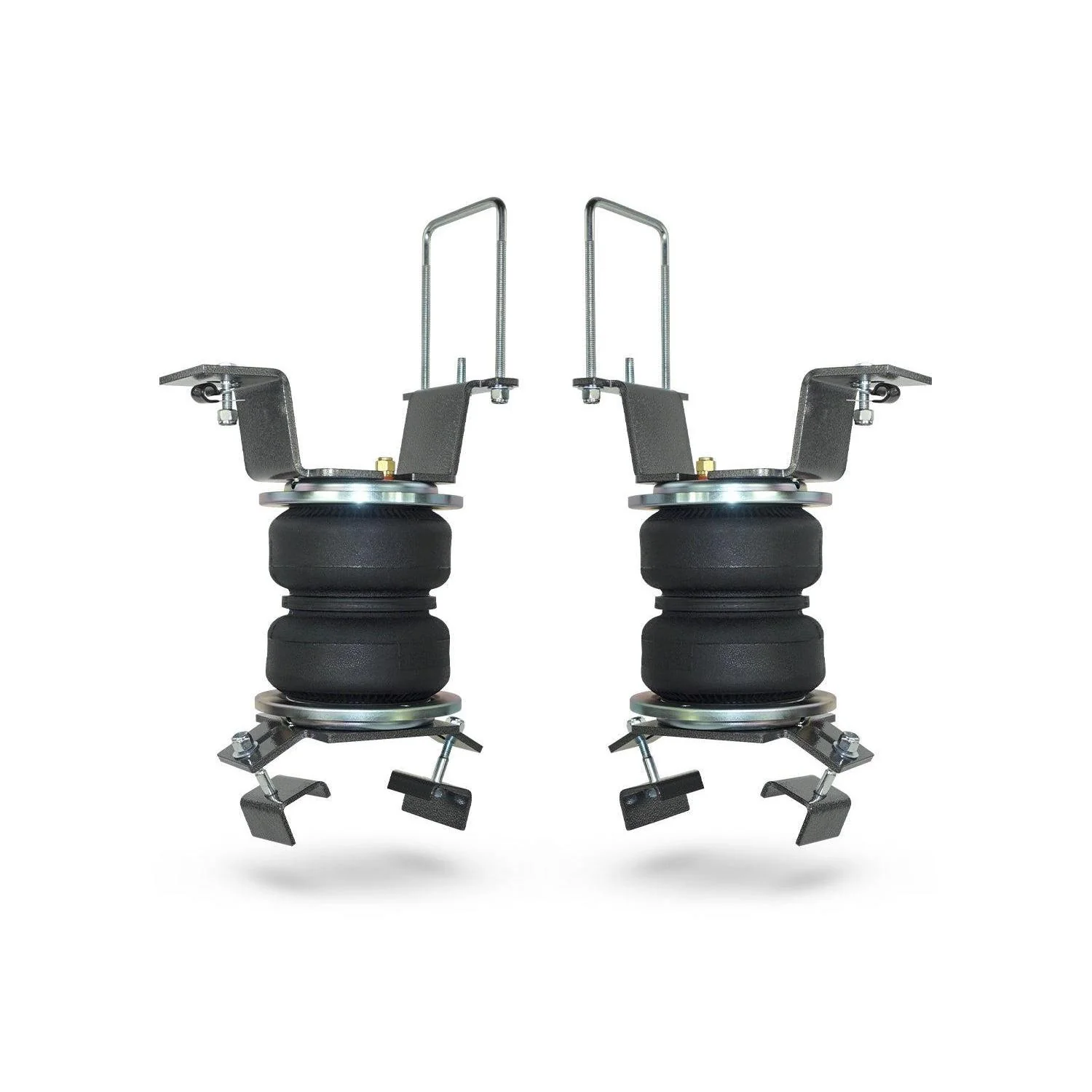

• Two Air Springs
• Everything required for install

Installation

• Click Here
• Click Here - Stainless Steel Hardware
• Application Guide

Notes

• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating.

Additional Info

Why did Pacbrake add a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the airbags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off-roading, air bags without bump stops are recommended. Consider the HP10216 ALPHA HD airbag.

Warranty

Parts Only

• Click Here
