2021-2024 Bronco 3.0 Race Series 2-3.5" Lift Internal Bypass Rear R/R Coilovers (883-06-205)

Description

Fits

Year	Make	Model
2021 - 2024	Ford	Bronco

Note: Excludes Raptor Submodel

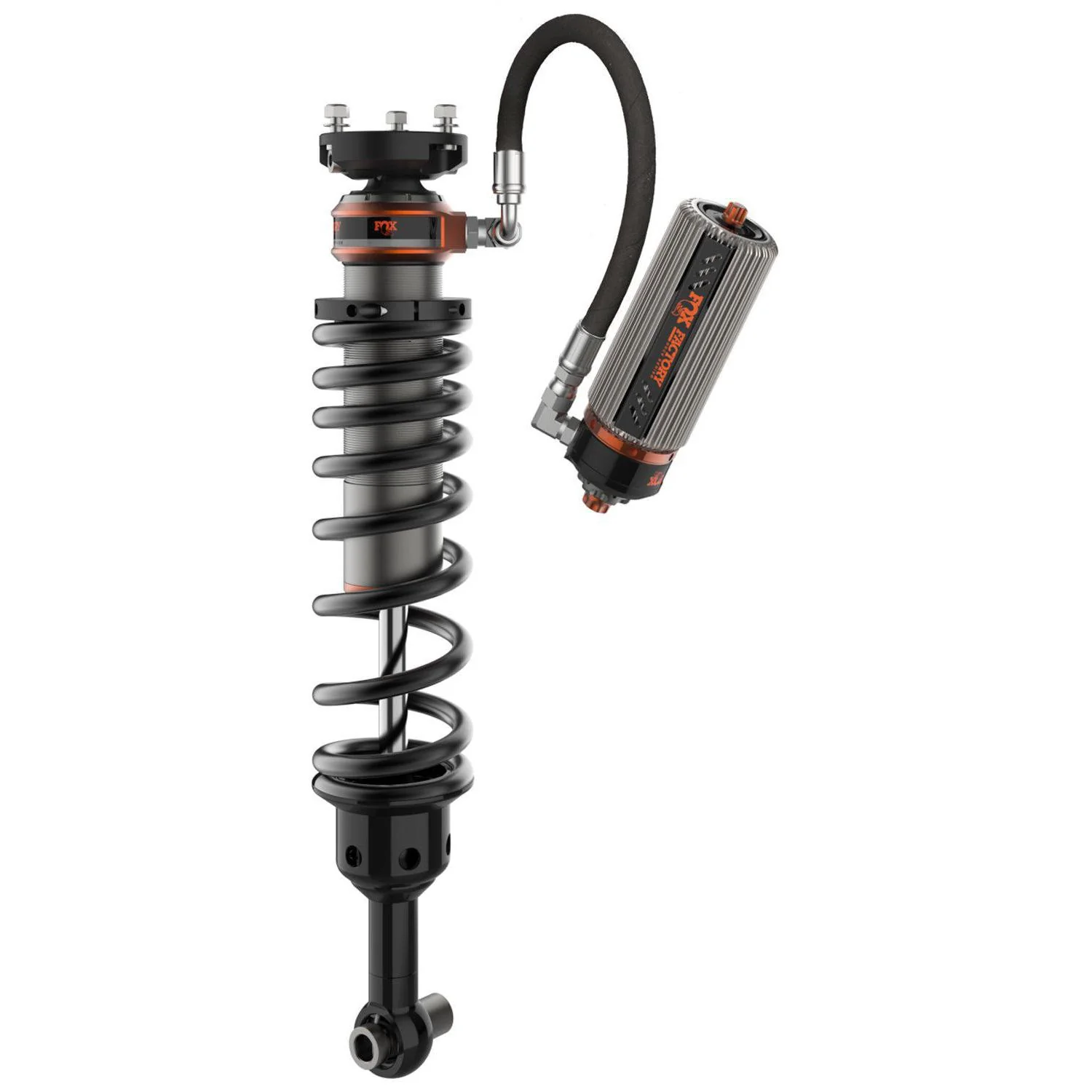

FOX Factory Race Series 2.5 Internal Bypass shocks for the Bronco deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Part Number: 883-06-205

Features

• 3" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• Finned Reservoir, with DSC adjuster

Specs:

• Travel: 7.97"
• Rear Lift Height: 2-3.5"
• Extended Length: 26.42"
• Compressed Length: 18.45"
• Top Mount: OEM
• Bottom Mount: Eyelet
