2022-2023 Tundra 6" Lift Kit w/ Falcon 1.1 Shocks (44-52620)

Description

Fits

Year	Make	Model
2022-2024	Toyota	Tundra w/ Rear Coil Springs



Packed with features and benefits to help you safely and properly install this ReadyLift 6" big lift with no compromises to factory suspension components. With superior laser cut, CNC bent, welded, and boxed sub-frame drop assemblies that keep your suspension geometry where it is supposed to be and increase your ground clearance to run up to 35" tires! Everything in this kit is engineered to hold up against the harshest terrains, providing maximum articulation and handling predictability for an insane off-road experience!

Part Number: 44-52620

Features

• Retains factory turning radius
• Retains rear coil spring and factory air configuration
• Works with the auto adjust headlights
• CNC bent, welded, and boxed sub-frame drop assemblies maintain suspension geometry
• Increase in ground clearance
• Minimal trimming required
• Sub-assembly correctly positions the differential to maintain CV axle & driveline angles

Tire Fitment:

• Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires
• Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires

Additional Info

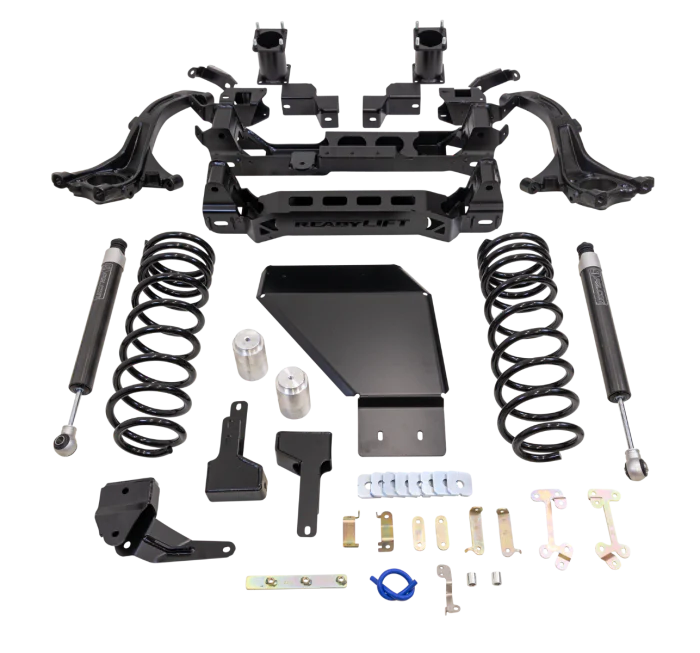

Includes:

• Front & Rear Crossmember
• Skid Plate
• Front Strut Spacer
• Driver & Passenger Front Sway Bar Drop
• 3 Front Brake Line Bracket
• 3 Front Brake Line Bracket-Left
•  Cam Block Off Plates
• Headlight Sensor Bracket Sleeve and HSB-Left
• Driver & Passenger Knuckle
• Driver & Passenger Front Bump Stop-Left
• Rear Crossmember Nut Plate, 1/4"
• Front Differential Vent Hose
• Rear Trackbar Bracket
• Driver & Passenger Rear Sway Bar Drop
• 6" Rear Coil Spring
• Driver & Passenger Rear Bump Stop
• Rear ABS Relocator
• Rear ABS Bracket
• Falcon 1.1 Rear Shock
• Rear Bump Stop Extension
• Hardware pack
• Instruction manual

Notes

• Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option or trucks equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS).
• Kits only work with factory 20" wheels - will not work with factory 18" wheels.
• Most aftermarket wheels at 20" or larger are compatible (confirm fitment prior to installation)
•  Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.
