2022-2025 Tundra 2-2.25" Front Factory Race 3.0 Internal Bypass Coilovers Reservoir Shock (Pair) Adjustable
Description
Fits:
| Year | Make | Model |
| 2022 - 2025 | Toyota | Tundra |

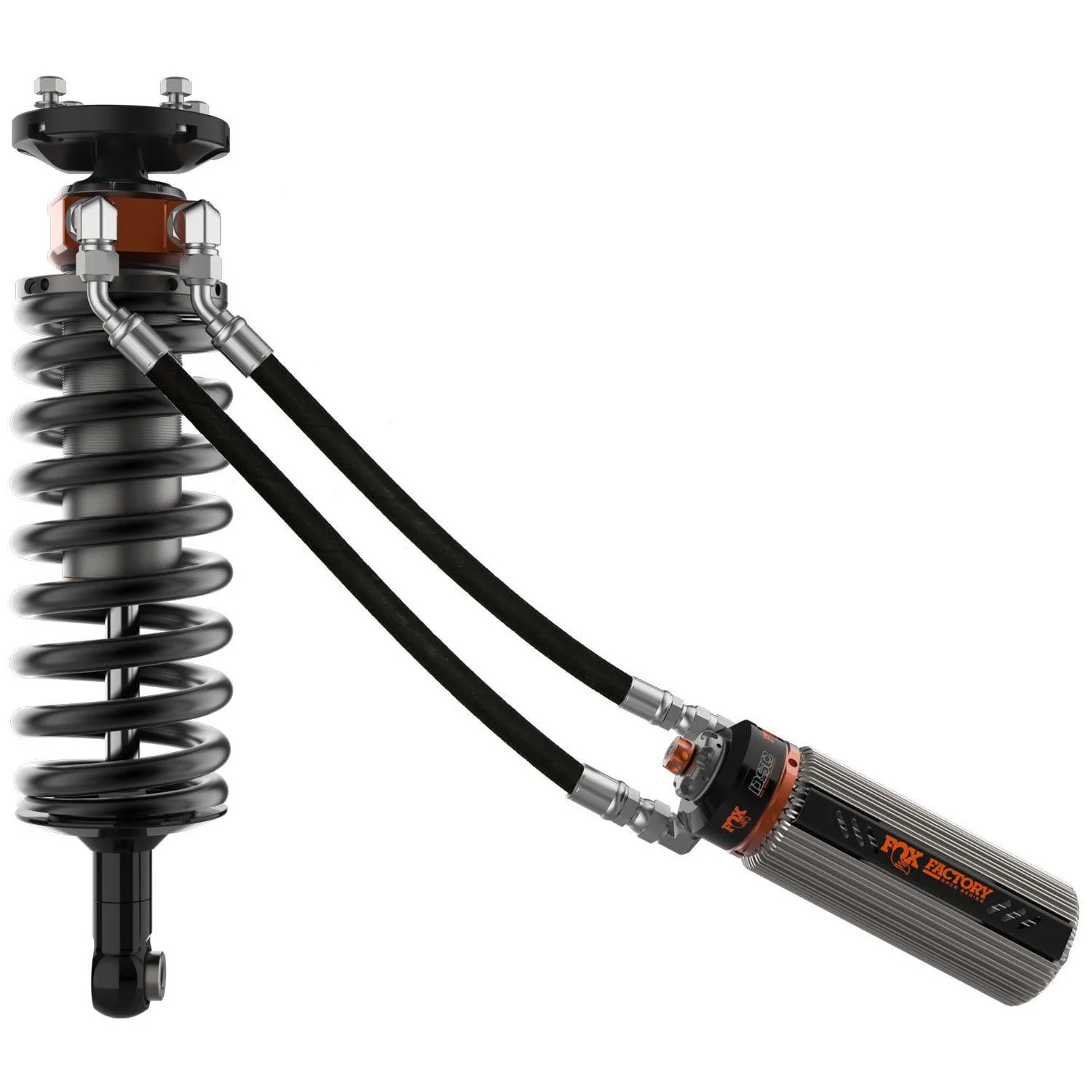

Upgrade your Toyota Tundra with FOX Factory Race Series 3.0 Internal Bypass shocks! These have position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in an easy bolt-on kit.
Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.
A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance.
FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.
Part Number: 883-06-219
Features
- 3.0" impact extruded and CNC machined 6061-T6 Type III anodized aluminum Body
- Patented internal bypass design
- Application-specific springs
- 7/8" hard chrome-plated steel Shafts
- Vehicle-specific tuning maximizes performance
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- Finned Reservoir w/ DSC adjuster
Specs
- Travel 5.37
- Extended Length 21.6
- Compressed Length 15.65
- Top Mount OEM
- Bottom Mount Eyelet
Installation
Notes
- 2-2.25 inches Requires Upper Control Arm Extended CV Axles are required for non-TRD Off-Road/PRO Trims (TRD Off-Road/PRO red axle or 3 inch TRD Lift Kit silver axle)
Warranty
- Parts Only
- A 1-Year Limited Warranty covers FOX Factory Inc. products against defects in materials and/or workmanship. Any modifications to the product will void the warranty. This Warranty will be extended to the original retail consumer of an OEM Customer's FOX Factory Inc. equipped vehicle and is valid for one year from the original date of purchase from an OEM Customer's authorized dealer. Warranty is limited to the repair or replacement of the FOX Factory Inc. product. FOX Factory Inc. reserves the right to make the final decision with regards to all warranty related issues.
