2022-2025 Tundra Standard 3" Leveling Kit W/ Rear Coil Springs (135-91226)

Description

Fits

Year	Make	Model
2022-2025	Toyota	Tundra 2WD/4WD w/ rear coil springs

Level up your 2022-2025 Tundra with this premium 3" leveling kit. This kit utilizes the OEM shocks and features anodized billet aluminum strut spacers providing 3" of front lift and 1"  rear lift from billet aluminum coil spacers. This kit includes front bump stop spacers, rear shock stem extensions, and rear brake line extension brackets. Enjoy better-than-stock ride quality with increased wheel travel (5% front, 30% rear) and added 1/4" front droop travel. This kit delivers performance without compromise.

Part Number: 135-91226

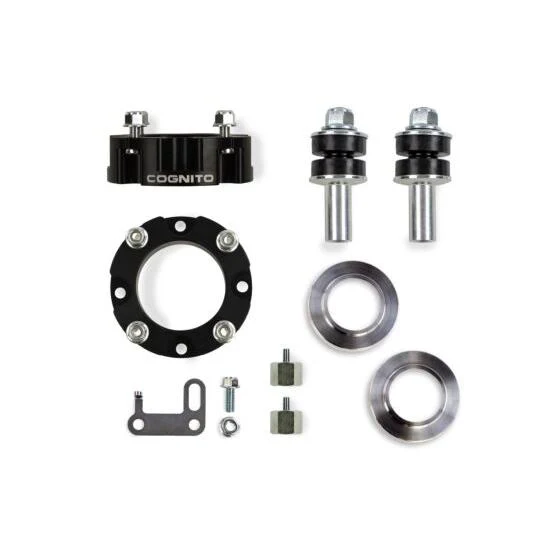

Features

• Uses the OEM shocks
• 3" of front lift via anodized billet aluminum strut spacers
• 1" of rear lift via billet aluminum coil spacers
• Added 1/4" of front droop travel from the geometry change
• Maintains proper amount of droop travel to ride as good or better than stock
• Increase in wheel travel over stock: 5% front, 30% rear
• Front bump stop spacers
• Rear shock stem extensions
• Rear brake line extension bracket

Installation

• 4-hour DIY install time
• Click Here 7425

Tire Fitment

• 18 x 9"  wheel with +18mm offset, 35x12.5 or 285/75R18
• 18 x 8.5" wheel with +18mm offset, 35x12.5 or 285/75R18
• 20x9" wheel with +18mm offset, 35x12.5 or 295/65R2

Additional Fitment

Year	Make	Model	Sub-Model
2022-2025	Toyota	Tundra	SR5
2022-2025	Toyota	Tundra	SR
2022-2025	Toyota	Tundra	Platinum
2022-2025	Toyota	Tundra	Limited
2022-2025	Toyota	Tundra	Capstone
2022-2025	Toyota	Tundra	1794 Limited Edition
2022-2025	Toyota	Tundra	1794 Edition



Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
