2023-2026 Powerstroke Dominator 3.0 Lift Kit w/ 4.5-5.5” Lift (CS-F55-D30-23)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty

Note: Review 'Additional Info' for REQUIRED and optional Add-On Components.

Renowned for a wide variety of reasons, King Shocks are the pinnacle of performance and capability. These 3.0 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride over any terrain. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-F55-D30-23

Features

• Utilizes Carli-tuned King 3.0 shocks that provide a fantastic on-road ride and superior off-road performance

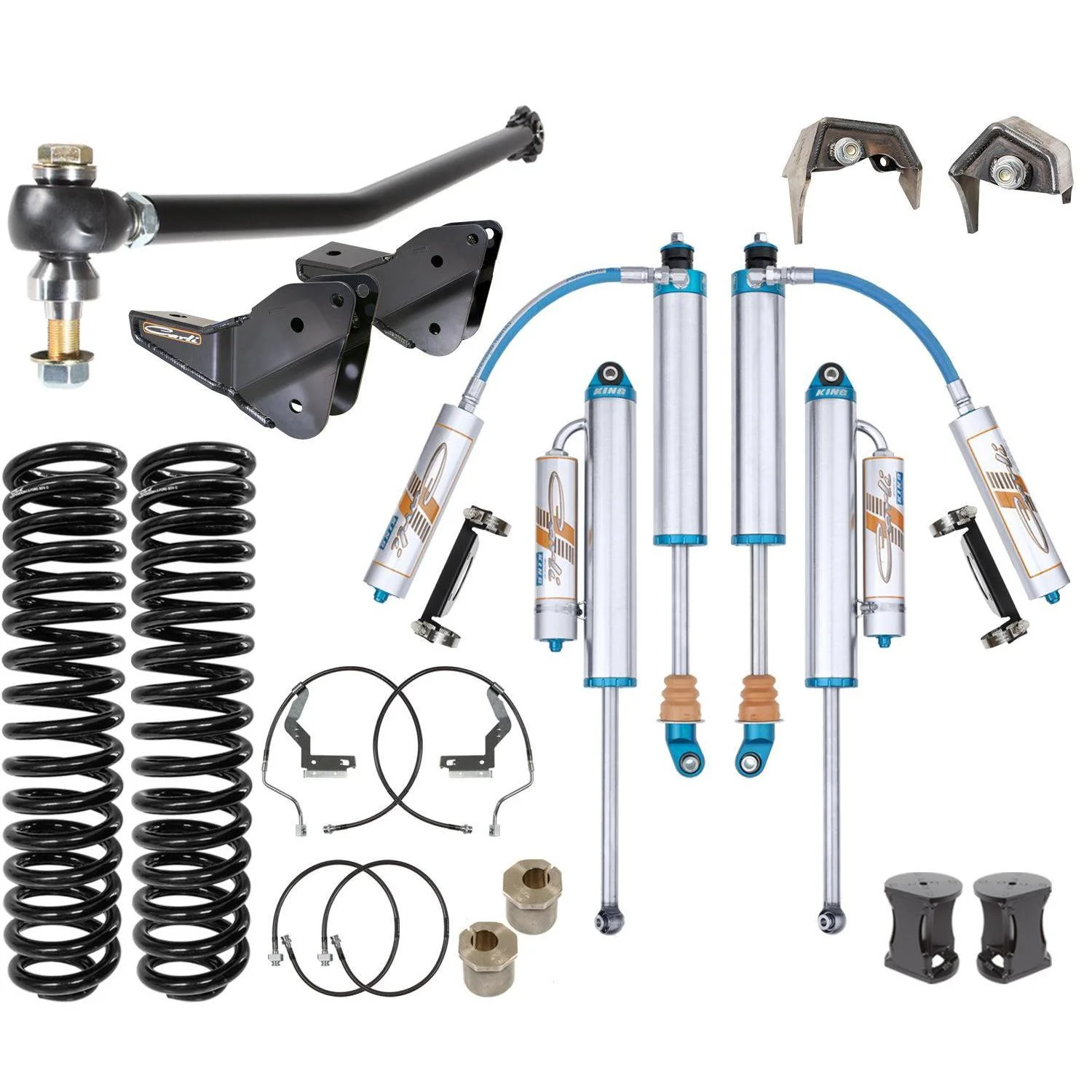

• Front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar

• Increases wheel travel to 10.5" front and 13.8" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5" CS-FELKIT-45-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS CS-FTSB-45-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT CS-FPAP-45-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17-HD

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Airbags (OPTIONAL): 23-26 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE CS-FLTB-23-35 or 23-26 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE CS-FLTB-23-40 or 23-26 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE CS-FLTB-23-45

  • 2° Pinion Shim (OPTIONAL): CS-FPSKIT-3X2
  • Fabricated Radius Arms (OPTIONAL): CS-FARA-55-23

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-23
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723
