2023-2026 Powerstroke E-Venture 3.5" Lift Kit (CS-FLVL-EV25-23)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty
2023 - 2026	Ford	F-350 Super Duty

Note: Compatible with Tremor models, but you will only receive 1.5" of lift

Review 'Additional Info' for required and optional components

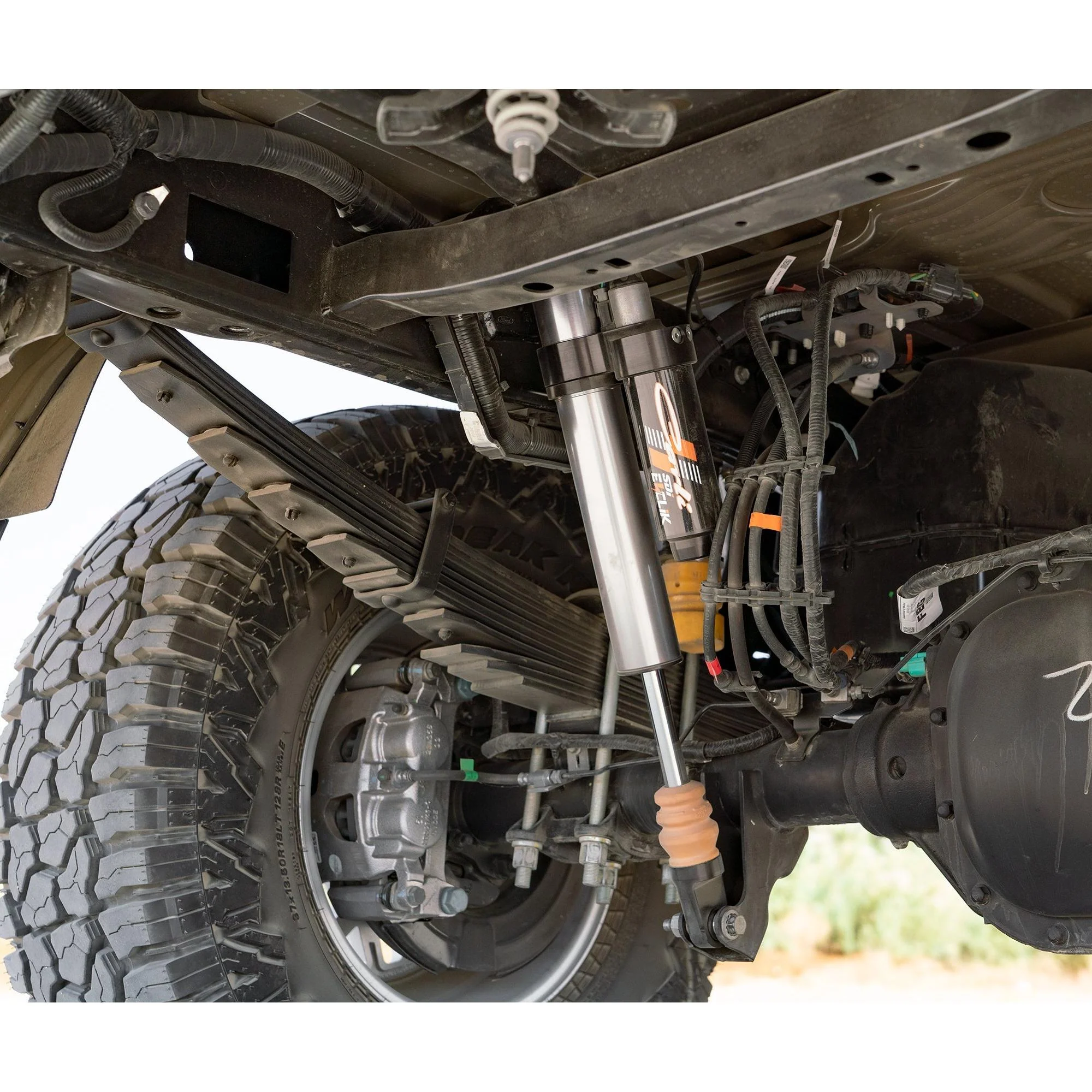

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled, which read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-FLVL-EV25-23

Features

• Pro Mode gives full control over pitch, roll, throttle, brake, and steering response. If adjustments need to be undone, the Restore Default function resets everything with ease
• Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support
• Increases wheel travel to 9" front and 13" rear
• Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button.
• Hard-anodized aluminum bodies and reservoirs pair with 17-4 Stainless steel Shock Shafts will stand the test of time and elements

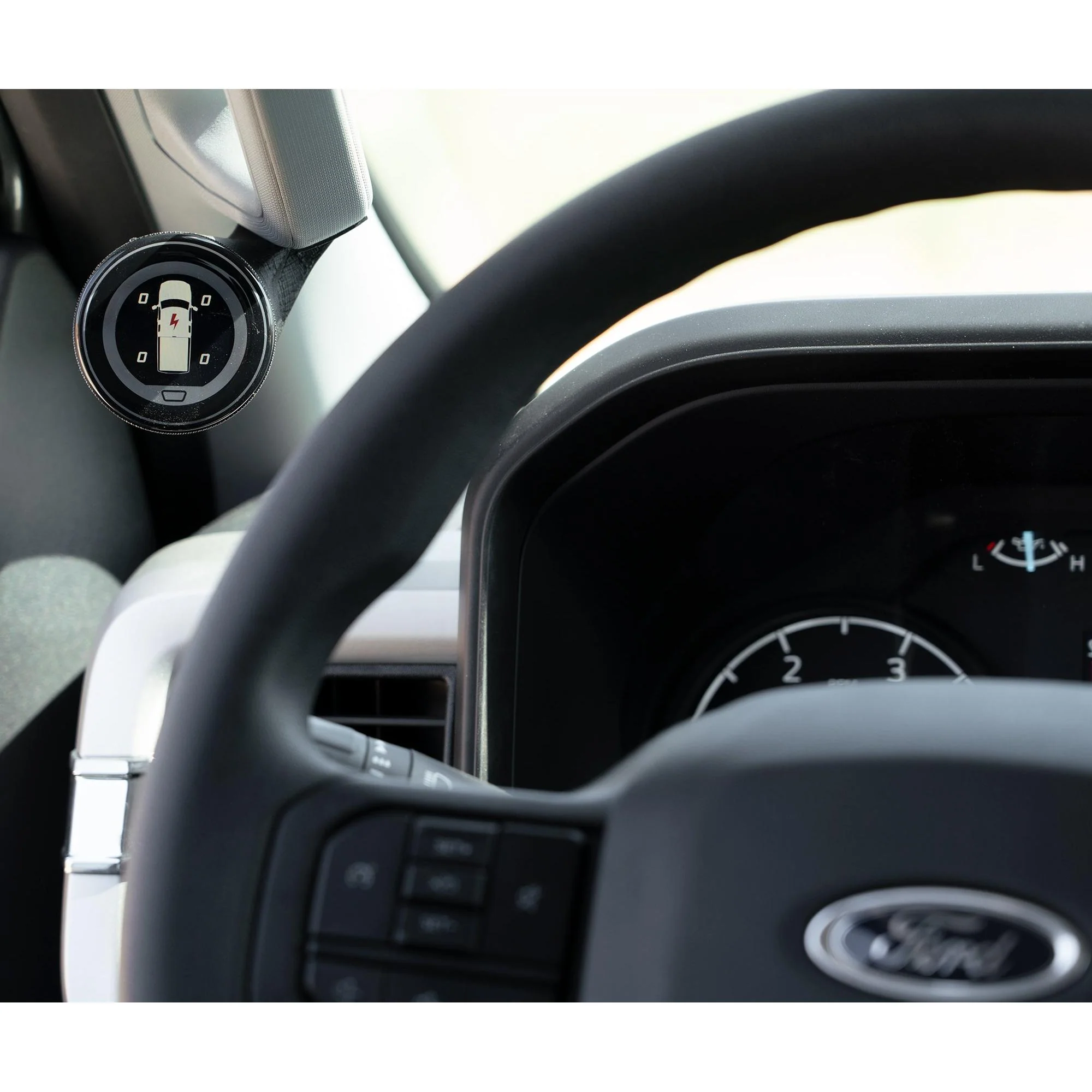

• Operating Screen: While driving, the screen is defaulted to your interface, showing the real-time correction at each corner

Additional Information

• Required and Optional Parts to support this system:
  • Front Sway Bar (REQUIRED): Sway Bar Drop Brackets CS-FSBD-LVL-1723 OR Extended Link Kit CS-FELKIT-LVL-20 OR Torsion Sway Bar CS-FTSB-LVL-17
  • Rear Leaf Options (REQUIRED): 17-26 FORD F250/350 4X4 XXHD +3500LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XXHD OR 17-26 FORD F250/350 4X4 XHD +2000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XHD OR 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD OR 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 OR 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17
  • Long Bed Extension Harness (REQUIRED): Long Bed Extension Harness CS-FEVSPKG-LBEH (Only required for Crew Cab Long Bed Trucks: 176" Wheelbase & Super Crew Long bed: 164" Wheelbase)
  • 2025 Platinum Touch Screen Mount - Suede A-Pillar (Optional): 2025 Platinum Touch Screen Mount - Suede A-Pillar CS-FEV-APTSM-25-P

  • Leaf Spring Shackle (Optional): Fabricated Rear Leaf Spring Shackle Kit CS-FSHACKLE-11
  • 2° Pinion Shim (Optional): 2 Degree Pinion Shim Kit CS-FPSKIT-3X2
  • Adjustable Radius Arms (Optional): Fabricated Radius Arm System CS-FARA-LVL-23
  • Low Mount Steering Stabilizer (Optional): Low Mount Steering Stabilizer with Diff Guard CS-FLMSS-23
  • High Mount Steering Stabilizer (Optional): High Mount Steering Stabilizer CS-FHMSS-17
  • Trophy Hitch (Optional): Ford Trophy Hitch CS-FHITCH-1723

Notes

• Kit requires Carli sway bar drop brackets, Carli long bed extension harness, and Carli progressive leaf springs. These components are sold separately
• Expect 1.5″ lift on 2020+ F250/350 Tremor applications
