2023-2026 Powerstroke E-Venture 5.5" Lit Kit (CS-F55-EV25-23)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty
2023 - 2026	Ford	F-350 Super Duty

Note: NOT compatible with the ONBOARD SCALES/SMART HITCH

Review 'Additional Info' for required and optional components

One of the most advanced shock packages Carli offers, the E-Venture 2.5 Series Remote Reservoir Shocks are SDI electronically controlled shocks that read and react 250 times per second for on-the-fly instant shock tuning. Featuring 3 pre-programmed drive modes to cater to any application: Mountain (Rock-Crawl), Street, and Desert Mode. Each mode has been extensively refined and is in order from softest/least sensitive to most controlled/active.

SDI has put an extensive amount of R&D into this user-friendly dial so you can easily adjust Pitch, Roll, Brake, Throttle, Load, and Steering Response. Providing you with unparalleled control and precision in every way for the ultimate suspension setup.

Part Number: CS-F55-EV25-23

Features

• Select from Mountain, Street, and Desert modes to choose the best setting for any terrain. Each setting has been EXTENSIVELY refined and can be activated instantaneously with the push of a button
• Pro Mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response. Don't worry, if your curiosity gets ahead of you or you failed to track your changes, Carli implemented a “Restore Default” setting
• Rear Load Adjustment feature gives the user control over the rear dampers. When loaded, the rear can be adjusted to balance comfort and support, OR max the rear support to prioritize load support

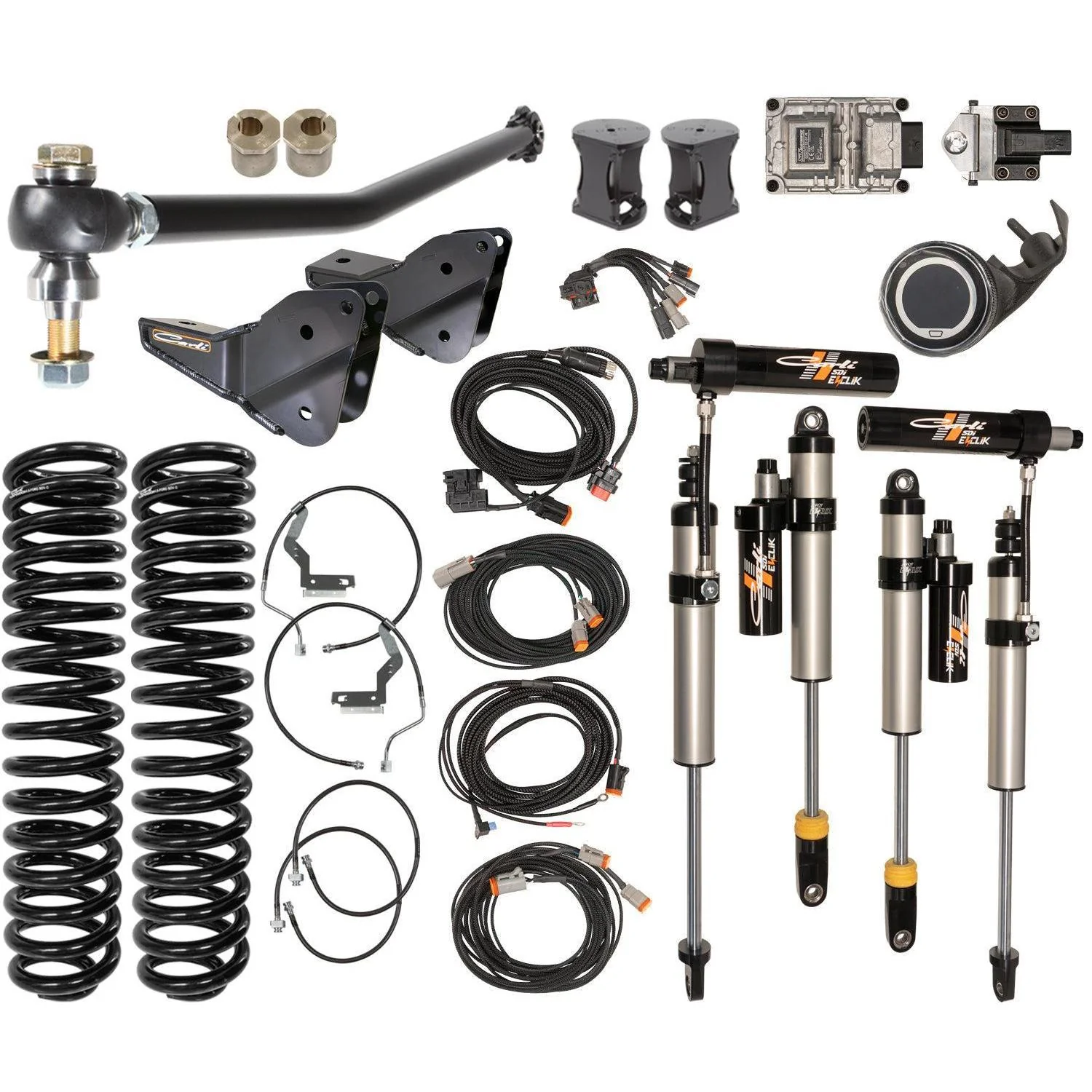

• Front and rear shock package, fabricated coil buckets, brake line kit, rear shock mounts, radius arm drop brackets, bump stop drops, caster correction shims, and adjustable track bar.
• Increases wheel travel to 10.25" front and 13.0" rear

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 4.5"/5.5" CS-FELKIT-45-17 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 4.5"/5.5" LIFT WITH END LINKS CS-FTSB-45-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 3" LIFT CS-FPAP-45-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 3" LIFT CS-FFSP-17-HD

  • 2025 Platinum Touch Screen Mount - Suede A-Pillar (OPTIONAL): CS-FEV-APTSM-25-P

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • Long Travel Airbags (OPTIONAL): 23-26 FORD F350 4X4 LONG TRAVEL AIRBAGS - 3.5" AXLE TUBE CS-FLTB-23-35 or 23-26 FORD F250 TREMOR, HIGH CAP TOW & F350 SRW 4X4 LONG TRAVEL AIRBAGS - 4.0" AXLE TUBE CS-FLTB-23-40 or 23-26 FORD F350 DRW 4X4 LONG TRAVEL AIRBAGS - 4.5" AXLE TUBE CS-FLTB-23-45

  • 2° Pinion Shim (OPTIONAL): CS-FPSKIT-3X2
  • Fabricated Radius Arms (OPTIONAL): CS-FARA-55-23

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-23
  • Carrier Bearing Drop (OPTIONAL): CS-CARRIERDROP-F

  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723
