2023-2026 Powerstroke PAP Commuter Leveling Kit w/ 3.5” Lift (CS-FLVL-COM-CS-23-PAP)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty
2023 - 2026	Ford	F-350 Super Duty

Note: Compatible with Tremor models, but you will only receive 1.5" of lift

Review 'Additional Info' for required and optional components

These shocks have been valved for Progressive Add-a-Packs or those running stock rear springs ONLY

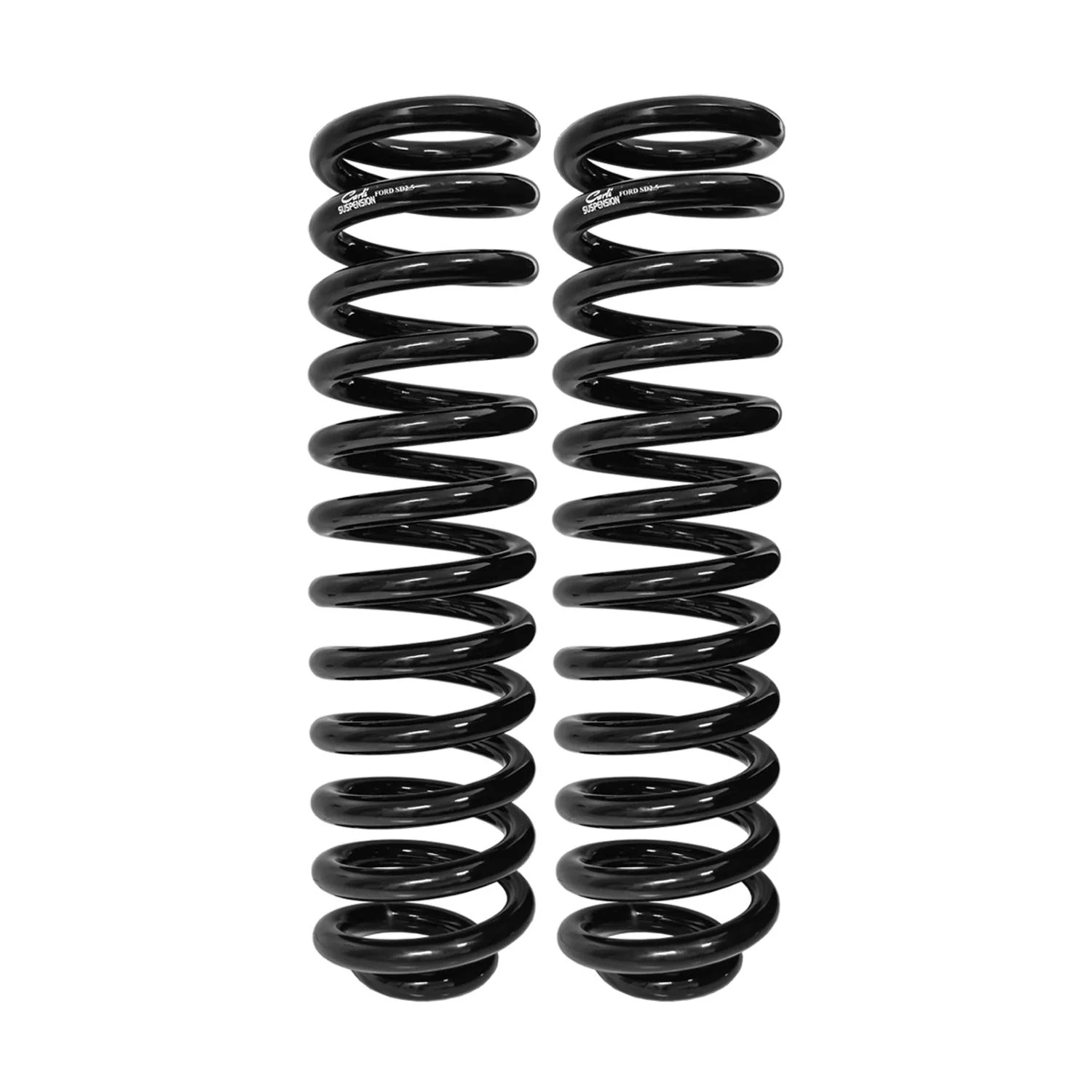

The perfect comprehensive beginner-level suspension setup for your Powerstroke, with front multi-rate coil springs that provide an ideal leveled out stance, tighter when cornering, and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

Part Number: CS-FLVL-COM-CS-23-PAP

Features

• Experience improved handling and stability

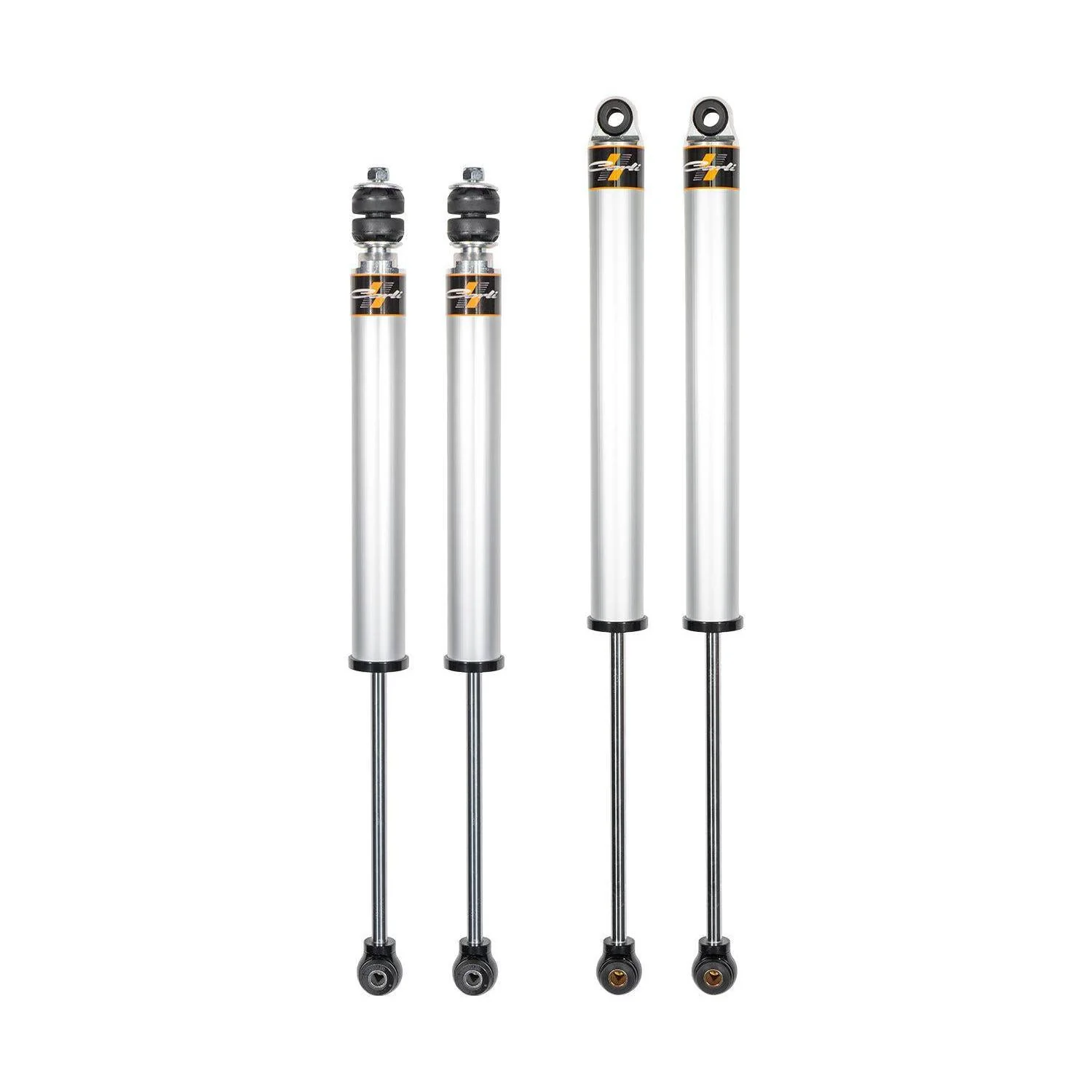

• Carli-Tuned corrosion-resistant 2.0 IFP shocks
• Valved specifically for use with stock leaf springs or Carli Progressive Add-a-Packs

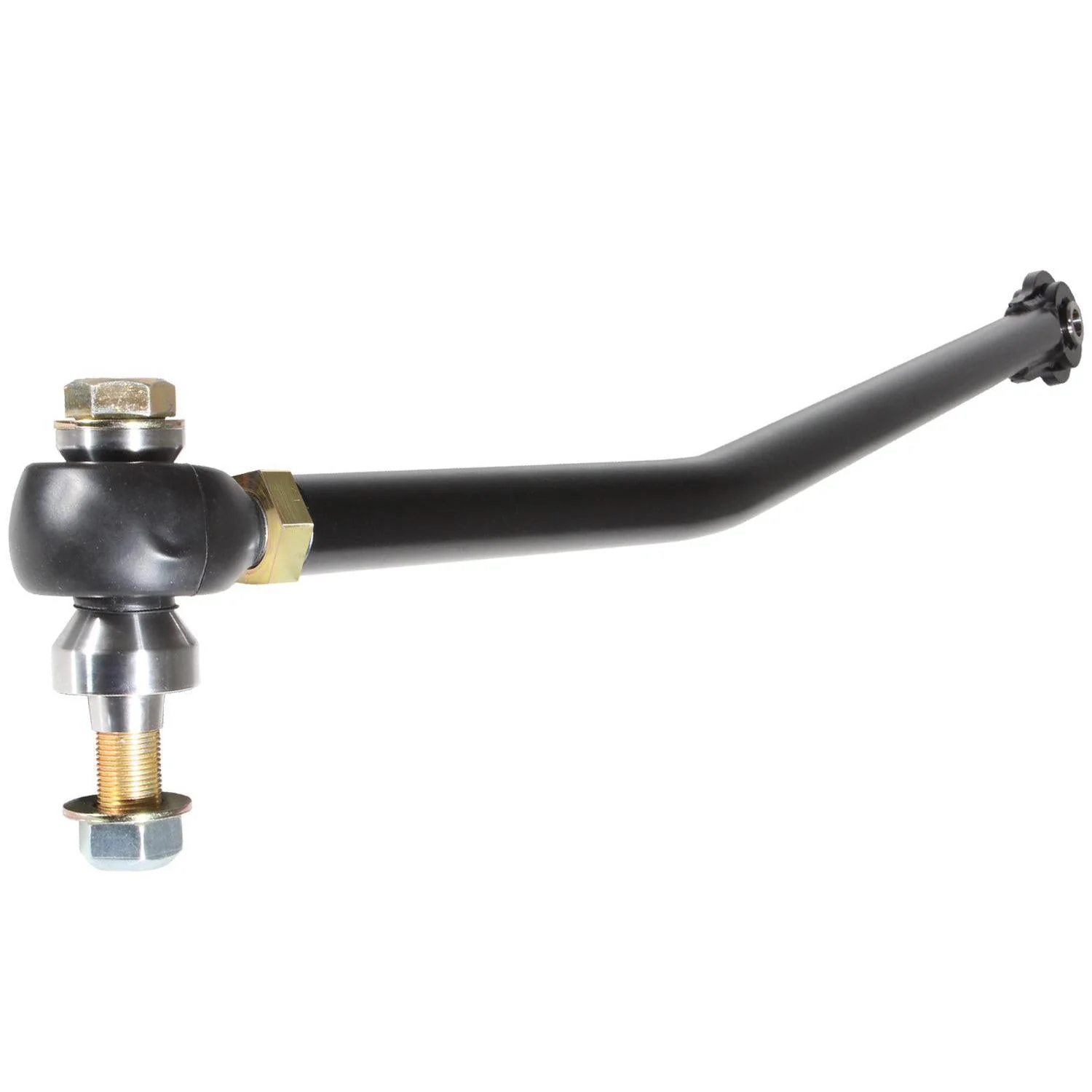

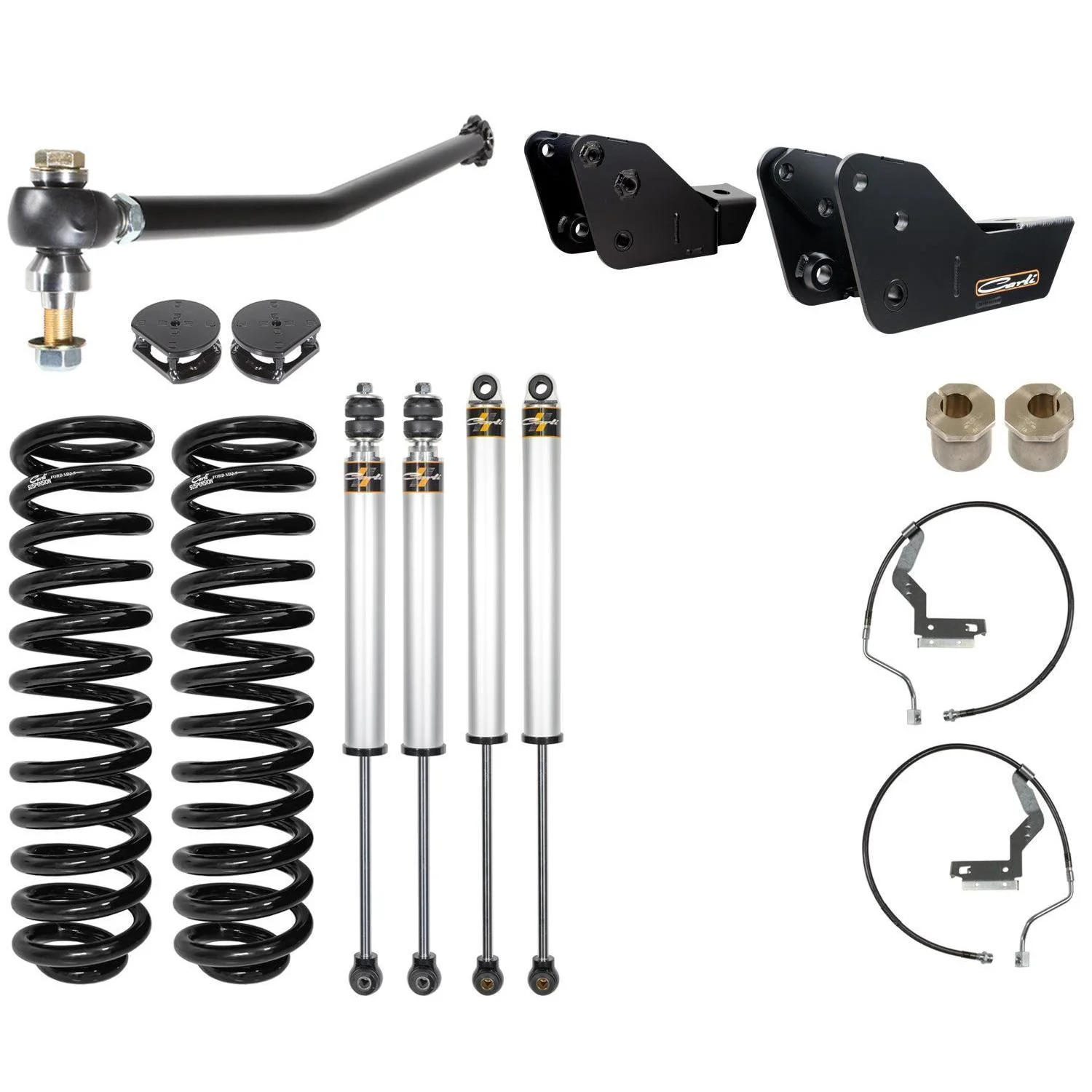

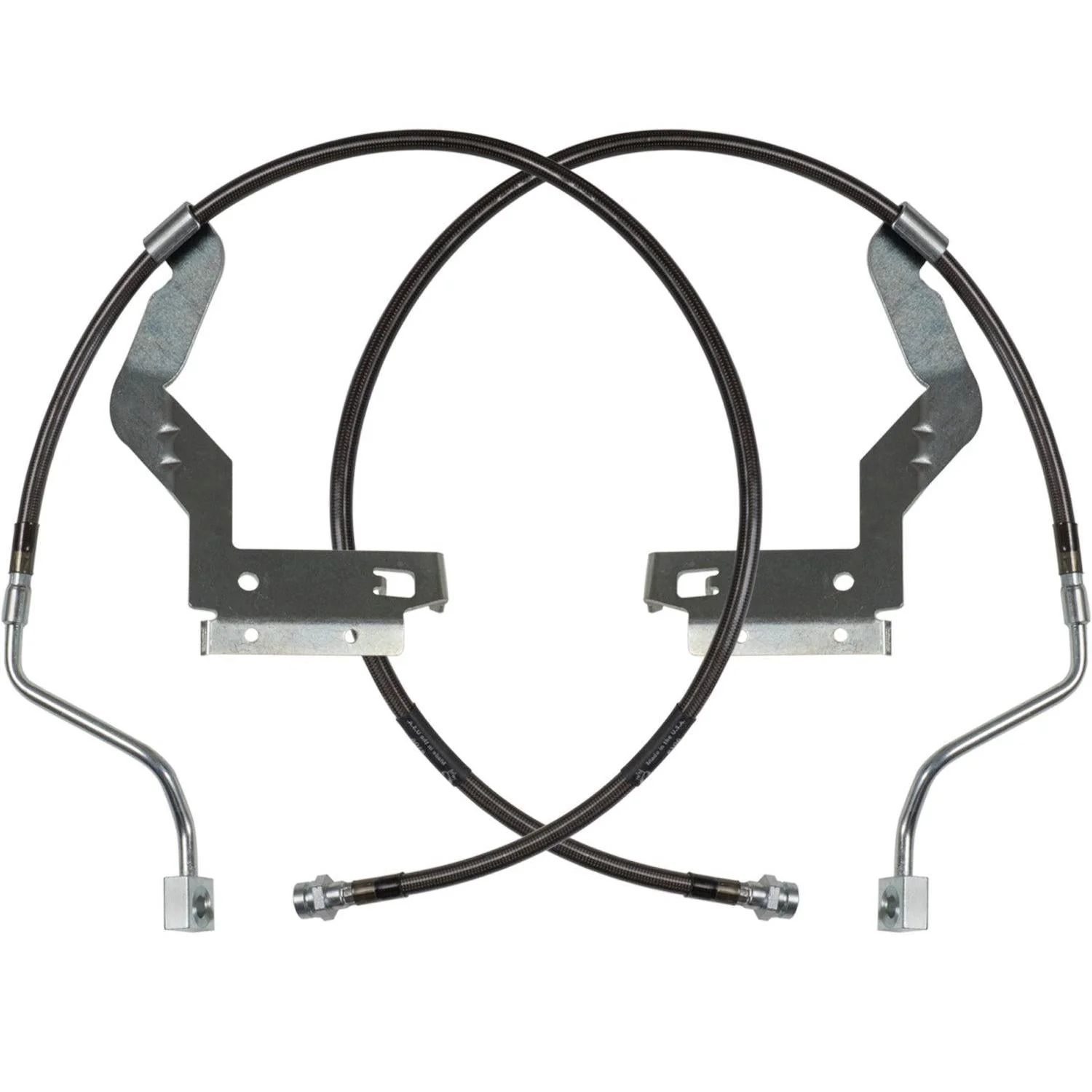

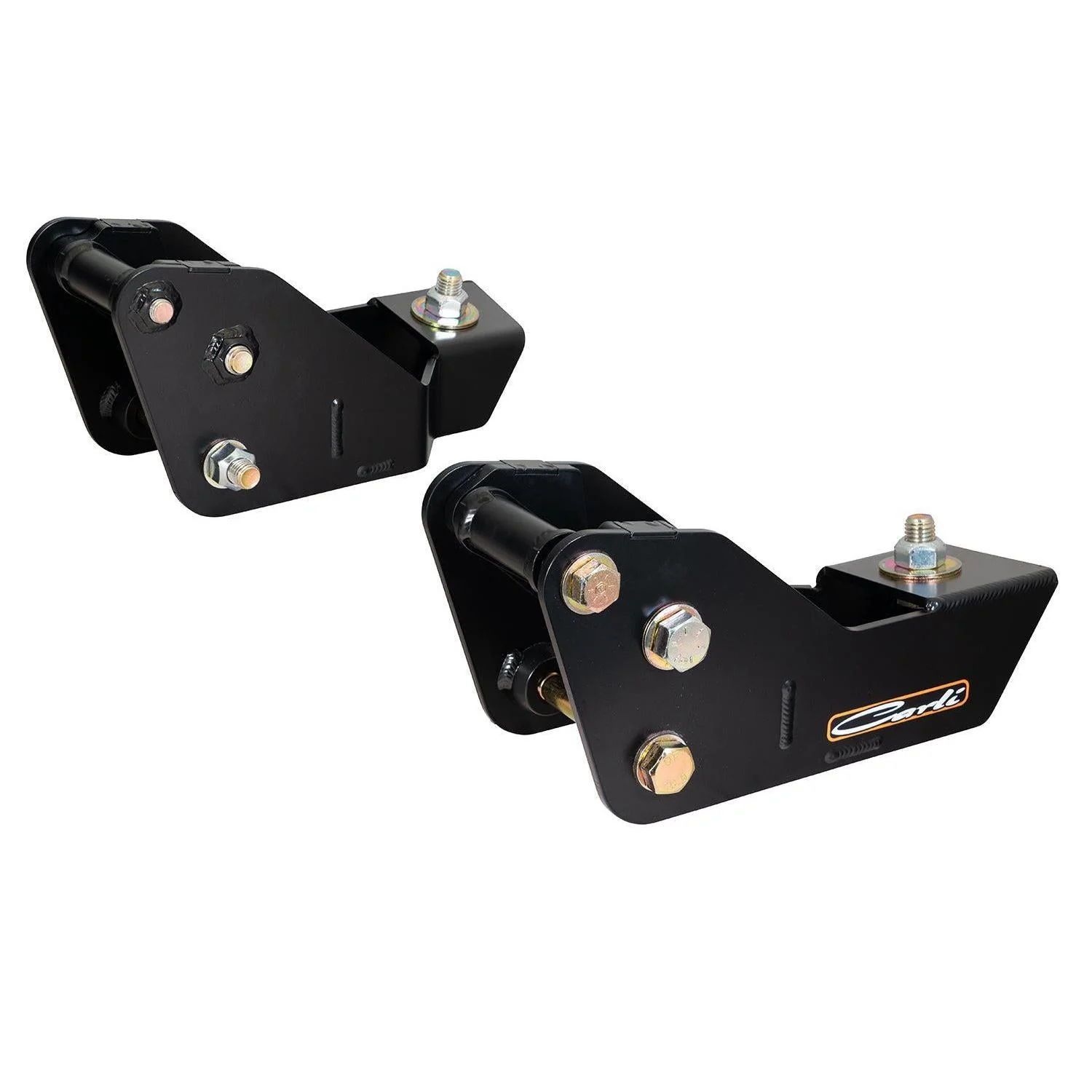

• Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Front Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 20-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 3.5" CS-FELKIT-LVL-20 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17

  • Rear Leaf Spring Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD

  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • 2° Pinion Shim (OPTIONAL): CS-FPSKIT-3X2
  • Adjustable Radius Arms (OPTIONAL): CS-FARA-LVL-23

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-23
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723

Notes

• NOT RECOMMENDED for use with Carli Full Progressive Spring Packs
• 3.5″ Lift – 2023-2026 F250/350 4×4 Diesel

• 1.5″ Lift – 2023-2026 F250/350 TREMOR
