2023-2026 Powerstroke Pintop 3" Leveling Kit (CS-FLVL-PT25-23-GAS)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty
2023 - 2026	Ford	F-350 Super Duty

Note: Will NOT fit diesel applications or onboard scales/ smart hitch

Review 'Additional Info' for required and optional components

One of the best off-road suspension systems Carli offers, the Pintop 3" leveling kit provides you with an all-around terrific ride over any terrain. No compromises were made with the development of this kit. Featuring Carli-specific, blueprinted, King 2.5” shocks that provide 55% more piston surface area and are the pinnacle of performance and capability. These pintop 2.5 remote reservoir shocks provide more fluid volume and piston movement, which results in improved heat dissipation, consistent damping, and a smoother, more comfortable ride. Fully rebuildable, serviceable, and tuneable for whatever your preference is.

Part Number: CS-FLVL-PT25-23-GAS

Features

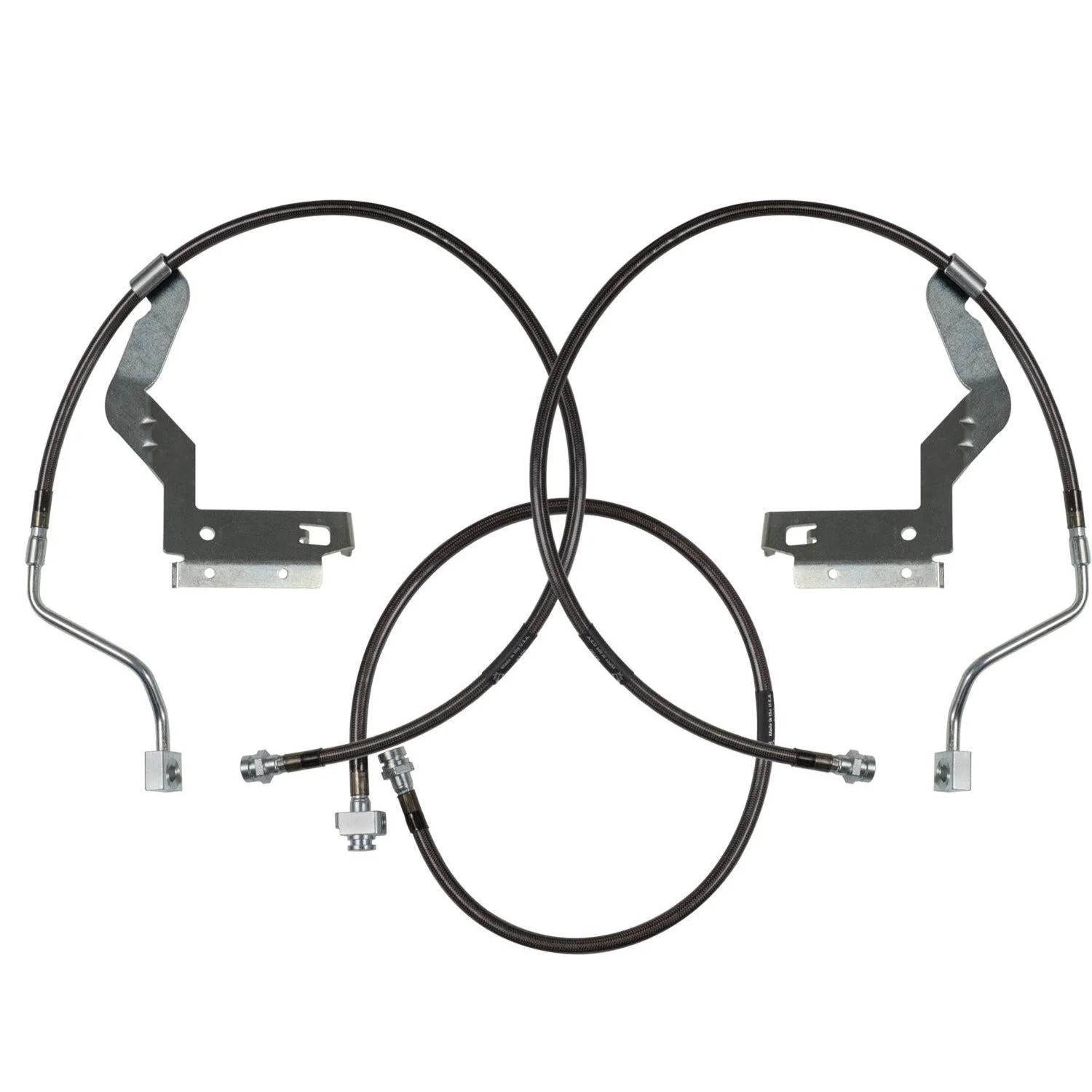

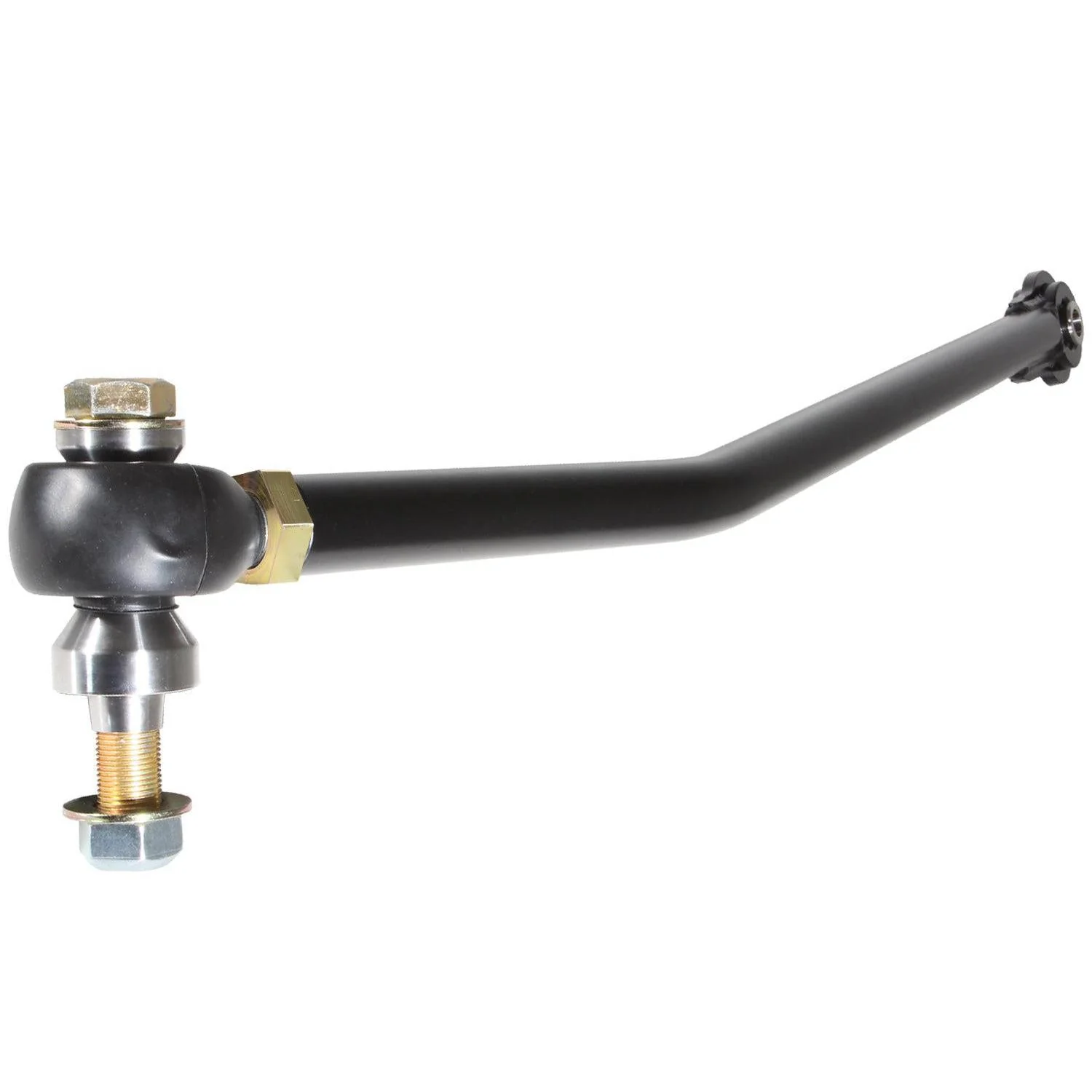

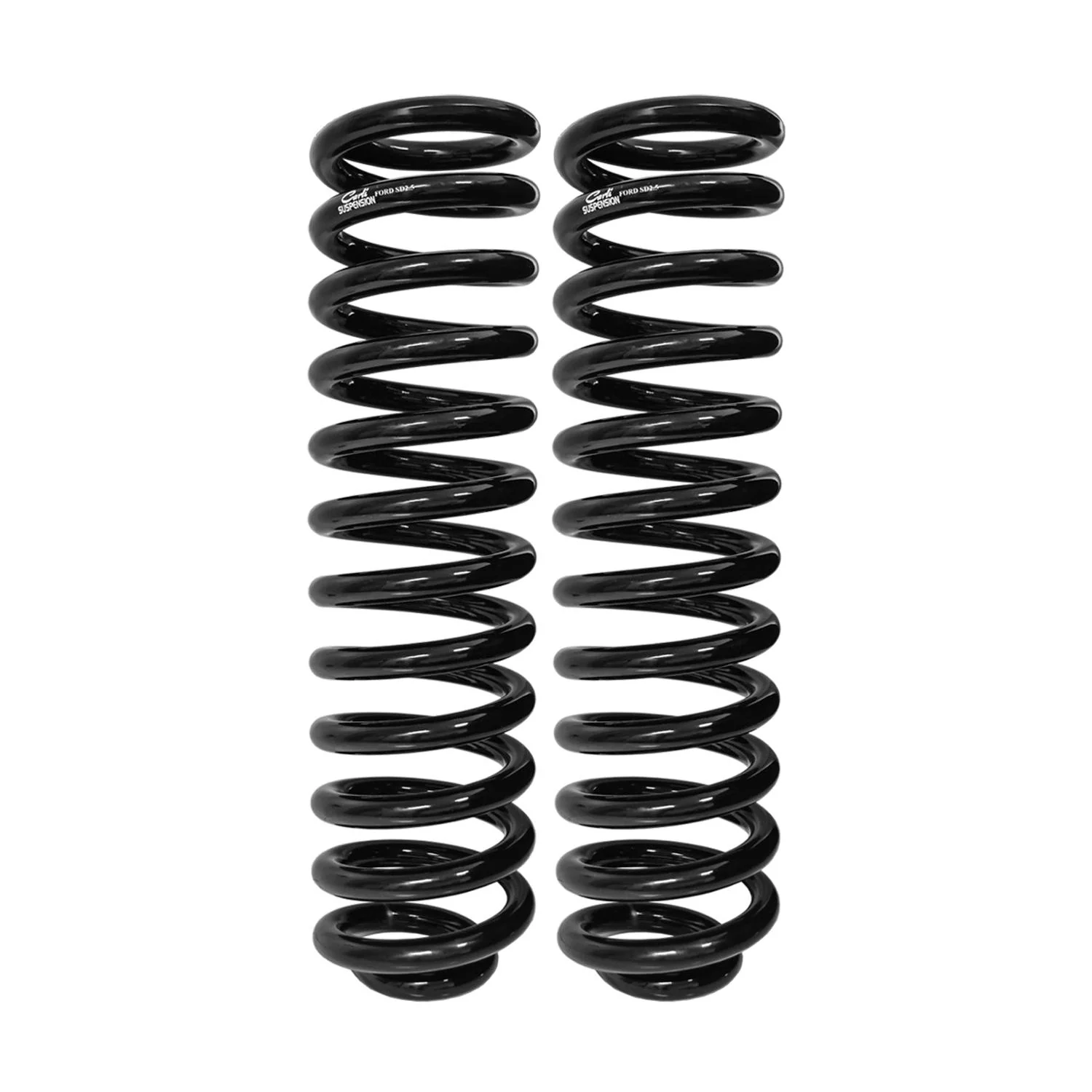

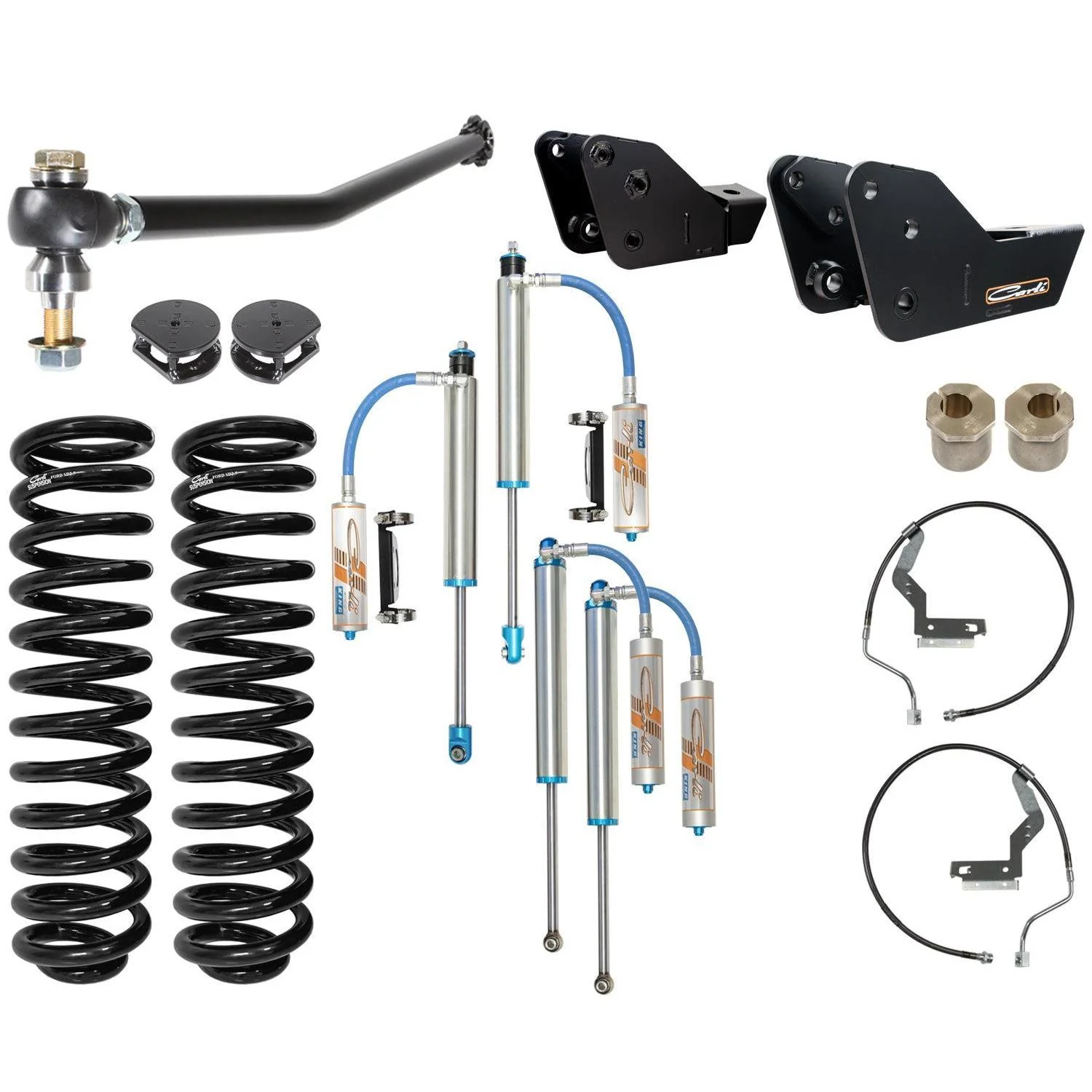

• Front and rear shock packages, linear rate coil springs, brake line kits, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance
• Carli Custom Tuned KING 2.5 Remote Reservoir Shocks
• Custom pistons determine proper base flow rates to ensure the shock works well in the HD truck platform
• Shock oil holds up to -55 degrees Fahrenheit
• Superior off-road capability

Additional Info

• Required and Optional Parts to support this system:
  • Sway Bar Options (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 20-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 3.5" CS-FELKIT-LVL-20 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17
  • Rear Leaf Options (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD or 17-26 FORD F250/350 4X4 XHD +2000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XHD or 17-26 FORD F250/350 4X4 XXHD +3500LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XXHD
  • Leaf Spring Shackle (OPTIONAL): 05-26 FORD F350/350 4X4 FABRICATED LEAF SPRING SHACKLE CS-FSHACKLE-11
  • 2° Pinion Shim (OPTIONAL): 05-26 FORD F250/350 4X4 FORD PINION SHIM KIT, 2 DEGREE CS-FPSKIT-3X2

  • Adjustable Radius Arms (OPTIONAL): 23-26 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 3.5" LIFT CS-FARA-LVL-23
  • Low Mount Steering Stabilizer (OPTIONAL): 23-26 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD CS-FLMSS-23
  • High Mount Steering Stabilizer (OPTIONAL): 17-26 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT CS-FHMSS-17

  • Trophy Hitch (OPTIONAL): 17-26 FORD F250/350 4X4 FORD TROPHY HITCH CS-FHITCH-1723

Notes

• NOT compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system's performance.
• Factory Wheels SHOULD NOT be run with oversized tires. They're known to rub the radius arm, sway bar, and most concerning, the Brake Lines. Factory tires and factory wheels will work without issue, but Carli DOES NOT recommend running oversized tires on factory wheels.
• It is recommended to wrap your shocks in 3M to provide a moisture barrier that's replaceable if you are in weather conditions below -55 degrees Fahrenheit
