2023-2026 Powerstroke 5" Lift Kit w/ 4-Link

Description

Fits:

Year	Make	Model
2023-2026	Ford	F-250/350 Super Duty

Fitment Note:  SRW Models only

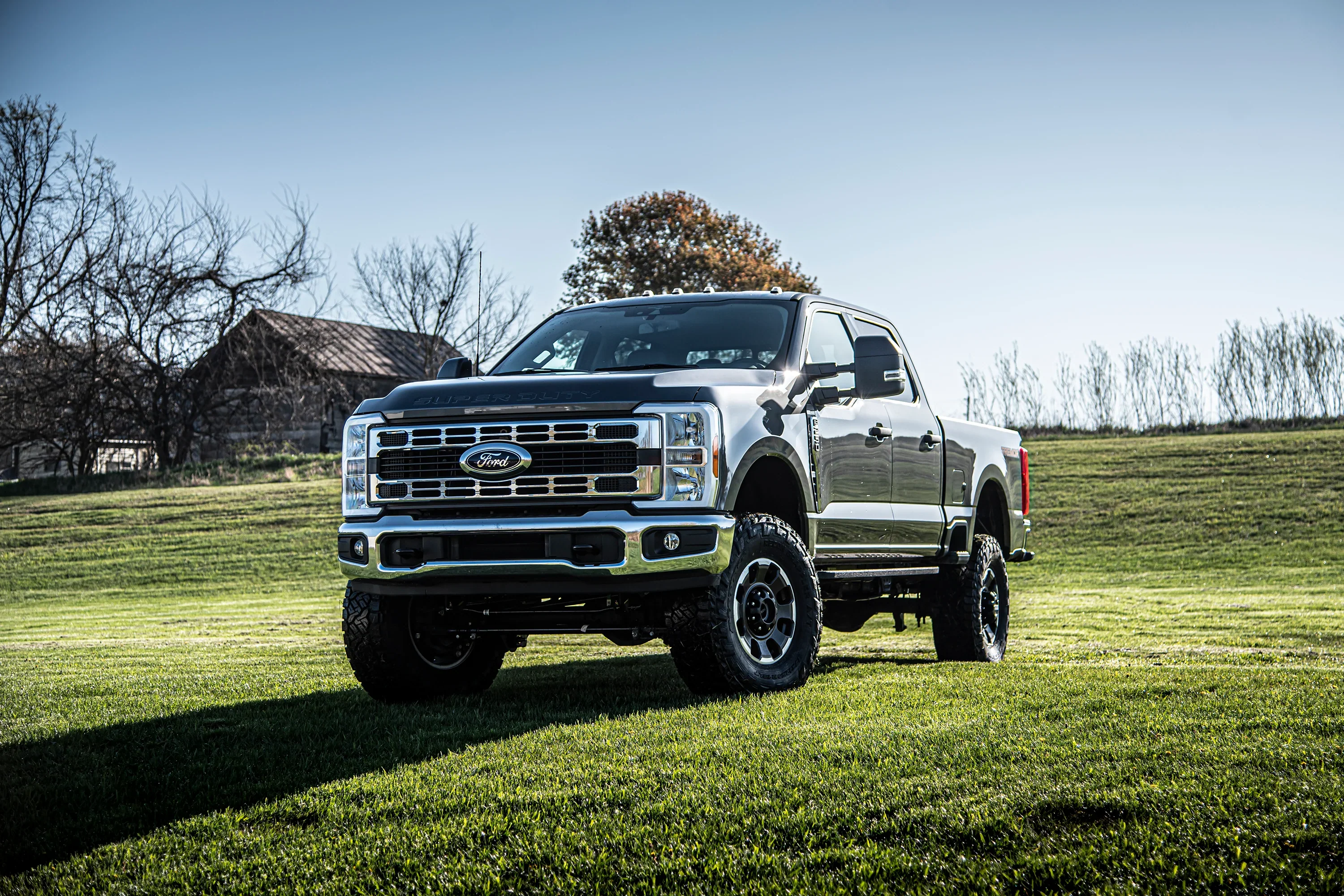

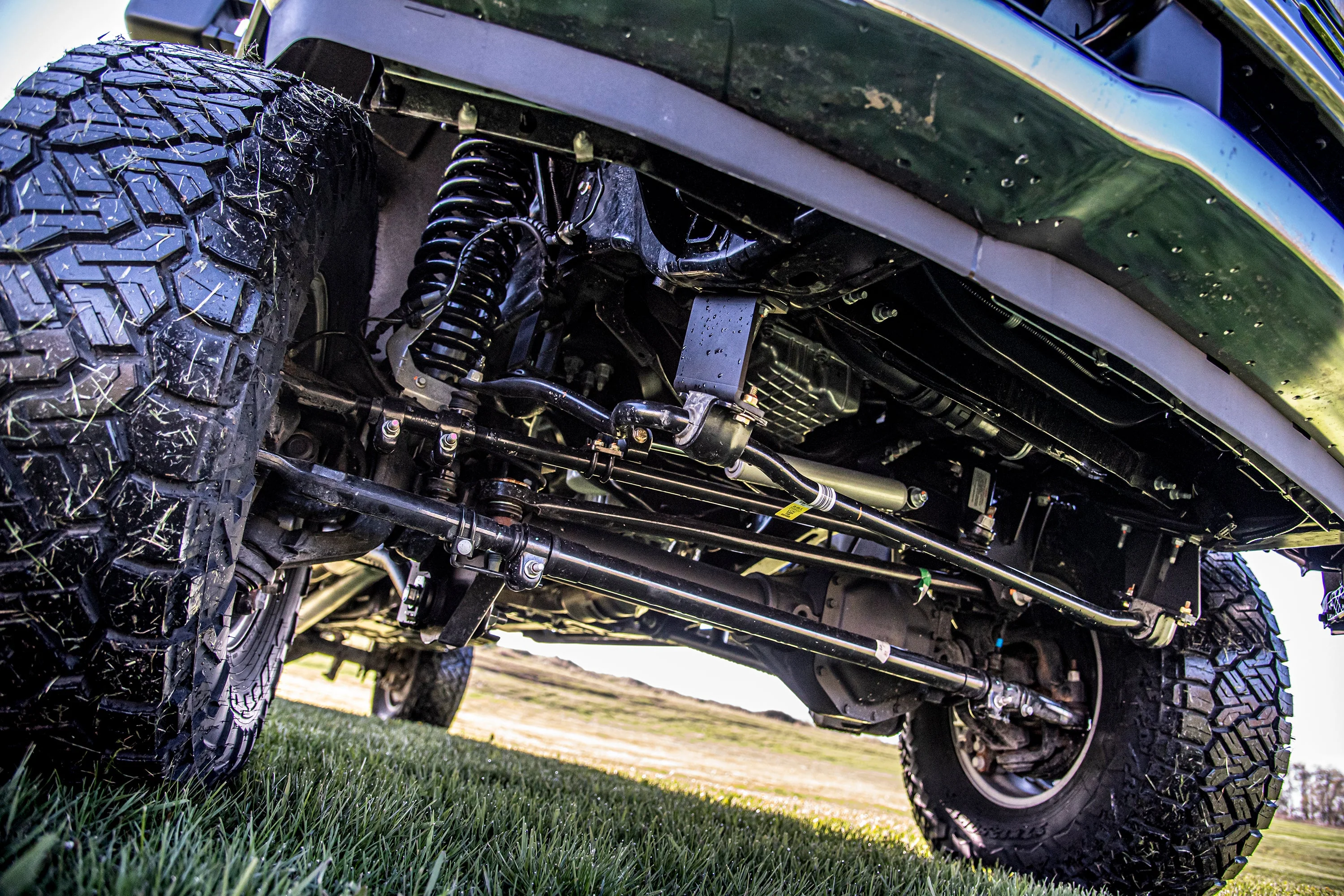

Raise the height of your Ford Super Duty diesel powered truck with this 5-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

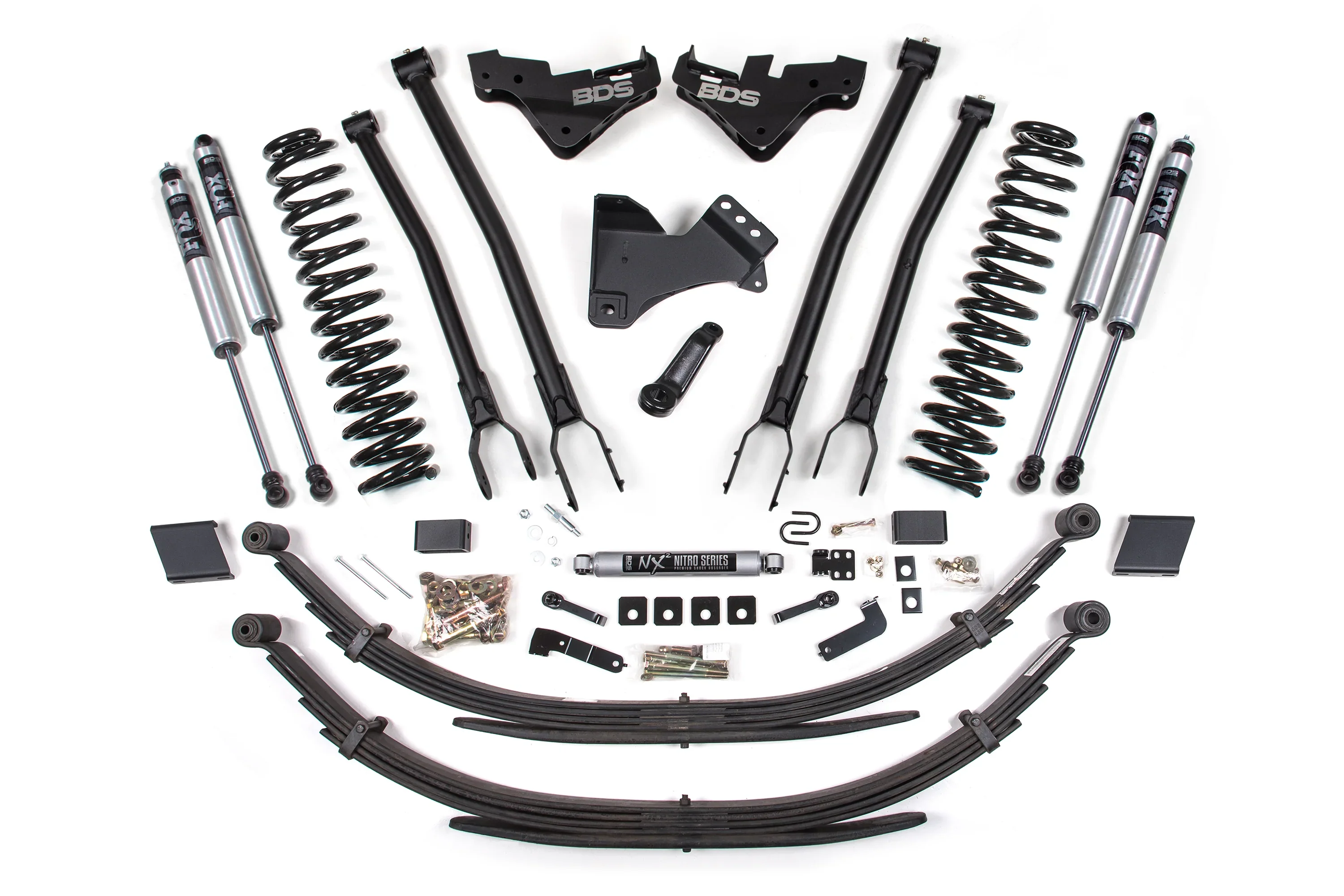

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Features

• Complete bolt in installation.
• Pro-Ride dual rate springs provide superior ride quality vs OEM springs.
• Heavy Duty 4-Link control arms offer improved handling, stability and strength.
• 4-Link suspension offers superior caster control through suspension travel.
• Improved drivability from corrected geometry and steering angles.
• Fabricated rear blocks provide a level stance from front to rear.

Block Kit Features:

• Included in the base system.
• Made of steel for high strength.
• Designed to provide correct pinion angles.

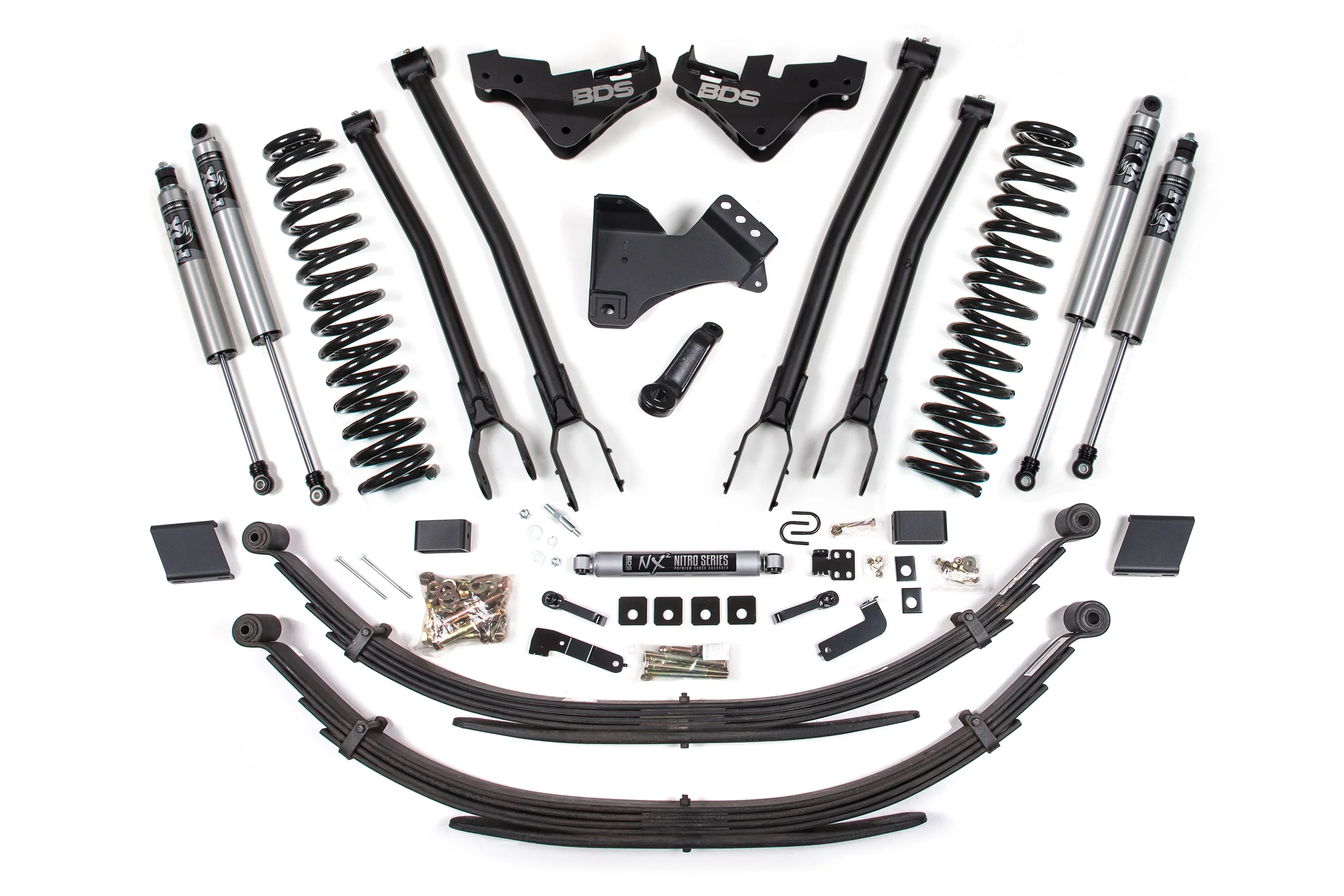

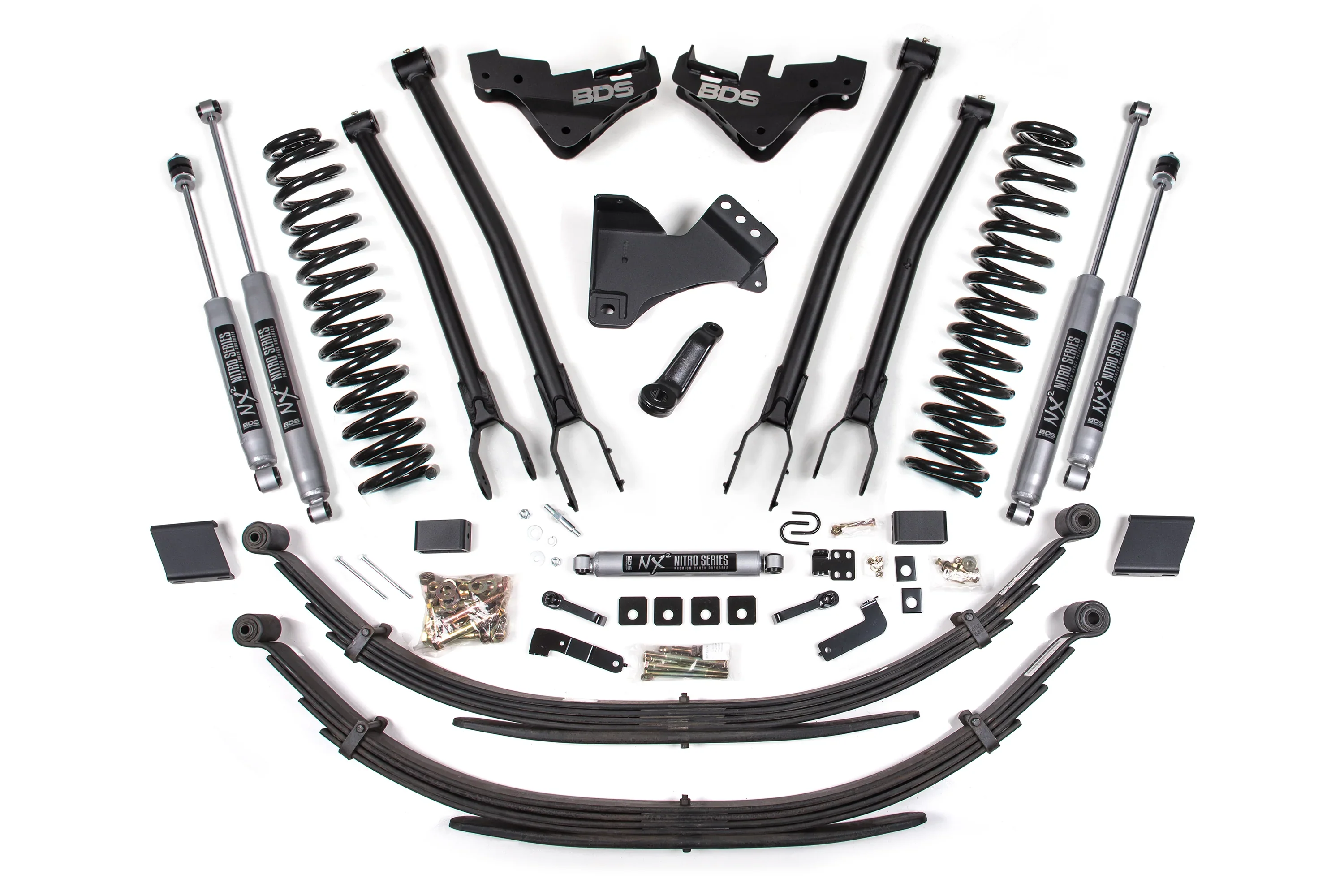

Leaf Spring Features:

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

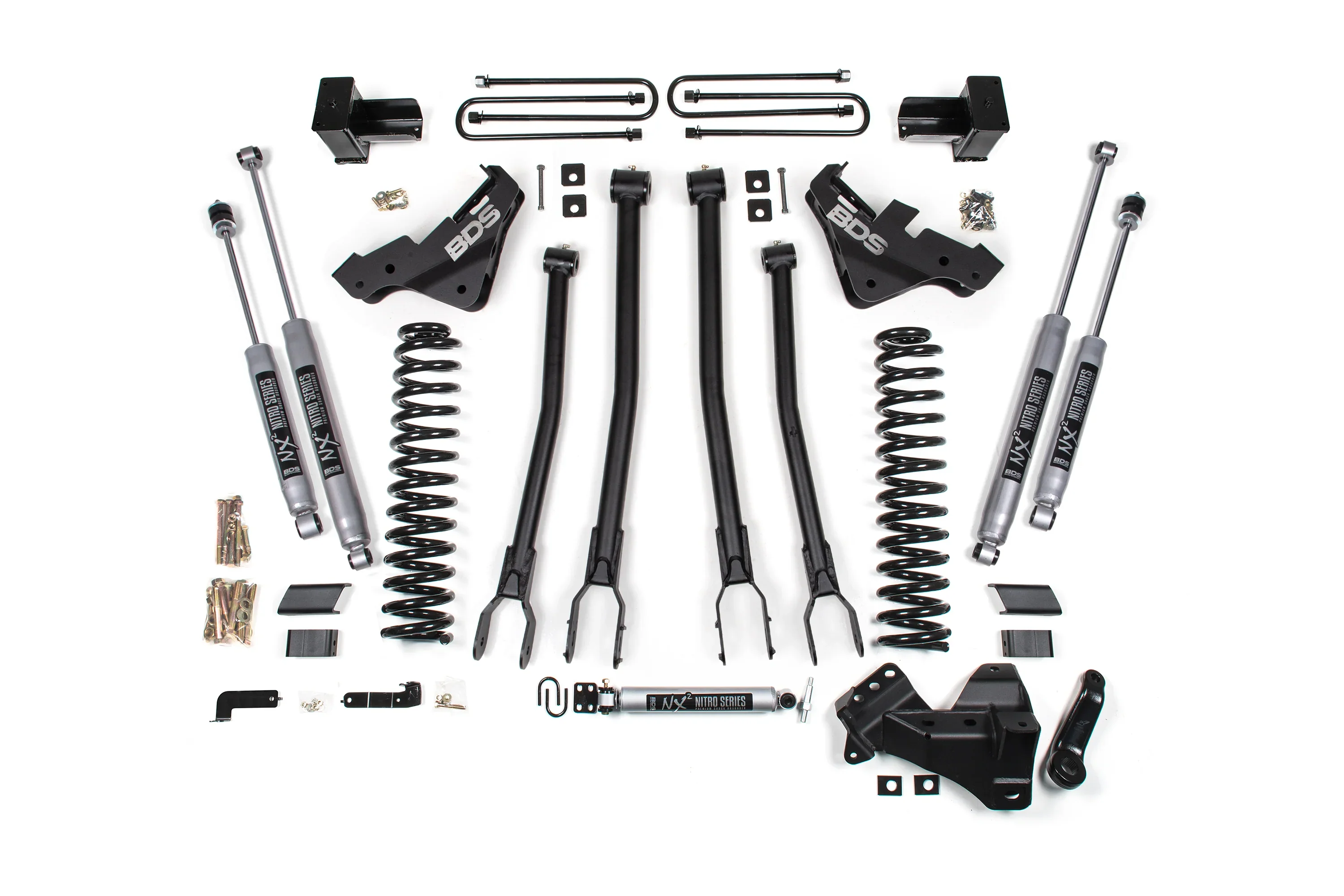

NX2 Nitro Features:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

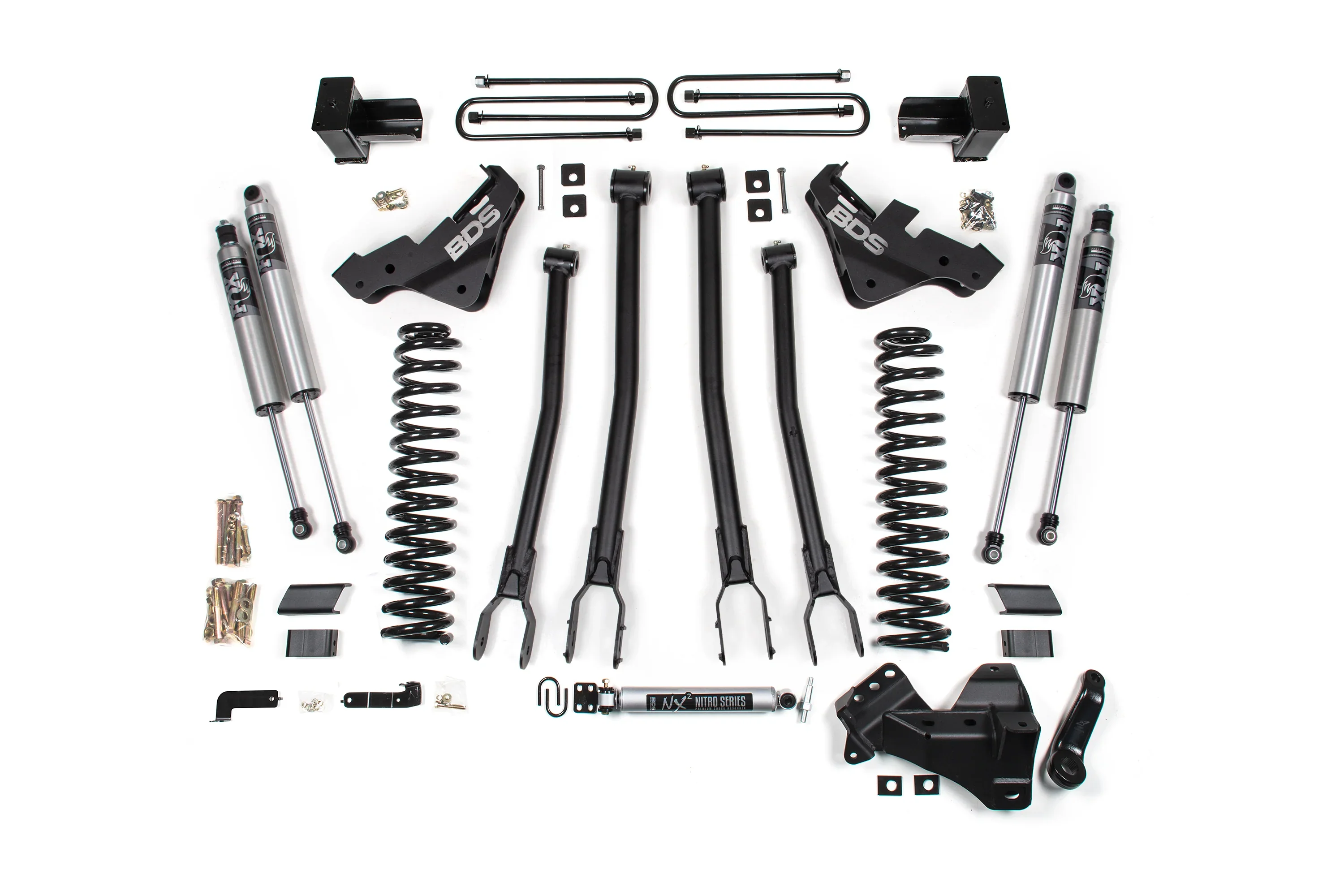

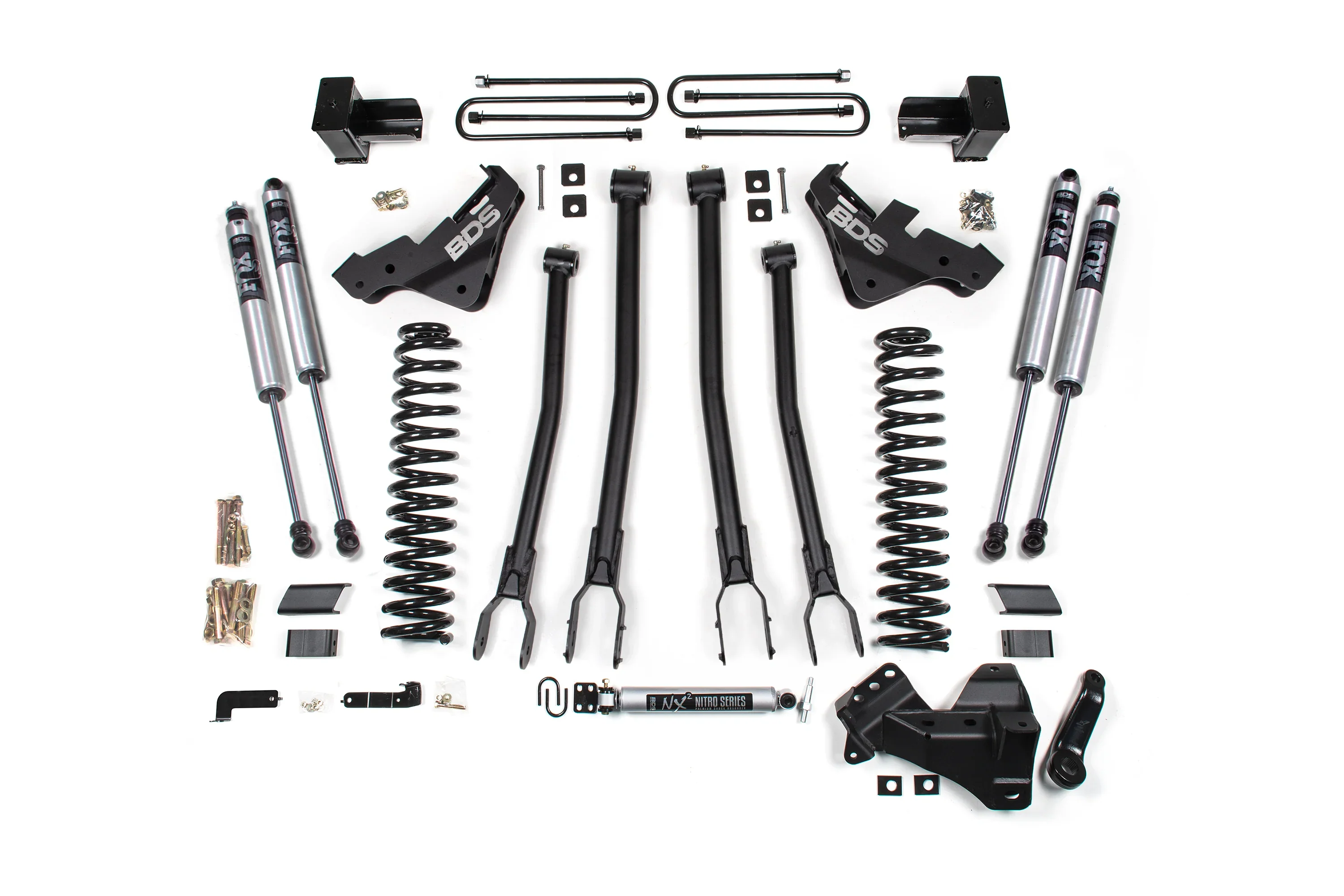

Fox 2.0 Features:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

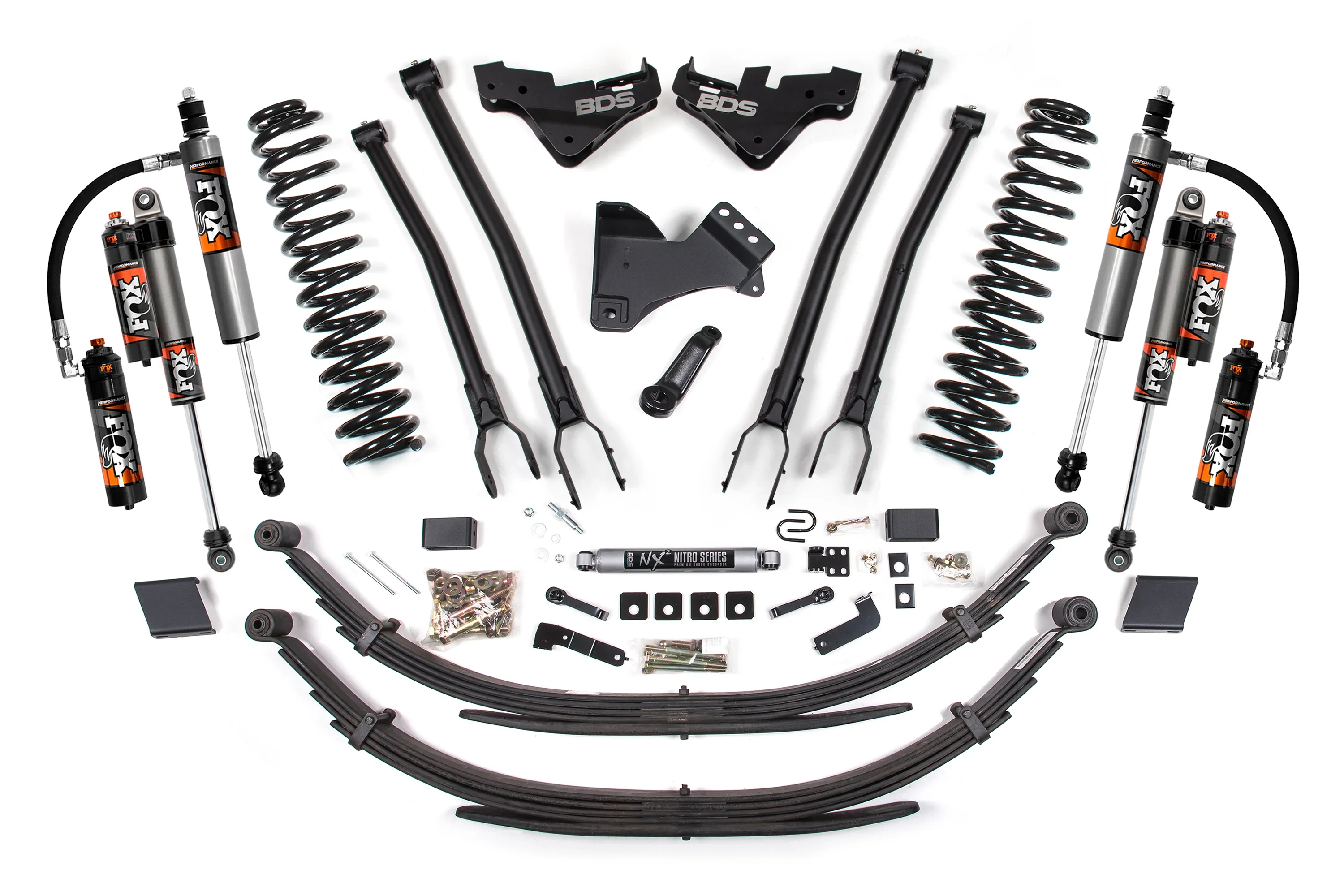

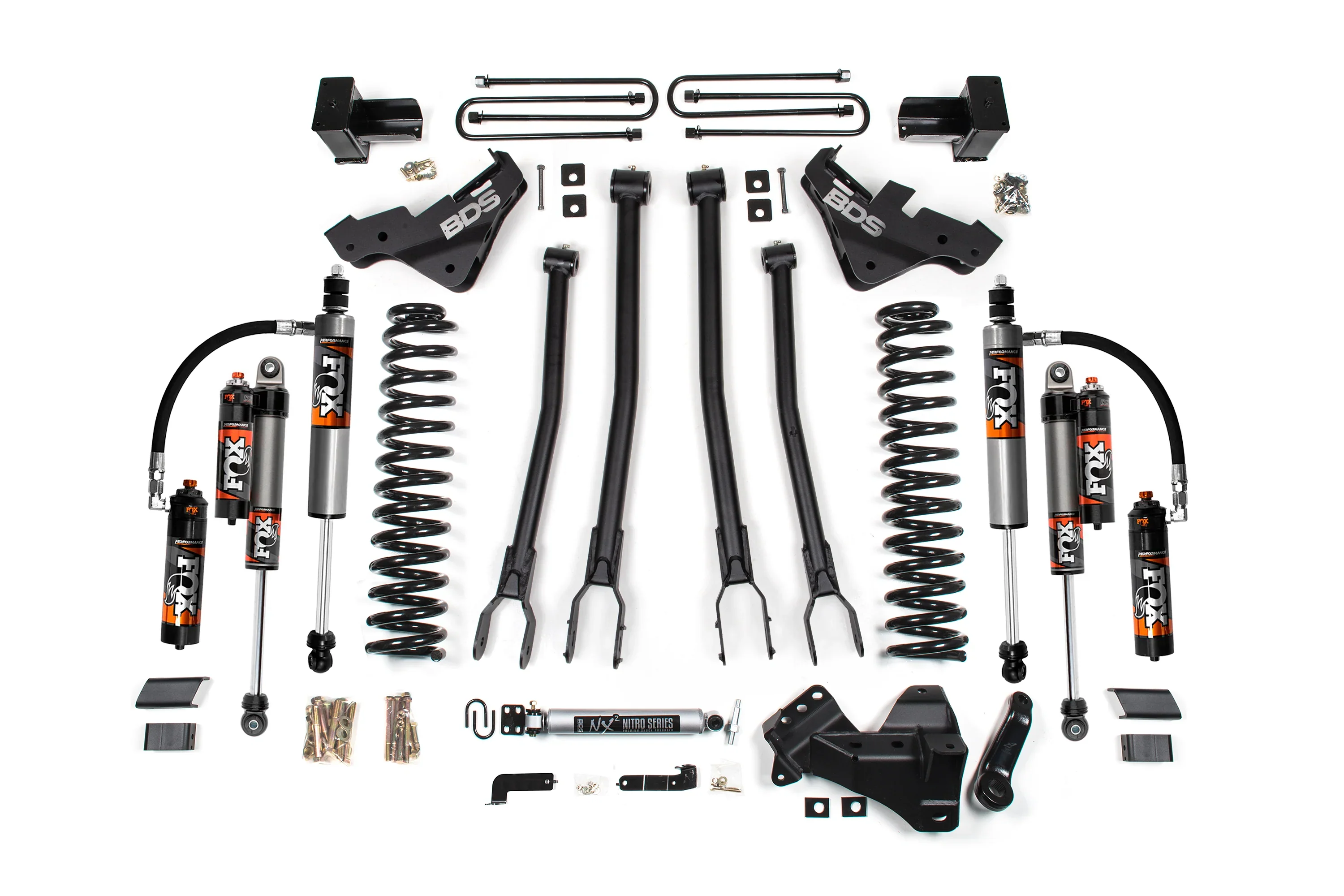

Fox 2.5 PE Features:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Fox 2.5 HTO Features:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound
• damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Recommended Tires & Wheels

Trimming May be required

• 37 x 12.5 with 17 x 9 and 5 in. Backspace
• 37 x 12.5 with 20 x 9 and 5 in. Backspace

Notes

• Ford recommends the pitman arm nut is replaced prior to pitman arm installation.
• If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" UBT4027 (Qty: 4) is required.
• Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
• If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
• Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models.
• Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section.
• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary.
• Vehicles with radius arm mounted ride height sensors will require BDS123303
• Vehicles with leaf spring ride height sensors must select the rear block option.

Installation

• Click Here

Warranty

BDS No Fine Print Warranty

Additional Fitment

Year	Make	Model	Submodel
2025-2026	Ford	F-250 Super Duty	King Ranch
2025-2026	Ford	F-250 Super Duty	Lariat
2025-2026	Ford	F-250 Super Duty	Platinum
2025-2026	Ford	F-250 Super Duty	XLT
2025-2026	Ford	F-250 Super Duty	XL
2023-2026	Ford	F-250 Super Duty	ALL
2023-2026	Ford	F-350 Super Duty	King Ranch
2023-2026	Ford	F-350 Super Duty	Lariat
2023-2026	Ford	F-350 Super Duty	Platinum
2023-2026	Ford	F-350 Super Duty	XLT
2023-2026	Ford	F-350 Super Duty	XL
2023-2024	Ford	F-350 Super Duty	Limited
