2023-2026 Powerstroke Carli Pathfinder Leveling System (CS-FLVL-PF-23)

Description

Fits

Year	Make	Model	Engine
2023-2026	Ford	F-250/F-350 Superduty 4WD	6.7L Powerstroke

The Carli Pathfinder system delivers an all-in-one suspension upgrade. It includes Carli-Spec 2.5" shocks designed for a smooth on-road experience, enhanced off-road capability, better towing stability, lasting durability, improved aesthetics, and cost-effectiveness.

Part Number: CS-FLVL-PF-23

Features

• 2.5" Pathfinder shocks for comfort, control, and cooling
• Durable gray hardcoat finish resists corrosion

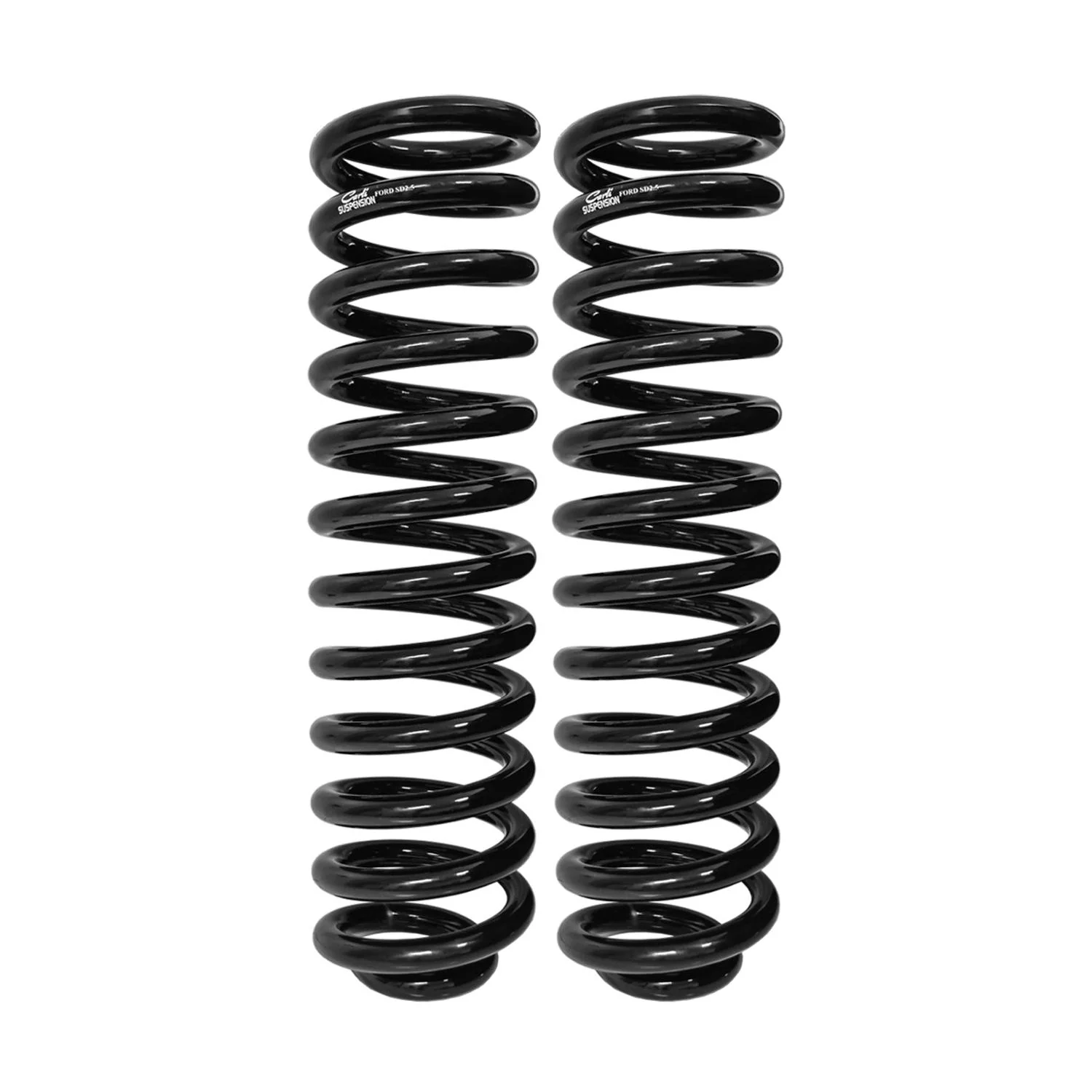

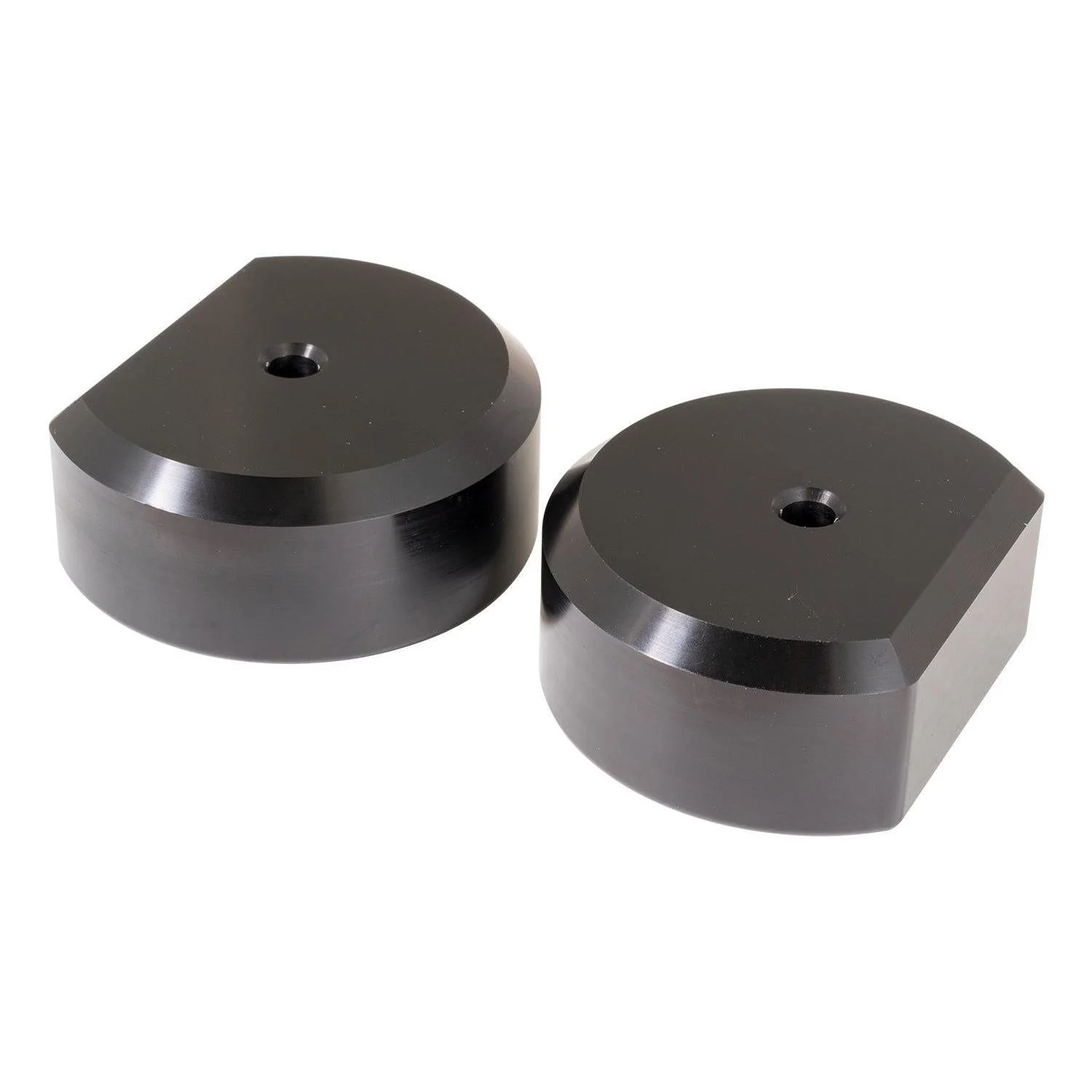

• Includes soft-ride coil springs, adjustable track bar, shocks, caster shims, front bump drops, radius arm drop brackets, and brake line kit
• Compatible with additional performance upgrades: radius arms, steering stabilizer, leaf springs, add-a-pack, or shackles
• Shocks tuned for optimal ride when paired with Carli Full Progressive spring pack; works with OEM rear leafs
• Sway bar required for proper system function

Additional Information

• Required and Optional Parts to support this system:
  • Front Sway Bar Selection (REQUIRED): 17-26 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT CS-FSBD-LVL-1723 or 20-26 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK & SWAY BAR DROP BRACKET KIT - 3.5" CS-FELKIT-LVL-20 or 17-26 FORD F250/350 4X4 TORSION SWAY BAR KIT - 2.5"/3.5" LIFT WITH END LINKS CS-FTSB-LVL-17

  • Rear Leaf Spring Selection (REQUIRED): 17-26 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK - 1" LIFT CS-FPAP-LVL-17 or 17-26 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17 or 17-26 FORD F250/350 4X4 HD +1000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-HD or 17-26 FORD F250/350 4X4 XHD +2000LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XHD or 17-26 FORD F250/350 4X4 XXHD +3500LBS PROGRESSIVE LEAF SPRING KIT - 1" LIFT CS-FFSP-LVL-17-XXHD
  • Leaf Spring Shackle (Optional): 05-26 FORD F350/350 4X4 FABRICATED LEAF SPRING SHACKLE CS-FSHACKLE-11
  • 2° Pinion Shim (Optional): 05-26 FORD F250/350 4X4 FORD PINION SHIM KIT, 2 DEGREE CS-FPSKIT-3X2
  • Adjustable Radius Arms (Optional): 23-26 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 3.5" LIFT CS-FARA-LVL-23

  • Low Mount Steering Stabilizer (Optional): 23-26 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD CS-FLMSS-23
  • High Mount Steering Stabilizer (Optional): 17-26 FORD F250/350 4X4 HIGH MOUNT STEERING STABILIZER - STAINLESS STEEL - 2.5" & 4.5" LIFT CS-FHMSS-17
  • Trophy Hitch (Optional): 17-26 FORD F250/350 4X4 FORD TROPHY HITCH CS-FHITCH-1723


Notes

• These systems are not compatible with the ONBOARD SCALES/SMART HITCH. Modifying the ride height or spring rate will interfere with this system’s performance.
