2024-2025 Land Cruiser 2.5" SST Lift Kit (69-54255)

Description

Fits

Year	Make	Model
2024-2025	Toyota	Land Cruiser
2024-2025	Lexus	GX550

Part Number: 69-54255

Features

• Safely lifts your vehicle 2.5" in the front and 1" in the rear
• Fabricated steel front strut spacers
• Billet Pre-Load Spacer
• Rear 1” Coil Spacer

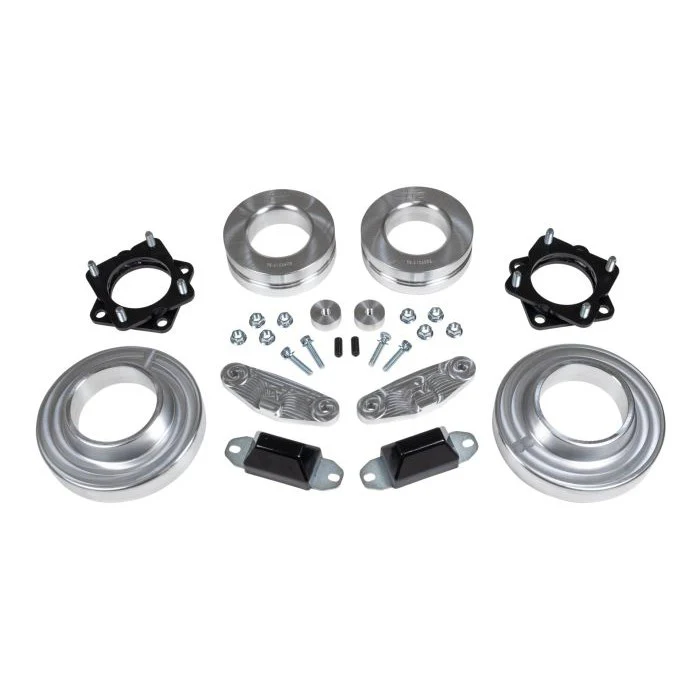

Includes:

• Rear outer bump stop
• 7/8" front strut spacer
• Front & rear bump stop extension
• Front preload spacer
• 1.25" Rear spring spacer
• All necessary hardware

Additional Info

Wheel & Tire Fitment:

• Max Tire Diameter 285/75R17 with a 17x 8 wheel and +35 offset
• Max Tire Diameter with trimming 285/65R18 with an 18x9 wheel and +1 offset
• Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)

• 17x8 +35  285/70R17  No Trim
• 17x8 +35  285/75R17  No Trim
• 17x8.5 +47  285/70R17  No Trim
• 17x8.5 +47  285/75R17  No Trim
• 17x8.5 +25  285/70R17  No Trim
• 17x9 +1  285/70R17  May require trimming. (4mm clearance)

Tire Size Comparisons:

• 18x8 +35  285/65R18  No Trim
• 18x8 +35  285/70R18  No Trim
• 18x8.5 +47  285/65R18  No Trim
• 18x8.5 +47  285/70R18  No Trim
• 18x8.5 +25  285/65R18  No Trim
• 18x9 +1 285/65R18  May require trimming. (4mm clearance)
• 20x8.5 +35  285/65R20  No Trim
• 20x9 +18  285/65R20  No Trim
• 20x9 +1   285/65R20  May require trimming. (4mm clearance)

Notes

• Does not fit Lexus GX550 with rear air or E-KDSS (Electronic-Kinetic Dynamic Suspension System).
• Be sure to check and adjust your vehicle headlamps for proper aim and alignment after product installation.
• If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems, including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle’s systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS.

Installation

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs LTD is NOT responsible for any damage or failure resulting from improper installation.
• Click Here to view installation instructions
