2024 Tacoma 3" SST Lift Kit (69-54300)

Description

Fits

Year	Make	Model
2024	Toyota	Tacoma

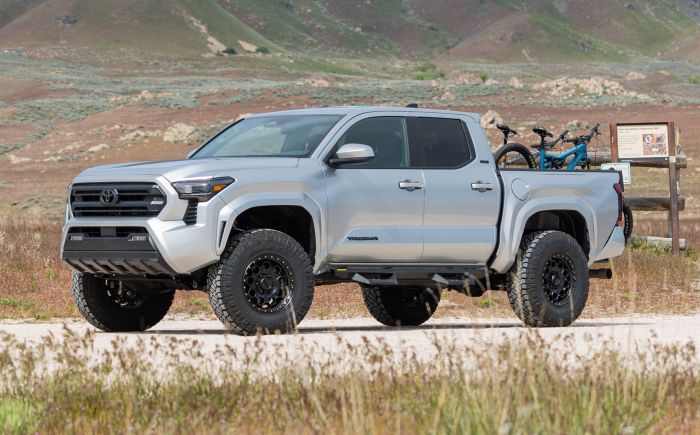

Give your Tacoma the stance it deserves with the most economical and safe method on the market: the ReadyLift SST Lift Kit. If you want a modestly leveled lift to increase your ground clearance and stance without compromising factory geometry, maintaining good articulation, and with no permanent modifications. This SST kit yields 3" in the front and 2" in the rear to safely and properly lift your truck.

Part Number: 69-54300

Features

• Strong tubular steel Upper Control Arms
• HD high angle proprietary ball joint
• No modifications necessary
• 3” front lift with 2” rear coil spring spacers

Tire Fitment:

• Stock (17x7 +60)  285/70R17  No Trim (Widest tire you can put on, Knuckle clearance)
• 17x8 +35  285/70R17  No Trim
• 17x8 +35  285/75R17  No Trim
• 17x8.5 +47  285/70R17  No Trim
• 17x8.5 +47  285/75R17  No Trim
• 17x8.5 +25  285/70R17  No Trim
• 17x9 +1  285/70R17  May require trimming. (4mm clearance)

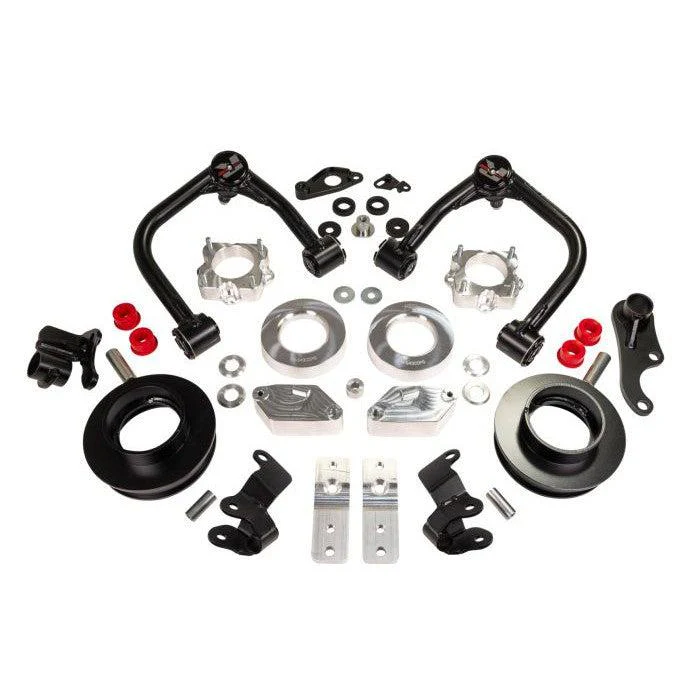

Additional Info

• 2 Steel washers
• 1 Rear & Front Differential spacer
• 3/8" laser cut washer
• Rear brake line bracket
• 1/8" laser cut washer
• Front differential drop control bushing, sleeve, center
• 2 0.87" OD X 0.56 ID X 2.65"L crush sleeve
• 4 1.52" OD X 0.85"ID polyurethane bushing
• Shock extensions
• Preload spacer
• Swaybar brackets
• Bump stop extensions

Notes

•  Kit does not fit Tacoma’s equipped with rear leaf springs
• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
