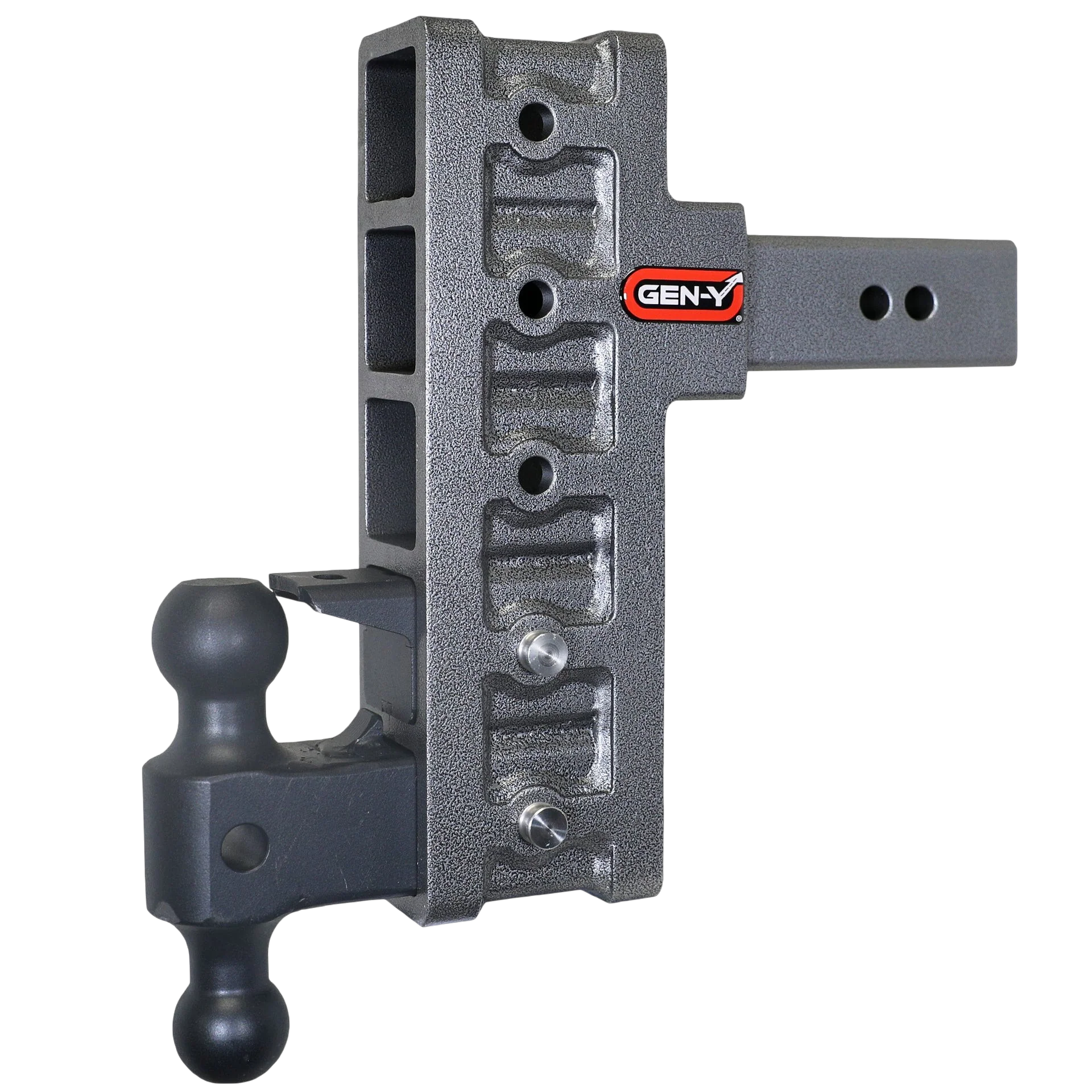

Gen-Y Mega-Duty 21K 9" Offset Drop Hitch 2.5" Shank Dual-Ball Mount & Pintle Lock (GH-925)
Description
Fits Universal 2.5" Shank
Towing Capacity: Up to 21,000 lbs.
Tongue Weight: 3,000 lbs.
Drop: 9"
Raise: 3"
Dual-Ball Mount: 2″ and 2 5/16"
What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars
The Gen-Y MEGA-DUTY 21K 9" Offset Drop Hitch delivers peak versatility for lifted diesel trucks, combining a massive vertical reach with the maximum adjustability of five locking positions. This 2.5" receiver setup features an offset design to help you dial in the perfect trailer height, while the integrated dual-ball mount and pintle lock allow you to switch between standard and heavy-duty ring couplings in seconds. Engineered for the serious diesel enthusiast, this hitch is rated for 21,000 lbs, ensuring that even your most demanding loads remain stable, level, and secure on the road.
Part Number: GH-925
Features
- Dual-Ball mount and Pintle Lock
- 5 adjustable positions
- 2 1⁄2” Shank
- Strongest adjustable drop hitch
- Most versatile hitch
- 2.5″ Receiver
- Fabricated with Heavy-Duty Steel
- Designed for 1.5″ or smaller lunette rings
- Sand Blasted and Coated with a Durable Silver-Vein Powder Coat
Notes
- If you are towing with a pintle ring trailer, use a 2 5/16″ ball, NOT a 2″ ball when towing.
Warranty
Parts Only
- Limited Lifetime Warranty
How It Works
The original quick-adjust GEN-Y pintle hitch system uses the standard GH-061 2.5″ Versa-Ball in addition to the GH-062 pintle lock to quickly and safely connect to any size or height pintle coupling. By simply pulling the pin in the pintle lock and sliding it back into the adjustable GEN-Y hitch system, the lunette eye (pintle ring) of the pintle trailer can then be lowered down over the 2 5/16″ side of the Versa-Ball. The last step is to slide the pintle lock back out across the lunette eye and pin it in place securely.
Offset Drop Hitches
The offset drop hitches are even more versatile. The different offset drop hitches include the 6″ Offset Drop Hitch which raises the hitch 3″ and lowers it 6″ and the 12″ Offset Drop Hitch which raises it 3″ and lowers it 12″. Offset hitches allow for raised and lowered positions at the same time, giving more options for any dual-purpose jobs. For example, pulling a car dolly and attaching a bike rack or using tow bars and a luggage rack at the same time. This means a much easier and safer way of getting multiple applications connected to 2.5″ receivers.
