Universal HD UTV Replacement FK Heim Joint

Description

Fits

Part Number	Fits
JMX10T-F1	Kryptonite Stage 1.5 and 2 Kits. Right-hand thread w/ 5/8 Shank + 5/8 Bore: Can fit many other brands UTV Tie rod and Radius Rod Systems
JMXL10T-F1	Kryptonite Stage 1.5 and 2 Kits. Left-hand thread w/ 5/8 Shank + 5/8 Bore: Can fit many other brands UTV Tie rod and Radius Rod Systems
KMX12-10	Kryptonite Stage 3 Kits. Right-hand thread w/ 3/4 Shank + 5/8 Bore: Can fit many other brands UTV Tie rod and Radius Rod Systems
KMXL12-10	Kryptonite Stage 3 Kits. Left-hand thread w/ 3/4 Shank + 5/8 Bore: Can fit many other brands UTV Tie rod and Radius Rod Systems
JMX12T-F1	Kryptonite and many other Custom Tie rod and Radius rod systems: Right-hand thread w/ 3/4" Shank / 3/4" Bore
JMXL12T-F1	Kryptonite and many other Custom Tie rod and Radius rod systems: Left-Hand thread w/ 3/4" Shank / 3/4" Bore

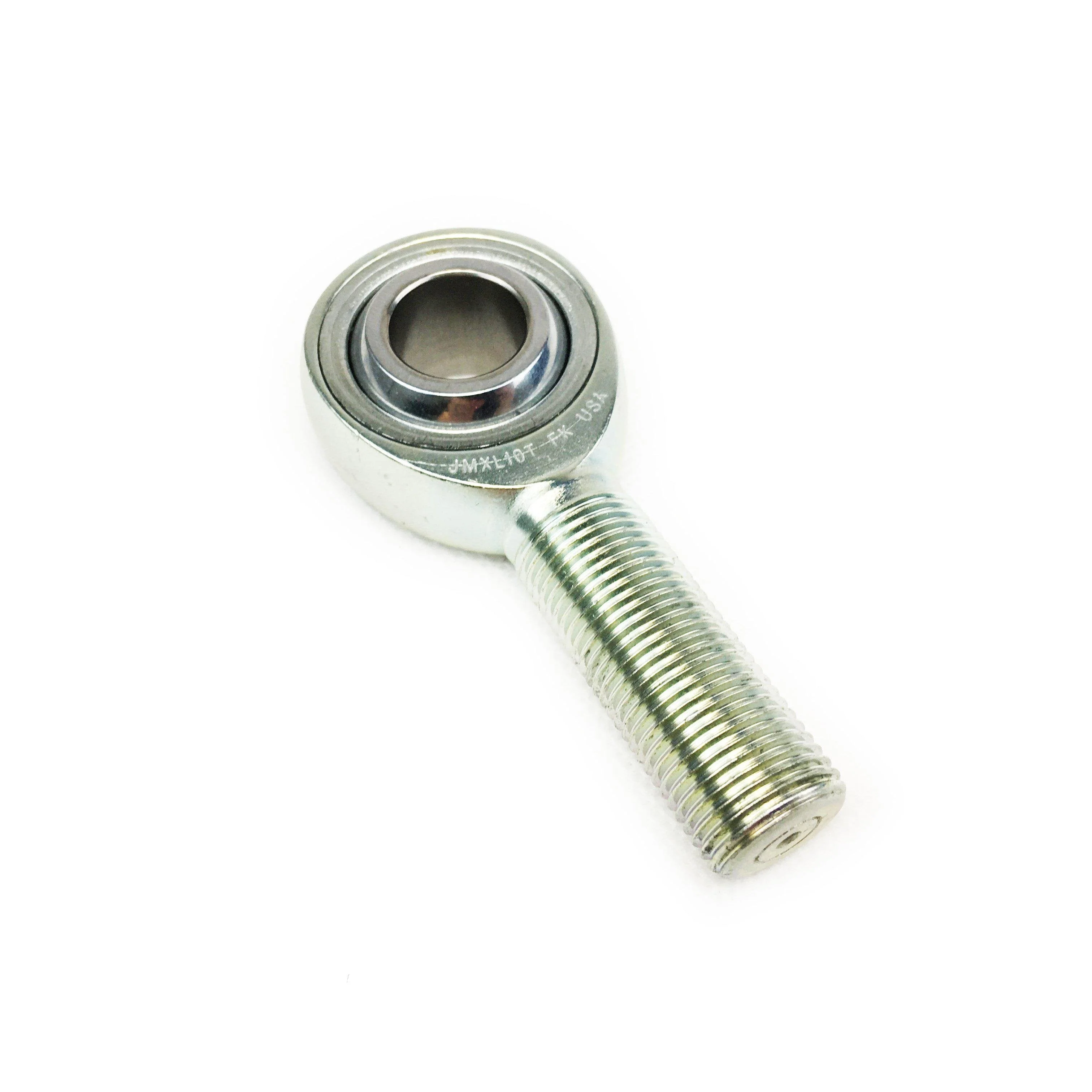

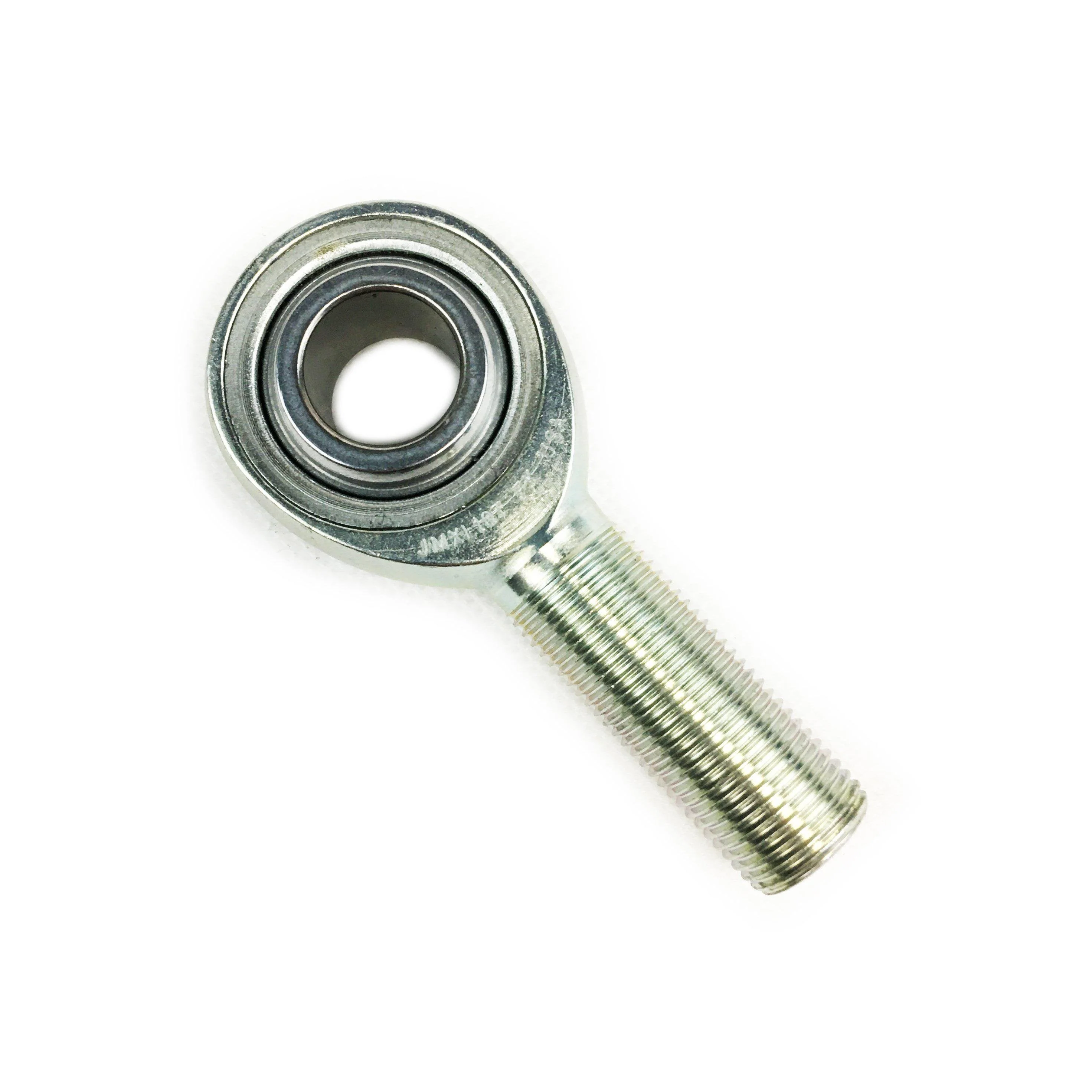

FK JMX/JMXL Series 3-piece rod ends are precision-built for high strength. The bodies and races are heat-treated steel alloy that is zinc plated and chromate treated for corrosion resistance. The ball is hard chrome plated 52100 steel offering excellent wear and durability. These rod ends are available in several choices with the right (JMX) or left (JMXL) hand threads.

All Rod Ends are wearable parts meaning at some point replacement will need to happen.

Features

• High Strength Aircraft Grade 4130 Chromoly Steel
• Kevlar Reinforced Teflon Lining
• Zinc Plated for corrosion resistance
• The Center Ball is manufactured from 52100 Bearing Steel, Heat Treated, Hard Chromed and precision ground
• Made from high-strength alloy and Teflon liner

Notes

• Sold individually
• Tie rods and heim joints sold separately
• These parts will not work with your OEM tie rods
• For a custom Tie Rod Set up check out Kryptonites Rack End Clevis Joint Made to work with these Heims. Click Here
