Universal Simultaneous Paddle Valve In-Cab Control Kit w/ Digital Gauge (HP10231)

Description

Fits: Pacbrake Air Springs w/ pre-existing simultaneous air system

The Pacbrake HP10231 Premium In-cab Control Kit comes with everything you need to operate your air springs (or other pneumatic accessories) right from the driver's seat! Depending on your air spring operation requirements, there are various dash activation switch kits featuring the digital gauge. This includes "Simultaneous" inflation which will inflate and deflate both air springs at the same time! So if you are looking to take your towing, hauling, 4x4ing, and all other onboard air management to the next level, this Pacbrake In-Cab Control Kit is what you need!

Part Number: HP10231

Features

• Simultaneous inflation will inflate/deflate both air springs at the same time
• Universal application

• HP325 Series

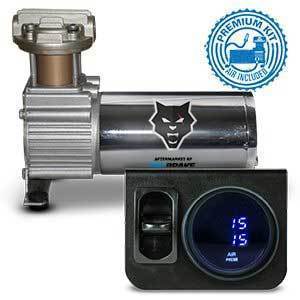

Includes:

• HP325 compressor
• Air spring dash switches with digital gauge for independent activation
• Pre-built harnesses
• Fittings
• Fasteners and everything required for a complete install

Air Compressor Specifications:

• 12 VDC; 100 percent duty cycle (1 Hour at 100 PSI), 1.2 CFM
• 150 PSI max operating pressure
• Draws 18 amps

Notes

• This is a complete kit with onboard air. If adding an air tank, a pressure switch is required; HP10110 is for 105-135 PSI and HP10111 is for 85-105 PSI.
• Compatible Air tank options include; 1/2 Gallon Air Tank (HP10053) or 2 1/2 Gallon Air Tank (HP10050)

Installation

• For Installation Instructions, Please Click Here
