Universal 1/8 NPT Check Valve for HP325 Compressors (C20506)

Description

Fits: Any HP325 Compressor

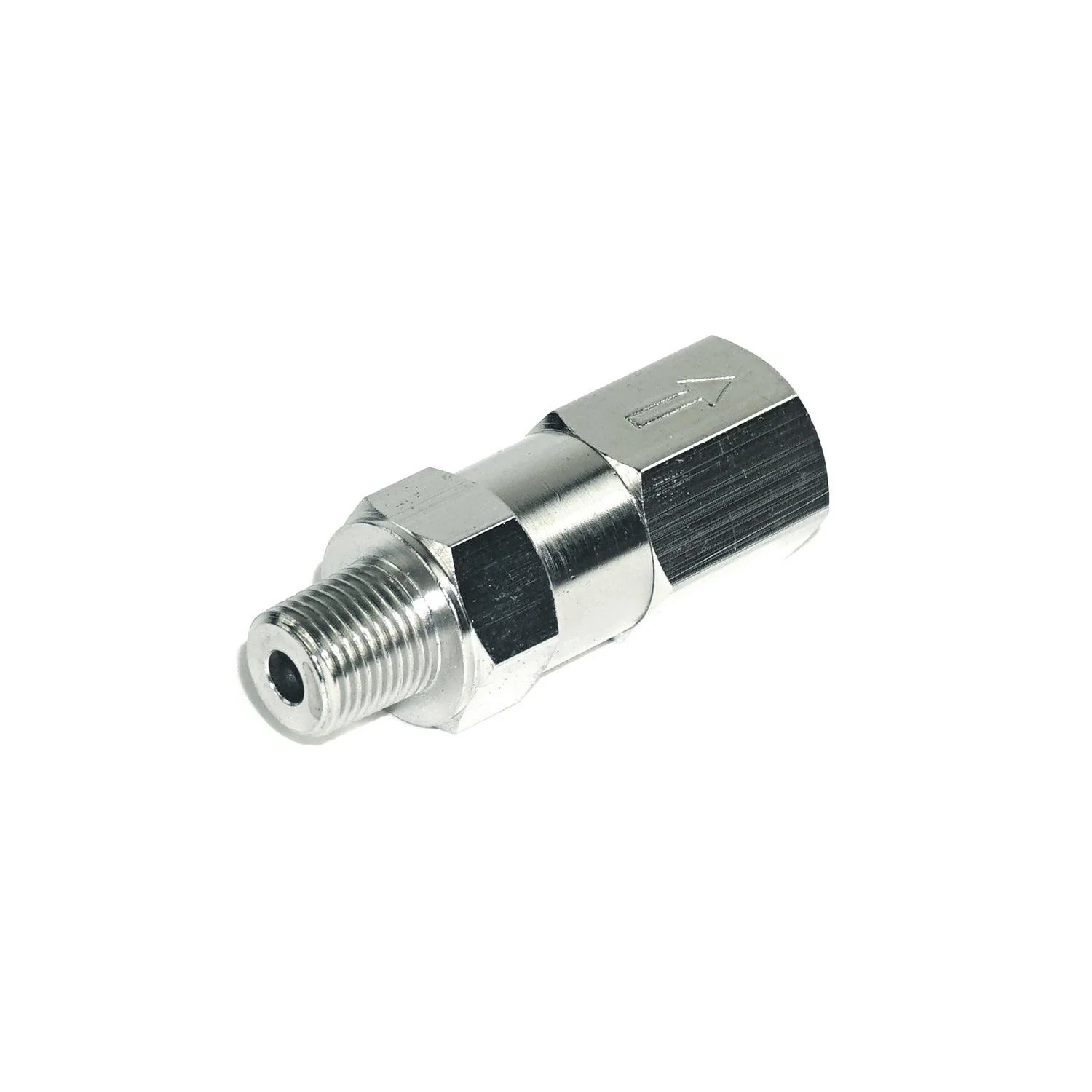

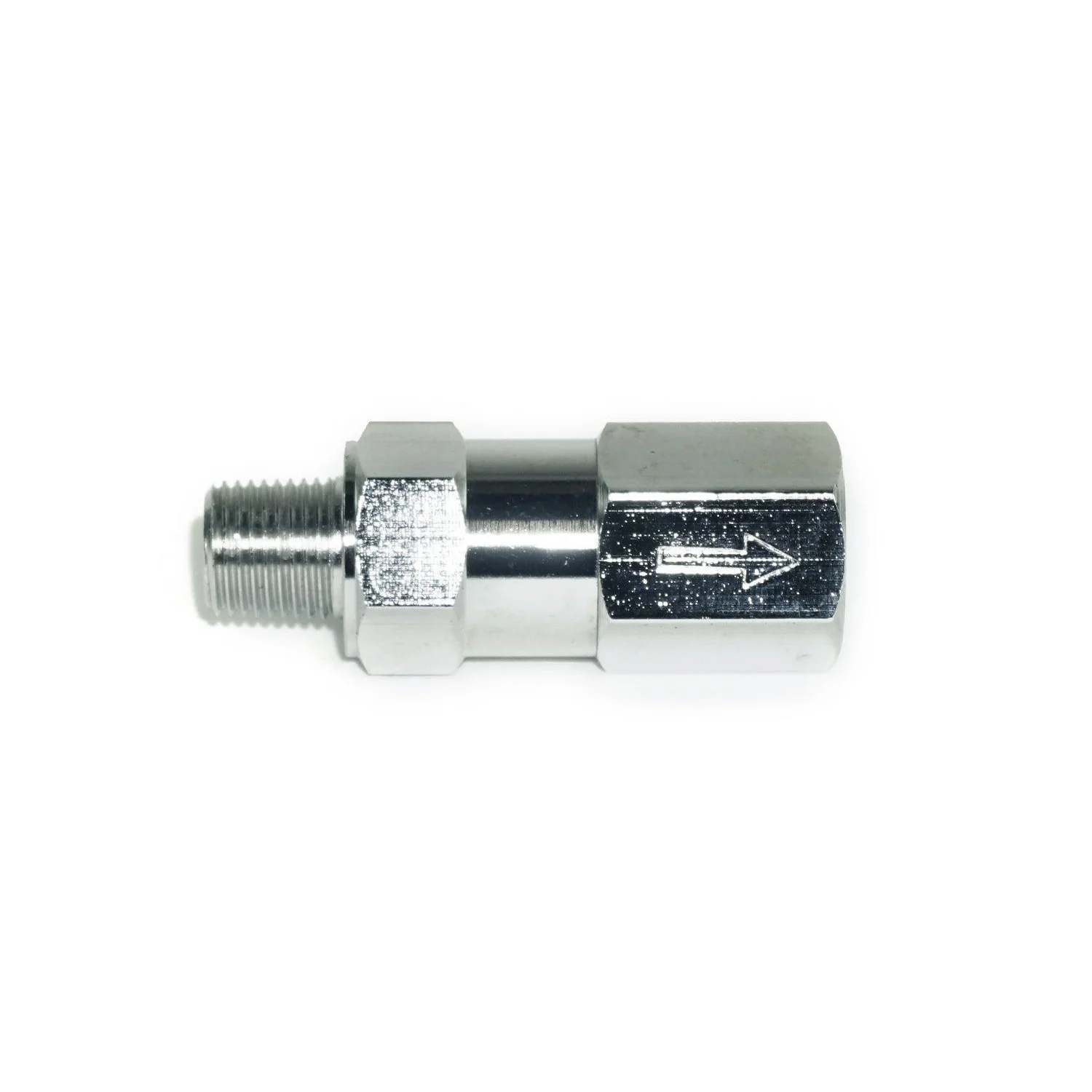

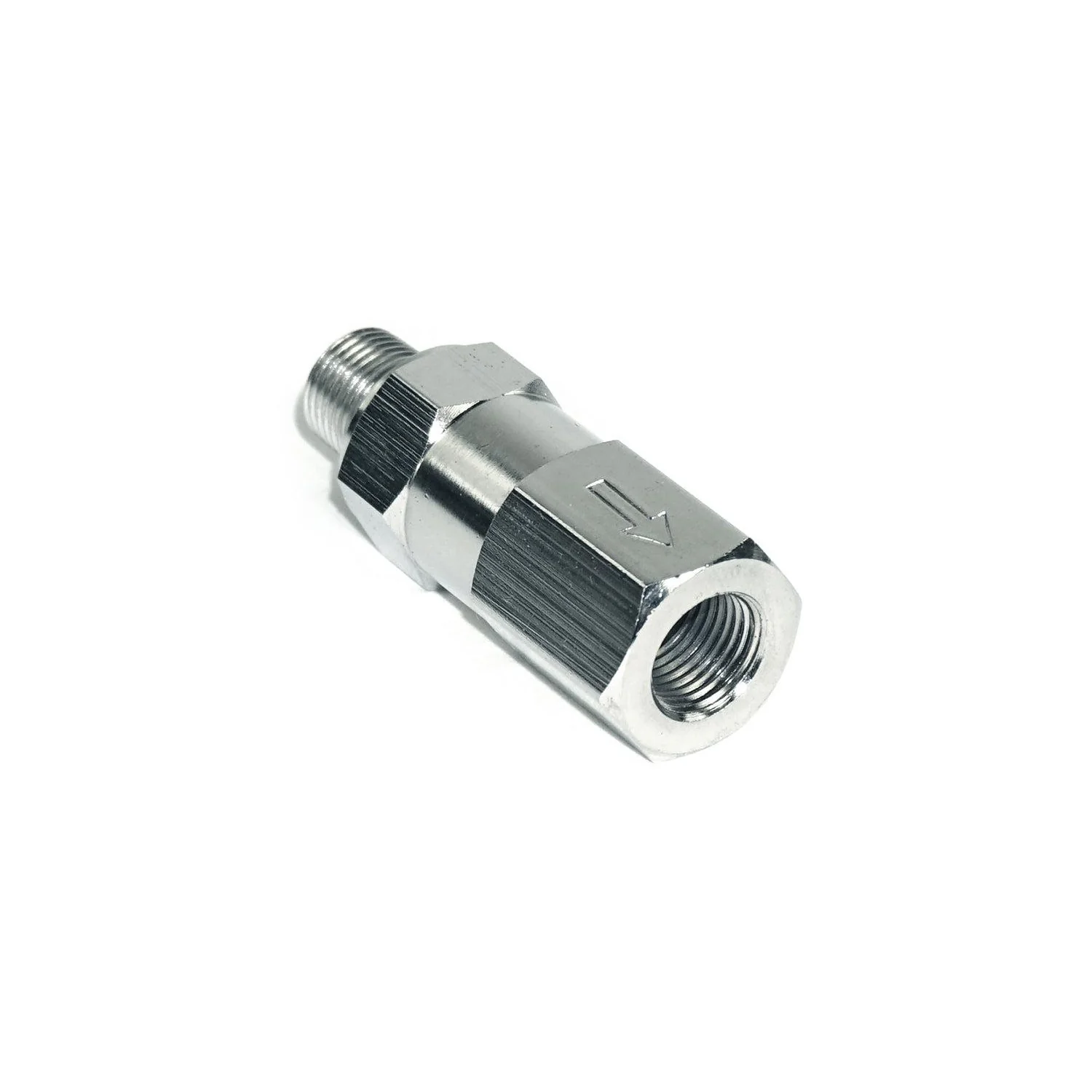

Replacement 1/8 NPT Stainless Steel Check Valve for any Pacbrake HP325 Series Compressors. They allow free flow from the inlet to the work port and block flow in the other direction.

Part Number: C20506

Features

• Replacement part

• Corrosion-proof stainless steel exterior
• Zero reverse leakage
• Standard Size External Hex for Installation

• Inlet: 1/8" (-2) NPT Male

• Outlet: 1/8" (-2) NPT Female

• Maximum Working Pressure: 150 psi
• Maximum Cracking Pressure: 5 psi
• Minimum Flow Rate: 3.5 SCFM at 5 psi
• Operating Temperature: -40° to 120° C
