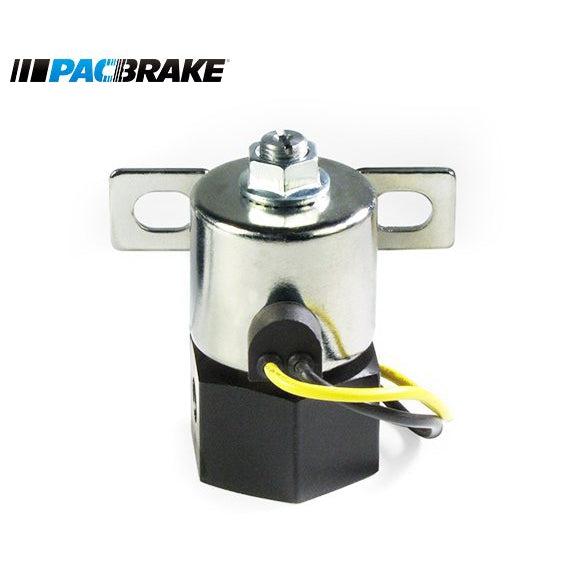

Universal 3-way 2-position Air Solenoid (C11935)

Description

Fits: Universal

Pacbrake’s experience designing cost effective hydraulic and pneumatic solenoids with demanding requirements has equipped Pacbrake with the experience to integrate solenoid controls into any application.

Part Number: C11935

Features

• Vacuum and air solenoids
• Stackable applications available

• 12 volt solenoids rated for automotive use

• Severe-duty applications
• ‘IN’ port normally closed

• ‘CYL’ port normally open to exhaust (atmosphere)

• 18" [457 mm] long 18 AWG wire lead length

• Anodized aluminum valve body

• Zinc chromate plated carbon steel solenoid body

Additional Info

• PNEUMATIC SOLENOID

• Voltage Range: 12 VDC

• Coil Resistance: 10

• A: 2.91" [74.0 mm]

• B: (Hex): 1.50" [38.1 mm]

• C: .35" X .50" [8.9 mm X 12.7 mm]

• D: 2.00" [50.8 mm]

• E: 1.8" [45.7 mm]

• F: (Port):1/8"- 27 (-2) NPTF

• G: (Port): 1/8"- 27 (-2) NPTF

• H: .563" [14.3 mm]
