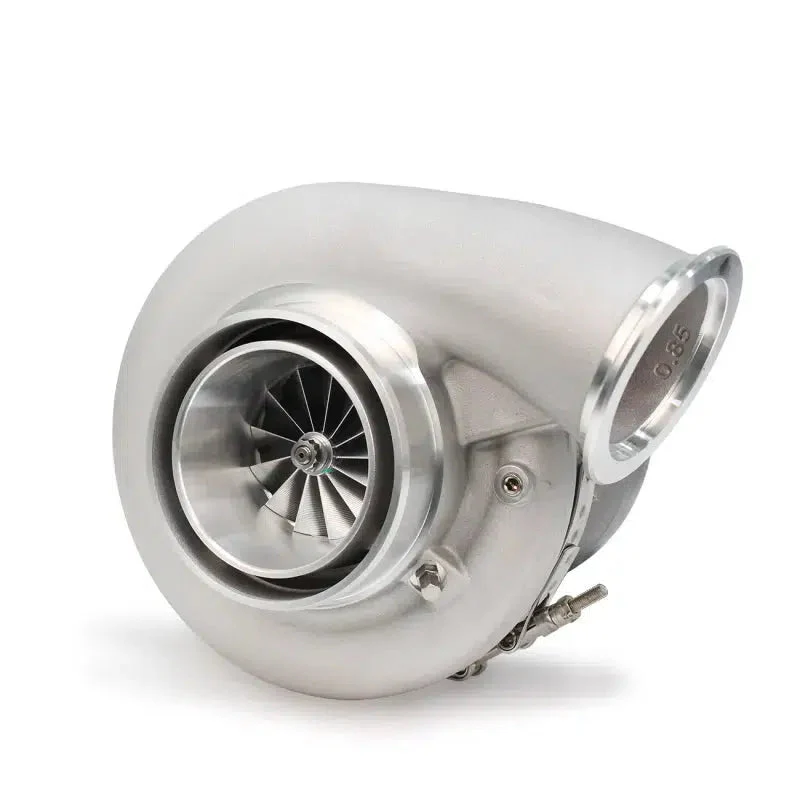

Universal 80/89 Billet Gen3 DBB Performance Turbocharger (ST1Z-D46-51T)

Description

Fits: Universal

Power Rating: 1600HP at flywheel

VS Racing is a go-to for performance turbochargers, boasting impressive workmanship, exceptional quality, and a vast selection for whatever your horsepower target or driving application may be! Whether you need greater flow for racing or extra boost for the street, VS Racing has the options available to cater to your needs. From materials, bearings, A/R Ratios, Inducer, and Exducer size for your compressor or turbine, VS will have a turbo for you.

Part Number: ST1Z-D46-51T

Features

• 1.01 T4 Divided
• 80mm compressor inducer | 109mm compressor exducer
• 89mm Turbine
• Dual ceramic ball bearing system: 60% lighter than steel, lower inertia and shaft motion mean less heat build-up and superior durability
• 13 Blade NG Aero billet compressor wheel: Extended tapered tip technology gives you increased pressure ratio capability, flow and efficiency
• 9 Blade NG Aero Inconel 713c turbine wheel: Reduced back pressure and smoother exhaust flow decreases turbo lag
• Anti-surge ported-shroud compressor inlet: cover integrated with the speed sensor and pressure ports
• Comprehensive Package: Water fittings included with the super core and Restricted orifice plate
• Power Rating: 1600HP at flywheel


Additional Info

• Compressor Outlet V-band PN: S400FLAL
• Turbine Outlet Dual V-band PN: 35vband
• Turbine inlet Dual V-band PN: t763vcl

Notes

• Utilizes S400 12an drain flange
