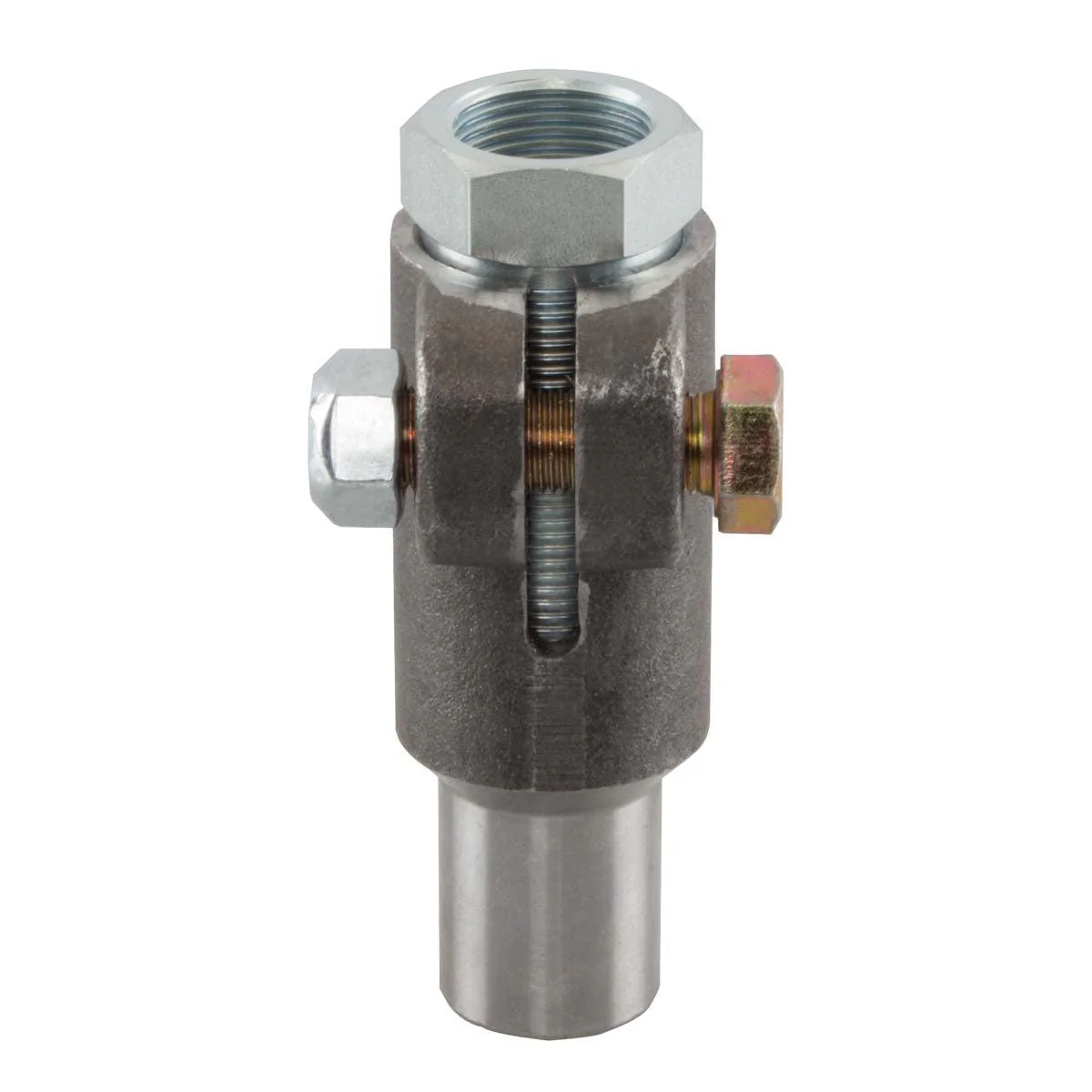

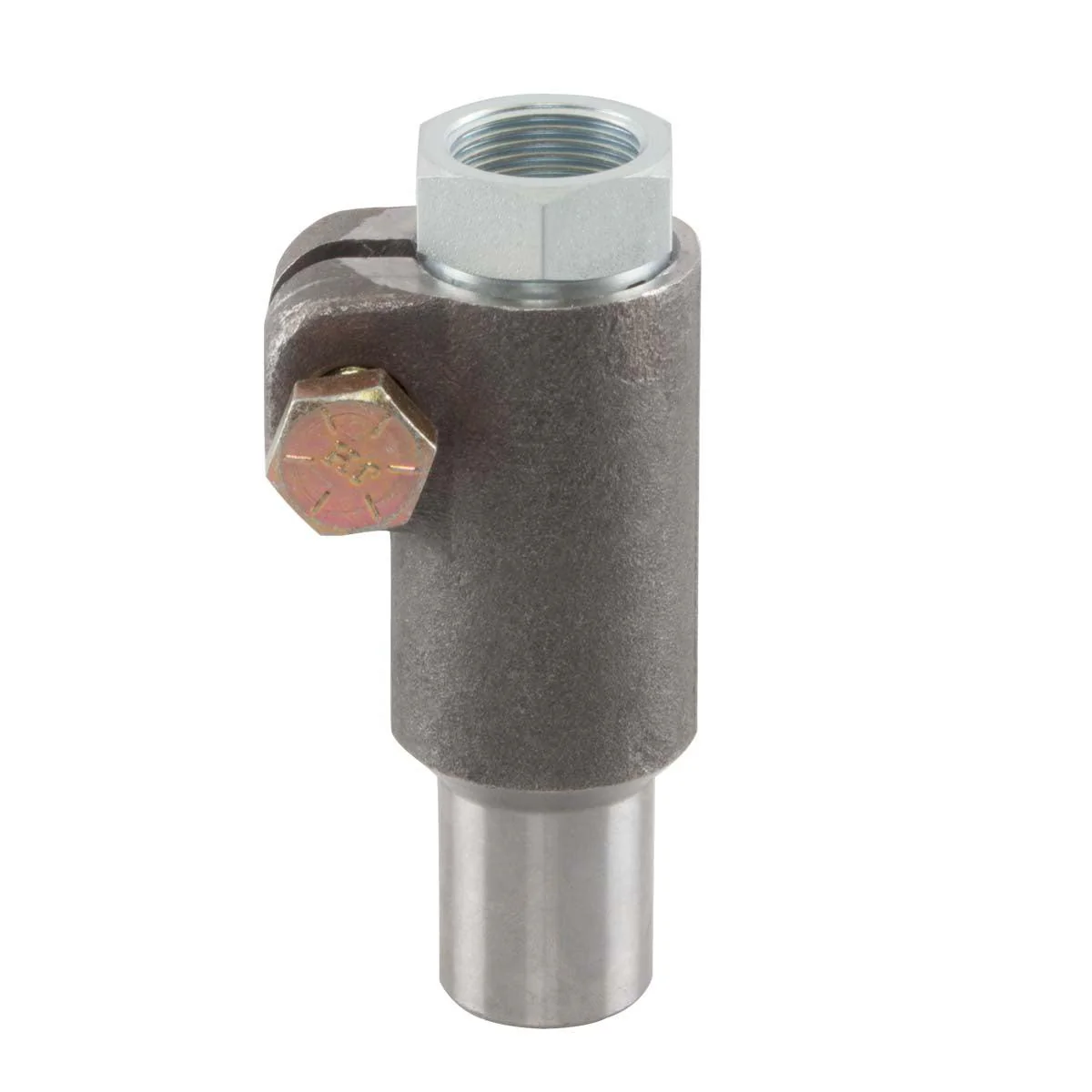

Universal Double Adjuster Tube Adapter (3620-1214)

Description

Fits: Universal

Double Adjuster Tube Adapter Synergy MFG 1-1/4 inch 12 Left Hand Thread, 1-1/2 inch ID Tube.

Designed to eliminate the need for jam nuts that are normally used when building link suspension and steering systems, allows the suspension/steering link to be adjusted without removal, & fine-tune the geometry by loosening the pinch bolt and turning the adjuster sleeve.

Features

• The weld on tube adapter is made from solid stock 1018 Steel
• The tube adapter seals the link off from water or other debris entering the link which can cause damage over time
• An integrated drain hole lets any water that enters the threads of the adapter drain out

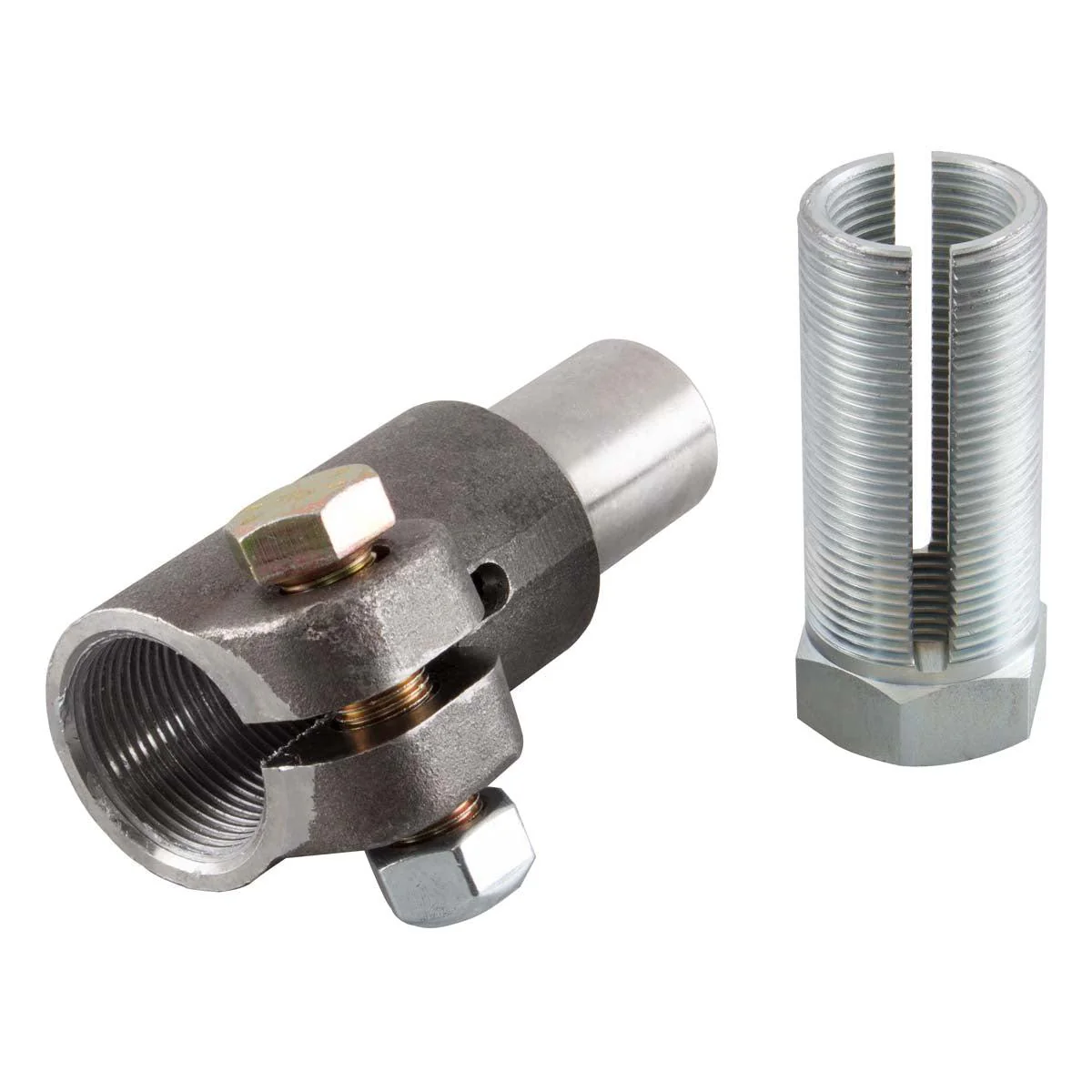

• (1) Tube Adapter with Pinch Bolt Slit and Tubes
• (1) Zinc Plated Double Adjuster Sleeve to be used with a Thread Shank Rod End
• (1) Pinch Bolt Hardware

Notes

• All Adjusters Use A Left Hand Threaded Rod End or Johnny Joint
• Ideal for link suspension designs with weld on bushings/joints at one end or bent suspension links
