Universal LED High Beam Mini (PR340)
Description
Fits
| APPLICATIONS | Universal (Cars, trucks etc) |
| DIRECT FITMENT | 9005, 9006, H7, H11 housings (little/no mods) |
| MODS REQUIRED | H1, H3 housings |
| OUTPUTS | High Beam |
| SHROUDS | All Styles |
| CENTRIC RINGS | OEM 2.5" model required for full-size shrouds |
| HOMOLOGATION ECE | NO |
While there's probably nothing wrong with your halogen high beam bulbs, or certainly a retrofitted set of bi-xenon/Bi-LED projectors, overkill is under-rated, and that's why we're giving two thumbs up to the new Morimoto high beam projector.

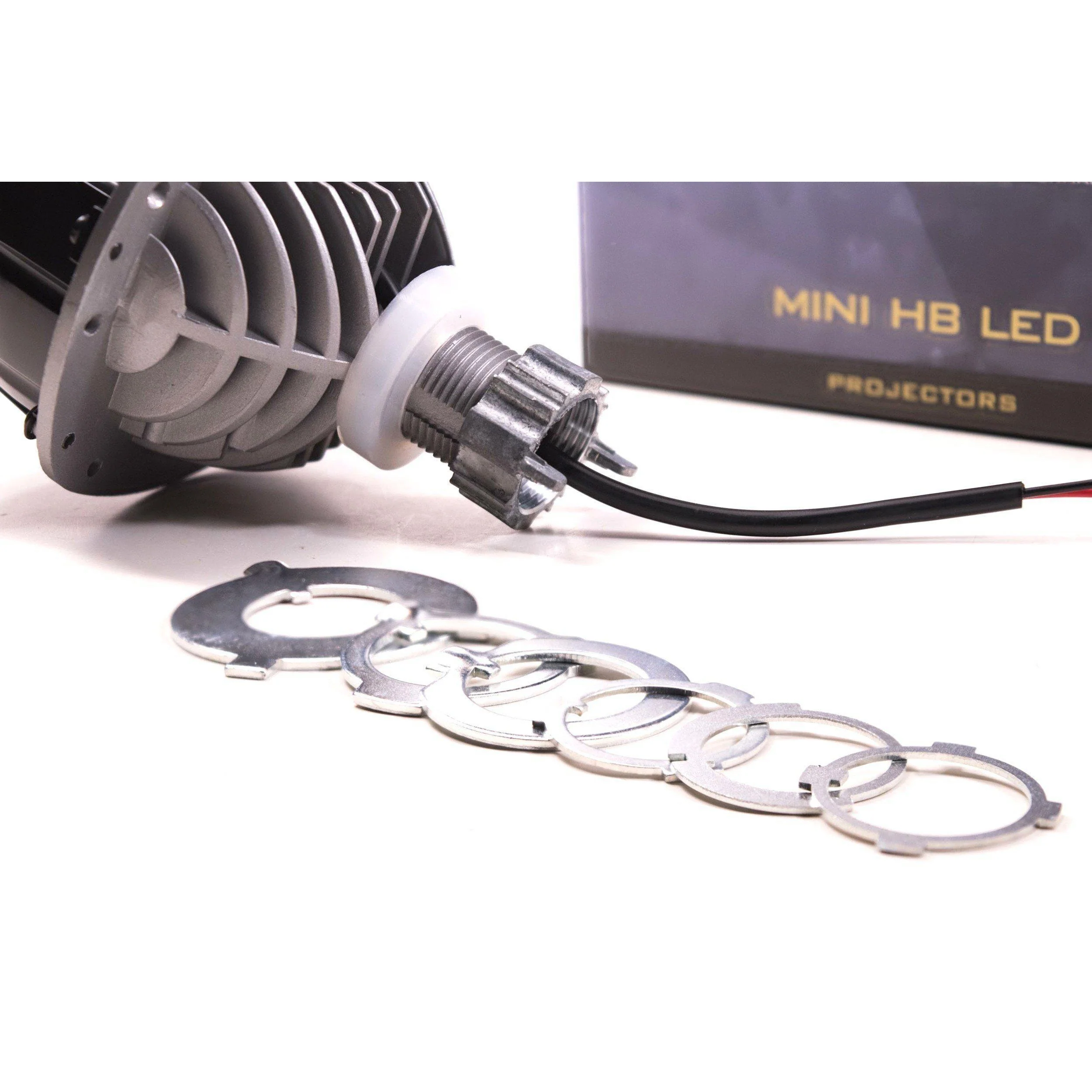

The Mini HB features a threaded-shaft style mount on the back that allows the projectors to be locked on with their included hardware, and minimal modifications to your headlight. Best part is that the threaded shaft is about twice as long as what you would normally find on something like a Mini H1 projector, making it even easier to install across the board.
Part Number: PR340
Features
- Compatible with most existing shrouds
- Work with centric rings
- Uses pre-existing mounting points
Additional Info
| HEIGHT | 78mm |
| WIDTH | 82mm |
| PROJECTOR DEPTH | 100mm |
| MAX DEPTH | 125mm (includes shaft / wire exit) |
| LENS DIAMETER | 70mm/2.8 |
| POWER | 25w (High Beam) |
| HIGH BEAM CURRENT | 1470mA |
| LUMINOSITY | 3000lm (combined) |
| LED TYPE | SSC |
| MOUNTING SHAFT | Diameter = 20mm |
| LOCK NUT | Size = 26mm |
| HOUSING DEPTH | 100mm Minimum |
| STANDARD LENS | 100% clarity performance-optic |
What's Included
| Projector | 1x Morimoto Mini HB LED High Beams |
| HARDWARE | Threaded Shaft Mounting Kit |
| WIRING | Standard 9006 +/- inputs/connectors |
| WARRANTY | 2 Years |
