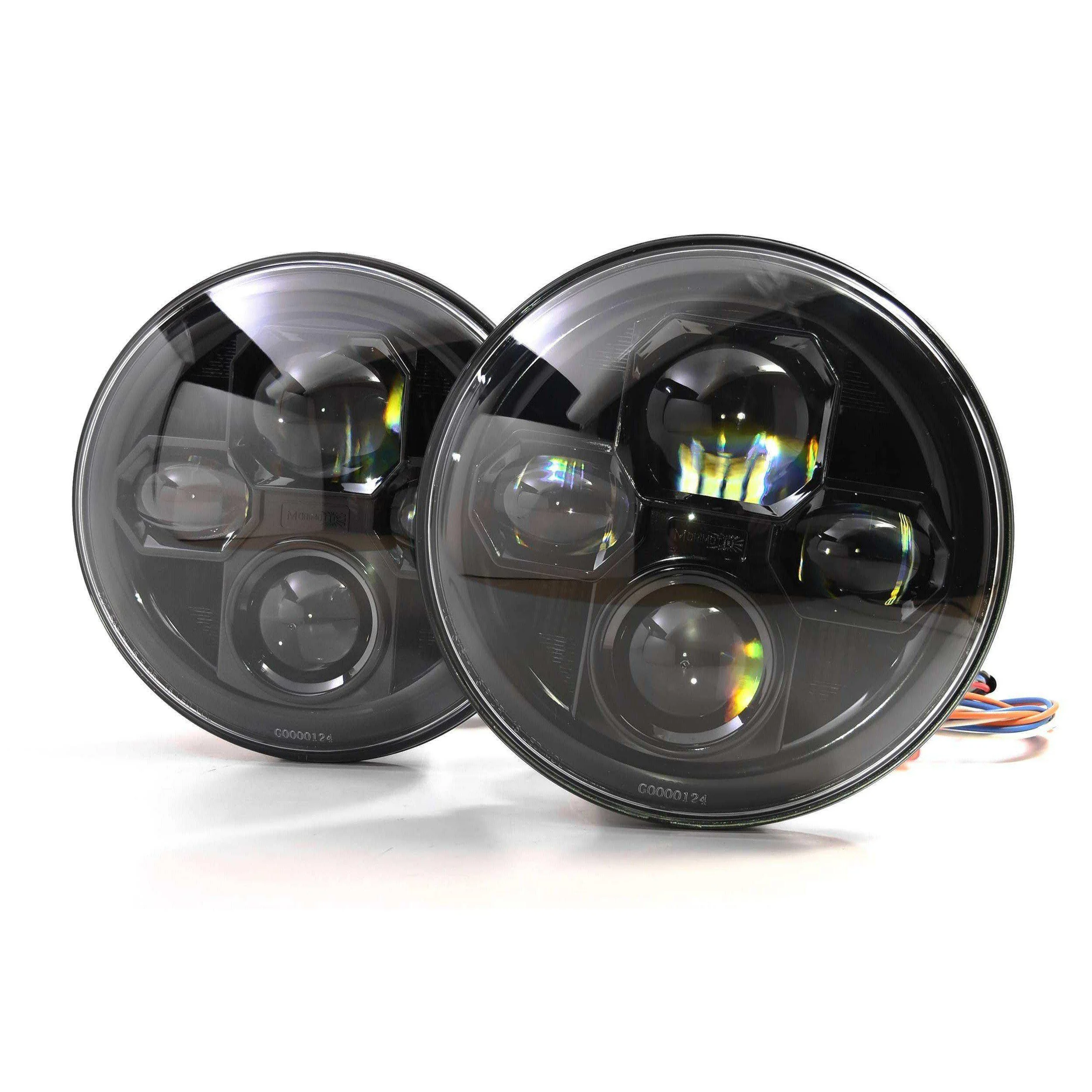

Universal Individual Round Black Sealed Bi-LED 2.0 7" (LF271)
Description
Fits
| Year | Make | Model |
| 2007-2017 | Jeeps | Wrangler (req. Anti-Flicker Harness) |
| OTHERS | All 7" Round / Par 56 |
| WIRING | Delphi H13 Male standard. H4 Adapter Optional |
In low beam mode, Nichia NCSW170C Series LEDs paired with Morimoto's advanced Kuria Optic projector lens array efficiently distributes roughly 3000 lumens on the road in a properly LHD-stepped beam pattern. Because the Sealed7 runs a "dual-burn" setup on high beam mode, the output is intensified to nearly 4000 mosquito-melting lumens there.

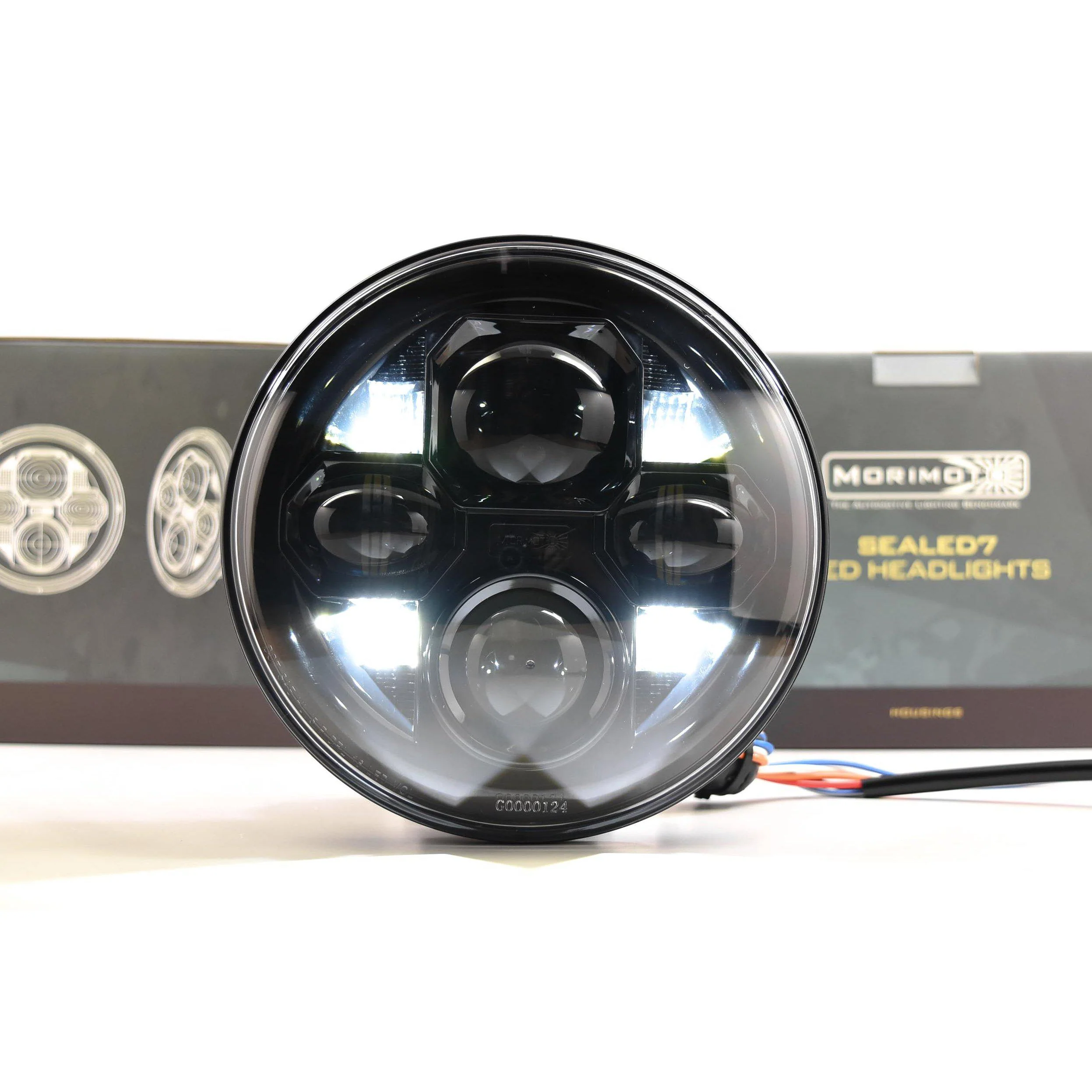

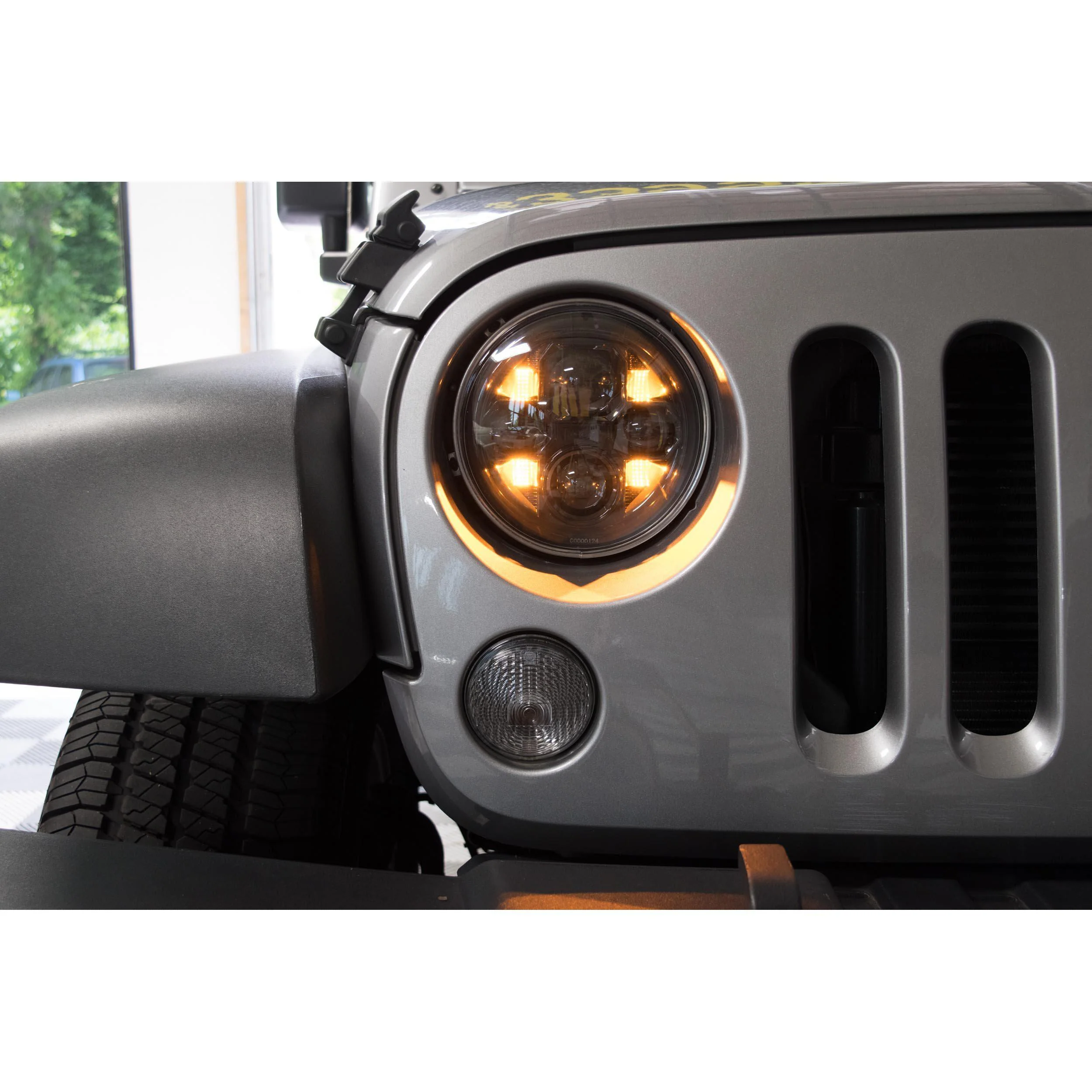

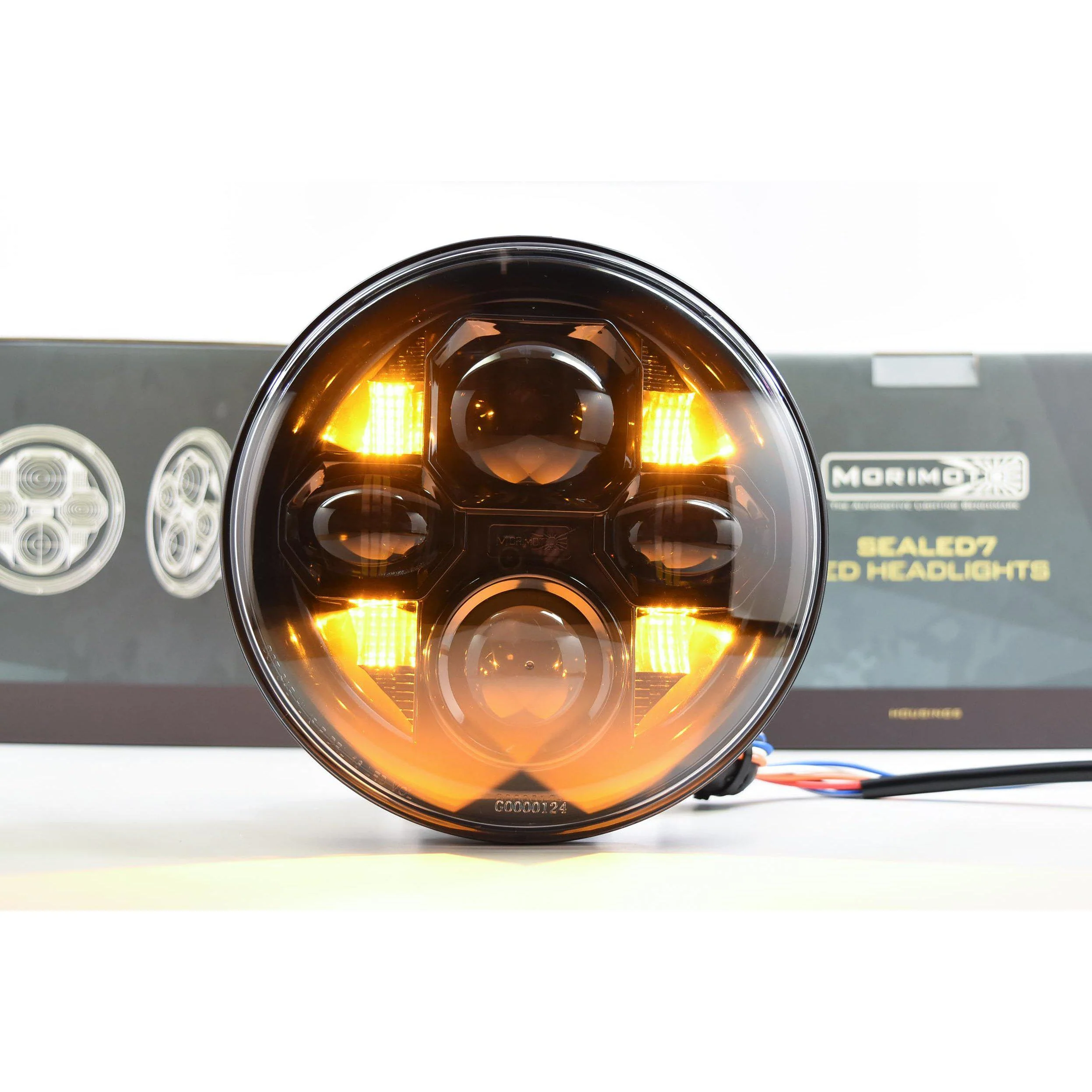

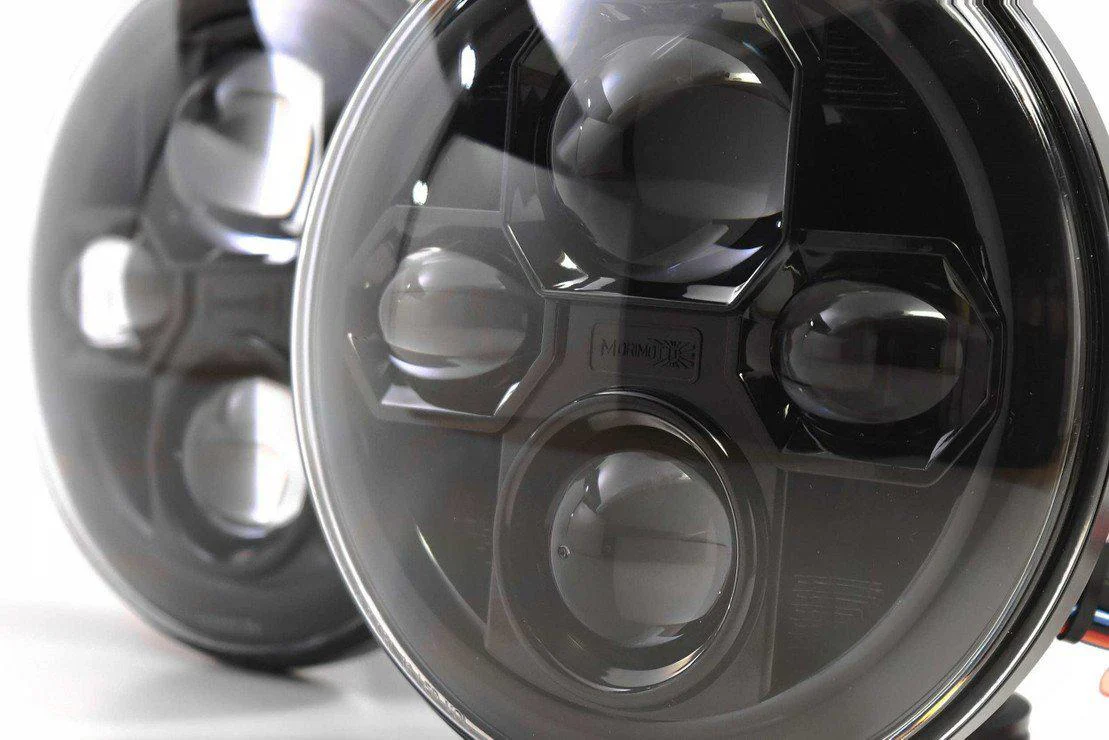

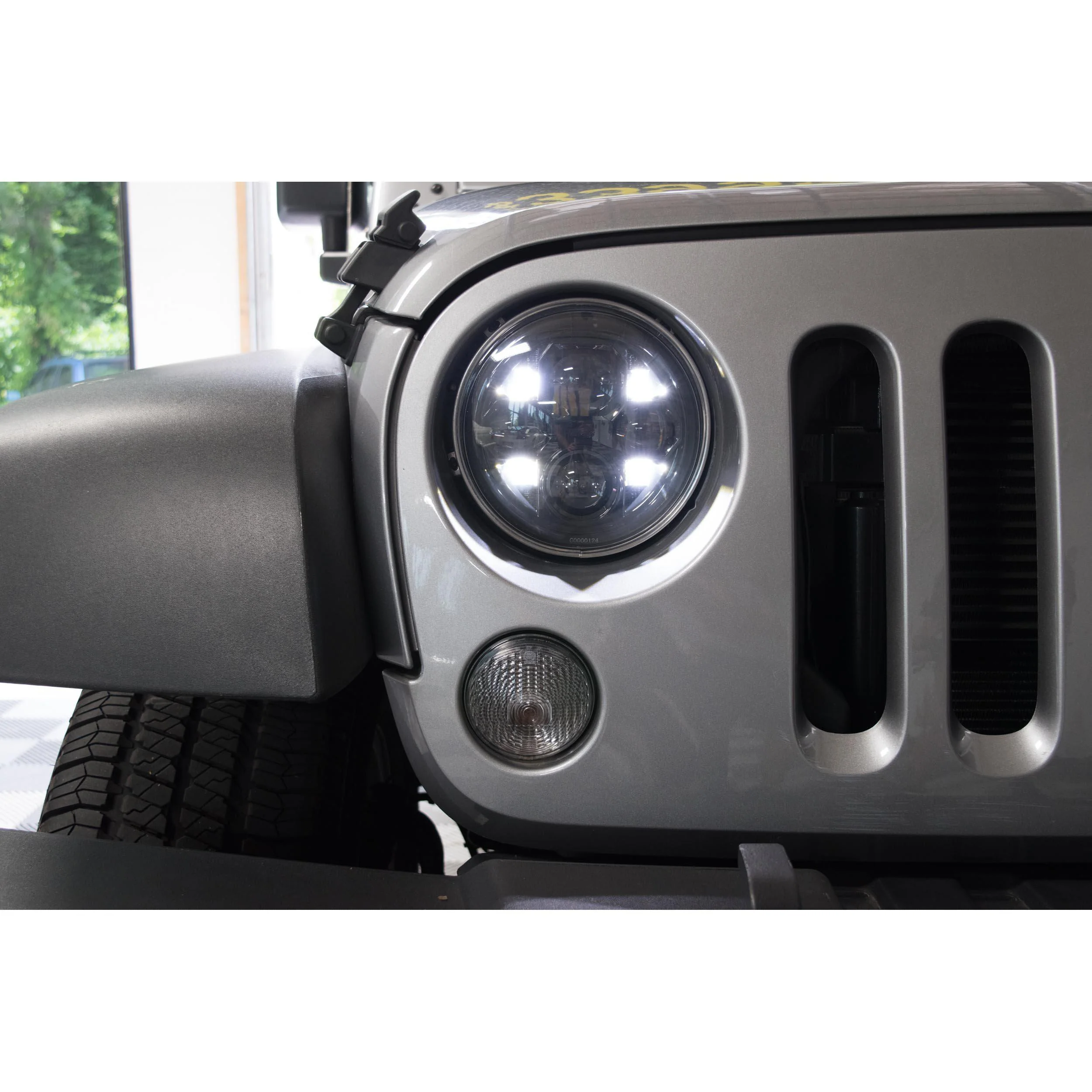

The quad-optic setup has three functions: 1) High-intensity white daytime running light. 2) Low-intensity white daytime running light (with low beams on) and 3) High-intensity amber turn signal. The switchback setup on the turn signal will automatically interrupt the white DRL, flash, and then return to white once the signal stops.
Part Number: LF271
Features
- Designed to replace all 7" round / PAR56 headlights
- Low & high bean function
- standard with H13/9008 male inputs
- 3-wire DRL/Signal input
Additional Info
| TRAFFIC PATTERN | LHD / DOT |
| INPUT VOLTAGE | 9-36V DC |
| RATED LIFETIME | 10,000 Hours |
| HOUSING MATERIAL | Powdercoated Cast Aluminum |
| LENS MATERIAL | UV-Treated Polycarbonate |
| INPUT CONNECTOR | Delphi H13 + T-Taps for DRL |
| LOW / HIGH LED | 12x Nichia NCSW170C |
| DRL / TURN LED | 4x Philips Luxeon 3535L |
| LOW BEAM | 2,860 lumens / 27w |
| HIGH BEAM | 1,020 lumens / 12w |
| KELVIN RATING | 5000K (Pure White) |
What's Included
| HEADLIGHT | 1x Morimoto Sealed7 2.0 Bi-LED (Black) |
| WIRE TAPS | 3x 14-16ga. T-Taps (for DRL/Turn Signal) |
| WIRING | Delphi H13 Male Connector + DRL signal wires |
| WARRANTY | Five Years |
