Universal Single Channel Wireless Air Spring Control Kit w/ HD Compressor (HP20470)

Description

Fits: Universal

 Control your air springs from the comfort of your cab with the Pacbrake Dual Channel Wireless Air Spring Control kit. They'll fit on any vehicle application/frame & any air spring kit on the market!

Part Number: HP20470/ HP20470-QM-R

Features

• Max Working Pressure: 1034 kPa [150 psi], 33% @ 689.5 kPa [100 psi]
• Max Continuous Run Time: 20 Minutes ON / 40 Minutes OFF
• Rated Flow: 31.1 L/min [1.1CFM] @ 0kPa [0 psi]
• Simultaneous Fill
• Ingress Protection: IP55 Compressor, IP67 Electric Connectors
• Ambient Operating Temp: -40C to +70C [-40F to +158F]
• 12 VDC MAX current draw: 17 AMPS

Additional Info

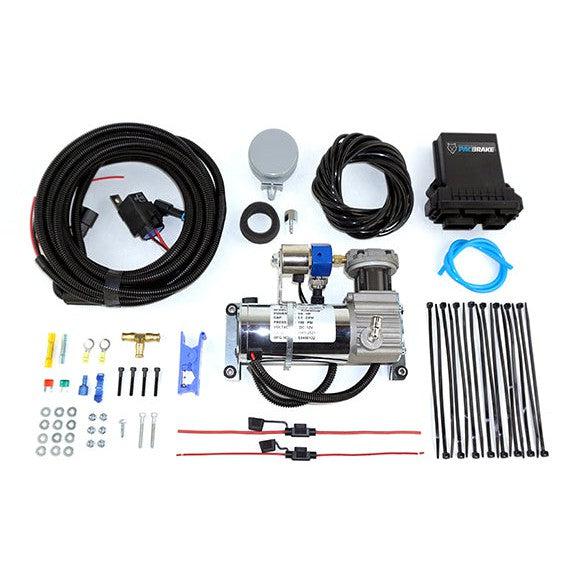

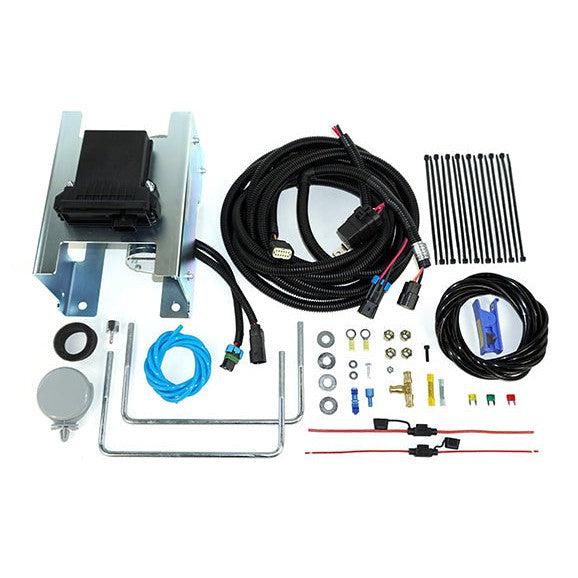

• Air compressor, controller, solenoid block, pressure sensors and harnesses

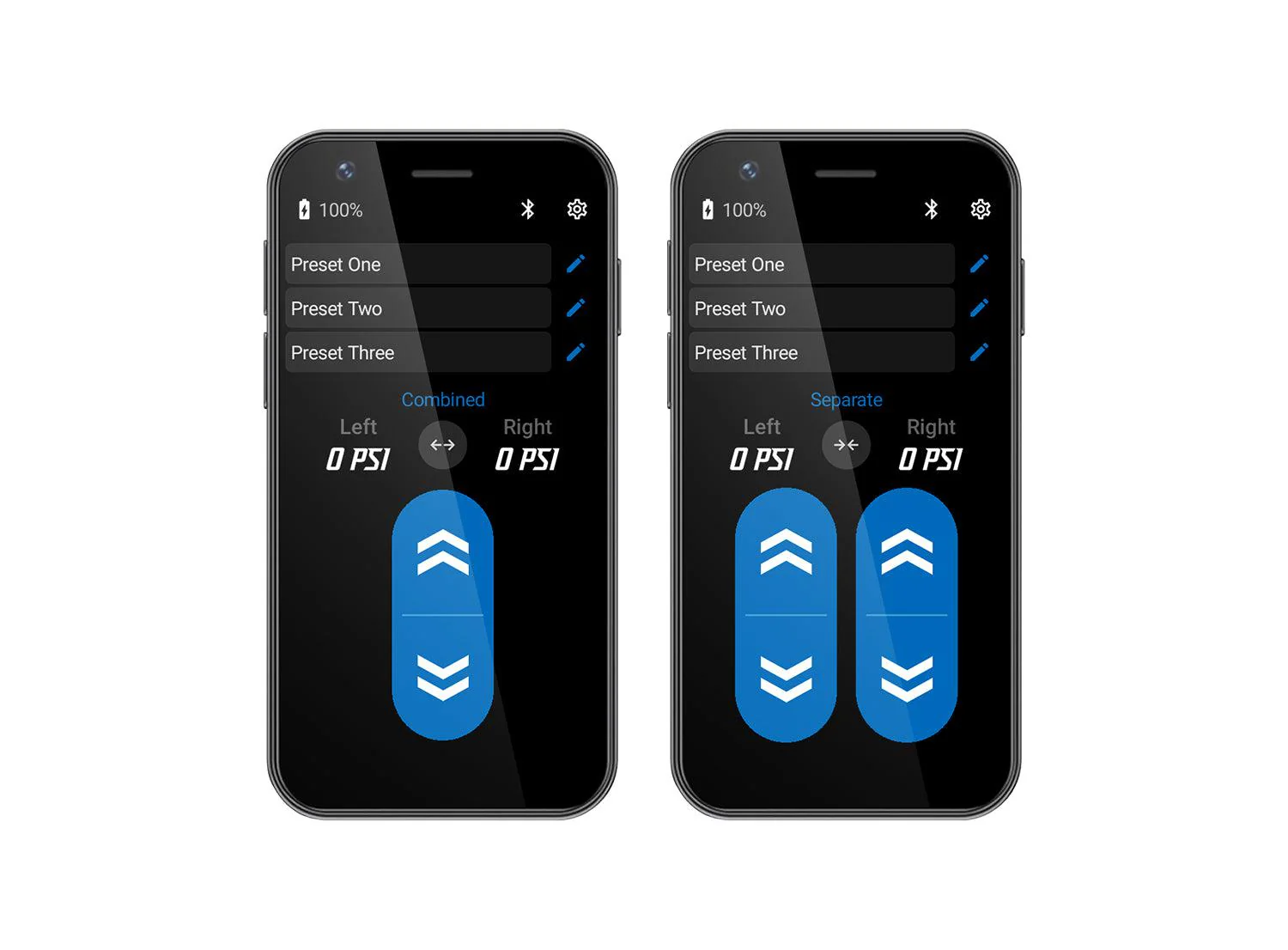

• Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
• Air lines, pressure connectors and mounting hardware

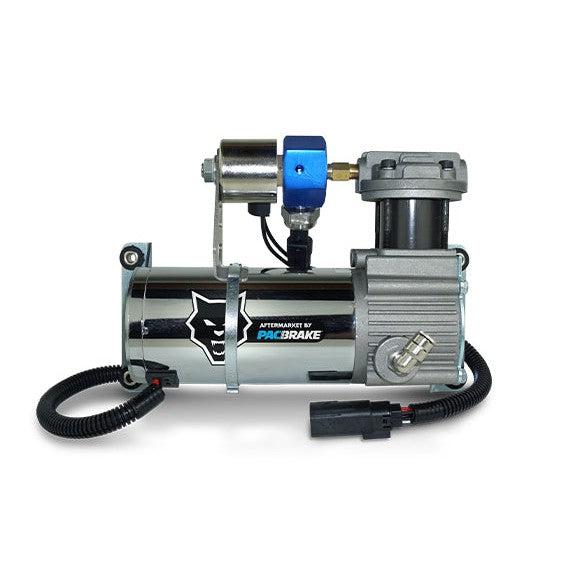

• This kit comes with HP325 12V DC Air Compressor

• The kit is on demand and intended to use without an air tank
• Optional Remote (HP20470-QM-R)

Installation

Click here to view installation instructions

Click here to view quick mount installation guide
