Universal Weld-In Forged Tube Adapters (3621-XXXX)

Description

Fits: Universal

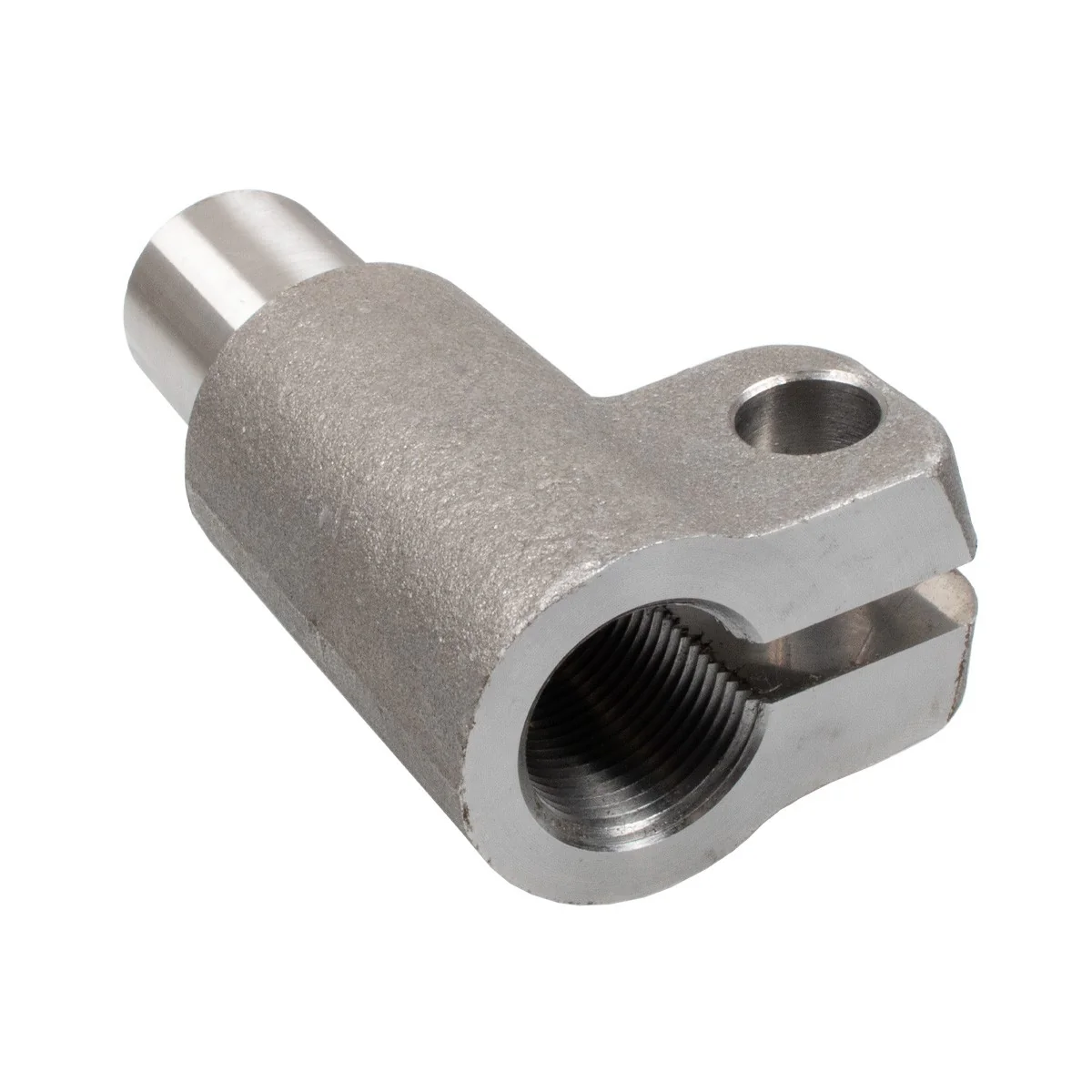

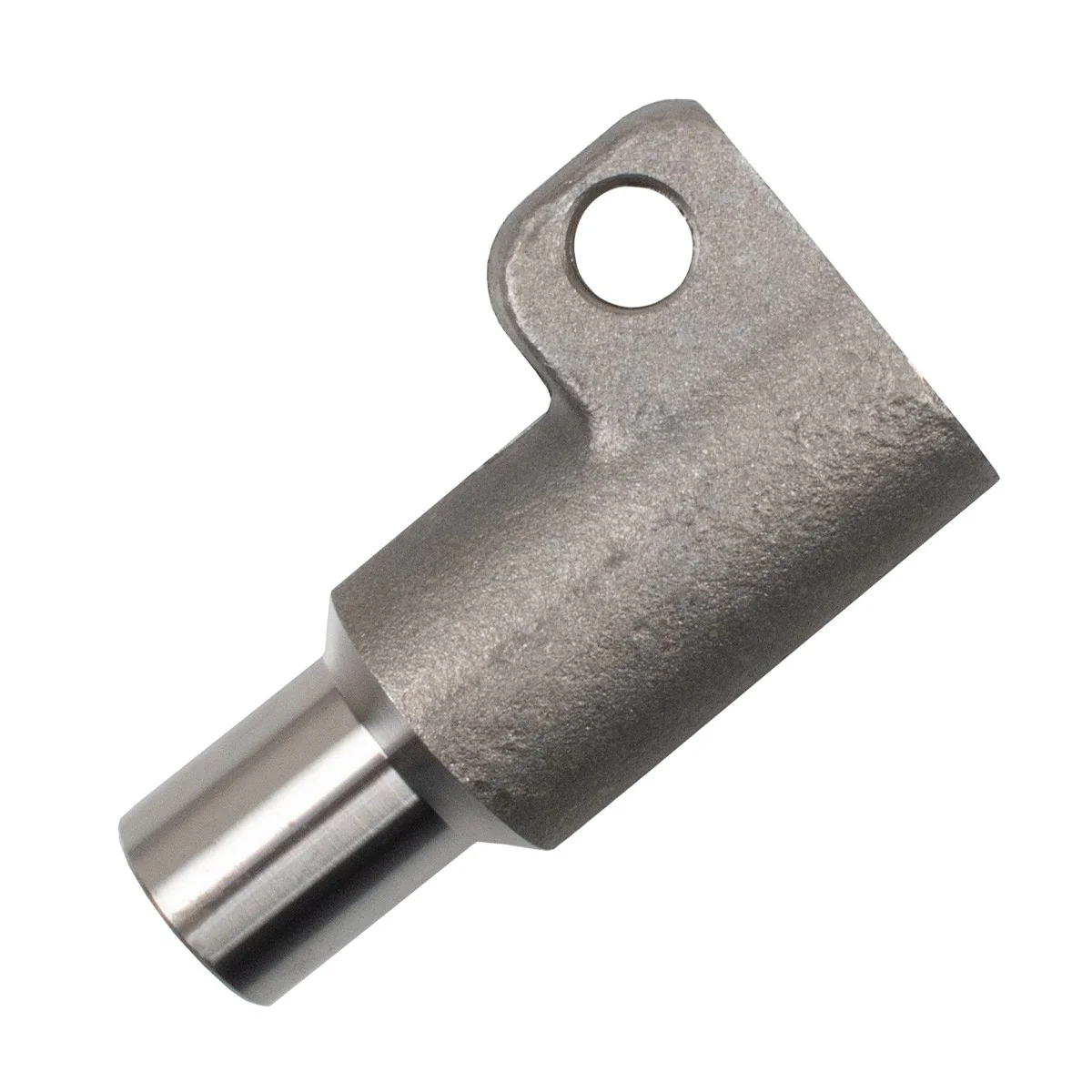

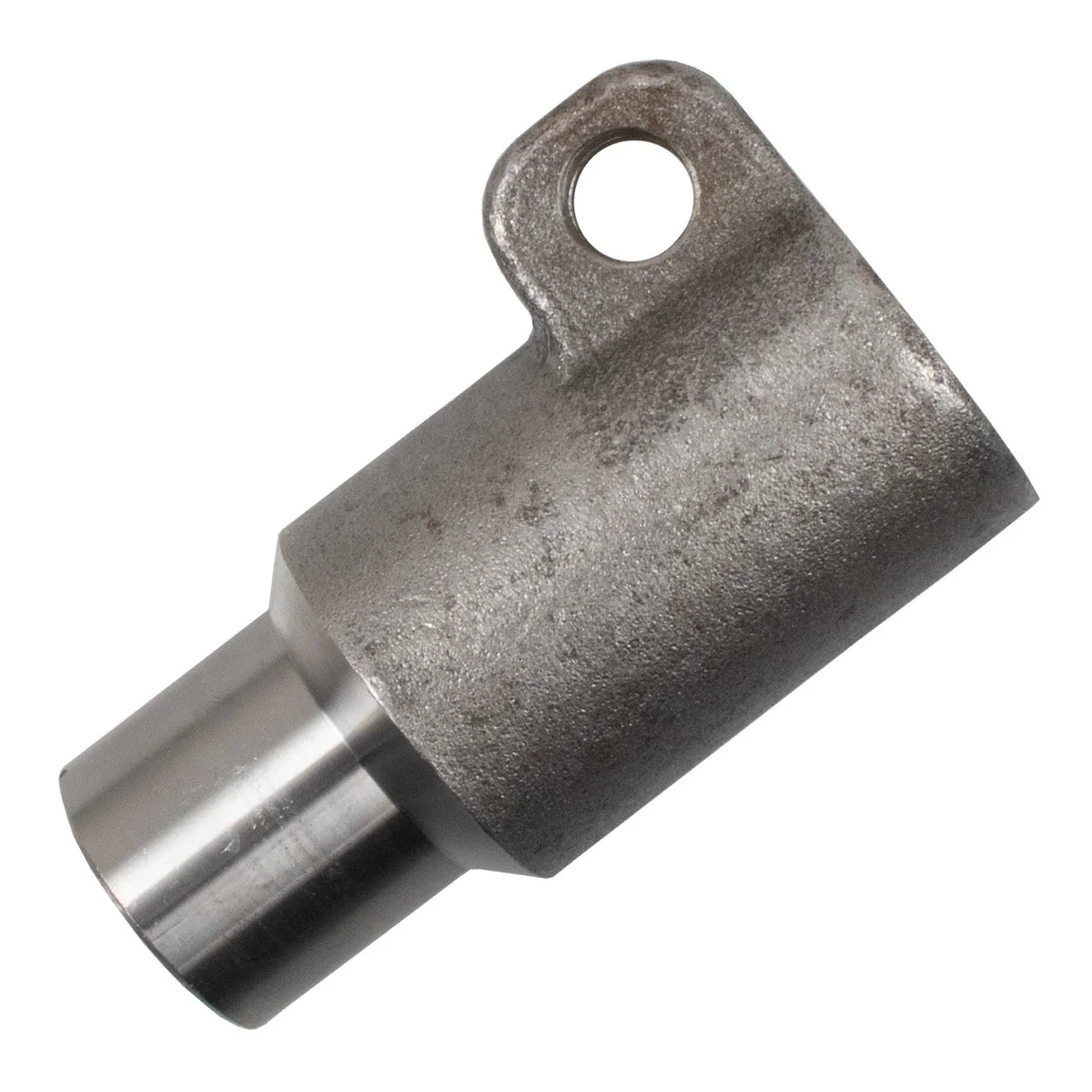

Synergy Weld-In Forged Tube Adapters eliminate the need for tap sets and jam nuts. Designed for heavy-duty rod ends, they offer a strong, reliable solution for custom steering and suspension fabrication. Engineered to withstand aggressive driving conditions.

Part Number: 3620-XXXX

Features

• Tube adapters are forged from high-strength SAE AISI 1045 steel
• Ideal for fabricating bent suspension links or adjustable bars with one rod end
• Synergy Pinch Bolt Assembly eliminates the need for jam nuts
• Durable Zinc-plated Double Adjuster Sleeves
• Versatile weld-on application
• Grade 8 hardware

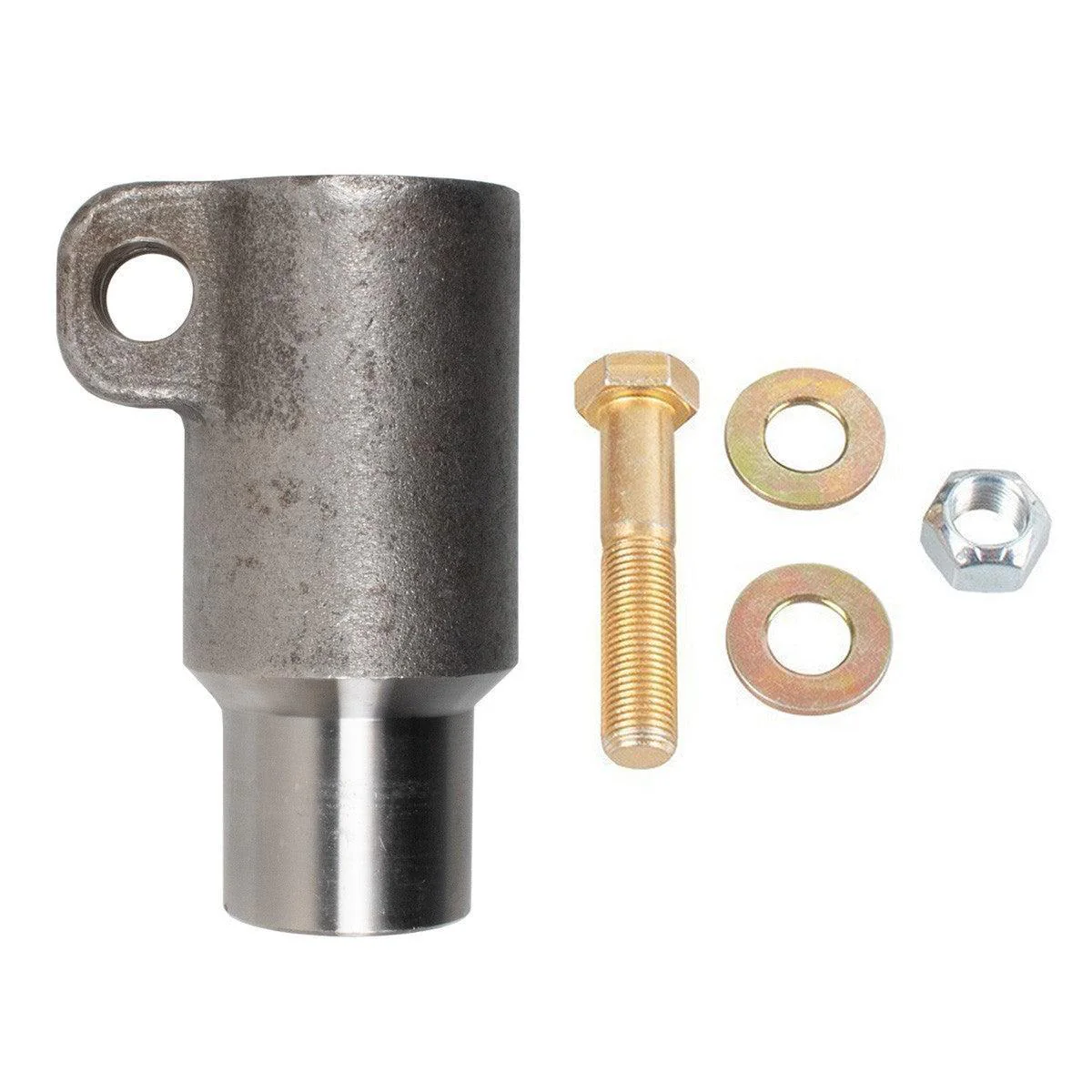

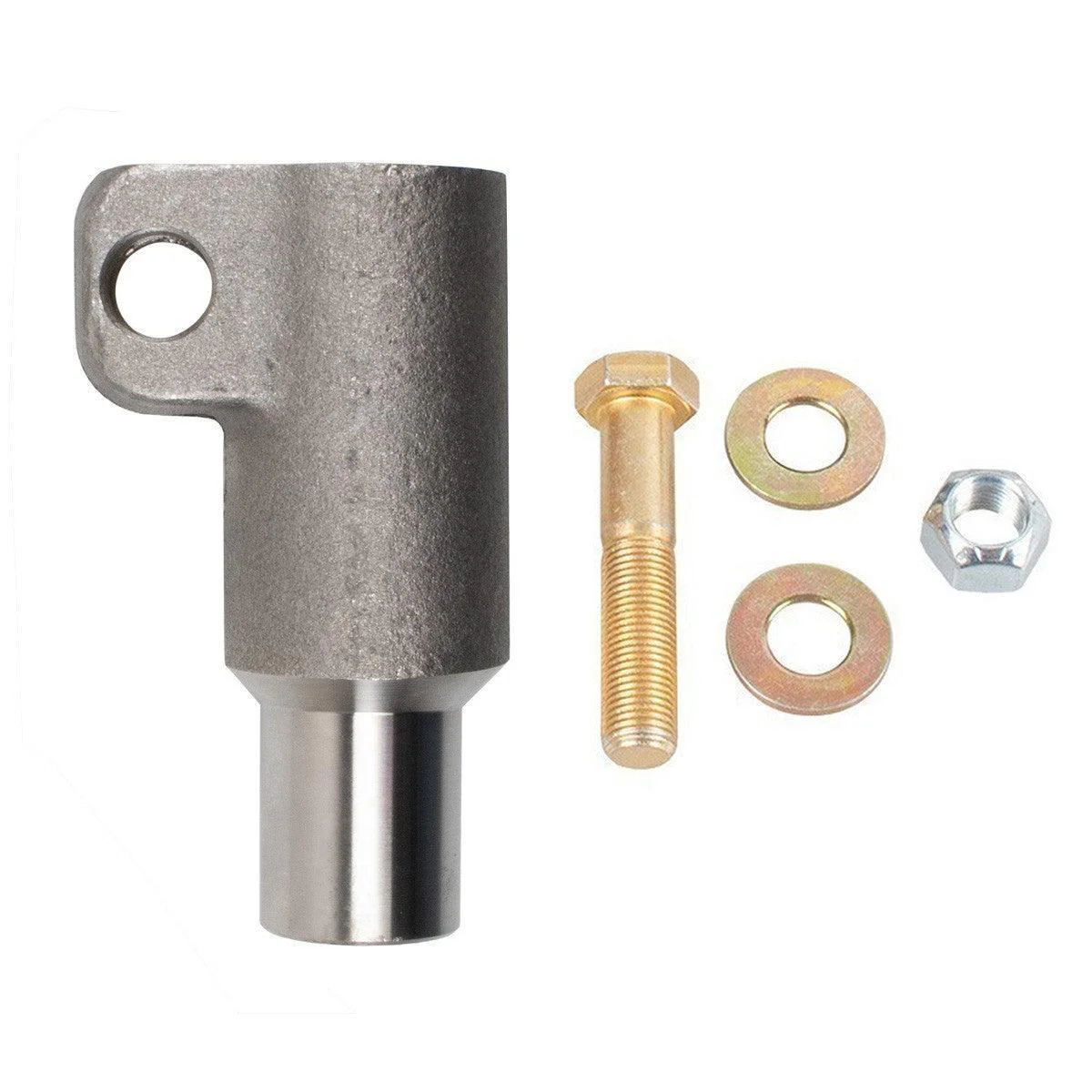

Includes:

• (1) Forged Pinch Bolt Tube Adapter
  (1) Pinch Bolt Hardware Kit

Notes

• All Synergy Double Adjusters utilize an internal left-hand thread compatible with all Synergy left-hand thread forged ends with Dual Durometer Bushings, Johnny Joints, or heim joints
• Replacement hardware available with part number PINCHBOLT-HDW-DOUBLE
• Synergy recommends all welding be done by an experienced welder / fabricator


Additional Fitment

Fitment:

Part #	Useable Thread Size	For Tube ID (Inches)
3621-0701	7/8" - 14 UNF-2B Left Hand Thread	1.125"
3621-0801	1" - 14 UNS-2B Left Hand Thread	1.00"
3621-0802	1" - 14 UNS-2B Left Hand Thread	1.125"
3621-1001	1-1/4" - 12 UNF-2B Left Hand Thread	1.375"
3621-1002	1-1/4" - 12 UNF-2B Left Hand ID Thread	1.50"



Specifications:

Part #	A	B	C	D	E	Thread Length
3621-0701	1.125"	3.50"	2.50"	1.56"	2.28"	1.30"
3621-0801	1.00"	4.02"	2.77"	1.56"	2.28"	1.50"
3621-0802	1.125"	4.13"	2.88"	1.56"	2.28"	1.88"
3621-1001	1.375"	4.25"	3.00"	1.81"	2.56"	1.88"
3621-1002	1.50"	4.25"	3.00"	2.00"	2.70"	1.88"
