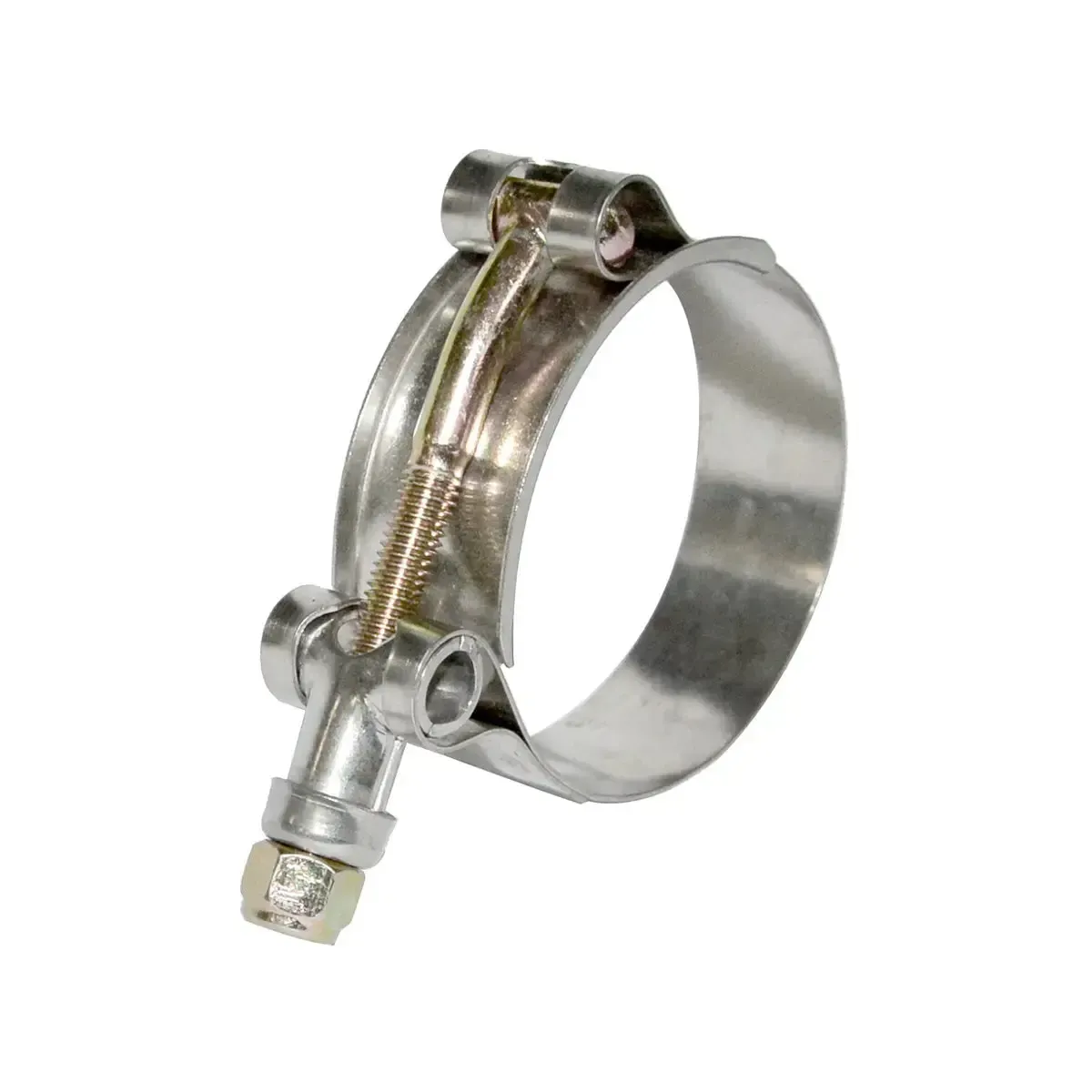

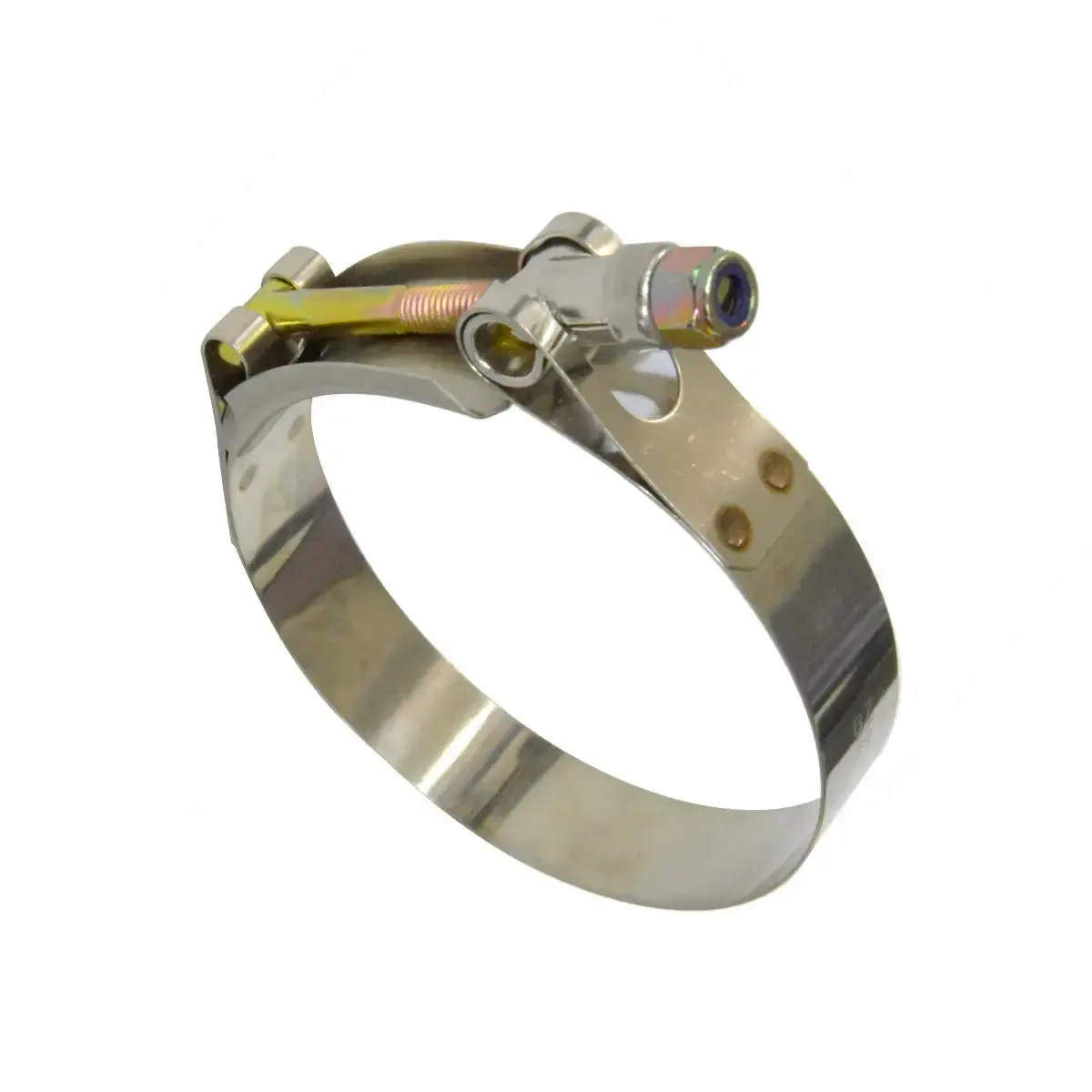

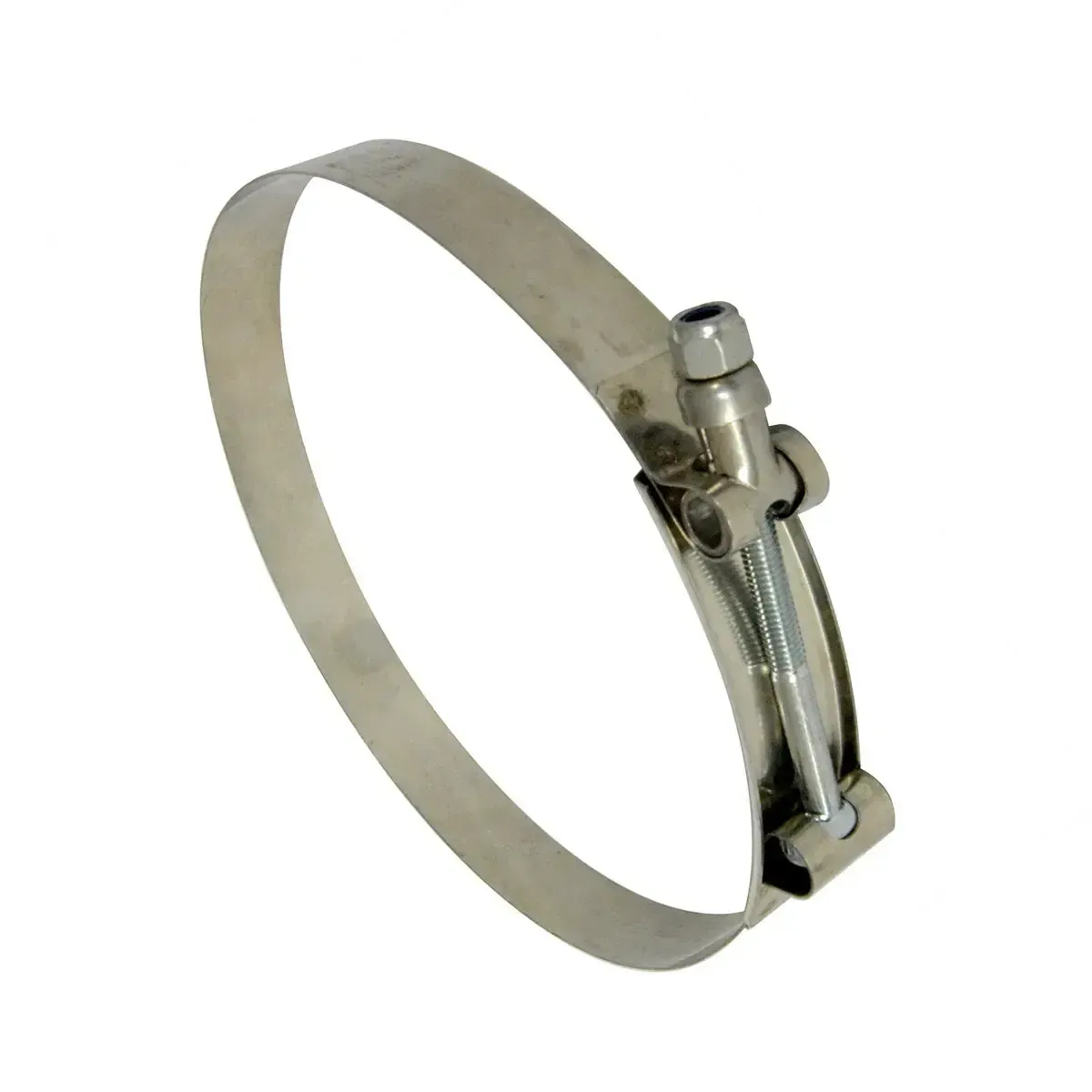

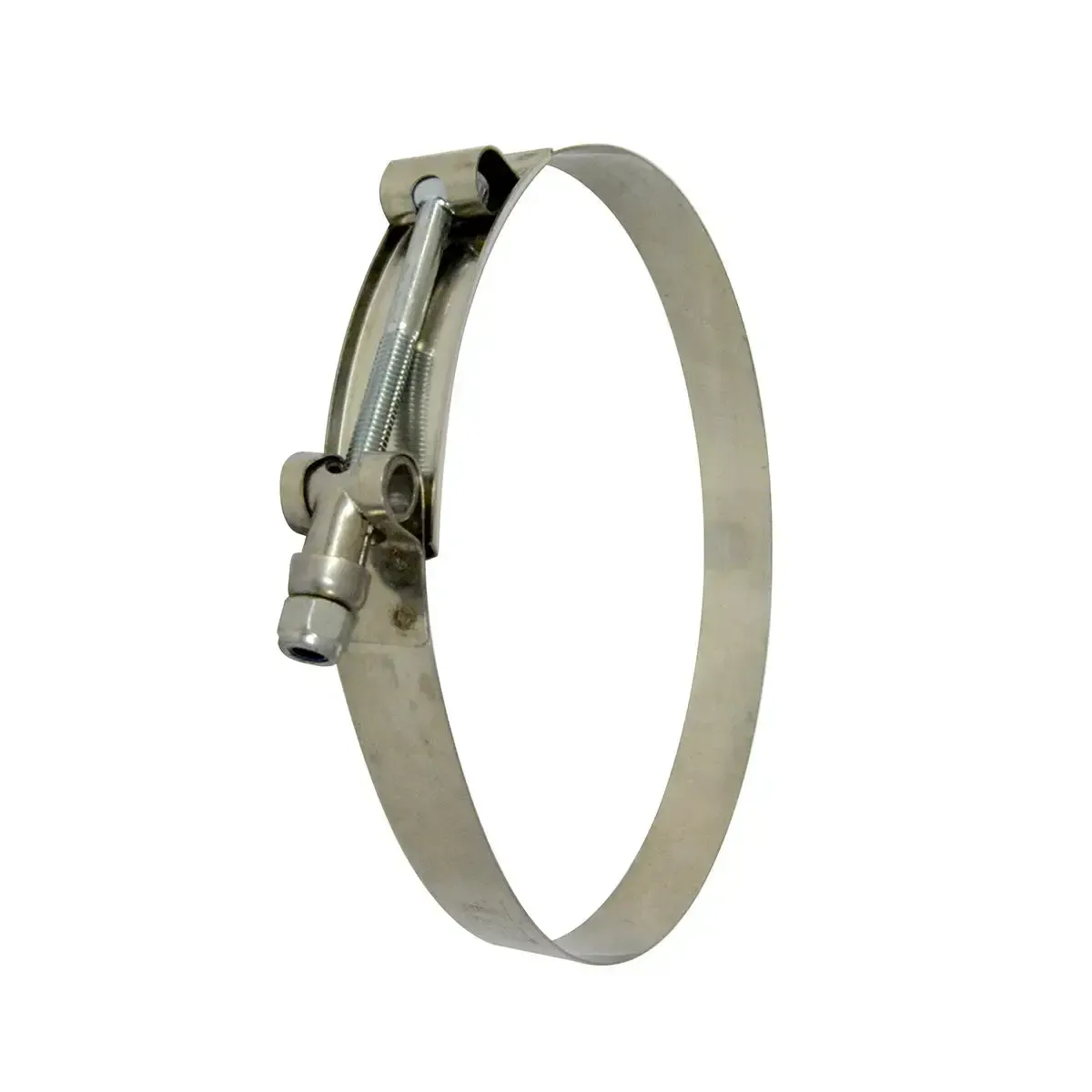

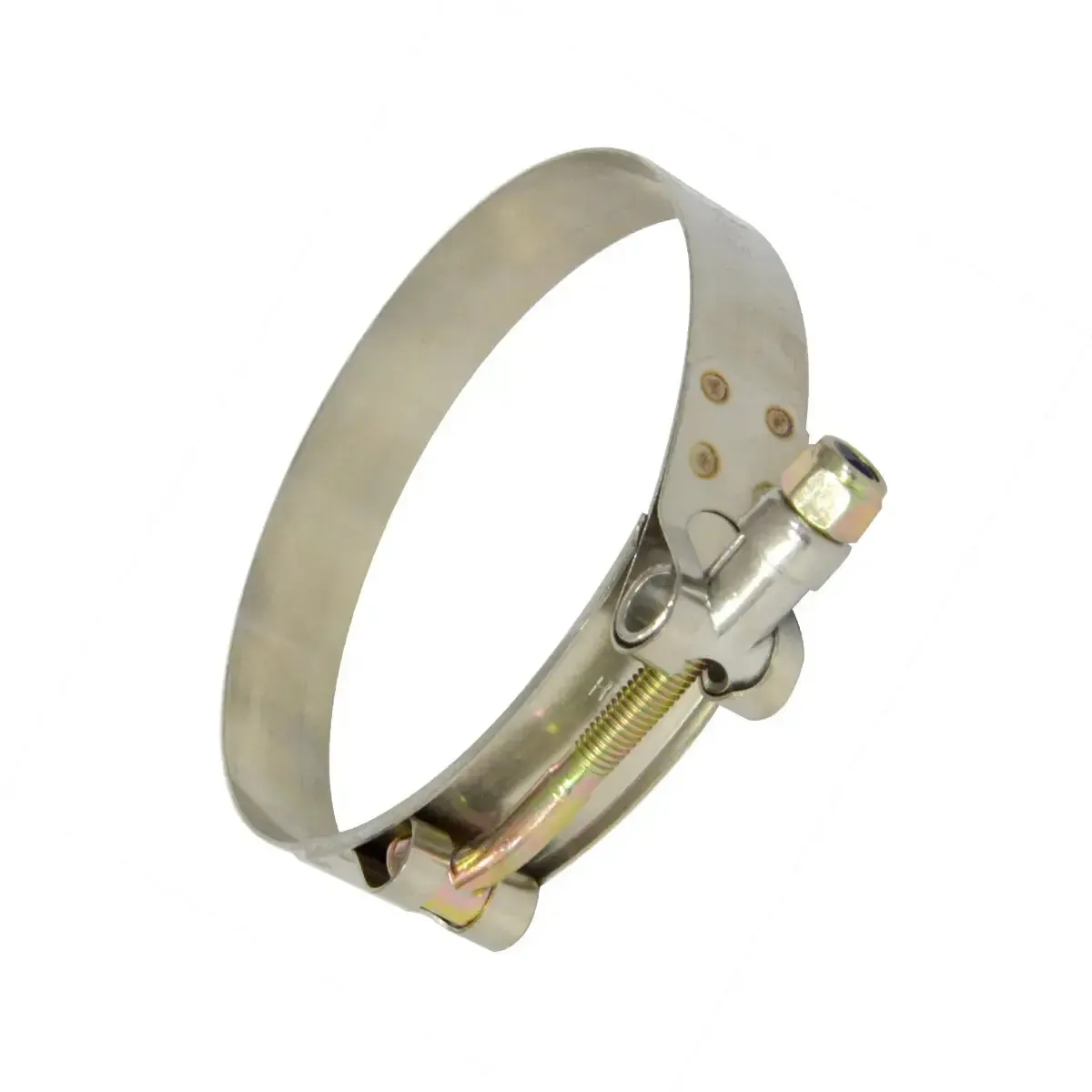

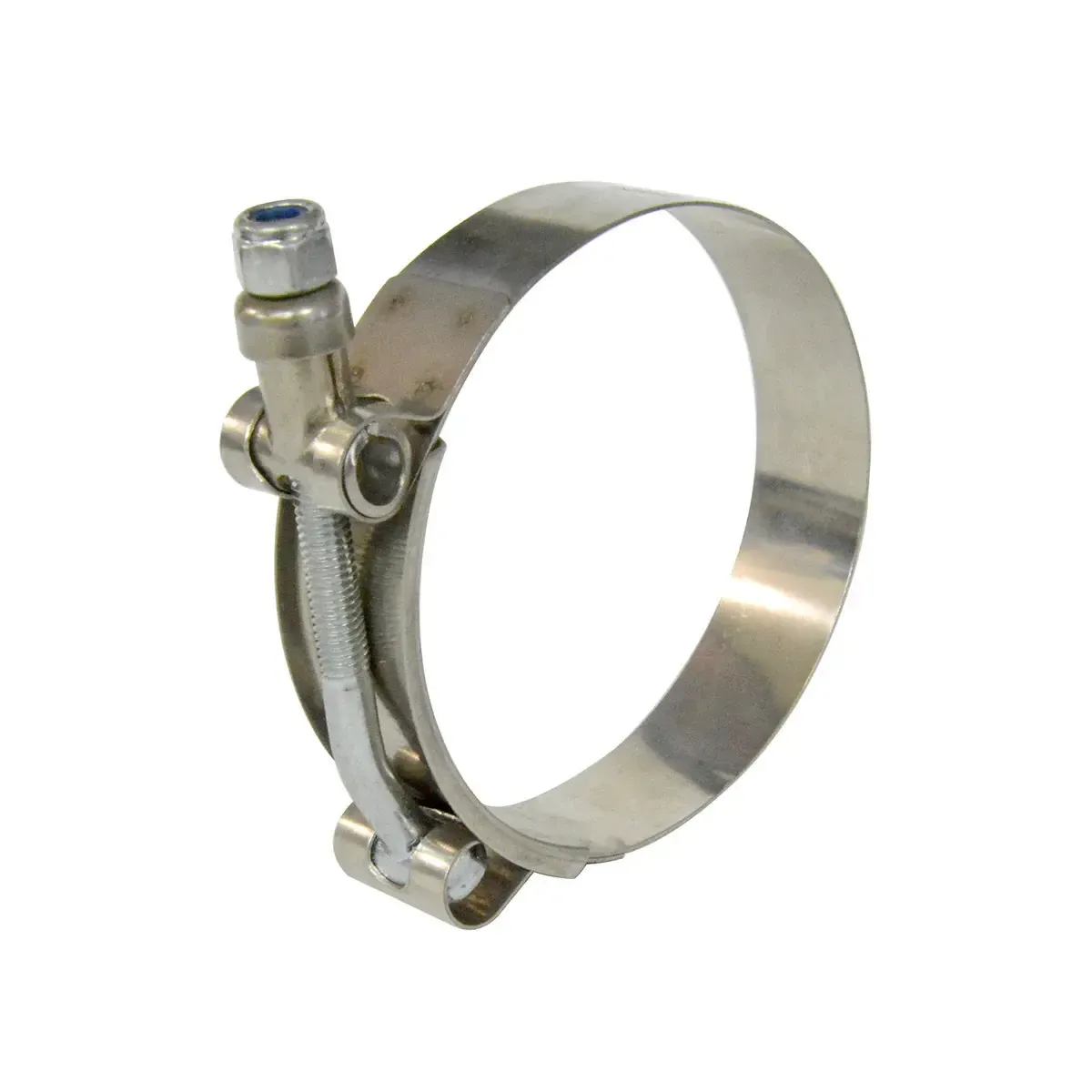

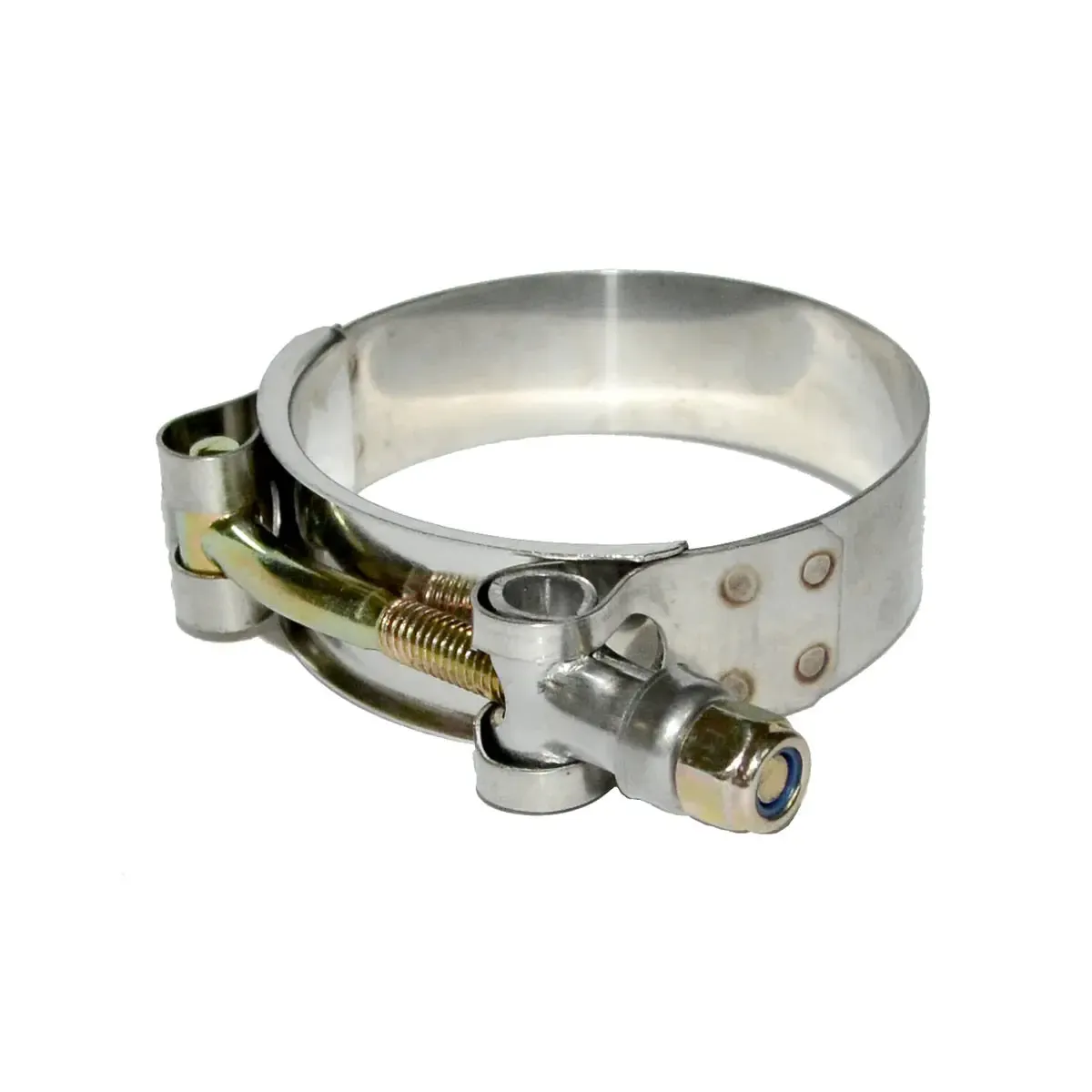

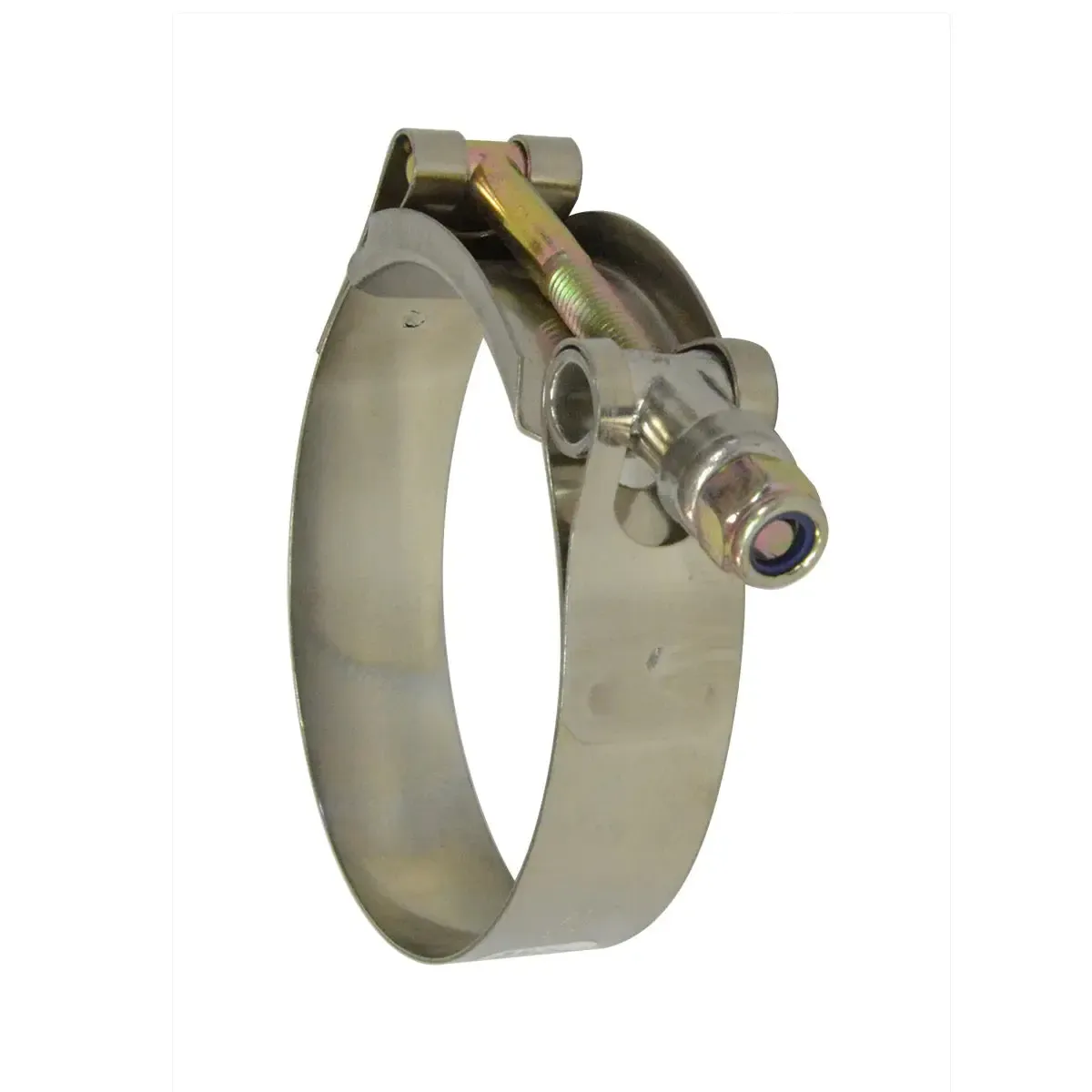

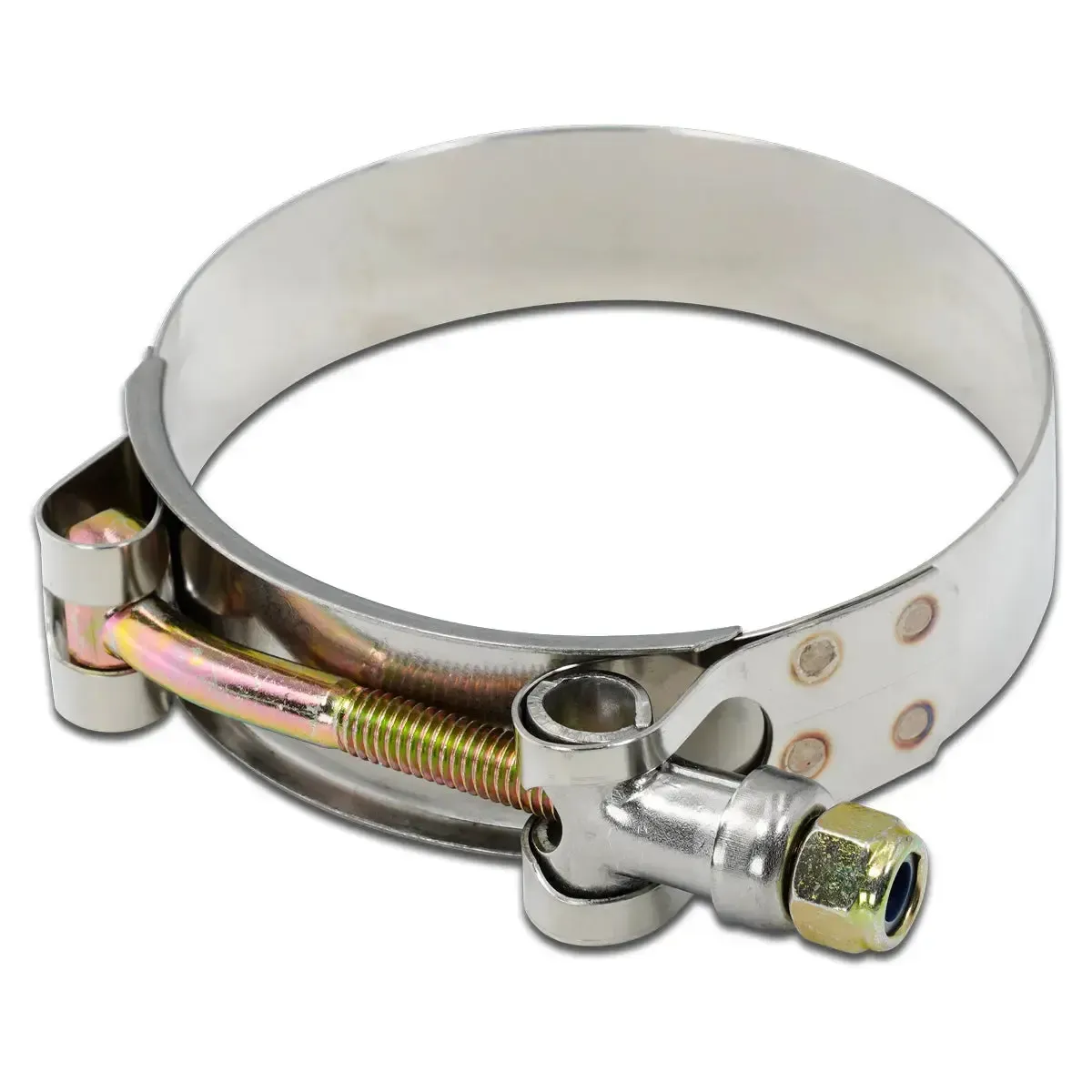

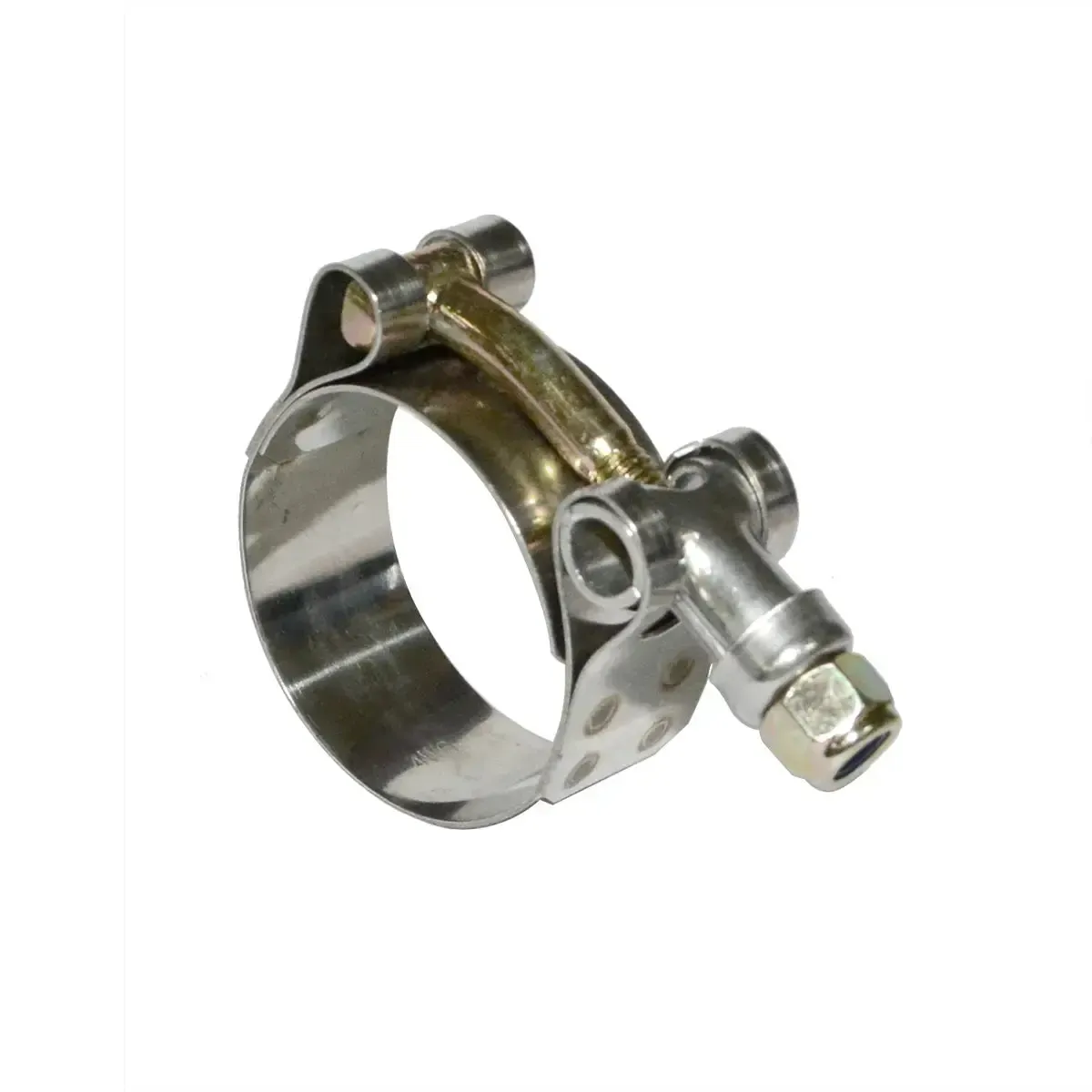

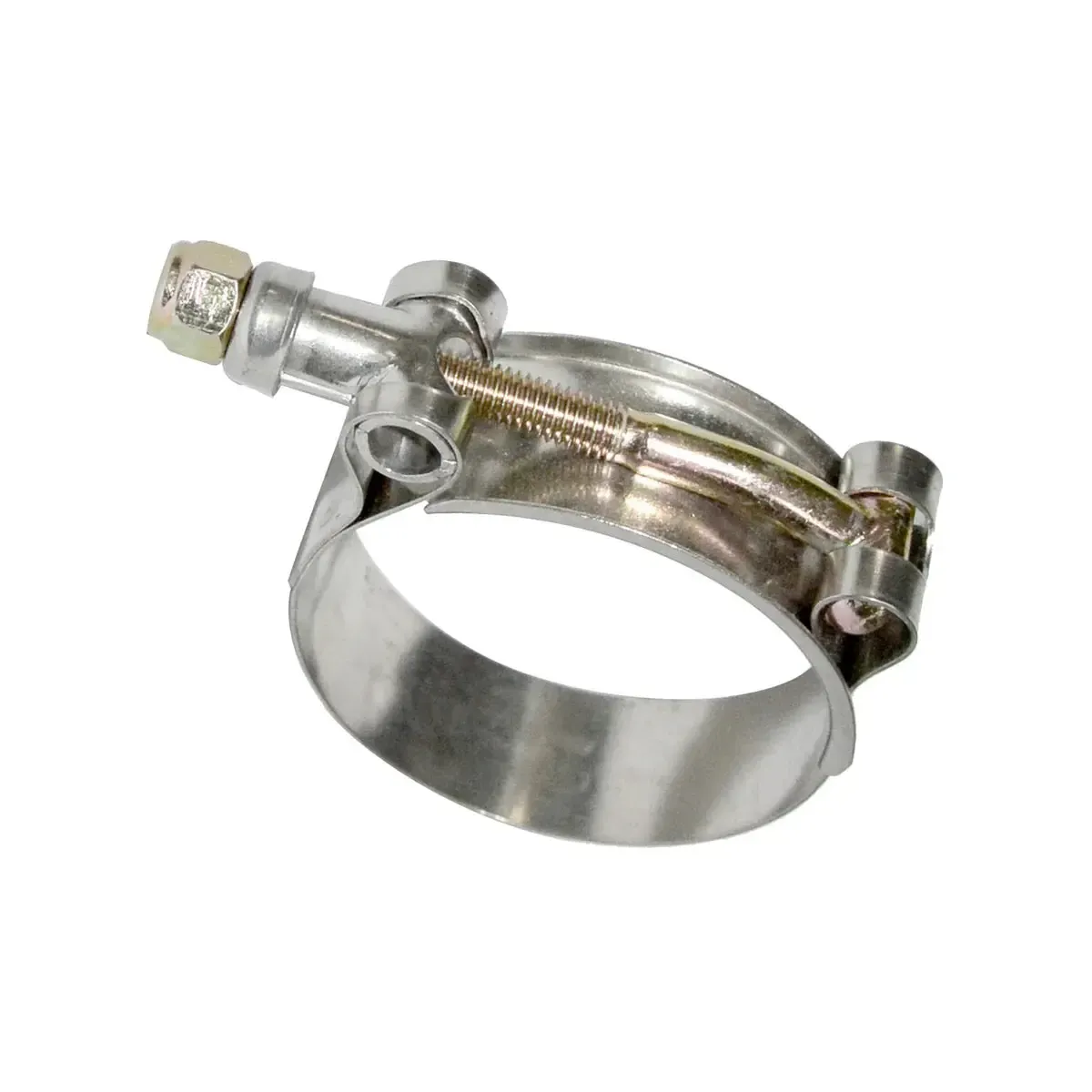

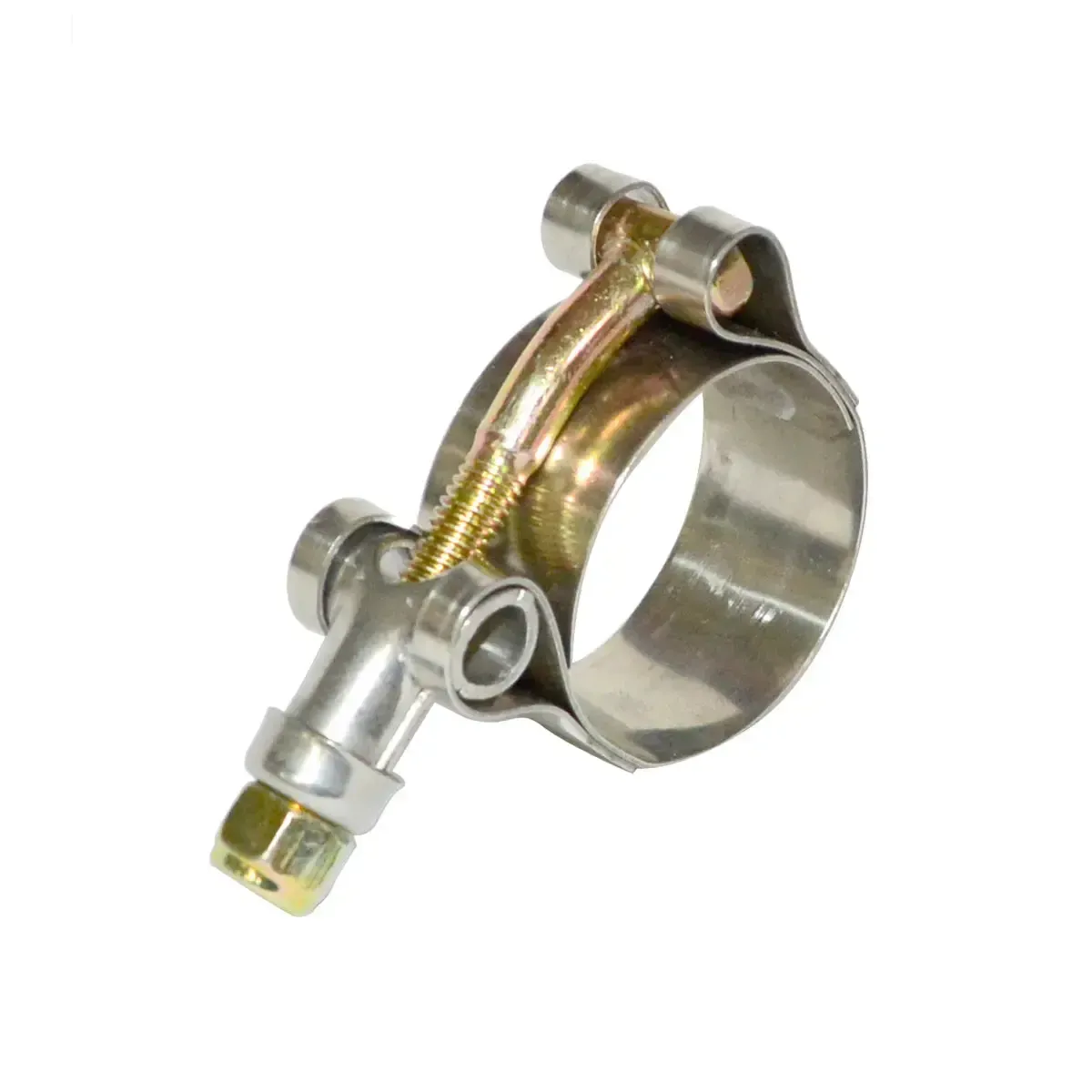

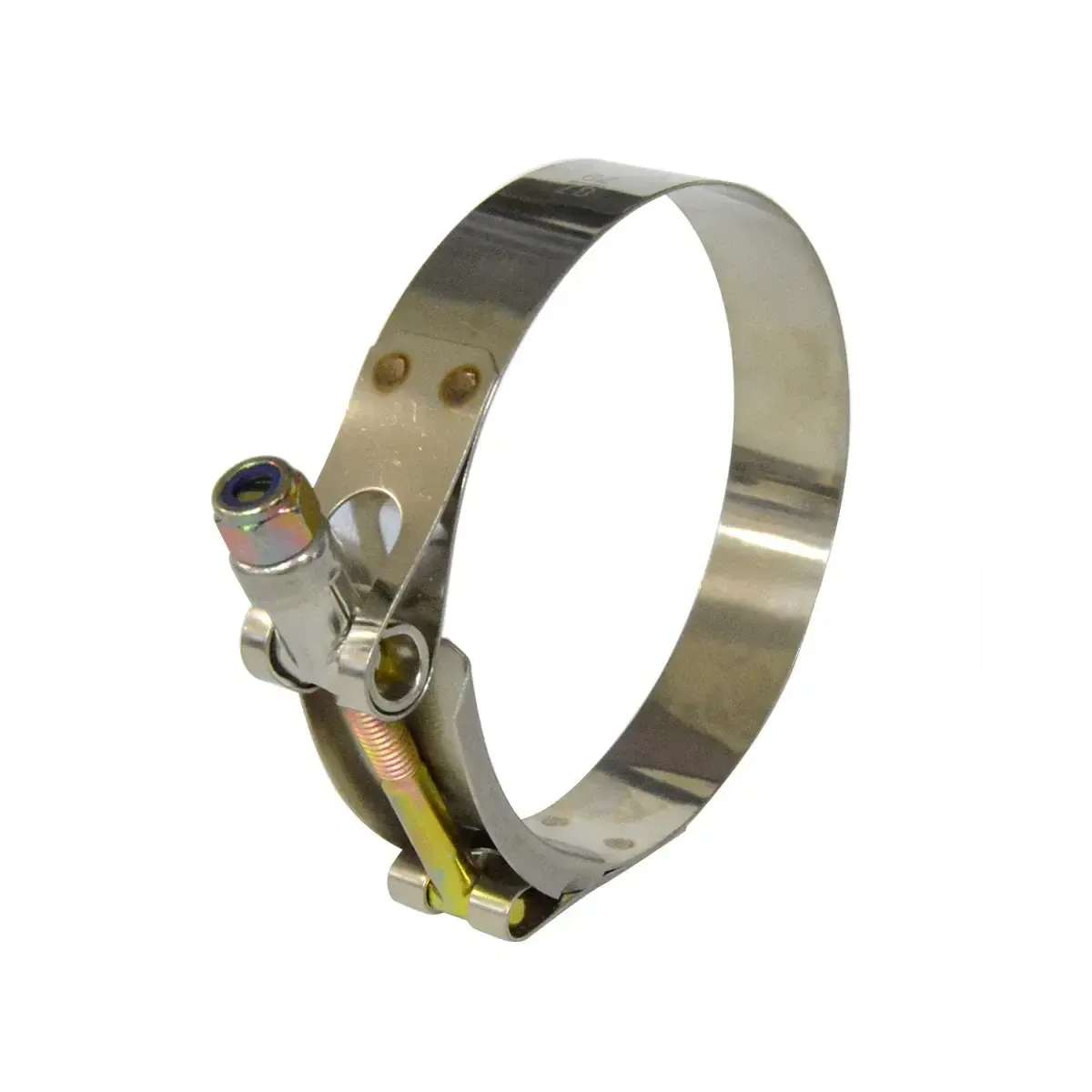

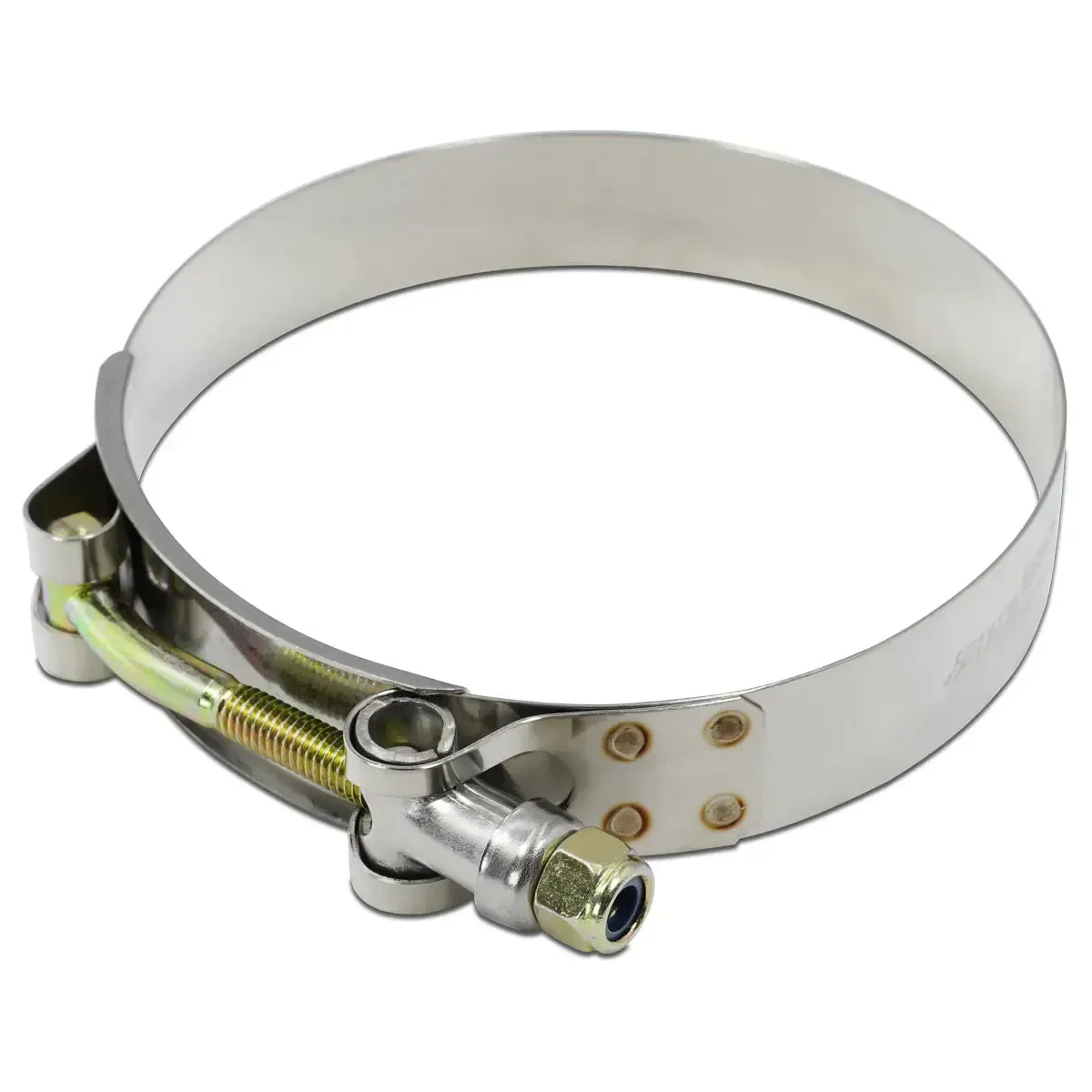

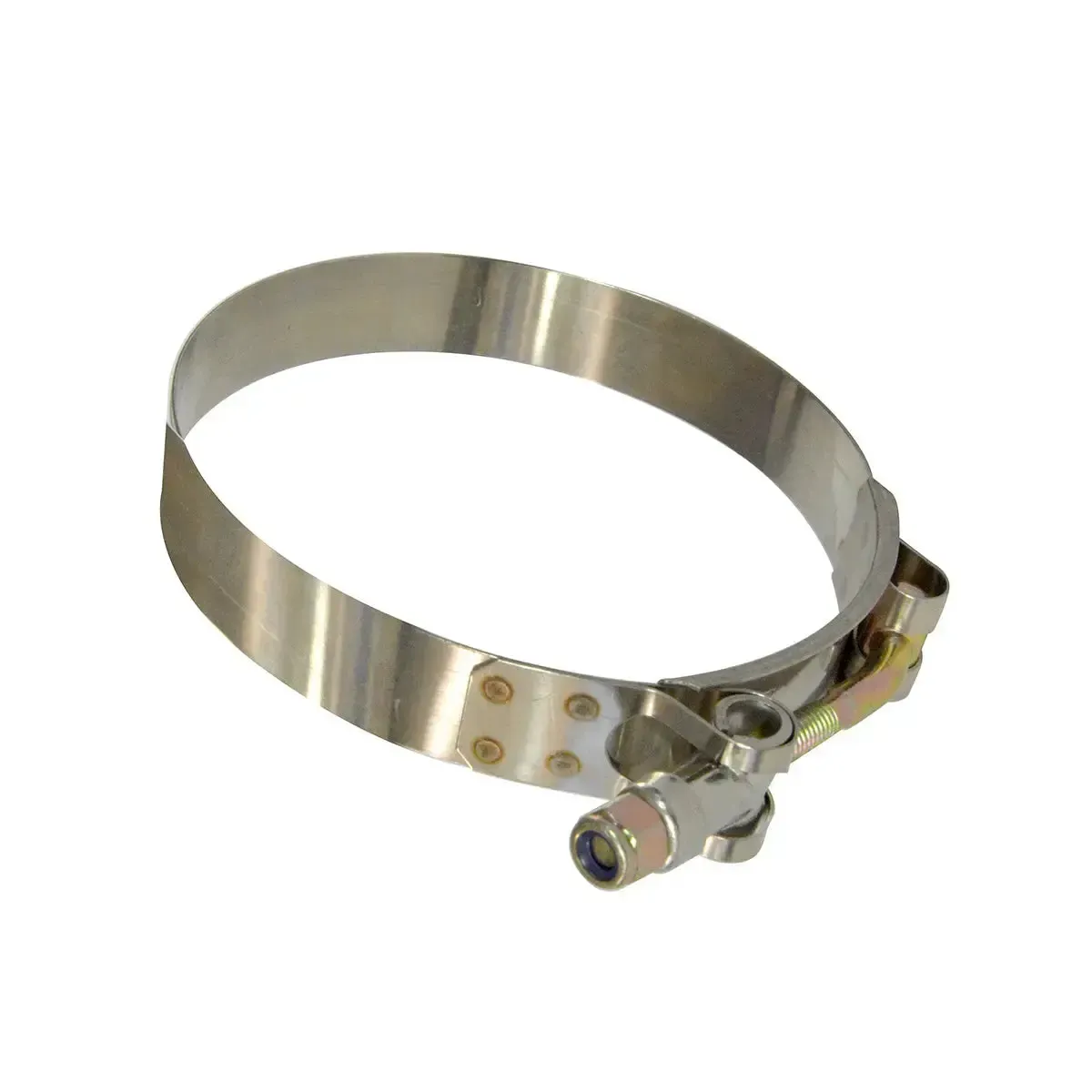

Universal T-Bolt Clamps - 304 SS (5151XXXXX)
Description
Fits: Universal
Part Number: 5151XXXXX
Features
- Heavy-duty 3/4" wide 304 stainless steel band
- Steel T-Bolt and Nyloc nut for strength and reliability
- Provides uniform sealing pressure
- Excellent for stock and high-performance applications

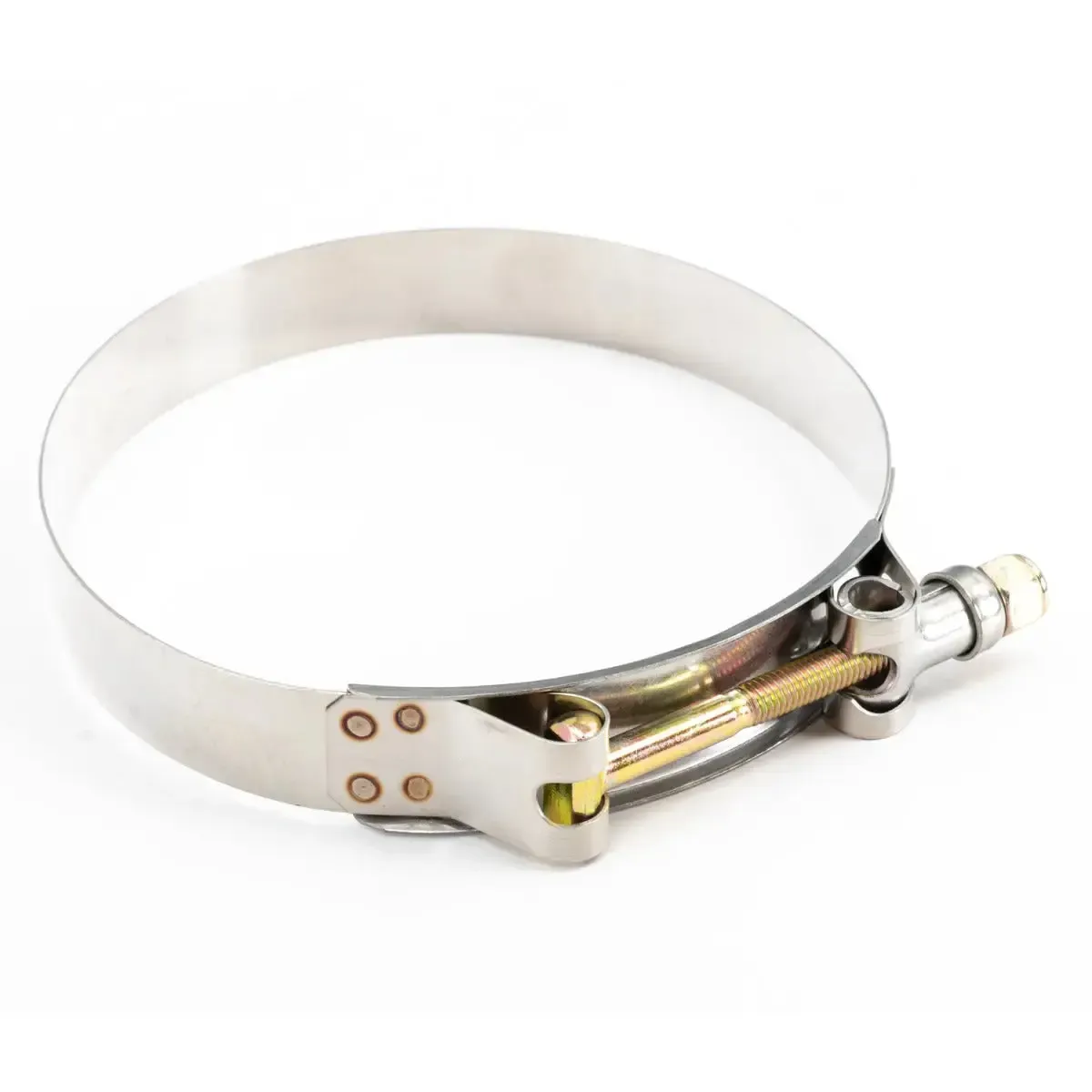

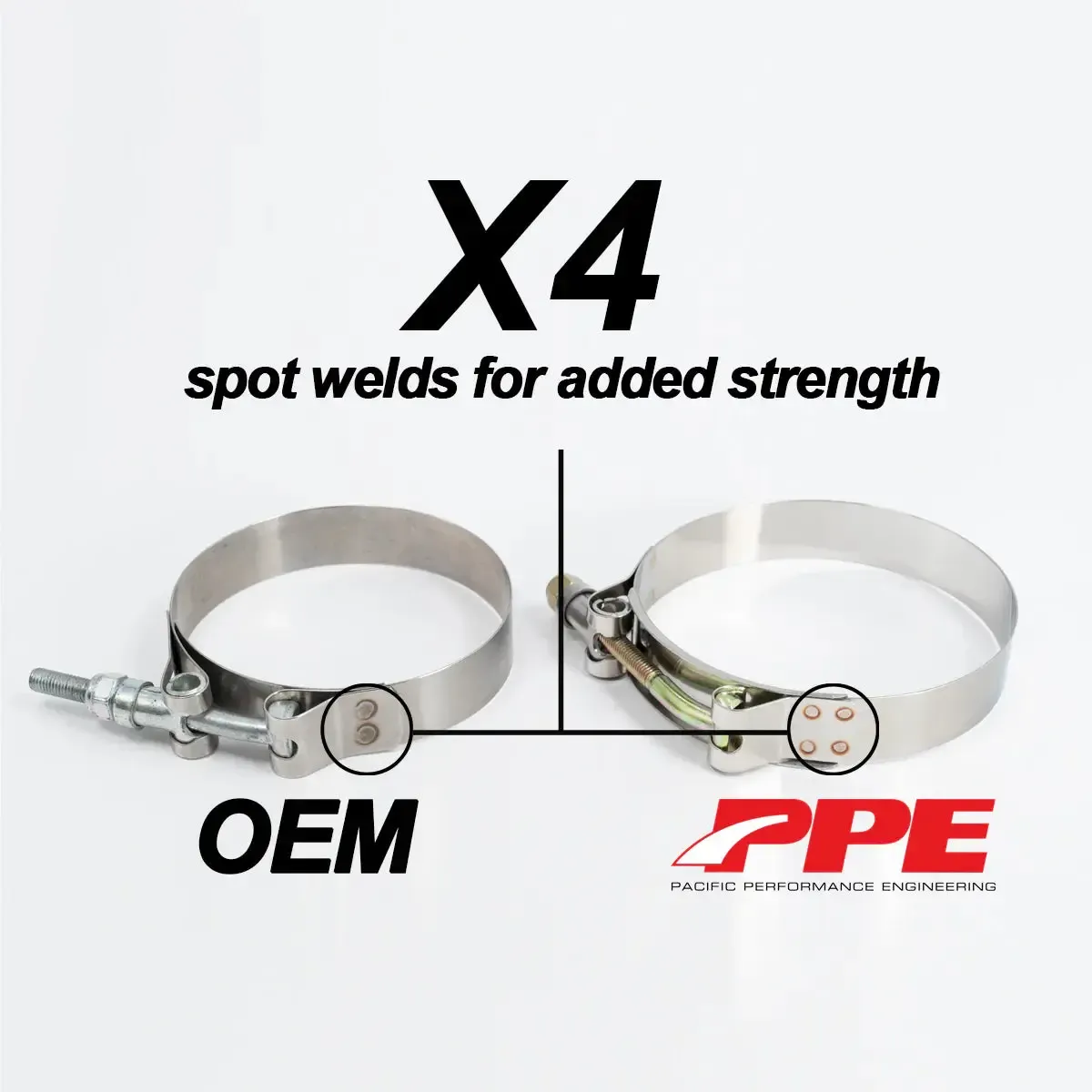

- 4 Spot welds for increased strength
- Warranty
Notes
- The Hose ID and Hose OD are provided for reference, assuming a 1/4" hose wall thickness. For best results, measure the actual installed hose OD and refer to the Clamp Range columns.
Fitment Table
| PPE Part No. | UPC | Clamp ID | Hose ID | Clamp Range |
|---|---|---|---|---|
| 515150100 | 840171210941 | 1.5" | 1" | 37-42 |
| 515175125 | 840171210774 | 1.75" | 1.25" | 43-49 |
| 515200150 | 840171210743 | 2" | 1.5" | 47-55 |
| 515225175 | 840171210620 | 2.25" | 1.75" | 54-62 |
| 515250200 | 840171210606 | 2.5" | 2" | 60-68 |
| 515262212 | 840171210453 | 2.625" | 2.125" | 63-71 |
| 515275225 | 840171210347 | 2.75" | 2.25" | 67-75 |
| 515287237 | 840171210330 | 2.875" | 2.375" | 70-78 |
| 515300250 | 840171210309 | 3" | 2.5" | 73-81 |
| 515325275 | 840171210026 | 3.25" | 2.75" | 79-87 |
| 515350300 | 840171210002 | 3.5" | 3" | 84-92 |
| 515375325 | 840171209808 | 3.75" | 3.25" | 92-100 |
| 515400350 | 840171209785 | 4" | 3.5" | 98-106 |
| 515425375 | 840171209525 | 4.25" | 3.75" | 105-113 |
| 515450400 | 840171209501 | 4.5" | 4" | 108-116 |
| 515475425 | 840171209310 | 4.75" | 4.25" | 114-122 |
| 515500450 | 840171209297 | 5" | 4.5" | 121-129 |
| 515525475 | 840171209167 | 5.25" | 4.75" | 127-135 |
| 515550500 | 840171209150 | 5.5" | 5" | 133-141 |
| 515575525 | 840171208962 | 5.75" | 5.25" | 140-148 |
| 515600550 | 840171208948 | 6" | 5.5" | 146-154 |
| 515625575 | 840171208665 | 6.25" | 5.75" | 152-160 |
| 515650600 | 840171208658 | 6.5" | 6" | 159-167 |
Warranty
Parts Only
- 1-Year Limited Warranty
