Universal HP625 HD 12V Horizontal Air Compressor Kit (HP10631)

Description

Fits: Universal

The Pacbrake HP625 Series 12 Volt Heavy Duty Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 3/4HP air compressor that has a 100% duty cycle (1 hour @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10631

Features

• 100% Heavy Duty Cycle (1 Hour @ 100PSI)
• 3/4 Horsepower Compressor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Copper wire wound permanent magnet motor
• Cast cylinder with a hard-anodized aluminum sleeve

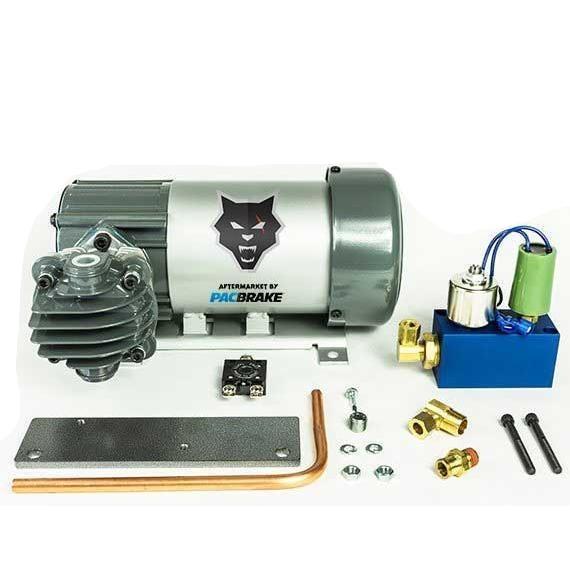

Includes:

• Pacbrake's HP625 Series Pacbrake Air Compressor (Kit Number HP10625H)
• The basic components of the unloader block assembly

Compressor Specifications:

• 12V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Horizontal head configuration
• Size is 11.5 inch x 9.5 inch x 6 inch or 293 mm x 242 mm x 153 mm (LxWxH)
• Weight is 17.7 lbs

Notes

This Kit Does NOT Include the pre-built wiring harnesses

Installation

• For installation instructions, Please Click Here
